Bolt-On by Diode Dynamics

Hood-Mount LED Light Bar Kit: Wrangler JL

DD30-HR

PART #: 1 x DD6104


[ In Stock: 0 pieces ]

Product Details

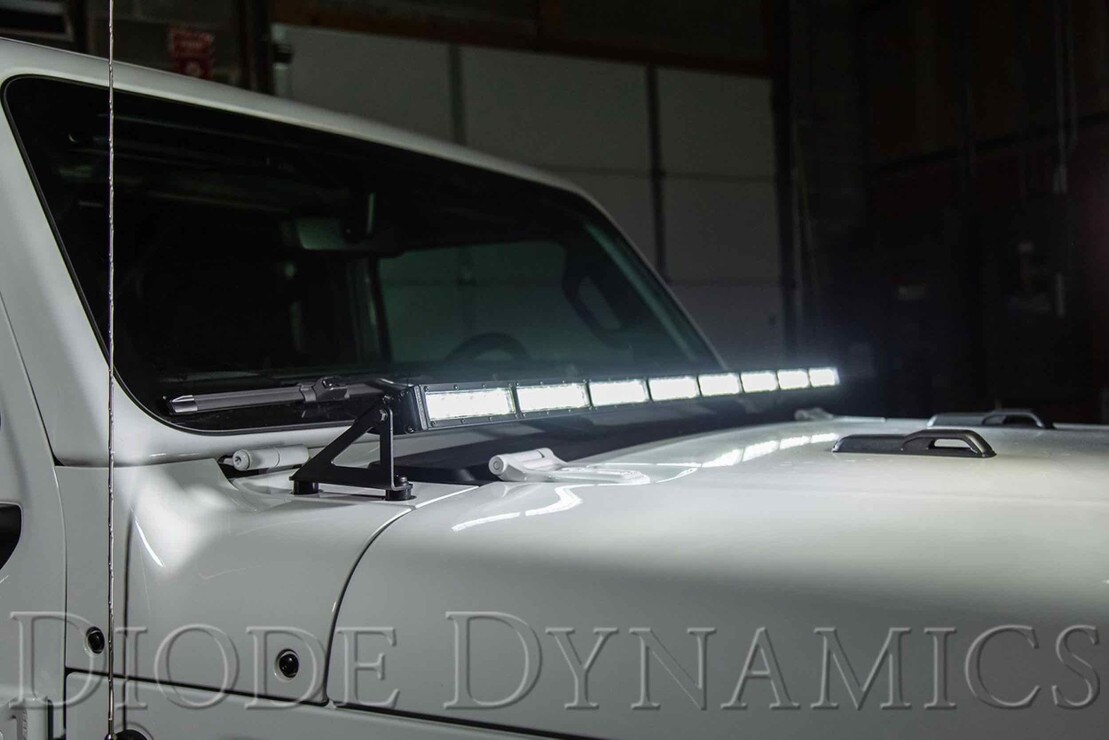

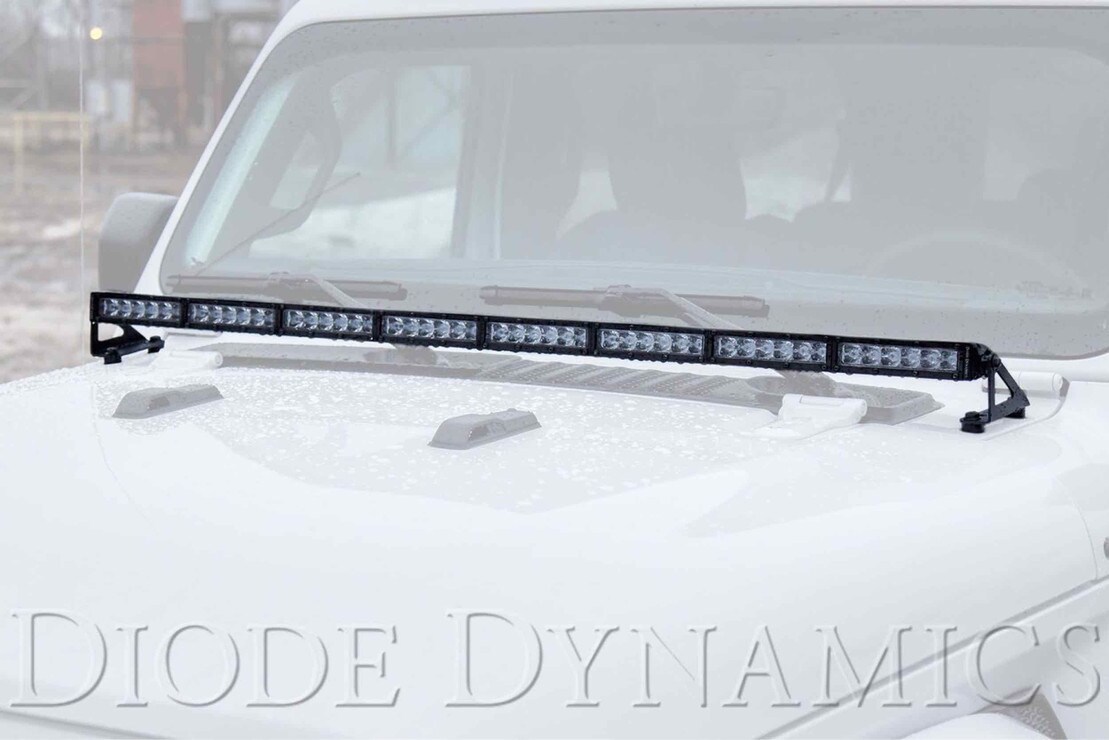

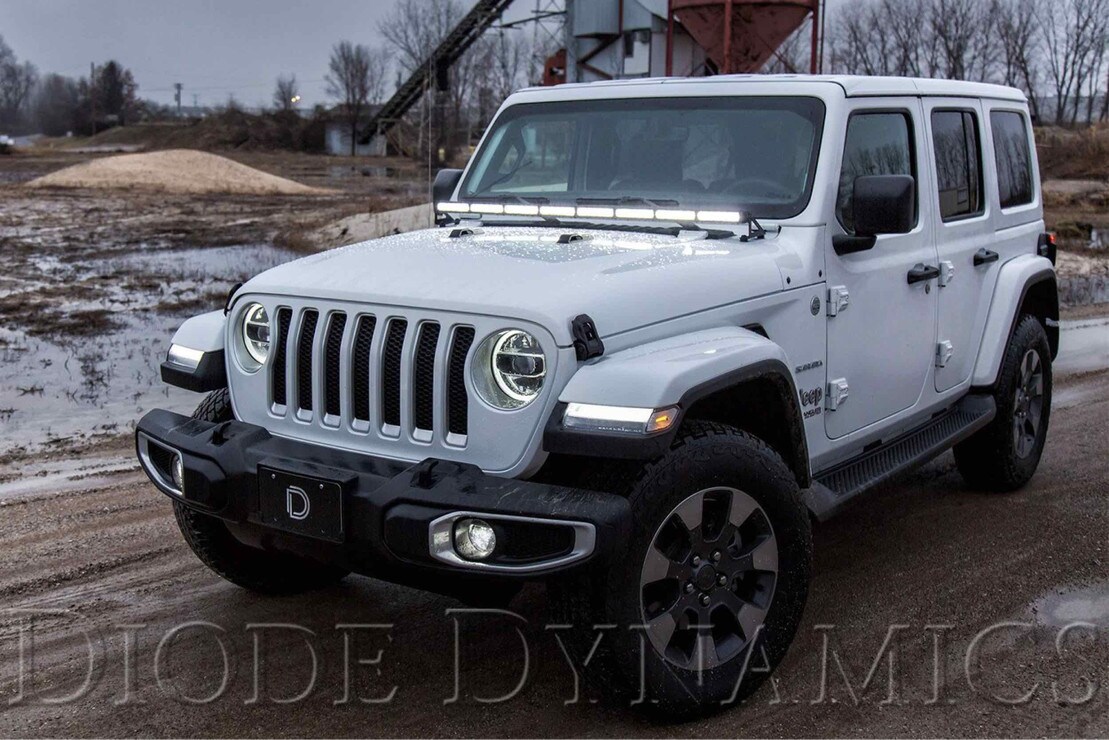

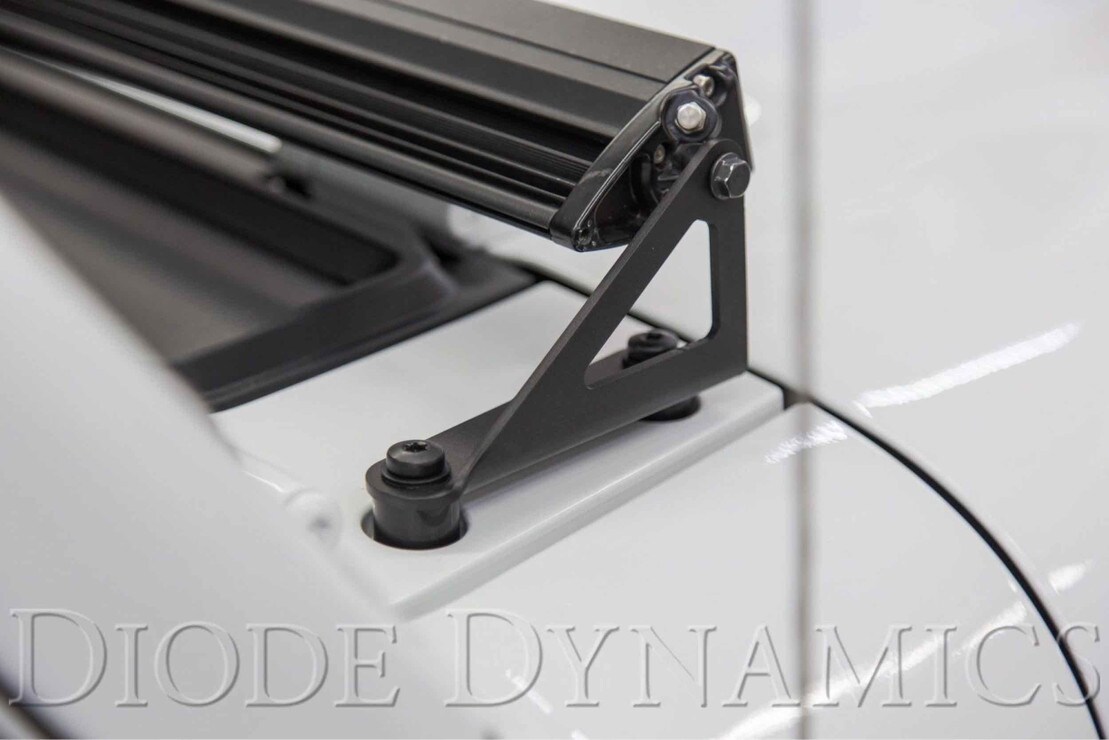

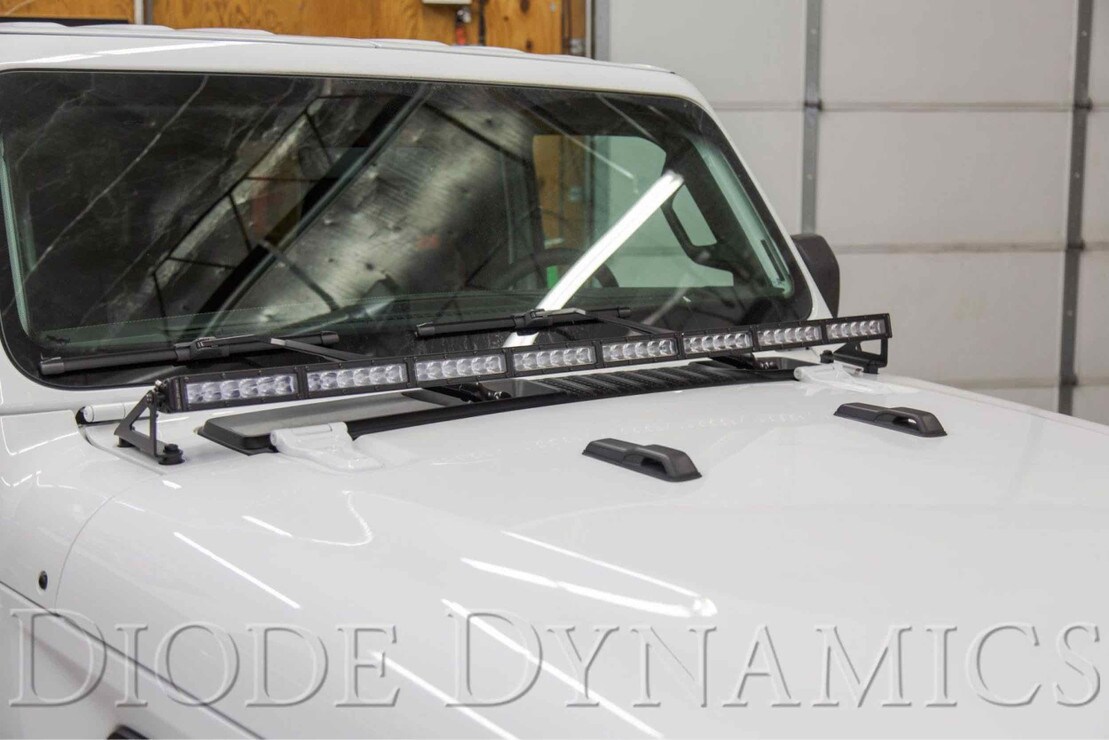

Hood Mounted Lighting: There’s no doubt that when it comes to hood-mounted LED light bars and brackets, the Diode Dynamics kit is about as sleek as it gets. Available as the brackets alone or equipped with their 50” Stage Series LED Lightbar, these parts are CAD designed to ensure a perfect fit without the need for cutting or modifying.

Factory Control: Thanks to a Dual Output Aux Harness, you can use the factory auxiliary switches to control this stunning low profile light.

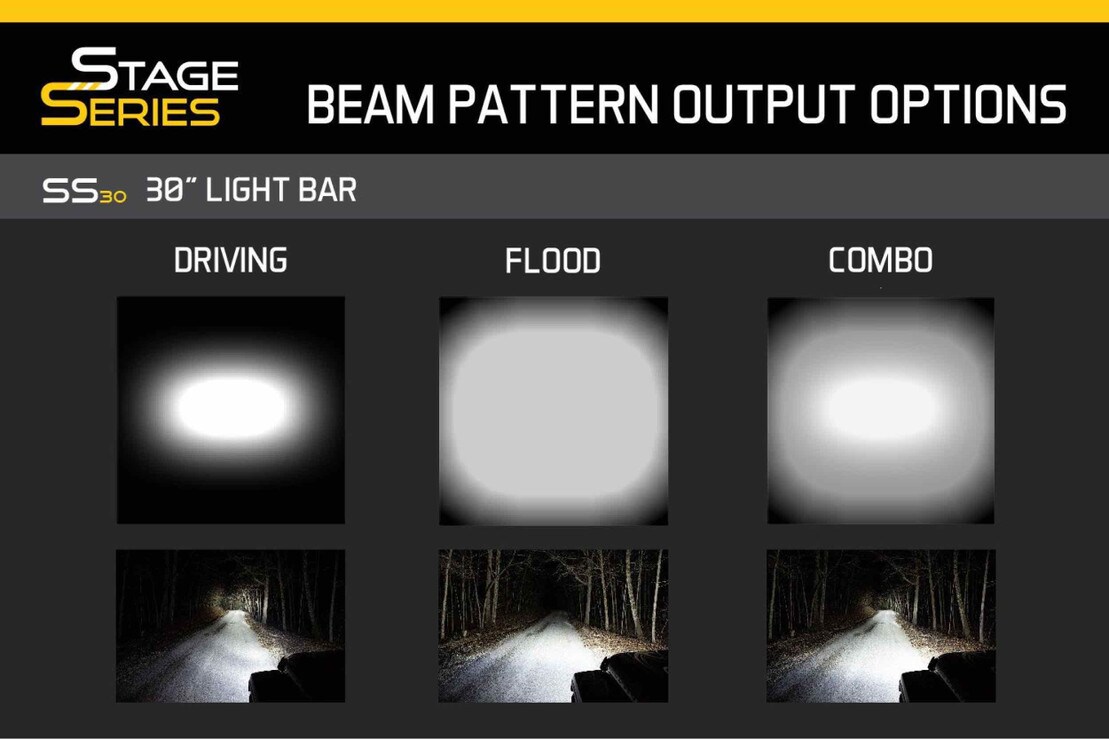

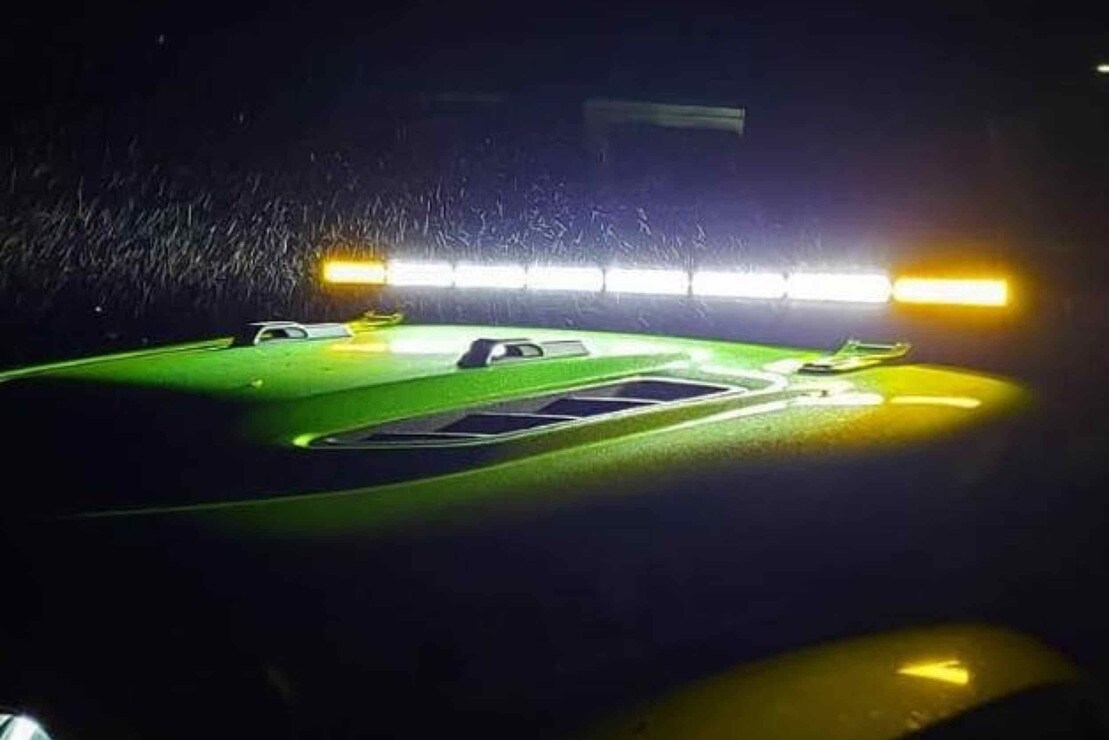

Options: The Stage Series light bar uses advanced TIR optics to ensure no glare from the hood and it can be had in many styles. Choose from three beam patterns, Driving, Flood, or Combo. Then choose if you want white or amber lighting. It’s as custom as you can get.

HR Tested: Here at Headlight Revolution, we spend a lot of time installing and testing the products you’ll find for sale. We don’t favor any particular brand, so our commitment to you is that we’ll deliver the best product for your application, period. To see all of the compatible lighting upgrades for your vehicle, use the "buyers guide" on our homepage! Be sure to check out the HR YouTube channel for hundreds of helpful install and review videos!

Product Specs

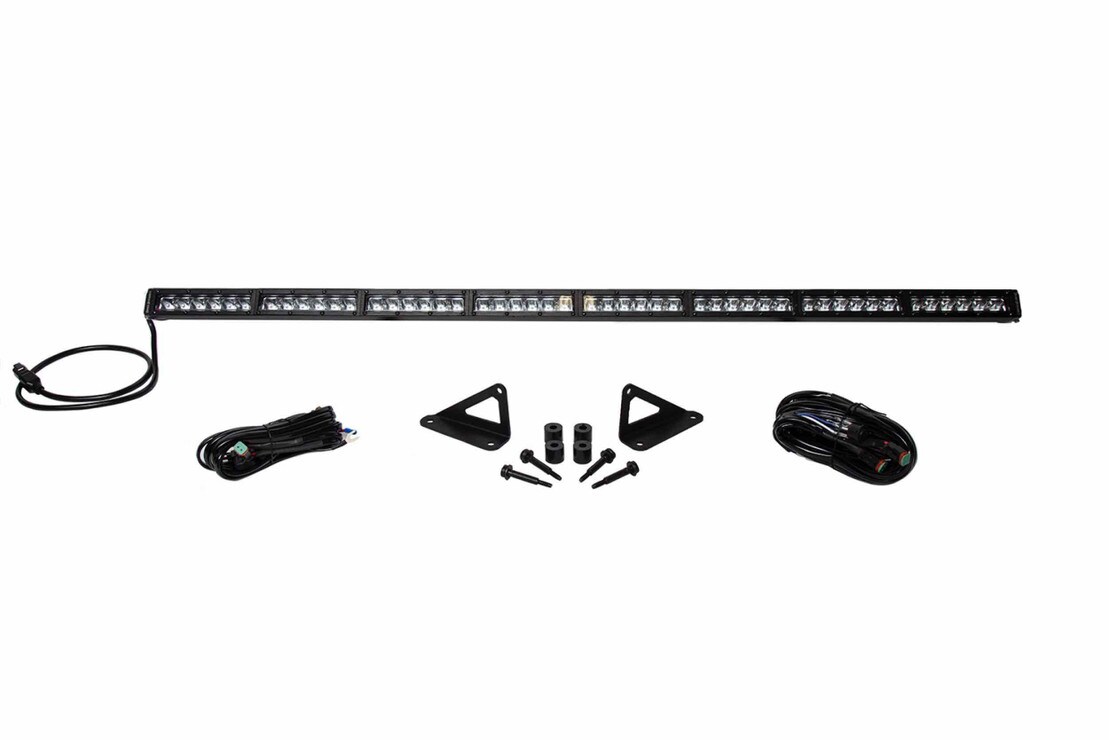

  • What's Included

  • 2x: Application-specific hood brackets

  • 1x: SS50 Stage Series 50" Light Bars

  • 1x: OEM Auxillary Switch Dual-Output Harness

  • 1x: Heavy Duty Single-Output Harness

  • 4x: Delrin spacers

  • 4x: OEM-style automotive grade bolts

  • 1x: Installation Guide

  • Quantity: Pair (Left and Right Side)

  • Warranty: 3 year warranty

  • 100%: Satisfaction Guarantee

  • Compatibility

  • Make: Jeep

  • Model: Wrangler (JL)

  • Years: 2018, 2019, 2020

  • Electrical Compatibility: No electrical issues (tested and confirmed)

  • NOTE: This kit is compatible with all Sport, Sport S, Sahara, and Rubicon trim levels.

  • Tech Specs

  • Color Temp (CCT): 2000K, 6000K

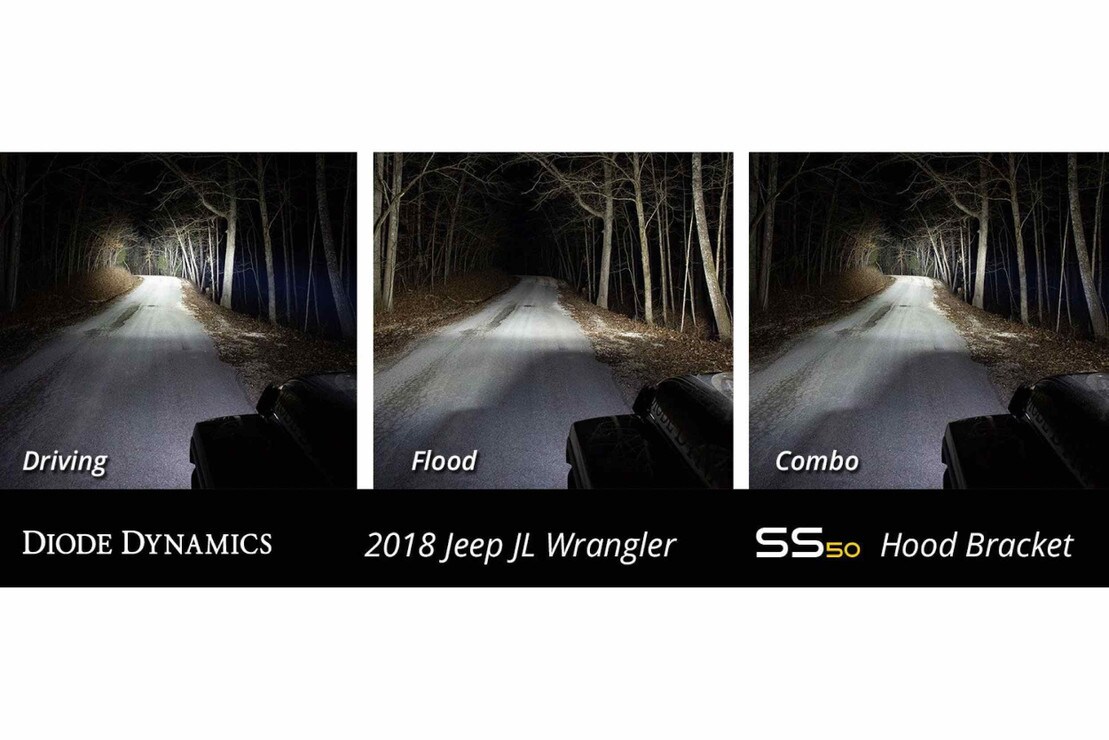

  • Beam Angle: Driving, 20degx8deg, Combo (Driving and Flood), Flood, 80degx50deg

  • Power (watts): 259

  • Operating Voltage: 9-16V

  • Current (amps @ 13.2V): 18.5

  • Polarity: Polarity Specific

  • Operating Temperature: -40C to 85C (-40F to 185F)

  • LED Emitter: Luxeon Z ES

  • Connector(s): Deutsch DT Input

  • Materials: Aluminum PCB, Polycarbonate Lens, Aluminum Heatsink

  • Cooling: Passive, heatsink

  • Intrusion Ratings: IP68 Waterproof

  • Product Dimensions (in): 49x3x1.63
