7x5" Oval Work Light

JW Speaker Model 715

JW20-HR

PART #: 1 x 1801791


[ In Stock: 0 pieces ]

Product Details

Headlight Revolution: Is J.W. Speaker's biggest distributor in the Southeast! From Milwaukee, Wisconsin to Atlanta, GA: We stock and more of their products to our retail and wholesale customer groups and our volume allows us to afford you the best price! If you're interested, but on the edge, give us a call for a quote and we're sure you'll be sold.

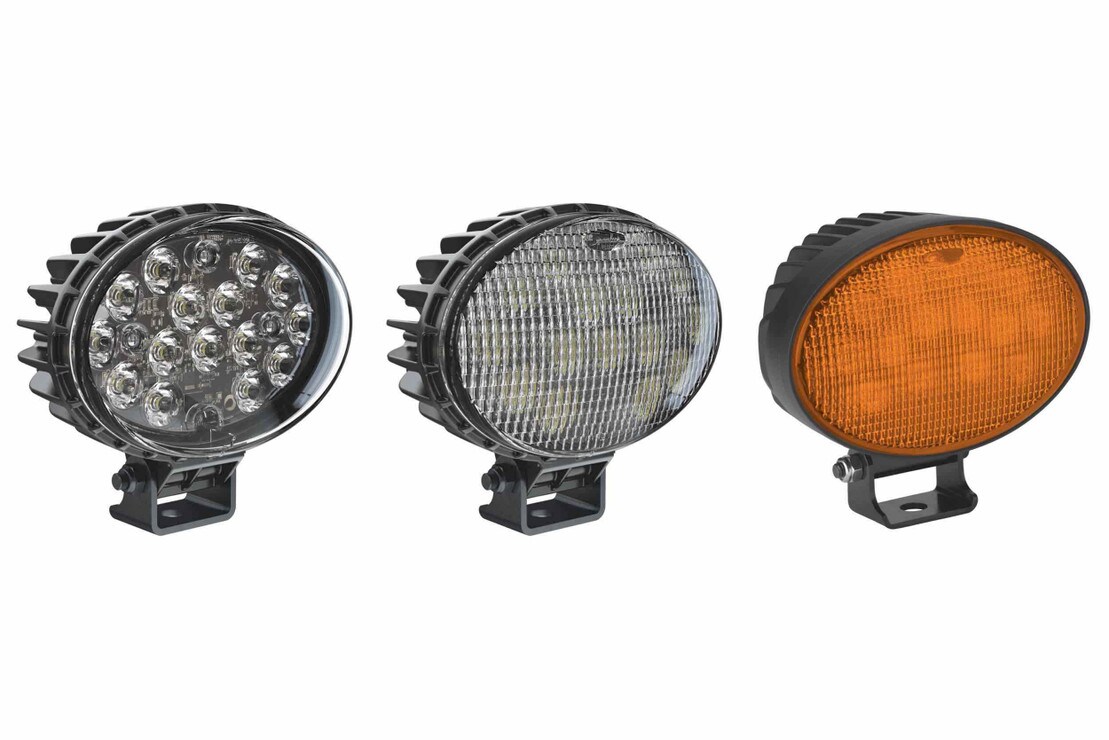

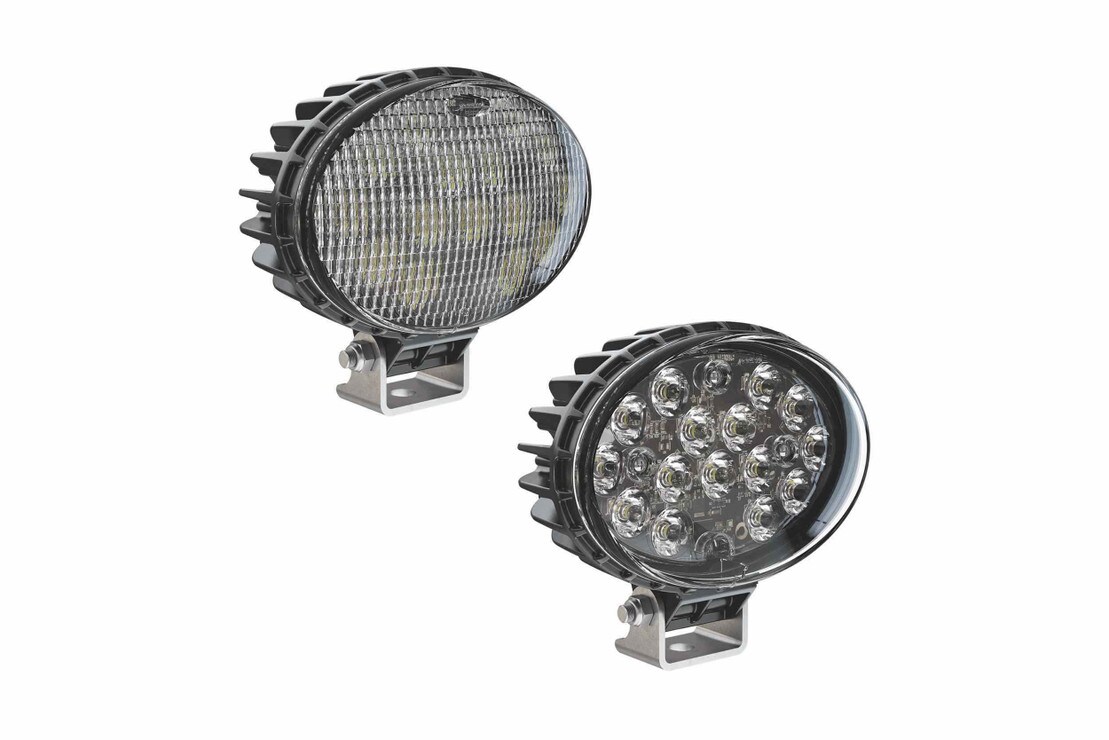

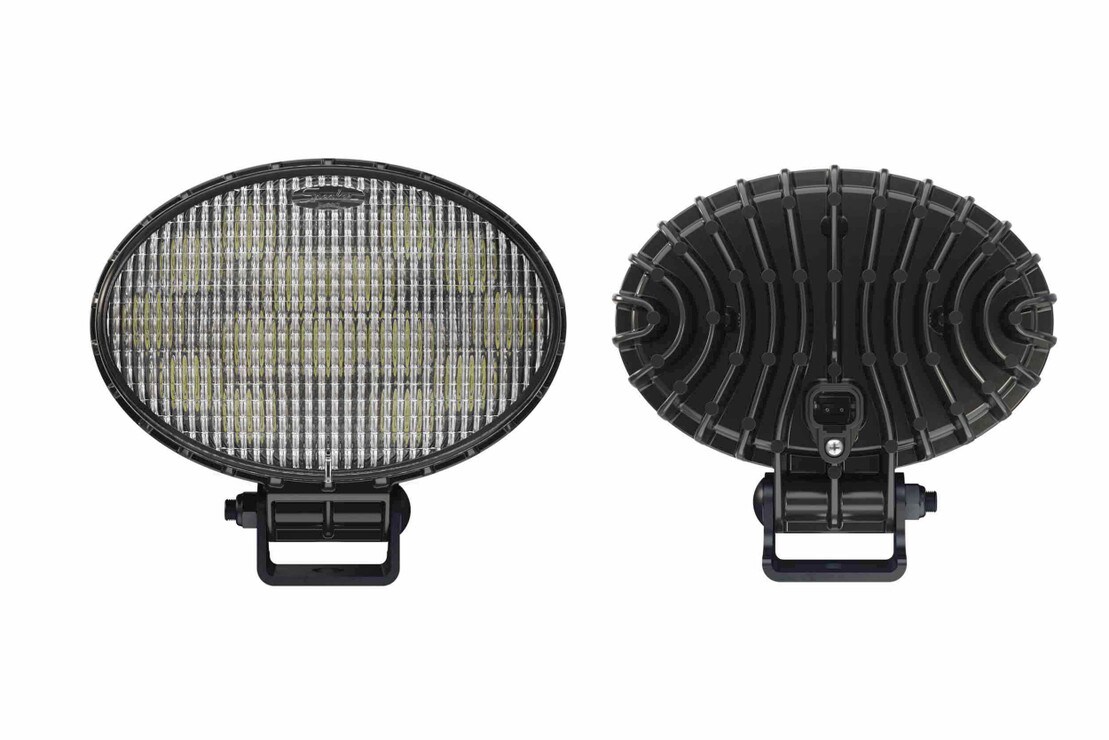

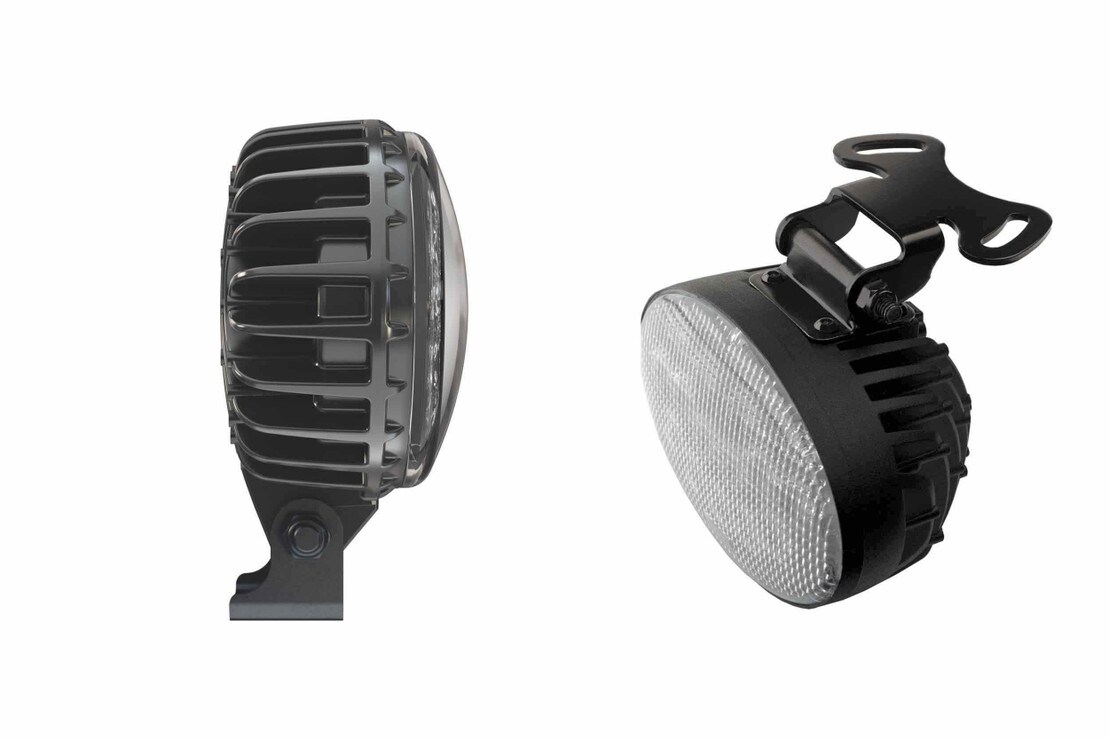

The Model 7150: is one of our brightest and toughest LED construction work lights. It features a rugged yet lightweight single-piece aluminum housing that's not only highly durable, but also corrosion resistant. The Model 7150 is designed with stable harness connections to endure harsh applications, withstanding high pressure washing and steam cleaning. It is an excellent choice for applications such as mining and construction where a high degree of visibility and durability is required.

HR Tested: Here at Headlight Revolution, we spend a lot of time installing and testing the products you'll find for sale. We don't favor any particular brand, so our commitment to you is that we'll deliver the best product for your application, period. To see all of the compatible lighting upgrades for your vehicle, use the Buyer's Guide on our homepage! Be sure to check out the HR YouTube channel for hundreds of helpful install and review videos!

Product Specs

  • What's Included

  • HOUSING: 1x JW Speaker Model 715 LED Oval Work Light

  • PART NUMBER: 1801791, 1801581, 1801621, 1801781, or 1801571

  • WARRANTY: Lifetime Limited

  • OTHER: Instruction Card + JW Speaker Sticker

  • Compatibility

  • 1801791: JW Speaker: 7150F-12/24V - Flood Beam

  • 1801581: JW Speaker: 7150F-12/24V PC Flood Beam w/12" wires

  • 1801621: JW Speaker: 7150S-12/24V PC Spot Beam w/12" wires

  • 1801781: JW Speaker: 7150T-12/24V - Trapezoid Beam

  • 1801571: JW Speaker: 7150T-12/24V PC Trapezoid Beam w/12" wires

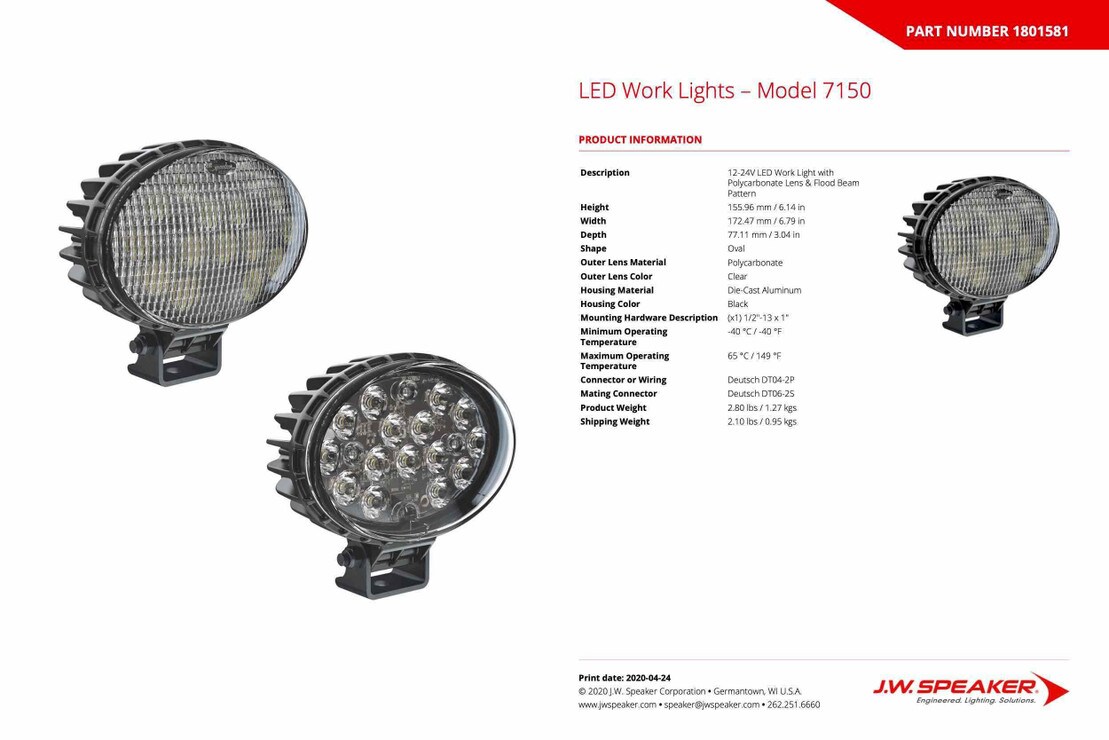

  • Tech Specs

  • Height: 155.96 mm / 6.14 in

  • Width: 172.47 mm / 6.79 in

  • Depth: 77.11 mm / 3.04 in

  • Shape: Oval

  • Outer Lens Material: Polycarbonate

  • Outer Lens Color: Clear

  • Housing Material: Die-Cast Aluminum

  • Housing Color: Black

  • Mounting Hardware Description: (x1) 1/2"-13 x 1"

  • Minimum Operating Temperature: -40 degC / -40 degF

  • Maximum Operating Temperature: 65 degC / 149 degF

  • Connector or Wiring: Deutsch DT04-2P

  • Mating Connector: Deutsch DT06-2S

  • Product Weight: 2.80 lbs / 1.27 kgs

  • Shipping Weight: 2.10 lbs / 0.95 kgs

  • Input Voltage: 12-24V DC

  • Operating Voltage: 10-32V DC

  • Transient Spike Protection: 330V Peak @ 1 HZ-100 Pulses

  • Red Wire Power: Positive

  • Black Wire Ground: Negative

  • Current Draw: 5.50A @ 12V DC, 3.20A @ 24V DC
