3x5" Oval Work Light

JW Speaker Model 771

JW23-HR

PART #: 1 x 1705911


[ In Stock: 0 pieces ]

Product Details

Headlight Revolution: Is J.W. Speaker's biggest distributor in the Southeast! From Milwaukee, Wisconsin to Atlanta, GA: We stock and more of their products to our retail and wholesale customer groups and our volume allows us to afford you the best price! If you're interested, but on the edge, give us a call for a quote and we're sure you'll be sold.

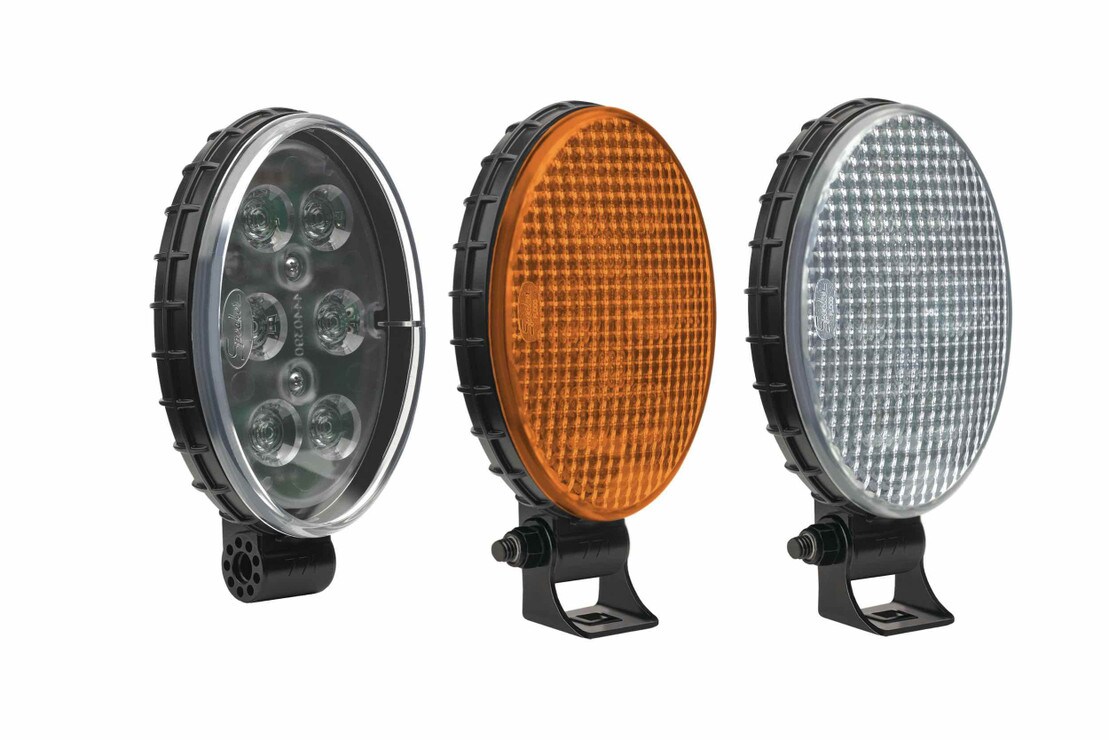

Functionally identical to the Model 770 XD: the Model 771 XD is available in DC configuration and comes in your choice of beam patterns. It features a polycarbonate housing and lens for maximum protection.

Features: UV-resistant polycarbonate lens, Universal mount, Horizontal oval version available (Model 770 XD).

HR Tested: Here at Headlight Revolution, we spend a lot of time installing and testing the products you'll find for sale. We don't favor any particular brand, so our commitment to you is that we'll deliver the best product for your application, period. To see all of the compatible lighting upgrades for your vehicle, use the Buyer's Guide on our homepage! Be sure to check out the HR YouTube channel for hundreds of helpful install and review videos!

Product Specs

  • What's Included

  • HOUSING: 1x JW Speaker Model 771 LED Oval Work Light

  • PART NUMBER: 1705911

  • WARRANTY: Lifetime Limited

  • OTHER: Instruction Card + JW Speaker Sticker

  • Compatibility

  • 1705911: JW Speaker: 771F-12/48V XD LED Worklamp w/Harness

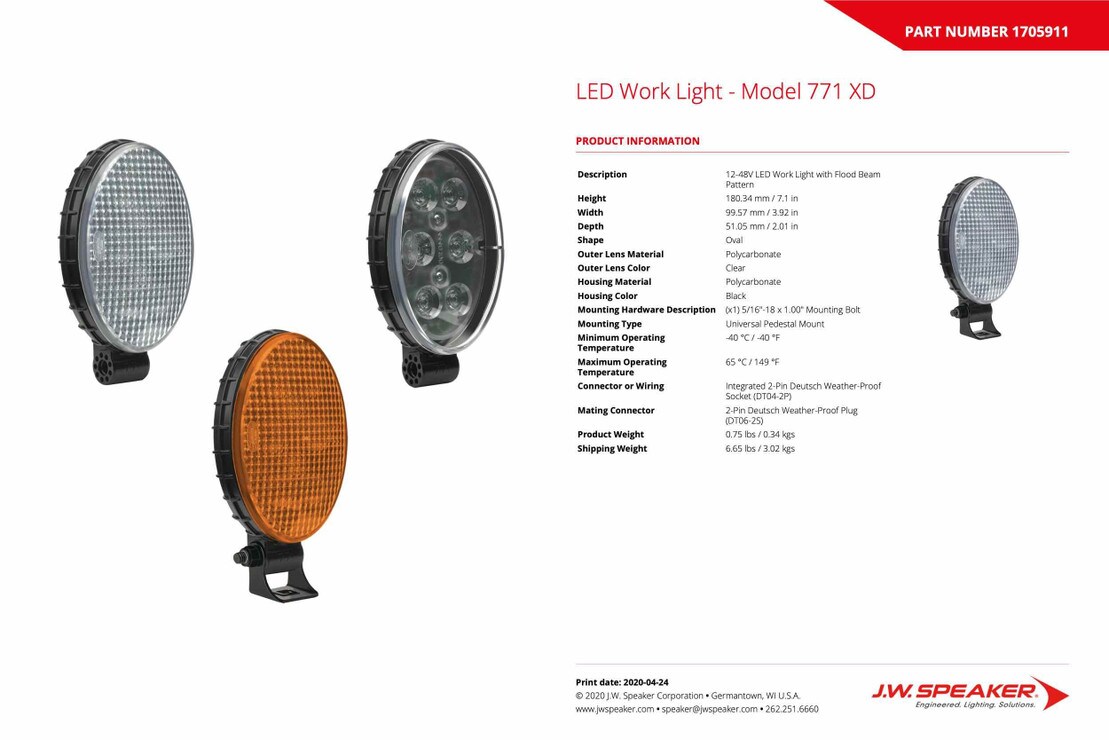

  • Tech Specs

  • Height: 180.34 mm / 7.1 in

  • Width: 99.57 mm / 3.92 in

  • Depth: 51.05 mm / 2.01 in

  • Shape: Oval

  • Outer Lens Material: Polycarbonate

  • Outer Lens Color: Clear

  • Housing Material: Polycarbonate

  • Housing Color: Black

  • Mounting Hardware Description: (x1) 5/16"-18 x 1.00" Mounting Bolt

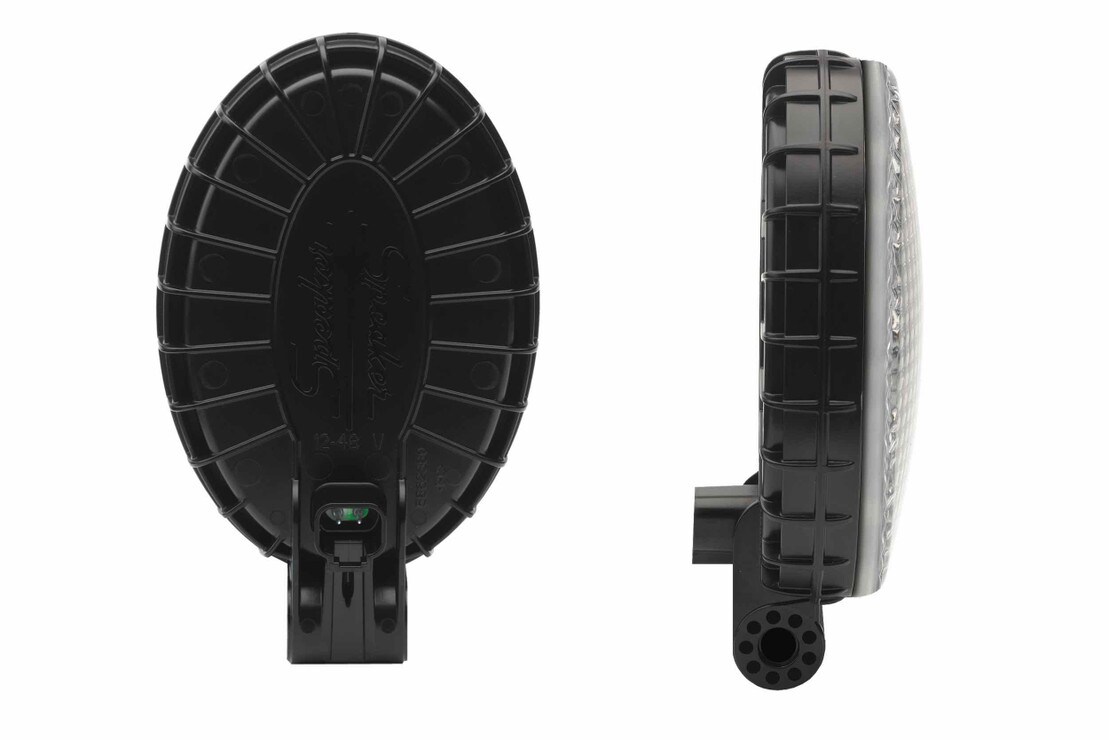

  • Mounting Type: Universal Pedestal Mount

  • Minimum Operating Temperature: -40 degC / -40 degF

  • Maximum Operating Temperature: 65 degC / 149 degF

  • Connector or Wiring: Integrated 2-Pin Deutsch Weather-Proof Socket (DT04-2P)

  • Mating Connector: 2-Pin Deutsch Weather-Proof Plug (DT06-2S)

  • Product Weight: 0.75 lbs / 0.34 kgs

  • Shipping Weight: 6.65 lbs / 3.02 kgs

  • Input Voltage: 12-48V DC

  • Operating Voltage: 10-55V DC

  • Transient Spike Protection: 330V Peak @ 1 HZ-100 Pulses

  • Red Wire: Positive

  • Black Wire: Negative

  • Current Draw: 1.00A @ 12V DC

  • Current Draw: 0.48A @ 24V DC

  • Current Draw: 0.33A @ 36V DC

  • Current Draw: 0.25A @ 48V DC
