Universal 5.75" Round LED Headlights
JW Speaker Model 8620JW27-HR
[ In Stock: 0 pieces ]
Starting at $X.XX/month with
Headlight Revolution: Is J.W. Speaker's biggest distributor in the Southeast! From Milwaukee, Wisconsin to Atlanta, GA: We stock and more of their products to our retail and wholesale customer groups and our volume allows us to afford you the best price! If you're interested, but on the edge, give us a call for a quote and we're sure you'll be sold.

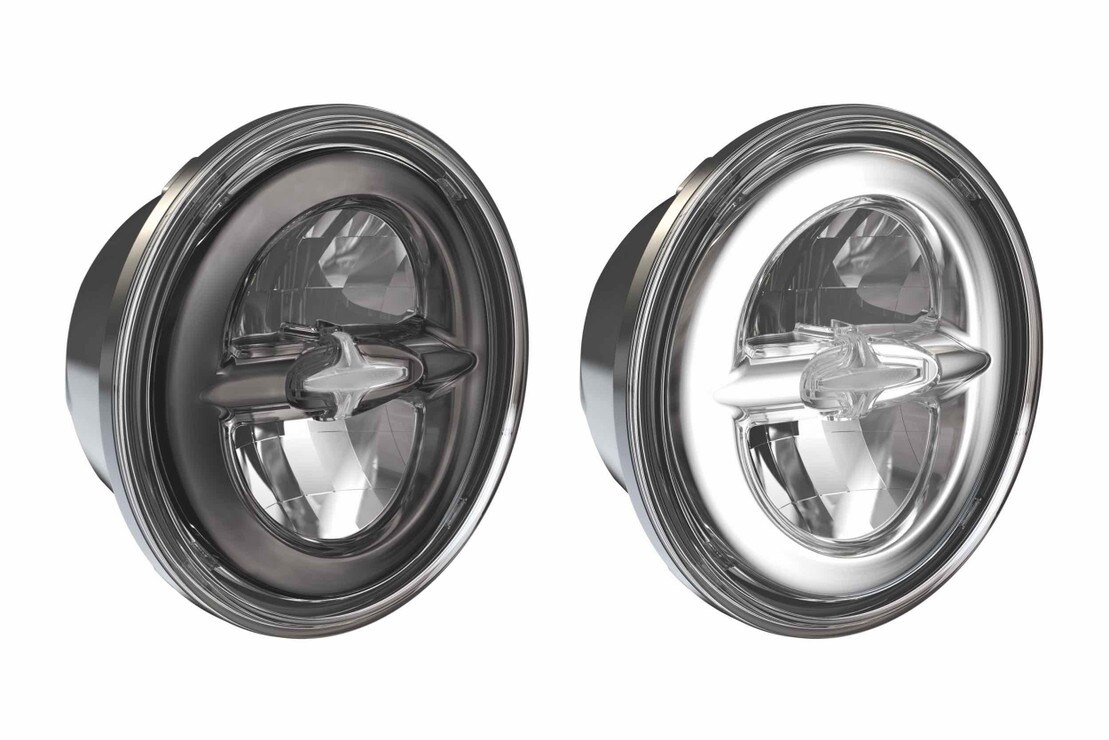

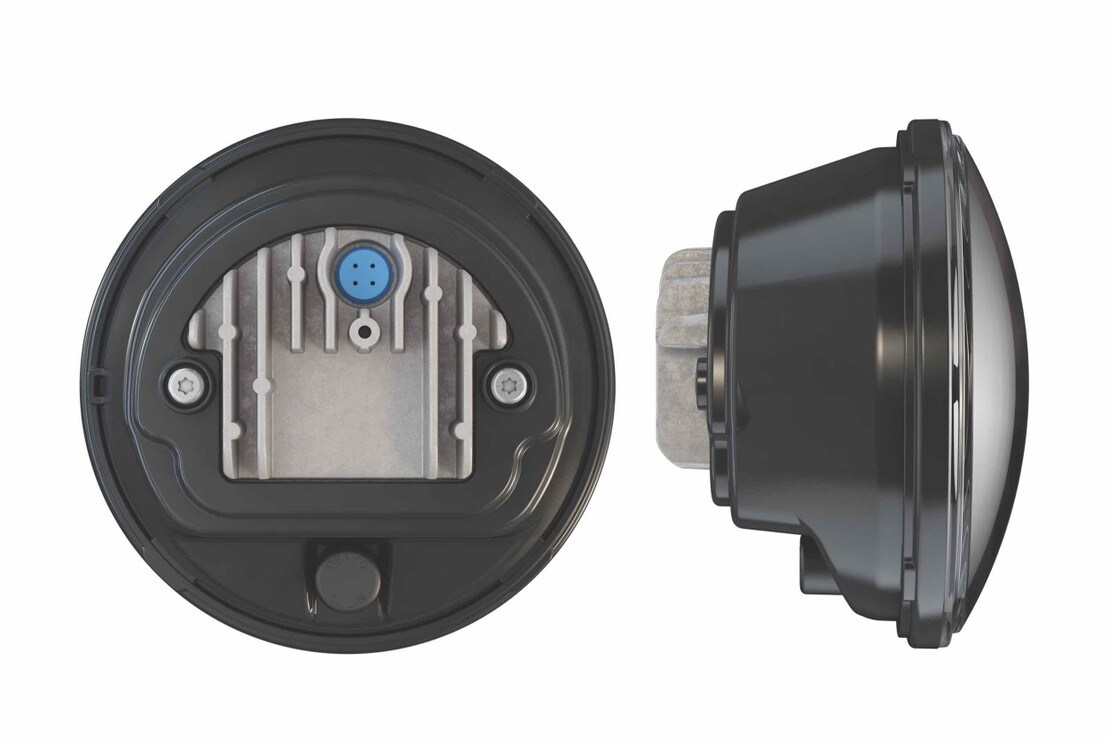

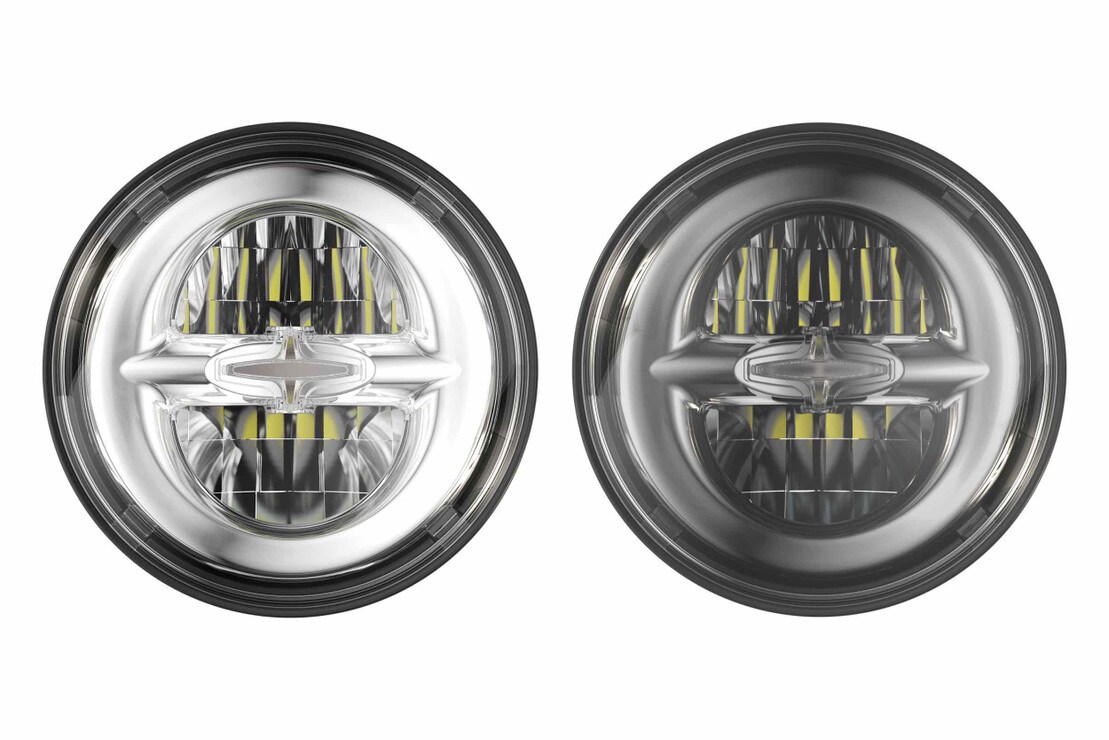

The Model 8620is a 5.75in round reflector based LED motorcycle headlight specifically designed for our motorcycle riders who prefer the classic reflector styling.
The J.W. Speaker Model 8620: offers a best in class DOT & ECE-compliant LED headlight with the more classic reflector styling preferred by some customers. The two-tone, die-cast aluminum housing and state-of-the-art LEDs not only deliver premium performance, but a classic look.
Features: Two-tone die-cast aluminum housing offering rugged durability and state-of-the-art LEDs, Chrome or dark chrome retro-styled face, Engineered to be dual-compliant (DOT & ECE) fixed headlight, making it 100% street legal anywhere in the world!
Fitment: Use our Motorcycle Garage to enter the Make, Model & Year of your motorcycle and find the headlight and mounting hardware that works with your bike.
HR Tested: Here at Headlight Revolution, we spend a lot of time installing and testing the products you'll find for sale. We don't favor any particular brand, so our commitment to you is that we'll deliver the best product for your application, period. To see all of the compatible lighting upgrades for your vehicle, use the Buyer's Guide on our homepage! Be sure to check out the HR YouTube channel for hundreds of helpful install and review videos!

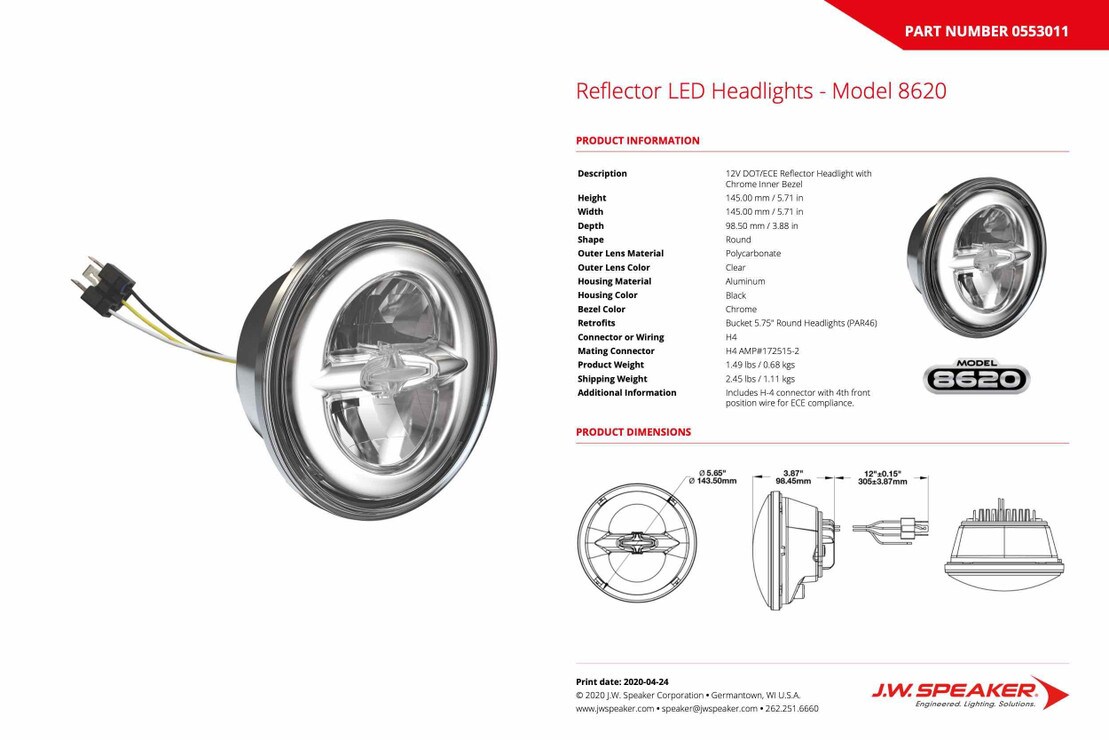

HOUSING: 1x JW Speaker Model 8620 Universal LED Headlight
PART NUMBER: 553011 or 555931
WARRANTY: Lifetime Limited
OTHER: Instruction Card + JW Speaker Sticker
553011: JW Speaker: 8620 - 12V LED Headlight (Chrome)
555931: JW Speaker: 8620 Headlight (Dark Chrome)
Height: 145.00 mm / 5.71 in
Width: 145.00 mm / 5.71 in
Depth: 98.50 mm / 3.88 in
Outer Lens Material: Polycarbonate
Outer Lens Color: Clear
Housing Material: Aluminum
Housing Color: Black
Bezel Color: Chrome
Retrofits Bucket: 5.75" Round Headlights (PAR46)
Connector or Wiring: H4
Mating Connector: H4 AMP#172515-2
Product Weight: 1.49 lbs / 0.68 kgs
Shipping Weight: 2.45 lbs / 1.11 kgs

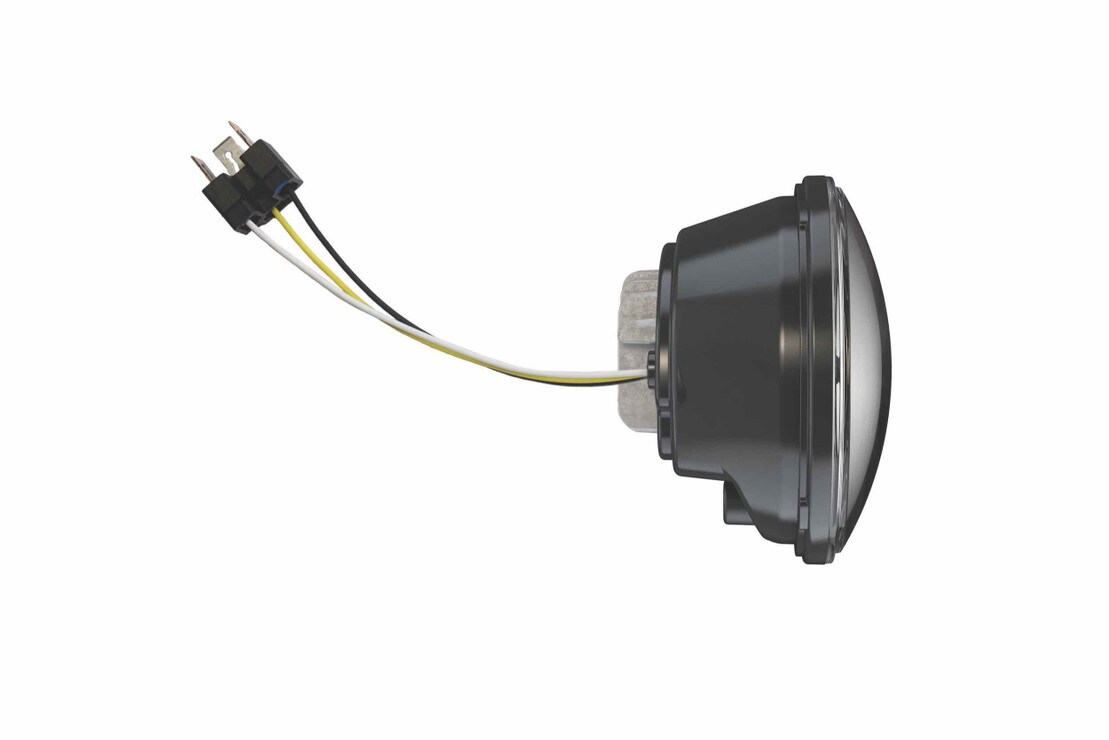

Additional Information: Includes H-4 connector with 4th front position wire for ECE compliance.
Input Voltage: 12V DC
Operating Voltage: 9-16V DC
Black Wire: Ground
White Wire: High Beam
Yellow Wire: Low Beam
Red Wire: Front Position
Current Draw: 2.67A @ 12V DC (High Beam), 1.67A @ 12V DC (Low Beam), 0.13A @ 12V DC (Front Position)
