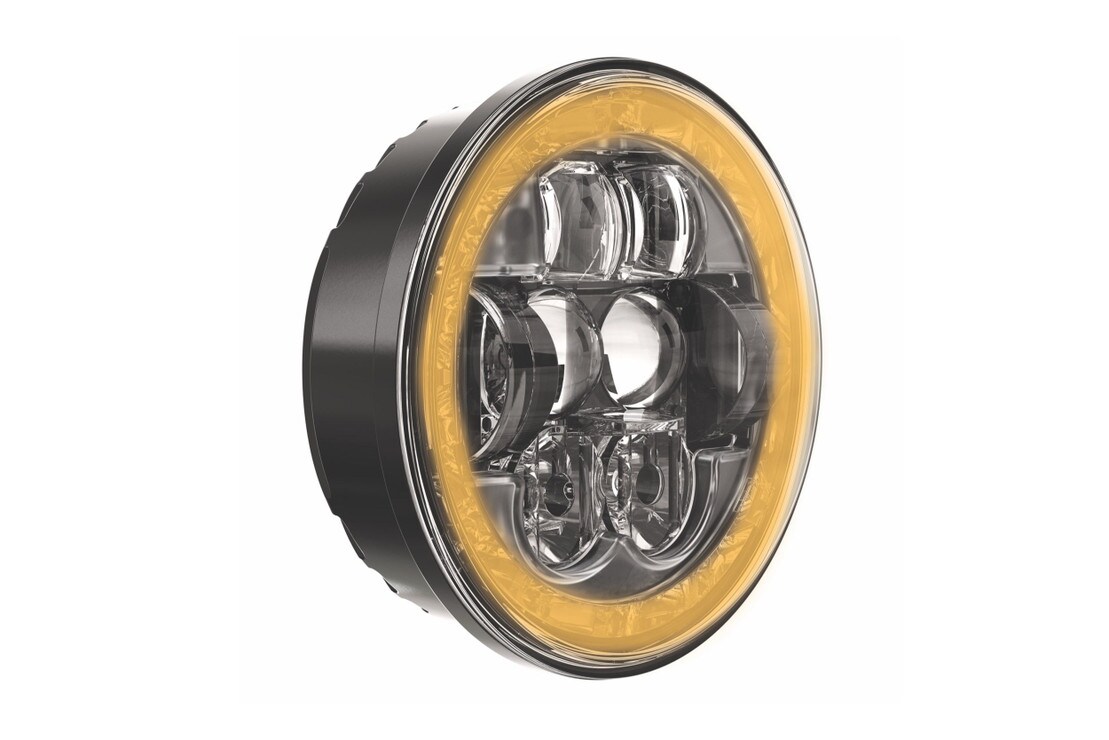

Universal 5.75" Round LED Headlights

JW Speaker Model 8631

JW29-HR

PART #: 1 x 551631


[ In Stock: 0 pieces ]

Product Details

Headlight Revolution: Is J.W. Speaker's biggest distributor in the Southeast! From Milwaukee, Wisconsin to Atlanta, GA: We stock and more of their products to our retail and wholesale customer groups and our volume allows us to afford you the best price! If you're interested, but on the edge, give us a call for a quote and we're sure you'll be sold.

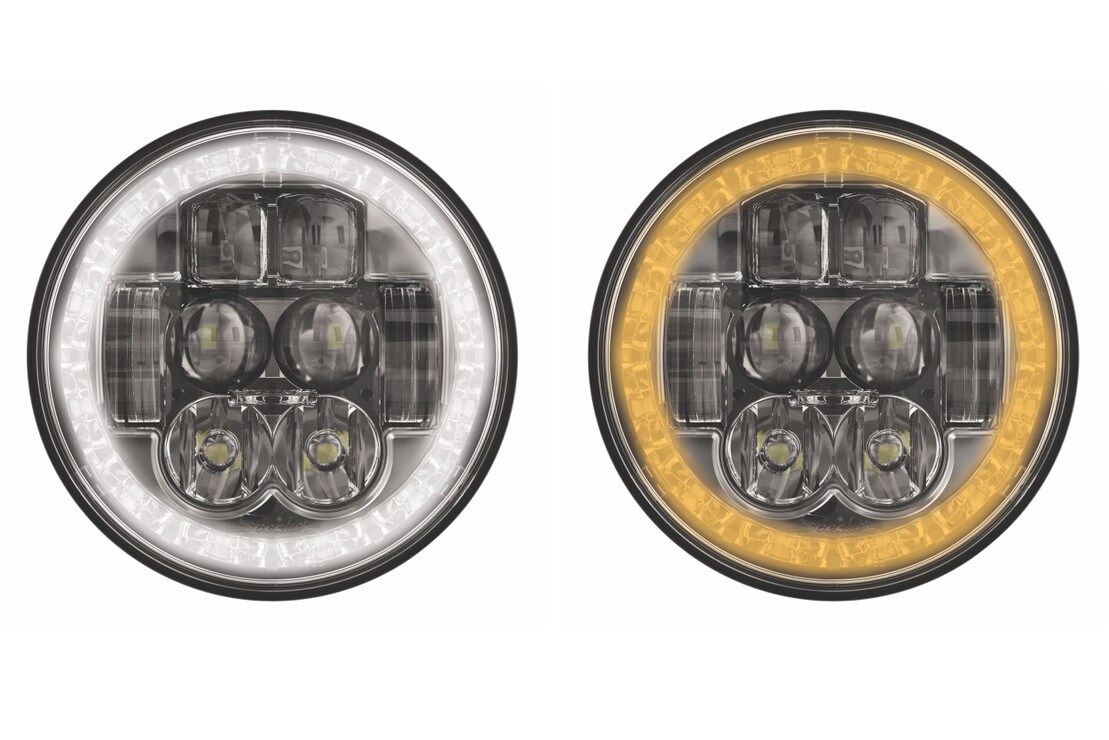

8631 is the 8630 Evo with More: The new Model 8631 Evolution LED headlight brings you all of the same great features found in our Model 8630 Evolution headlight, with the addition of a turn signal. Ideal for Classic car headlights, motorcycle headlight replacement, or anything that fits 5.75in (PAR46) specifications.

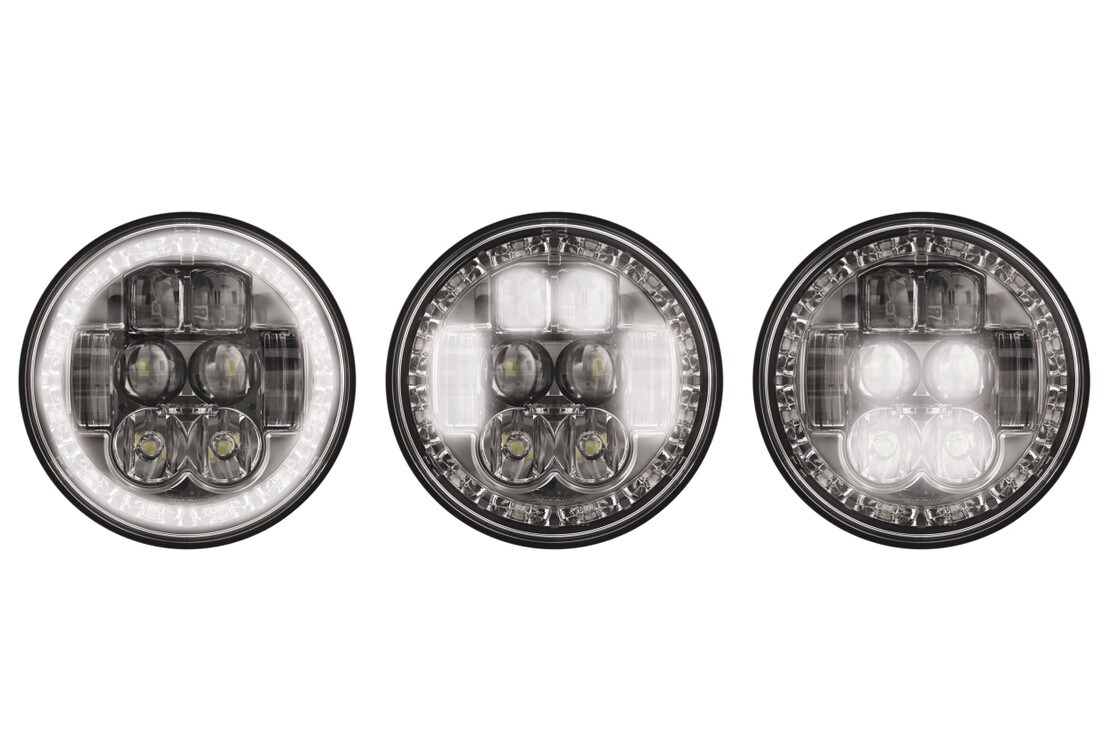

Using high-quality LEDs: to provide superior output levels, the Model 8630 Evolution delivers improved performance over our original Model 8630 LED headlight. This unique-looking headlight features high and low beam, as well as a daytime running light (DRL) & front position (FP) functions.

Features: Combined high and low beam functions, Newer design boasts a 50% increase in high beam intensity, Easy plug and play installation with Delphi wire connector, Front position and DRL functions utilize a new outer ring at high intensities, ECE versions (not for use in the U.S.) feature DRL & FP functions.

HR Tested: Here at Headlight Revolution, we spend a lot of time installing and testing the products you'll find for sale. We don't favor any particular brand, so our commitment to you is that we'll deliver the best product for your application, period. To see all of the compatible lighting upgrades for your vehicle, use the Buyer's Guide on our homepage! Be sure to check out the HR YouTube channel for hundreds of helpful install and review videos!

Product Specs

  • What's Included

  • HOUSING: 1x JW Speaker Model 8631 Universal LED Headlight

  • PART NUMBER: 551631 or 551641

  • WARRANTY: Lifetime Limited

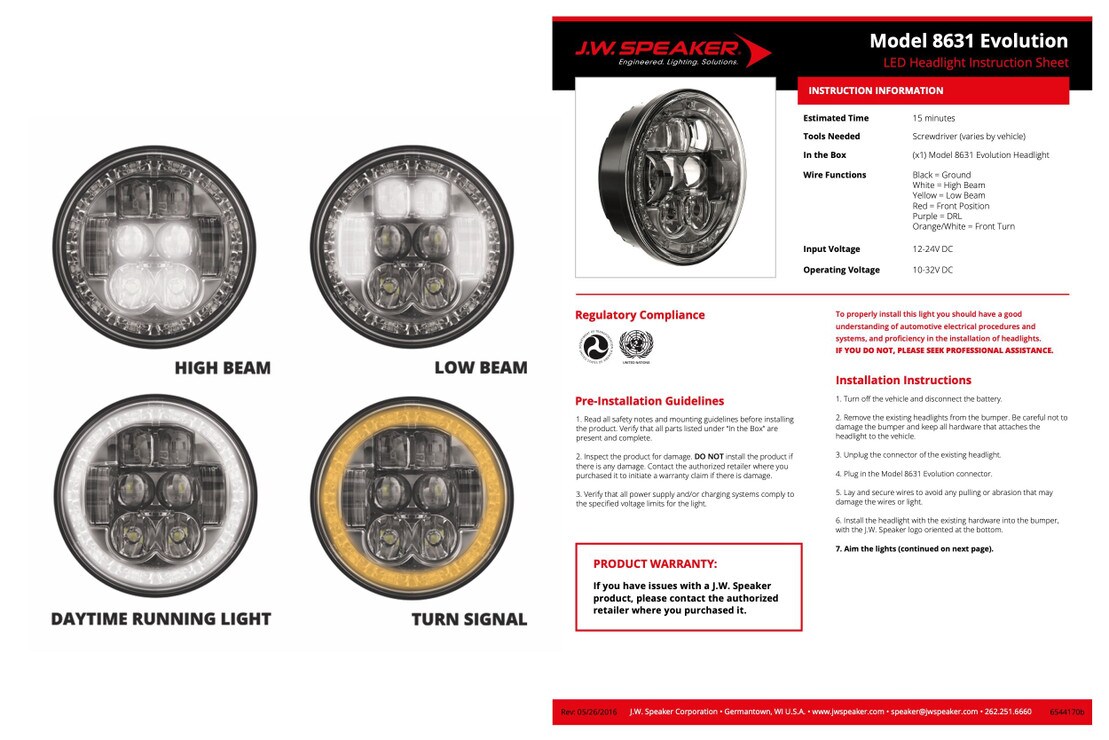

  • OTHER: Instruction Card + JW Speaker Sticker

  • Compatibility

  • 0551631: 12-24V DOT/ECE LED RHT High & Low Beam Headlight with Turn Signal, FP & DRL

  • 0551641: 12-24V ECE LED LHT High & Low Beam Headlight with Turn Signal, FP & DRL

  • Tech Specs

  • Height: 142.24 mm / 5.6 in

  • Width: 142.24 mm / 5.6 in

  • Depth: 86.36 mm / 3.4 in

  • Shape: Round

  • Outer Lens Material: Polycarbonate

  • Outer Lens Color: Clear

  • Housing Material: Die Cast Aluminum

  • Housing Color: Black

  • Bezel Color: Black

  • Minimum Operating Temperature: -34 degC / -29.2 degF

  • Maximum Operating Temperature: 49 degC / 120.2 degF

  • Connector or Wiring: Integral Connector in Housing simulating Delphi 12124107

  • Mating Connector: Delphi 12052848

  • Product Weight: 1.86 lbs / 0.84 kgs

  • Shipping Weight: 1.80 lbs / 0.82 kgs

  • Input Voltage: 12-24V DC

  • Operating Voltage: 10-32V DC

  • Transient Spike Protection: 150V Peak @ 1 HZ-100 Pul

  • Yellow Wire: Low Beam

  • White Wire: High Beam

  • Black Wire: Ground

  • Current Draw: 2.20A @ 12V DC (Low Beam)

  • Current Draw: 1.70A @ 14V DC (Low Beam)

  • Current Draw: 1.10A @ 24V DC (Low Beam)

  • Current Draw: 3.50A @ 12V DC (High Beam)

  • Current Draw: 2.70A @ 14V DC (High Beam)

  • Current Draw: 1.70A @ 24V DC (High Beam)
