Vehicle Specific from KC Hi-Lites

KC Hi-Lites Gravity G4 Fog Lights: Toyota Trucks (12-20)

KC46-HR

PART #: 1 x KC501


[ In Stock: 0 pieces ]

Product Details

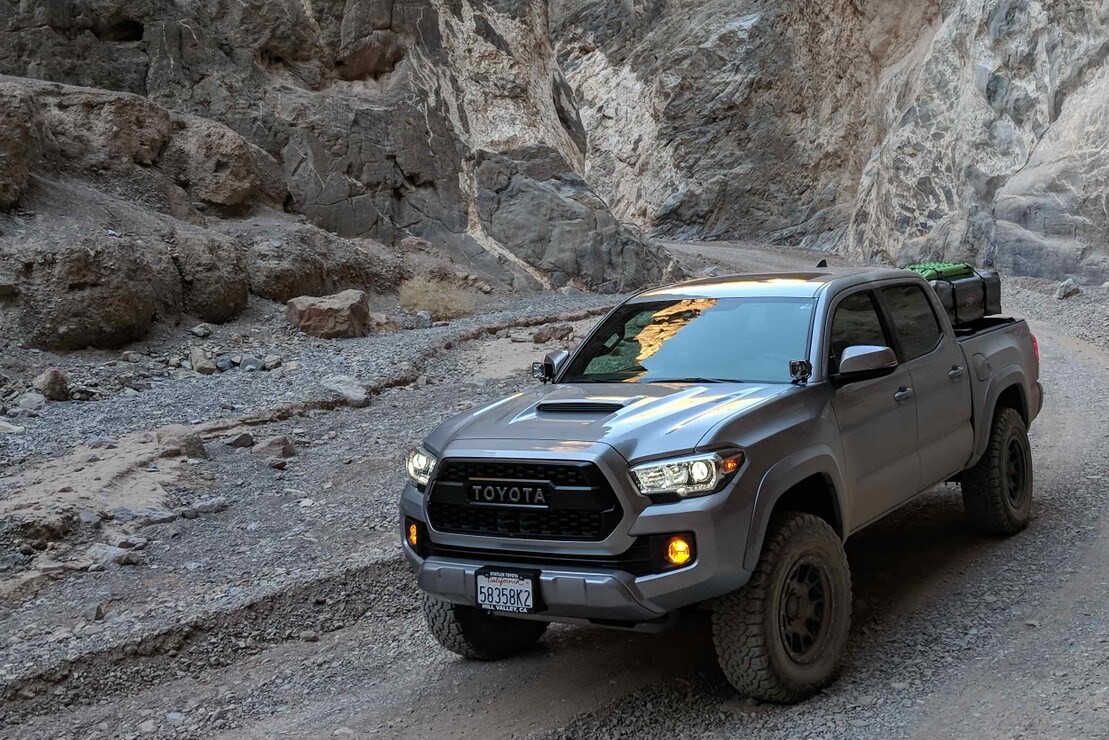

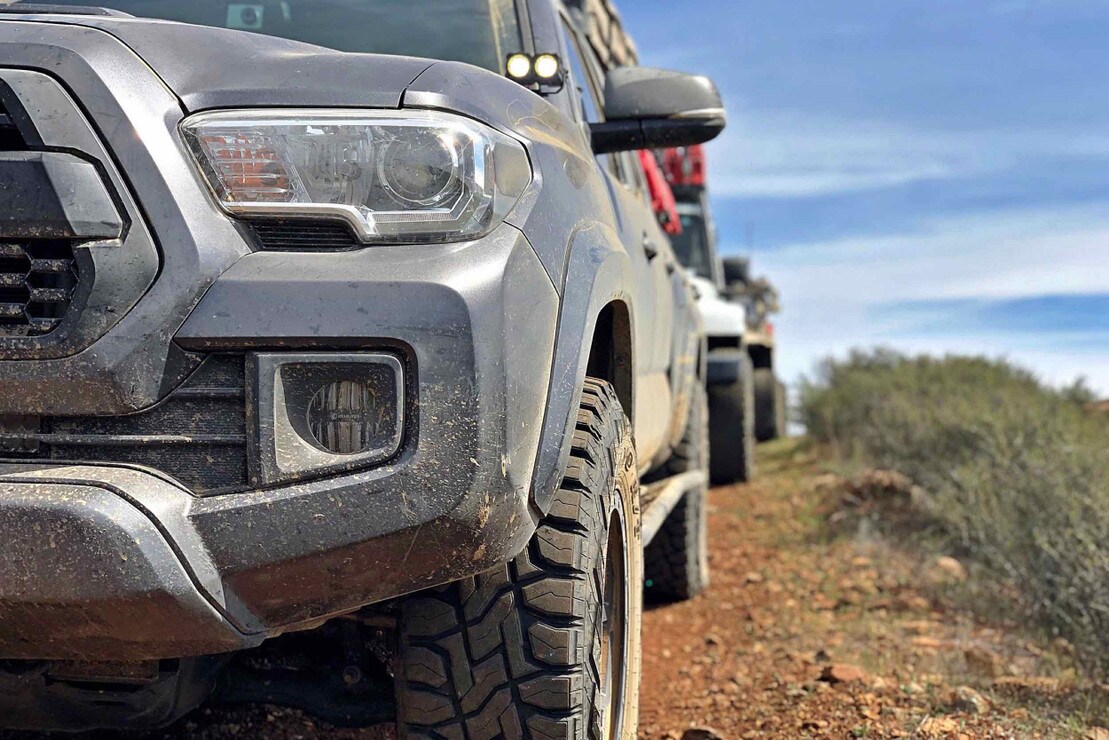

KC's Gravity: G4 Toyota LED fog light system mounts directly to your Toyota, Lexus or Scion's OEM fog lamp locations. Give your vehicle an LED upgrade and a clean, factory installed look without having to drill or cut your bumper.

TOYOTA, LEXUS AND SCION OE FOG LIGHT MOUNTING: Toyota arguably makes some of the toughest and most dependable vehicles on the road today, offering versatile performance and unrivaled durability, much like our Gravity G4 LED. Our G4 LED's pair perfectly with various 2006-2019 Toyota, Lexus and Scion models, mounting directly to factory OEM bolt holes delivering extremely powerful and balanced fog beam output.

KC's Gravity: G4 Tacoma kit also works with various factory Toyota, Lexus, and Scion vehicles equipped with OE Fog Light Systems: 2012-2019 Toyota Tacoma, 2010-2019 Toyota 4Runner (Base/SR5 Only), 2014-2019 Toyota Tundra, 2006-2012 Toyota Rav4, 2013-2014 Scion TC, 2013-2015 Lexus: IS,ES,GS,RX,LX.

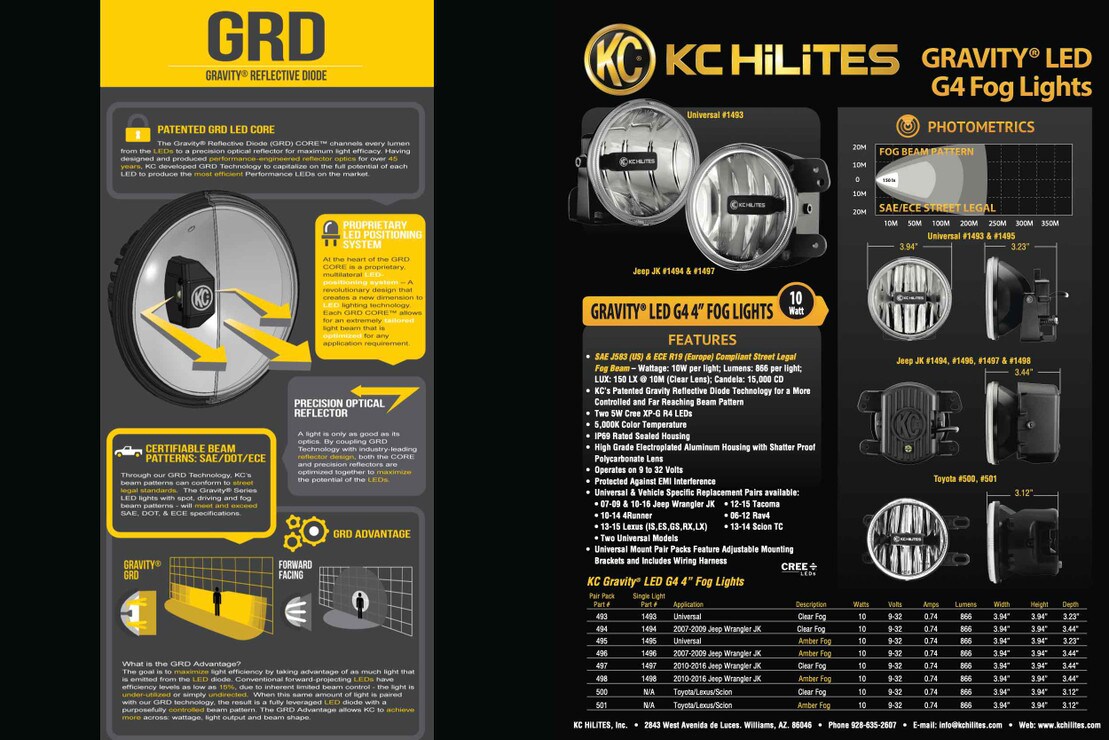

Gravity EXTREME OUTPUT AND EFFICIENCY: The 4" Gravity LED Fog Lights are powered by KC's patented Gravity Reflective Diode (GRD) and optical reflectors to deliver an incredible 150 lx @ 10m using only .74 Amps per light. Our GRD system aims the LEDs into the precision designed reflectors to capture all the light and project it forward. This results in a more controlled and far reaching beam pattern.

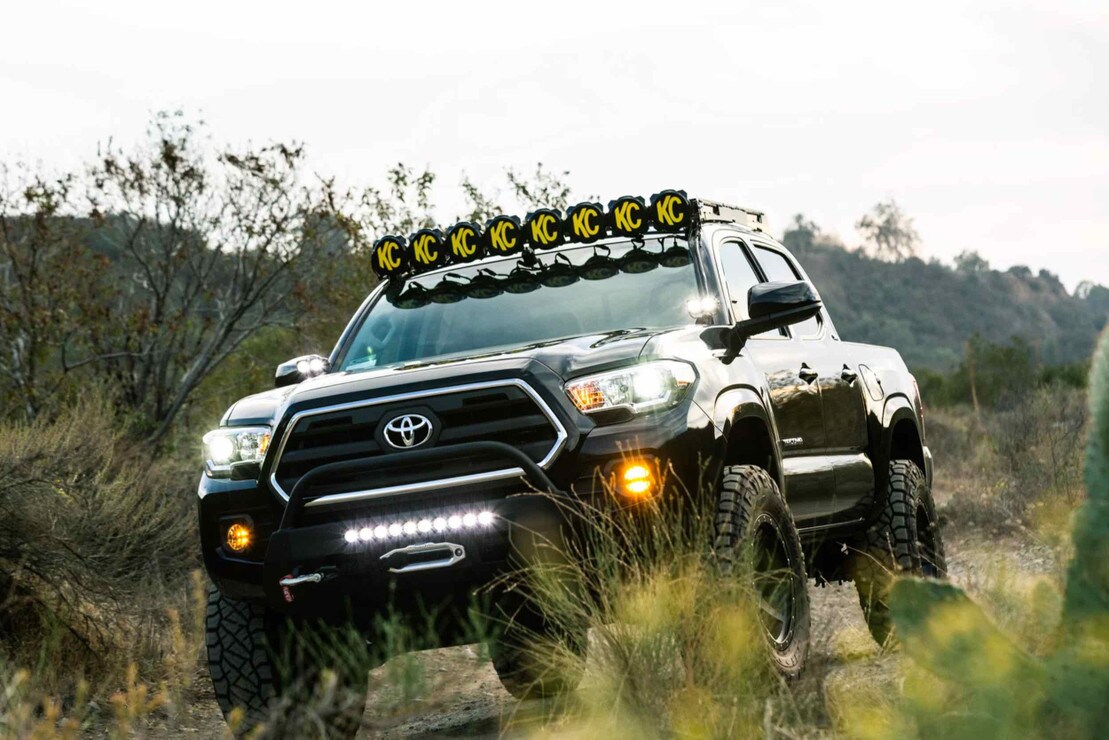

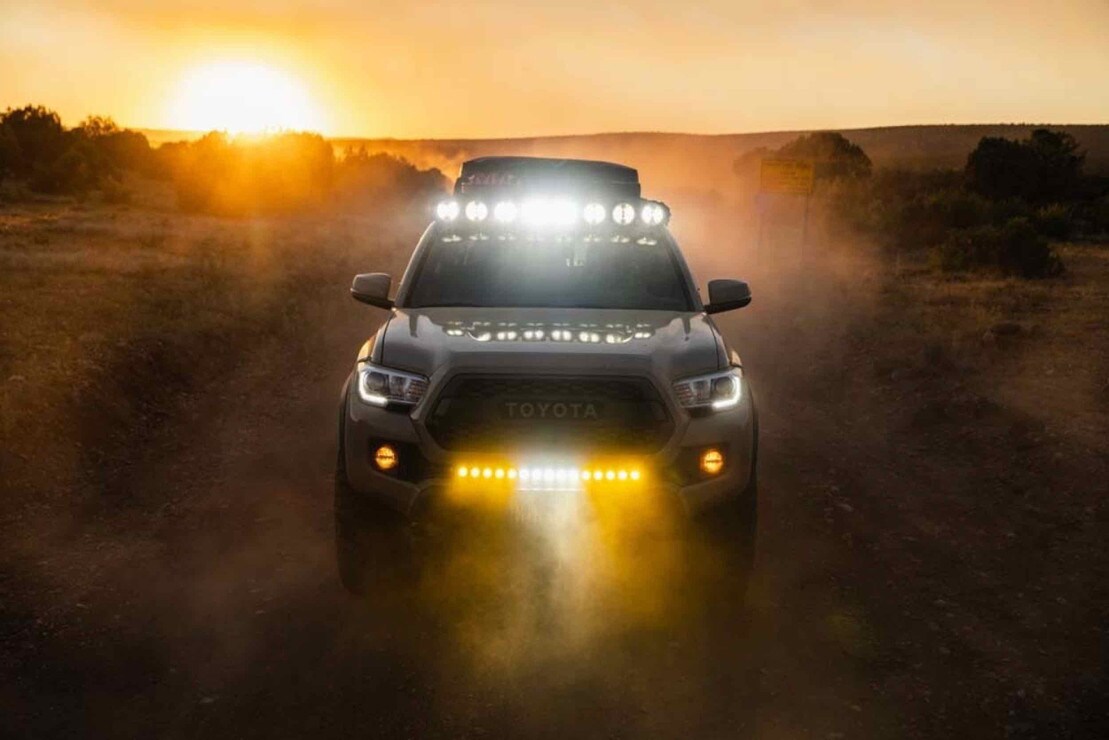

STREET LEGAL FOG BEAM PATTERN AND ADVANTAGES: Fog Beam- Provides a low, wide angle light pattern that increases short-range visibility. Ideal pattern for lighting pathways close to ground in low visibility conditions like dust, fog, snow and rain. Also taking advantage of Amber LEDs, our fog lights produce the ideal color wavelength, creating greater visual contrast to penetrate through thick fog and misty conditions.

STRENGTH & DURABILITY: Designed from high quality, light weight magnesium housing and UV treated shatter resistant polycarbonate lens in a self contained IP69 rated light housing, impermeable to dust and moisture.

Available Part Numbers: Gravity LED G4 TOYOTA/LEXUS LED FOG PAIR PACK SYSTEM - #500, Gravity LED G4 TOYOTA/LEXUS AMBER LED FOG PAIR PACK SYSTEM - #501.

HR Tested: Here at Headlight Revolution, we spend a lot of time installing and testing the products you'll find for sale. We don't favor any particular brand, so our commitment to you is that we'll deliver the best product for your application, period. To see all of the compatible lighting upgrades for your vehicle, use the Buyer's Guide on our homepage! Be sure to check out the HR YouTube channel for hundreds of helpful install and review videos!

Product Specs

  • What's Included

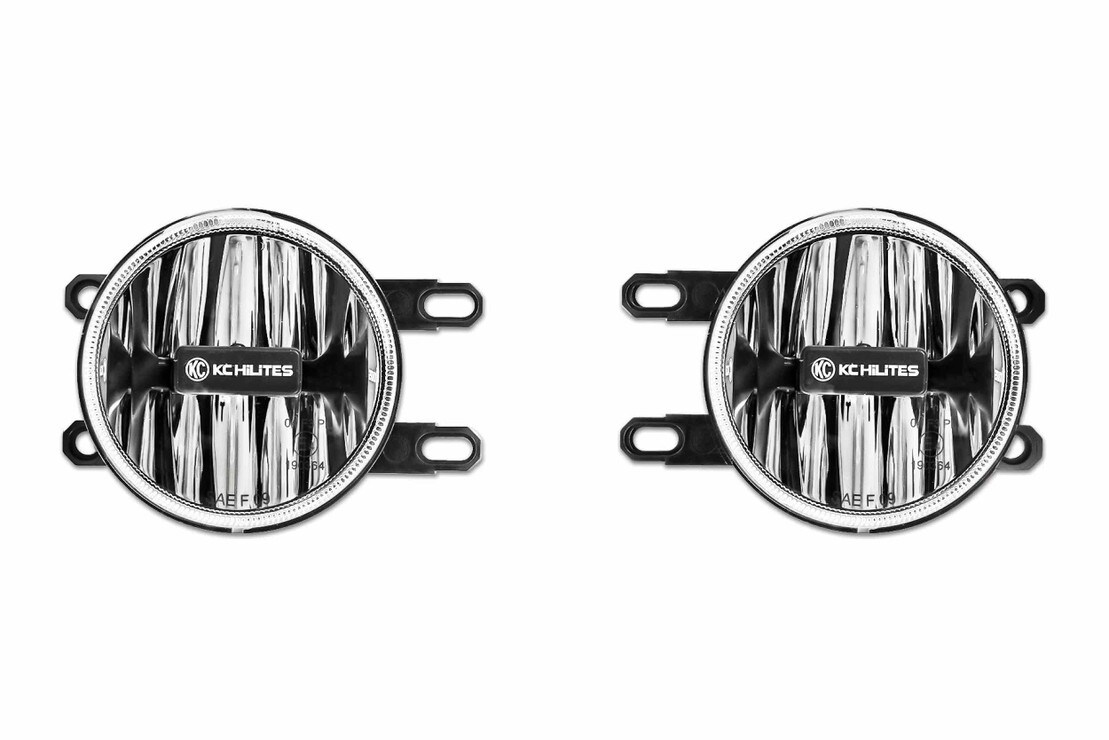

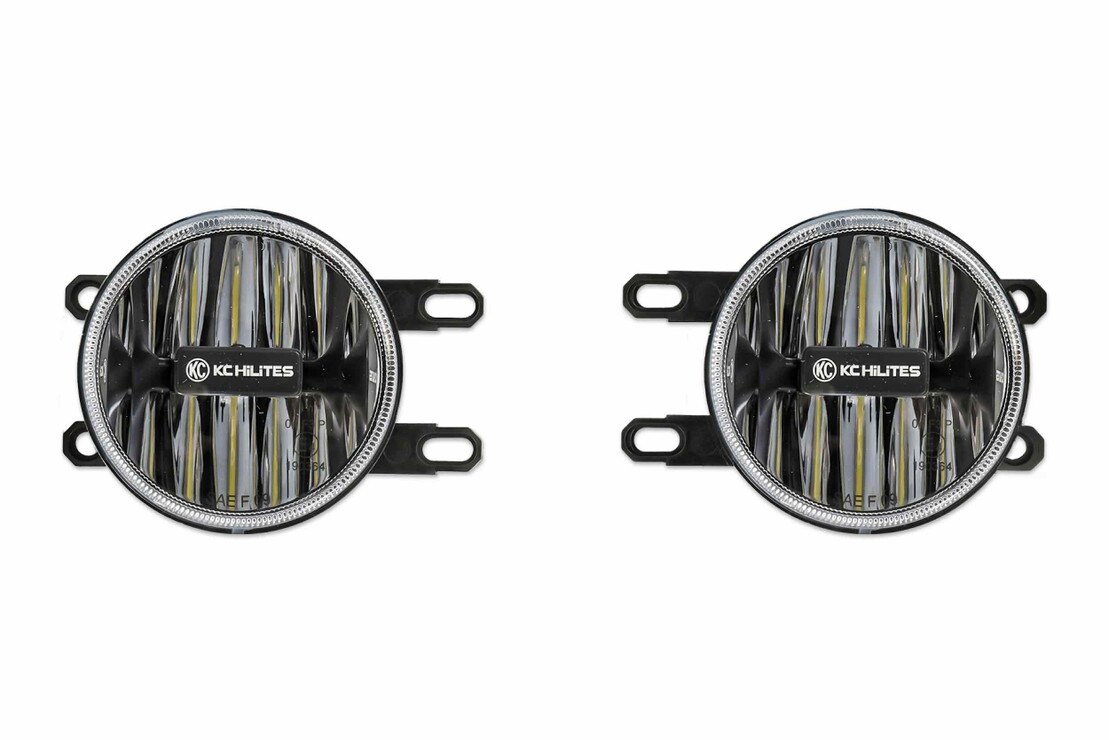

  • 2x: 10W 4" Gravity G4 LED Fog Lights

  • 2x: Toyota Fog Light Mounting Brackets

  • Factory Plug-n-Play Connector: For OE Toyota Wiring Harness and Switch

  • Compatibility

  • 501: Gravity G4 Fogs: Toyota Tacoma Tundra/4Runner/Tacoma (14-18) (Set / Amber)

  • 500: Gravity G4 Fogs: Toyota Tacoma Tundra/4Runner/Tacoma (14-18) (Set / White)

  • NOTE: Plug-n-Play kit for Tacoma's fitted with factory fog lights or switch.

  • Factory: OE Toyota parts needed for compatible operation: Toyota Switch: 2012-19 Tacoma OE #84160-04020, Toyota Relay: 2012-19 Tacoma OE #9008087026.

  • Tech Specs

  • Raw Lumens: 866 lm

  • Compliance: Fog beam meets SAE J583 & ECE-R19 Street Legal

  • Lux @ 10 Meters: 150 lx

  • Candela: 15,000 cd

  • Beam Distance (Meters): 245m

  • Wattage: 10W

  • LED Source: CREE XP-G R4 LED

  • Color Temperature: 5000K

  • Amp Draw: .7.4A

  • Voltage: 9V-32V

  • IP Rating: IP69

  • Lightweight Magnesium: Housing for Maximum Heat Dissipation

  • Designed: To fit various 2006-2019 Toyota, Lexus and Scion Vehicles

  • Color: Clear or Amber LED

  • Shatter Resistant: Polycarbonate Lens

  • Pattern: Fog Beam Pattern (SAE & ECE Street Legal)

  • Product Dimensions: W - 3.94" x H - 3.94" x D - 3.23"

Product Reviews

3 out of 5 stars

1 Review   Write a Review

3 out of 5 stars

disappointed

anonymous

The lights were well made with the fit and finish. Easy install and they look good too. However, they are no brighter than stock. I was expecting more.
