Gravity G4 LED Pods

(0) No Reviews yet

Brand: KC HiLites




PART #: 1 x KC1493


Experience superior illumination with KC HiLiTES 4in Gravity LED G4 Universal LED Fog Light. Equipped with powerful CREE LEDs, this light delivers a street-legal fog beam pattern, ensuring enhanced short-range visibility. Its patented Gravity Reflective Diode (GRD) system coupled with optical reflectors guarantees an impressive 150 lx @ 10m output while consuming minimal power. The fog beam pattern is designed for low visibility conditions, offering a wide-angle light distribution close to the ground. The light's adjustability ensures optimal beam accuracy. Built to last, it boasts an IP69-rated magnesium housing and a durable polycarbonate lens. Proudly designed, engineered, and made in the USA, this product is a testament to quality and performance.


  • Gravity Reflective Diode Projects LED light forward, ensuring maximum illumination.
  • Fog Beam Pattern Enhances short-range visibility in challenging conditions.
  • Adjustable Mounting Facilitates horizontal light aiming for consistent beam angles.
  • Durable Build Features IP69-rated magnesium housing and a sturdy polycarbonate lens.
  • USA Craftsmanship A hallmark of top-tier American design and engineering.

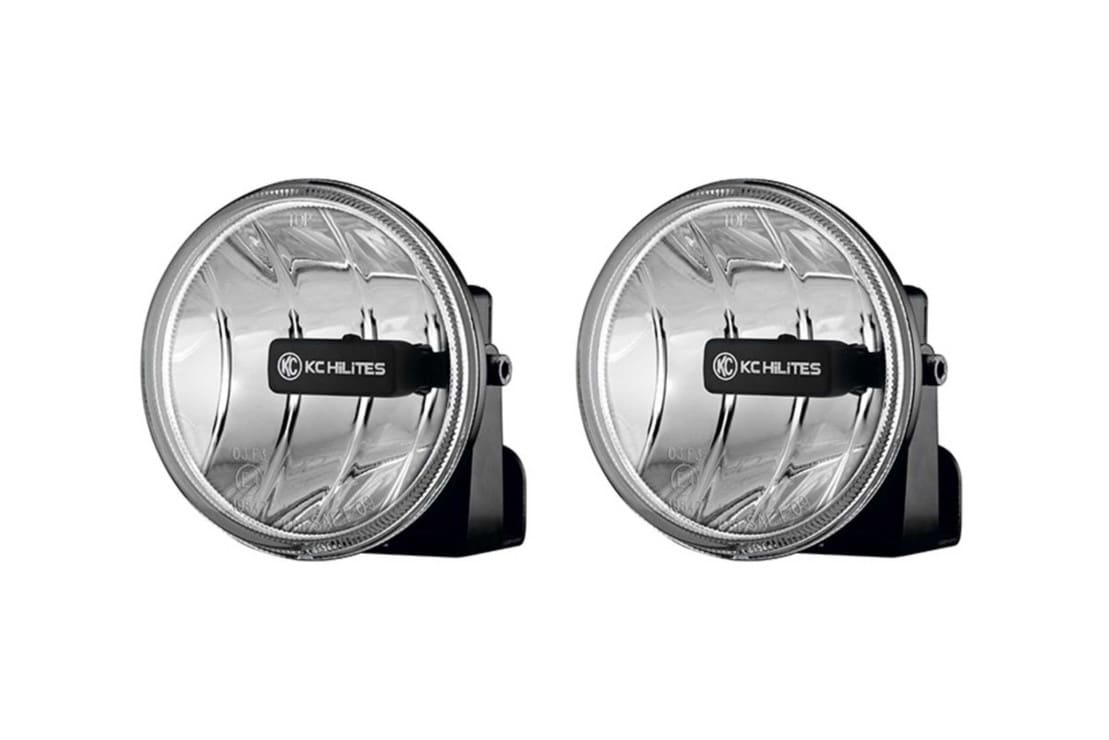

  • Fog Lights: 2x (One Pair) Gravity G4 LED Fog Lights


This product is covered by a 23 year limited warranty, serviced and supported by the manufacturer directly. This warranty does not cover modifications, alterations, or misuse. For additional information,Click Here.


  • Intensity: 866 lm

  • Power: 10w

  • Current: 0.74A @ 12V DC

  • Material: Magnesium (Housing), Polycarbonate (Lens)

  • Light Source: CREE LED 5000K (Pure White)

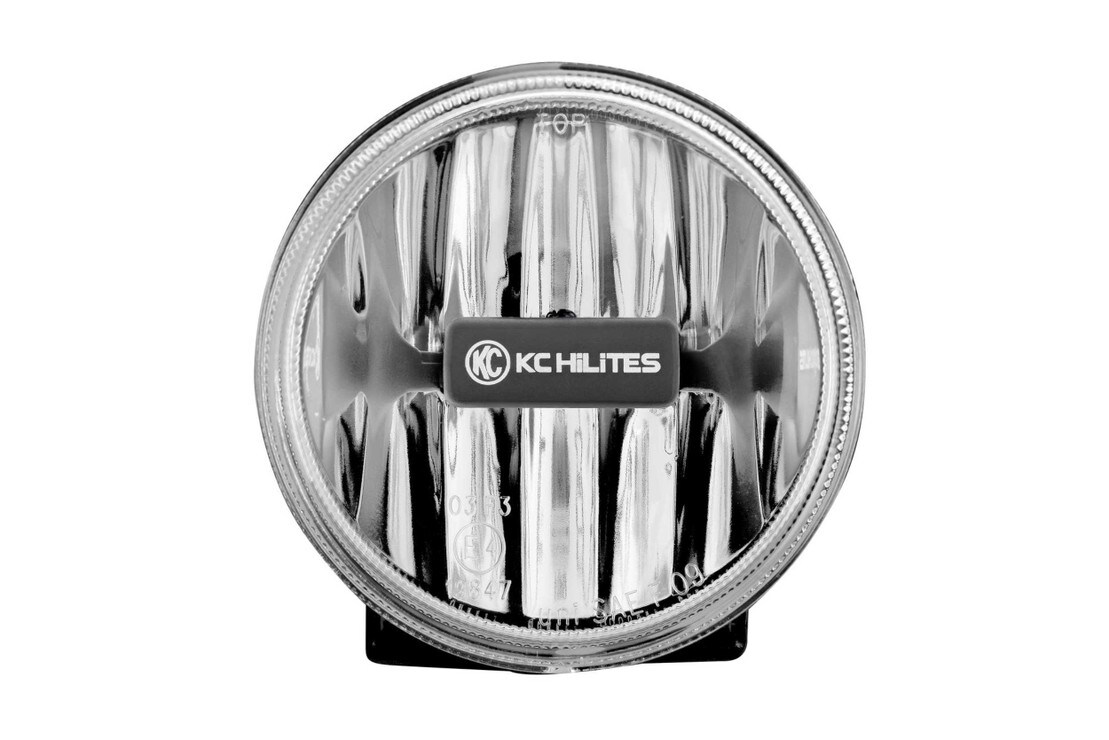

  • KC1493: 4in Gravity LED G4 - 10w SAE/ECE Fog Beam / Each

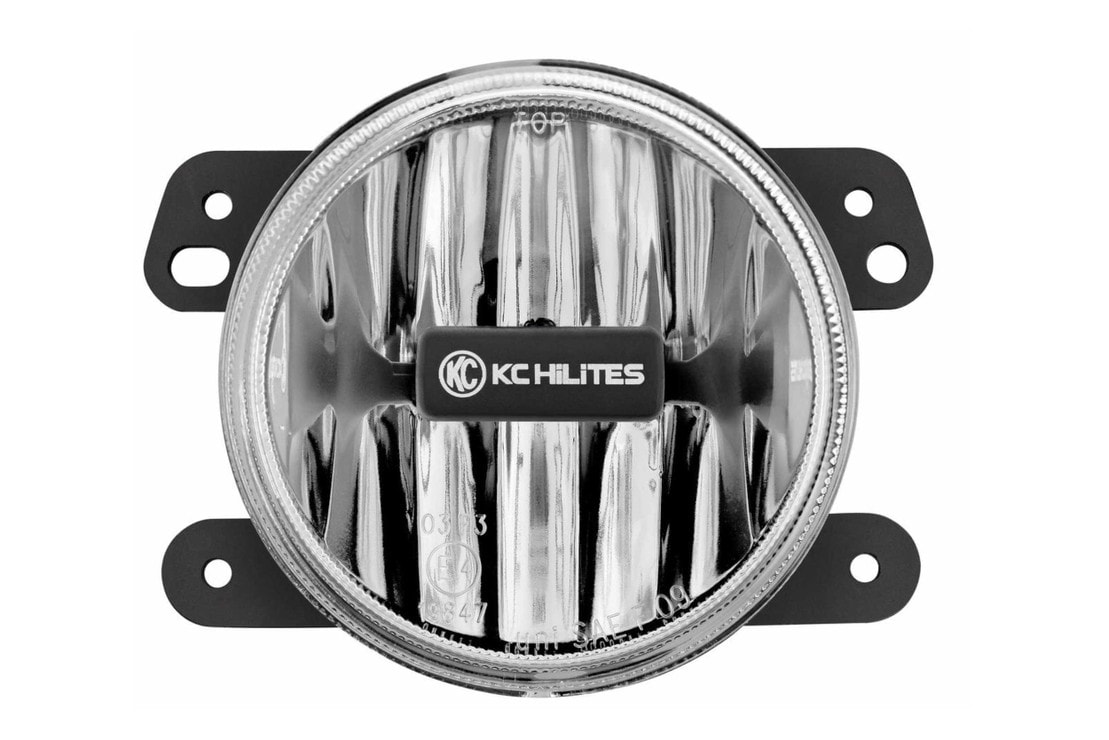

  • KC1494: 4in Gravity LED G4 - 10w SAE/ECE Fog Beam / Each - For 07-09 Jeep JK

  • KC1495: 4in Gravity LED G4 - 10w SAE/ECE Fog Beam / Amber / Each

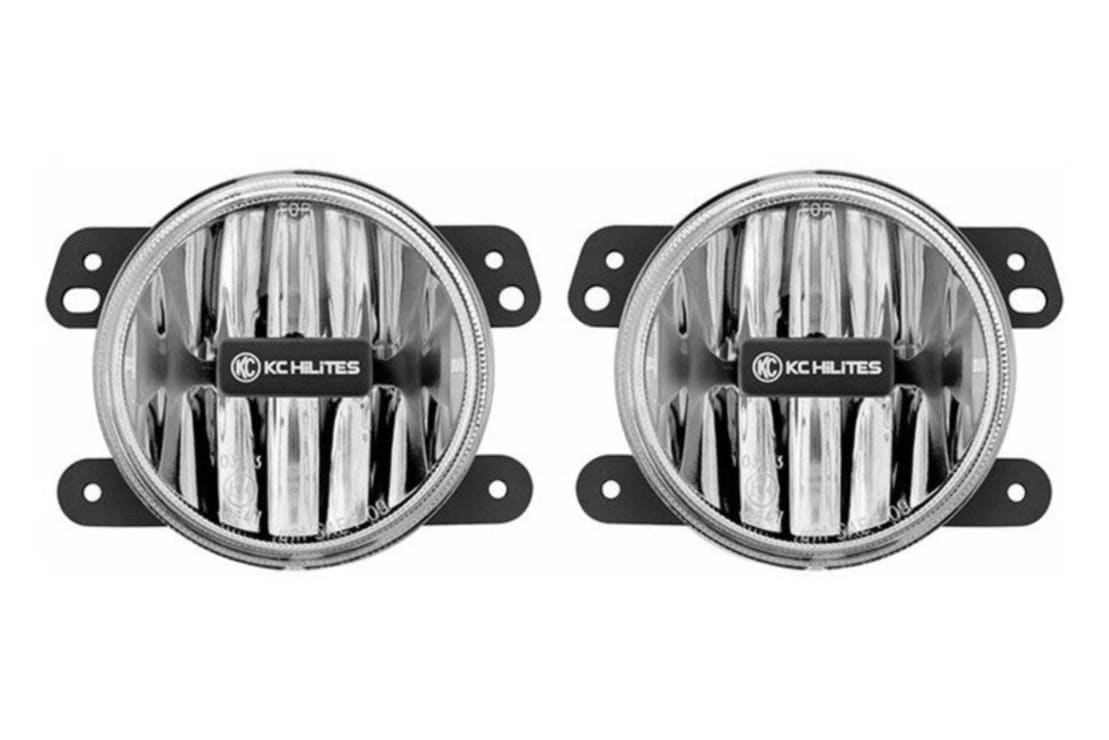

  • KC1497: 4in Gravity LED G4 - 10w SAE/ECE Fog Beam / Each - For 10-18 Jeep JK

  • KC1498: 4in Gravity LED G4 - 10w SAE/ECE Fog Beam / Amber / Each - For 10-18 Jeep JK


SAE J583, ECE-R19, IP69

OVERVIEW: KC HiLiTES 4in Gravity LED G4 Universal LED Fog Light feature bright CREE LEDs in a street legal fog beam pattern. Lightweight magnesium housing with optical reflectors, polycarbonate lens and universal adjustable bracket for easy mounting.

Gravity EXTREME OUTPUT AND EFFICIENCY: 4in Gravity LED Fog Lights are powered by KC's patented Gravity Reflective Diode (GRD) and optical reflectors to deliver an incredible 150 lx @ 10m using only .74A per light. KC's patented Gravity Reflective Diode system aims LEDs into precision reflectors, capturing all light to project it forward.

AVAILABLE BEAM PATTERN AND ADVANTAGES: Fog Beam- Provides a low, wide angle light pattern that increases short-range visibility. Ideal pattern for lighting pathways close to ground in low visibility conditions like dust, fog, snow and rain.

ADJUSTABLE MOUNTING FOR ACCURACY AND PRECISION: KC's Innovative adjustable mount allows users to easily adjust the aiming of lights horizontally for an optimum and consistent beam angle.

STRENGTH AND DURABILITY Constructed from an IP69 rated magnesium housing and polycarbonate lens creating a fully self contained LED light housing.

MADE IN THE USA: Headlight Revolution is a proud distributor for the best brands in automotive lighting, and all KC Hi-Lites products are Designed, Engineered, and Made in the USA! If you're looking for most advanced, modern lighting gear for your truck, backed by the best people in the lighting business, we've got you covered.
