Ford Super Duty (11-16) Grille LED System

(0) No Reviews yet

Brand: Vision X


$1,731.75 Original Price:$2,309.0025% OFF




Elevate your vehicle's aesthetics and functionality with Vision X's custom LED Grille Light Kit, crafted in collaboration with Royalty Core. The grille boasts a satin black powder coat over a resilient stainless steel frame. Enhance your night drives with the optional CG2 4.7in Light Cannons, Vision X's pinnacle in the Light Cannon series, offering unparalleled brightness and reach. Alternatively, the optional XPR-9M Light Bar, with its top-binned 10-Watt LEDs and IRIS Reflectors, promises a staggering 1,365 feet of usable light. With Vision X, you're not just choosing a product; you're investing in a legacy of excellence in automotive lighting.


  • Customized Design Vision X grille, a collaboration with Royalty Core.
  • Durable Finish Satin black powder coat on a robust stainless steel frame.
  • CG2 Light Cannons Unprecedented brightness and distance for night drives.
  • XPR-9M Light Bar 10-Watt LEDs with IRIS Reflectors for maximum reach.
  • Trusted Legacy Vision X's reputation for top-tier automotive lighting.


  • Light Pods: 1x XPR-9M LED Light Pod or 4x Cannon GC2 LED Light Pods

  • Hardware: Mounting Brackets, Hardware, Grille Assembly

  • Wiring: 1x Wire Harness


This product is covered by a Lifetime Limited warranty, serviced and supported by the manufacturer directly. This warranty does not cover modifications, alterations, or misuse. For additional information,Click Here.


  • Intensity: 11,250lm (Cannon CG2), 9,711lm (XPR-9M)

  • Power: 129w (Cannon CG2), 90w (XPR-9M)

  • Current: 10.8A (Cannon CG2), 7.5A (XPR-9M) @ 12V DC


  • XIL-OEGC11FSDCG2: Vision X Grille LED System: Ford Super Duty (11-16) (Cannon CG2)

  • XIL-OEGB11FSDXPR: Vision X Grille LED System: Ford Super Duty (11-16) (XPR-9M)

LED Grille Light Kit: This custom line of Vision X grilles was made for us from our friends over at Royalty Core. These grilles have a satin black power coat over a rugged stainless steel frame.

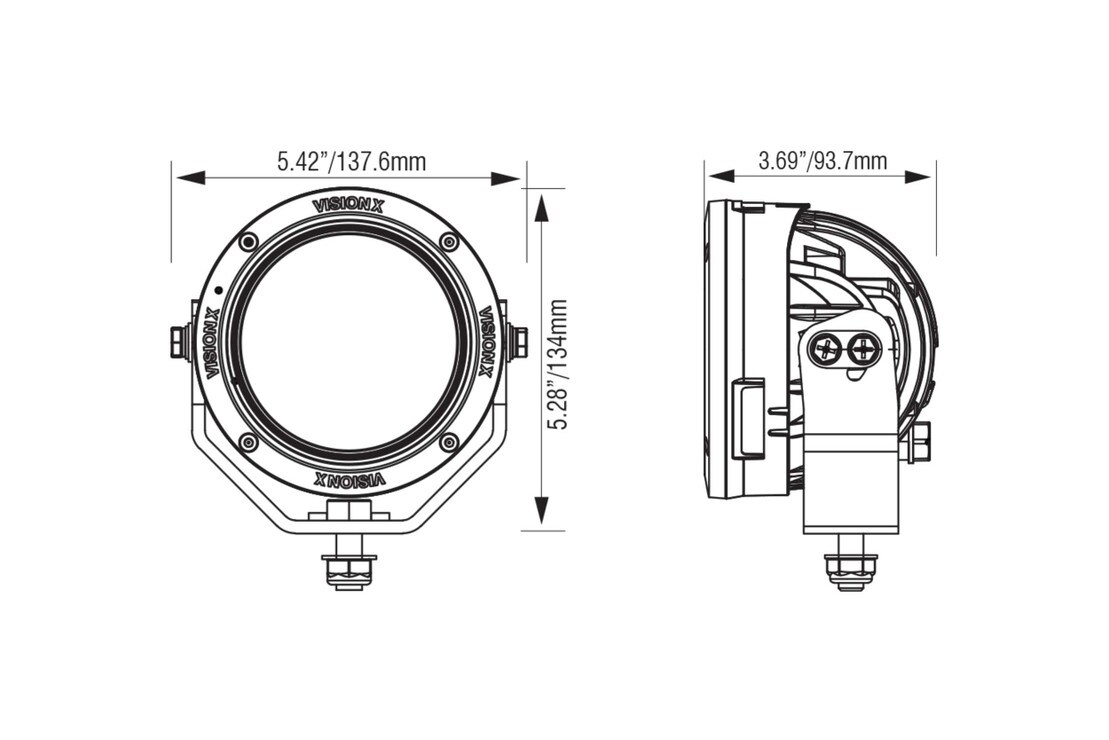

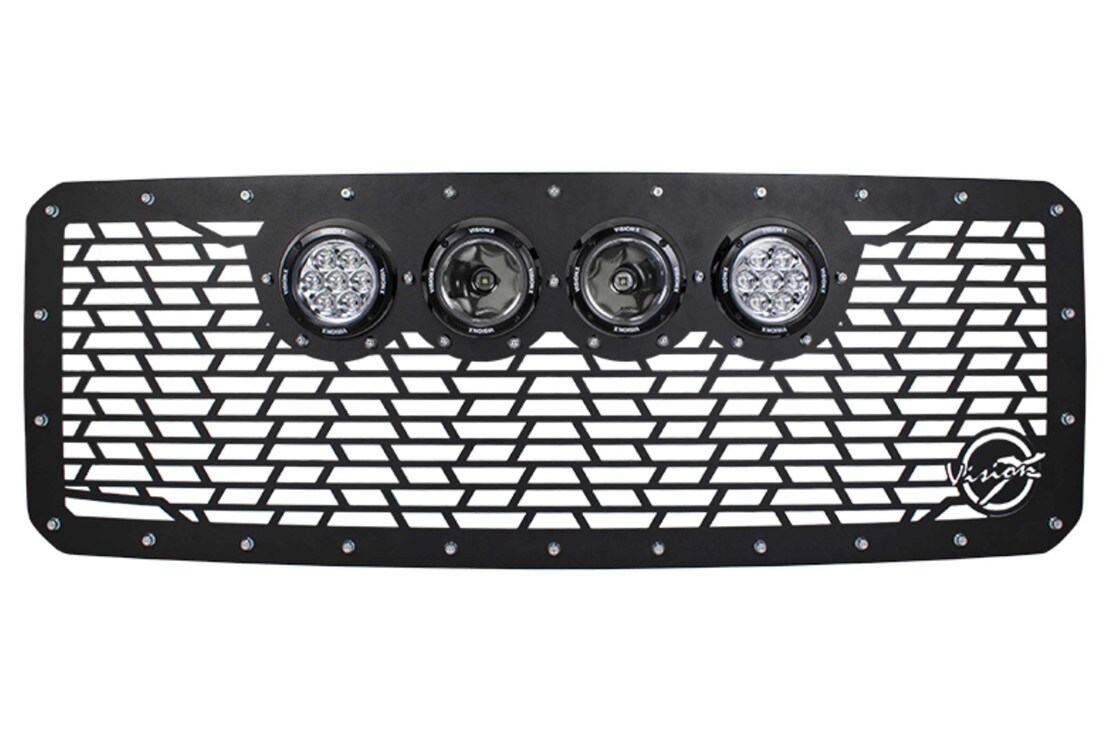

Optional CG2 4.7inLIGHT CANNONS: The CG2 Light Cannons is Vision X's latest and greatest of the Light Cannon series. This configuration combines the distance of the big chip single source CG2 Cannon with the massive light output of the multi-LED version. The pairing of these two lights creates an unheard of amount of brightness and distance ideal for any situation.

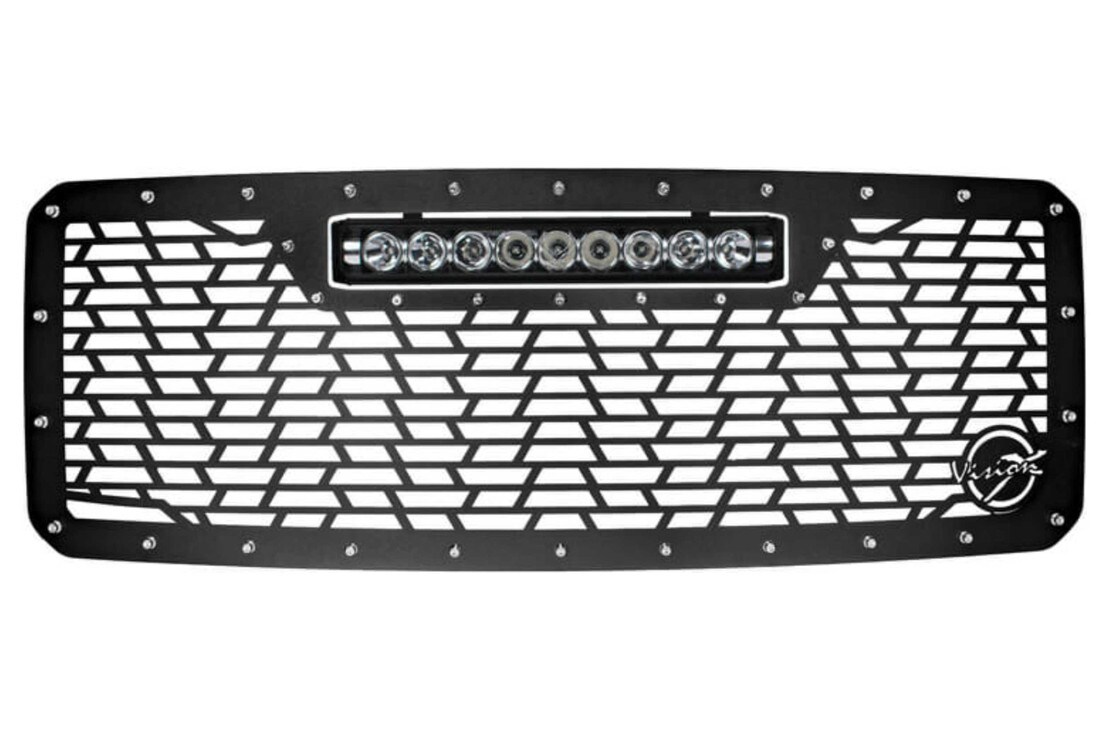

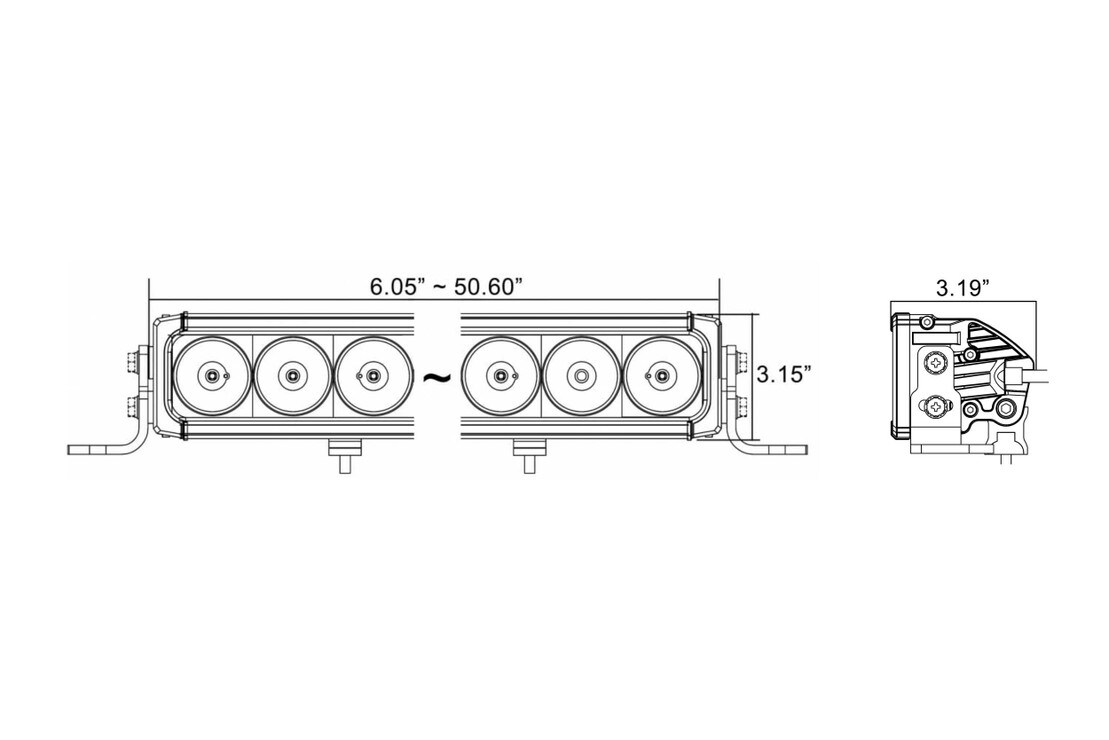

Optional XPR-9M LIGHT BAR: Utilizing top-binned 10-Watt LEDs and large proprietary 1.5indiameter IRIS Reflectors, the XPR-9M Light Bar is capable of reaching a staggering 1,365 feet of usable light. This unmatched long-distance projection is also accompanied by precisely tilted IRIS Reflectors that create a unique combination beam pattern to provide even more visibility at the road's edge.

Vision X: Is known for producing some of the automotive industry's most unique, highest performing LED Light bars and LED Spot lights for the modern demands of enthusiasts today. Their products perform on par with the best names in the business like Rigid, KC, and Baja, are affordable, bomb proof, and look great too. Vision X has their North American Headquarters in Washington State, and Headlight Revolution has been a proud master distributor for the brand for many years.
