All Beam Patterns & Lengths Available

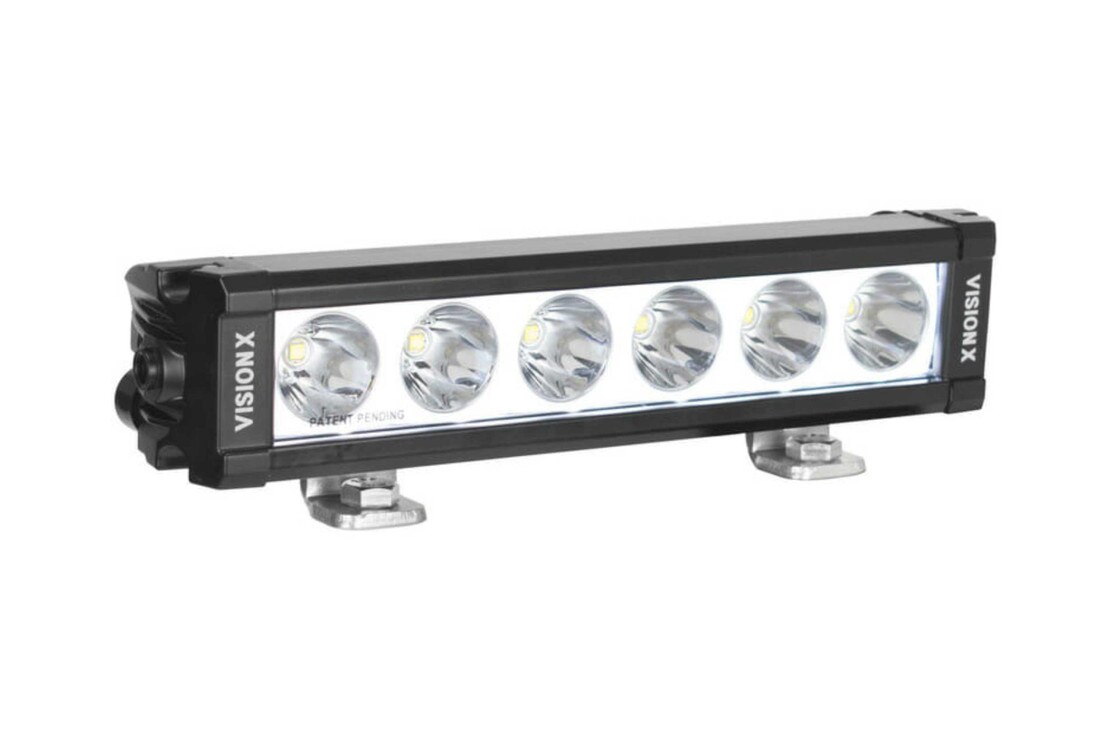

Vision X XPL Straight LED Light Bars

3P-VX83-HR

PART #: 1 x XPL-H3EMH


[ In Stock: 0 pieces ]

Product Details

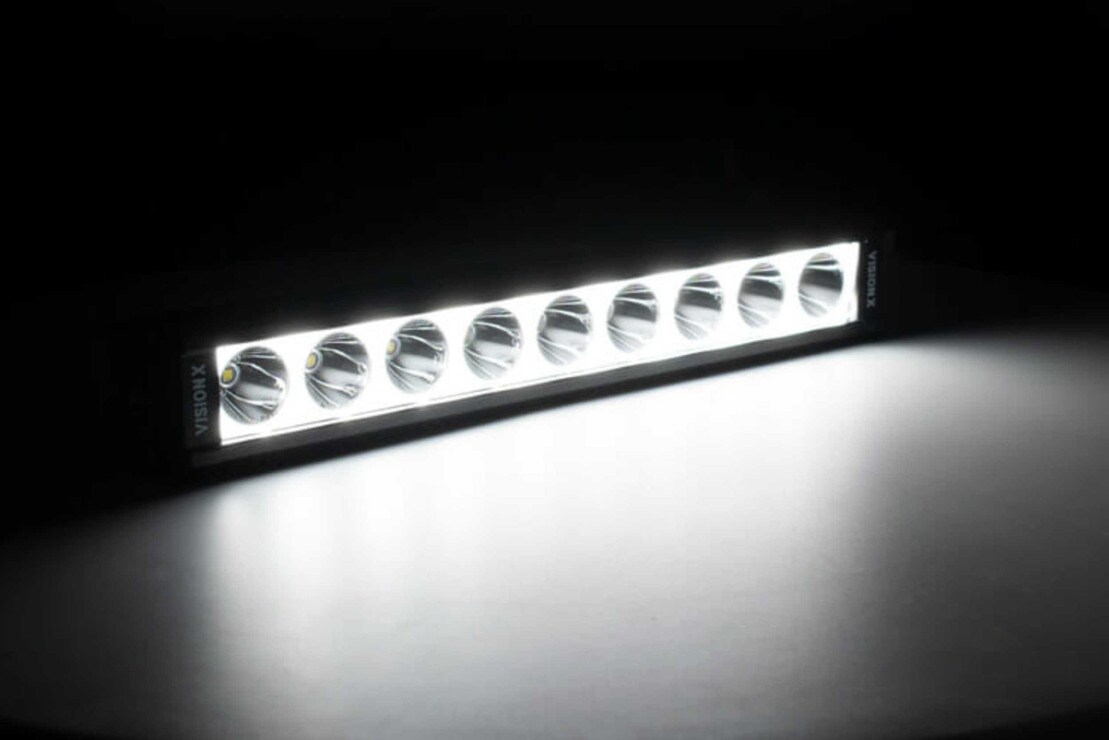

XPL Plus: The XPL Halo Series of LED Light Bars builds upon the XPR Series by combining the distance power of Iris Reflector Technology with an ultra slim housing design. Utilizing a powerful 5W Cree LED, the XPL series is able to produce up to 19,260 lumens and over 2,000 ft. of usable light.

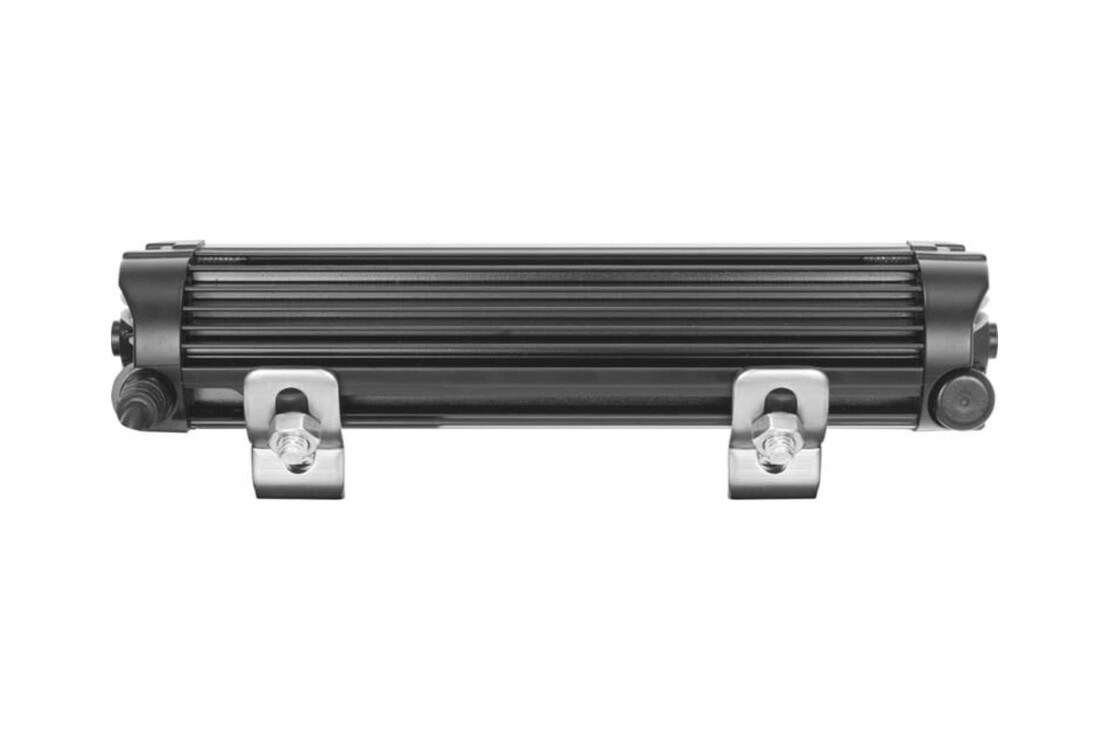

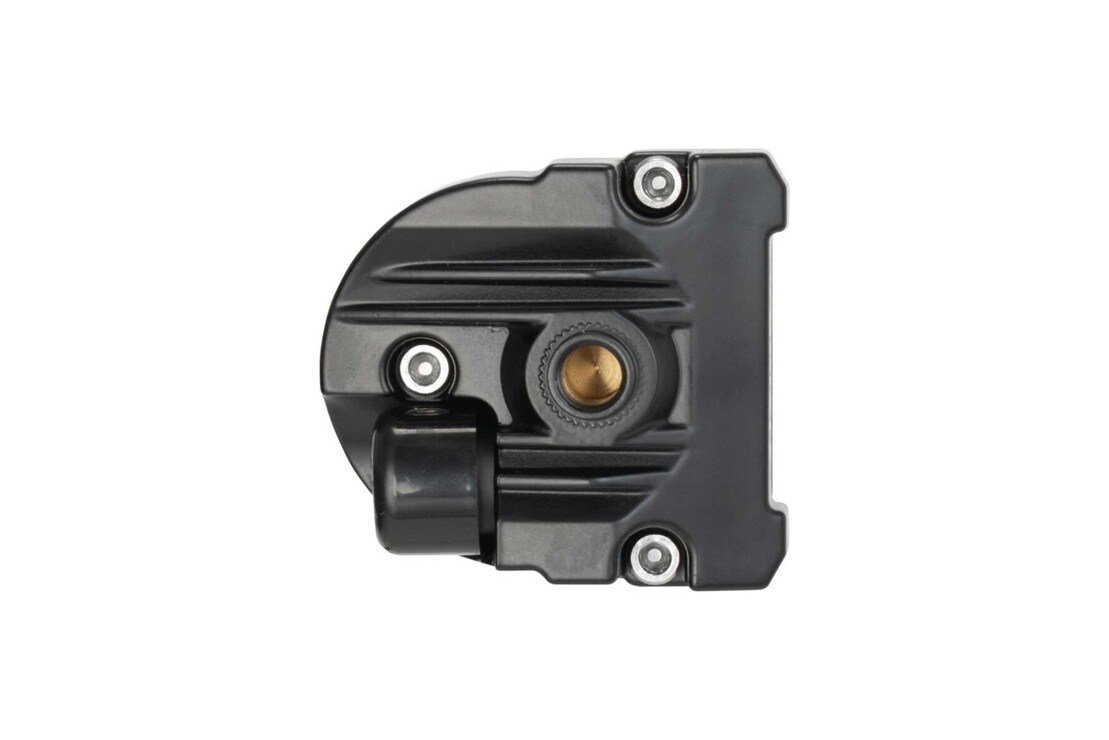

Product Line Updates: The XPL Series Light Bar comes standard with the newly redesigned mounting feet and the option to add wiring harness and/or side wing mounts. Allowing the option to mount with Side Wings off each end cap or with Vision X's foot mounting design. Both mounting options allow for adjustability once installed, so you can aim the light for optimal visibility.

Vision X: Is known for producing some of the automotive industry's most unique, highest performing LED Light bars and LED Spot lights for the modern demands of enthusiasts today. Their products perform on par with the best names in the business like Rigid, KC, and Baja, are affordable, bomb proof, and look great too. Vision X has their North American Headquarters in Washington State, and Headlight Revolution has been a proud master distributor for the brand for many years.

HR Tested: Here at Headlight Revolution, we spend a lot of time installing and testing the products you'll find for sale. We don't favor any particular brand, so our commitment to you is that we'll deliver the best product for your application, period. To see all of the compatible lighting upgrades for your vehicle, use the Buyer's Guide on our homepage! Be sure to check out the HR YouTube channel for hundreds of helpful install and review videos!

Product Specs

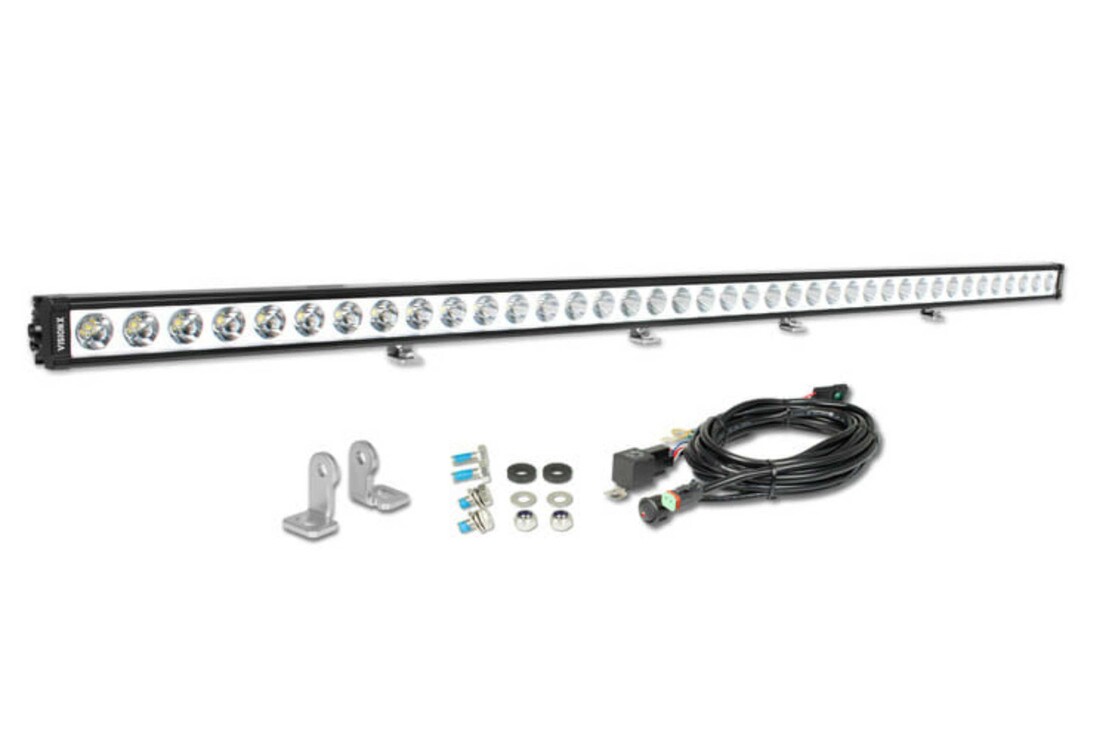

  • What's Included

  • LED Light Bar: 1x

  • Wiring: 1x Wiring Harness

  • Hardware: Mounting Hardware

  • Options: Varies depending on selection

  • Warranty: One Year

  • Compatibility

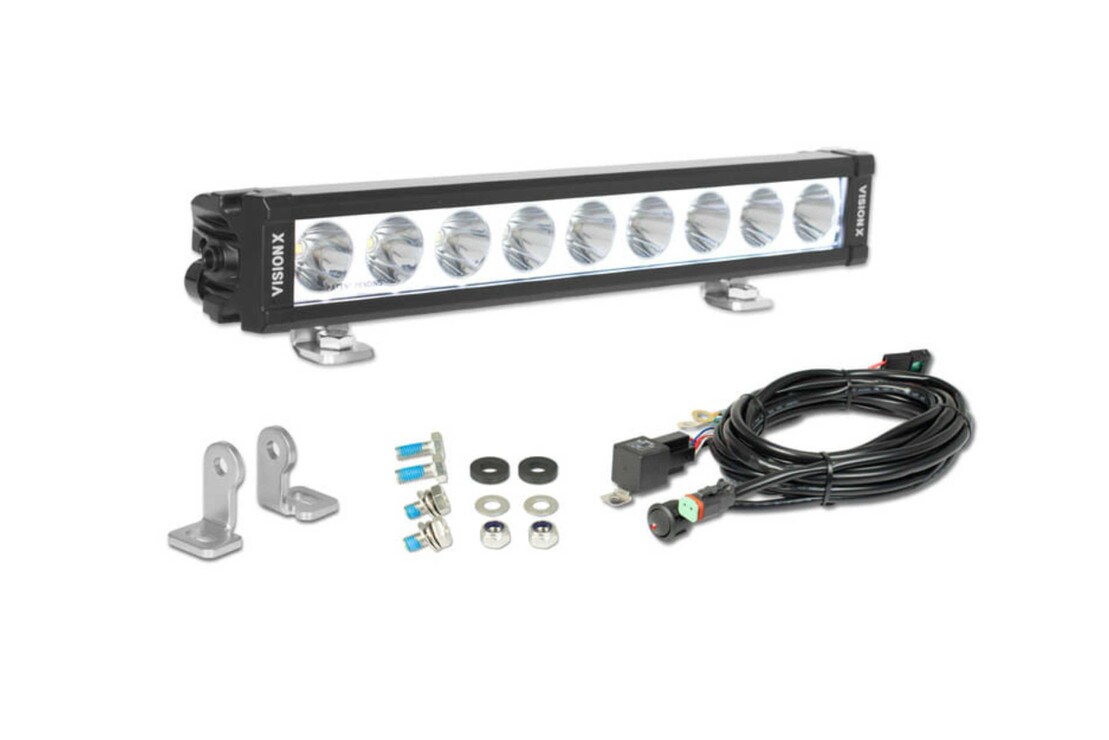

  • XPL-H9EMH: Vision X Light Bar: 13.19" (9-LED / XPL / Straight / Halo / Incl. L Brackets & Harness)

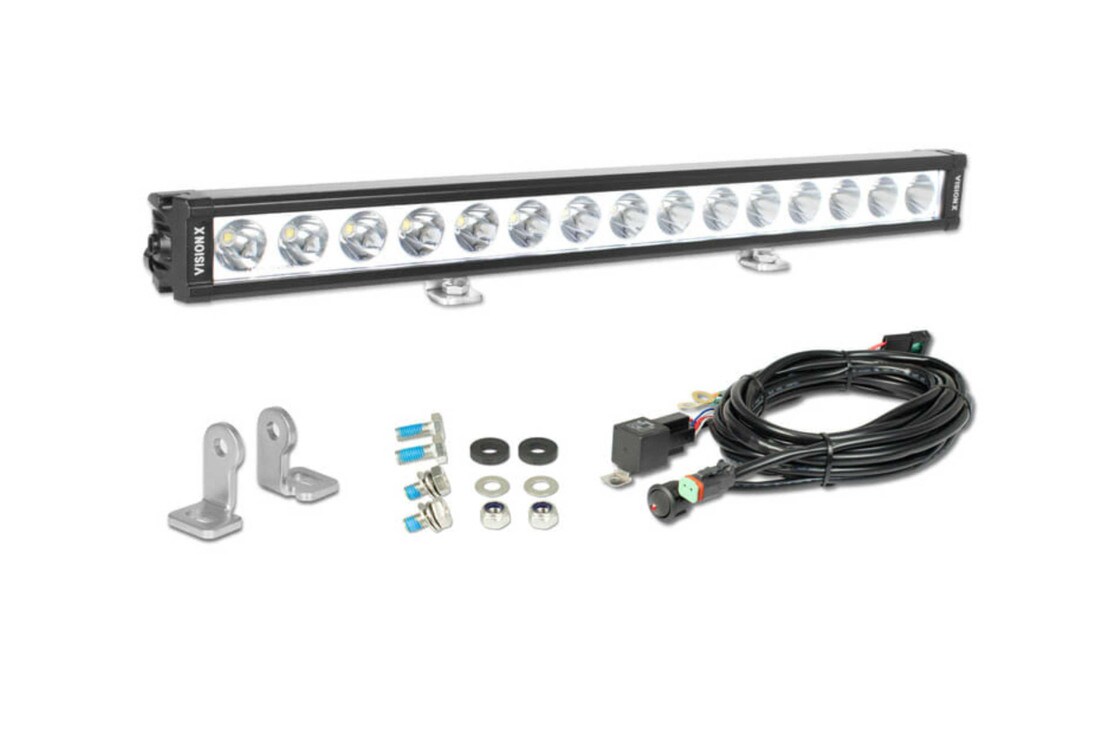

  • XPL-H15EMH: Vision X Light Bar: 20.75" (15-LED / XPL / Straight / Halo / Incl. L Brackets & Harness)

  • XPL-H24EMH: Vision X Light Bar: 32.09" (24-LED / XPL / Straight / Halo / Incl. L Brackets & Harness)

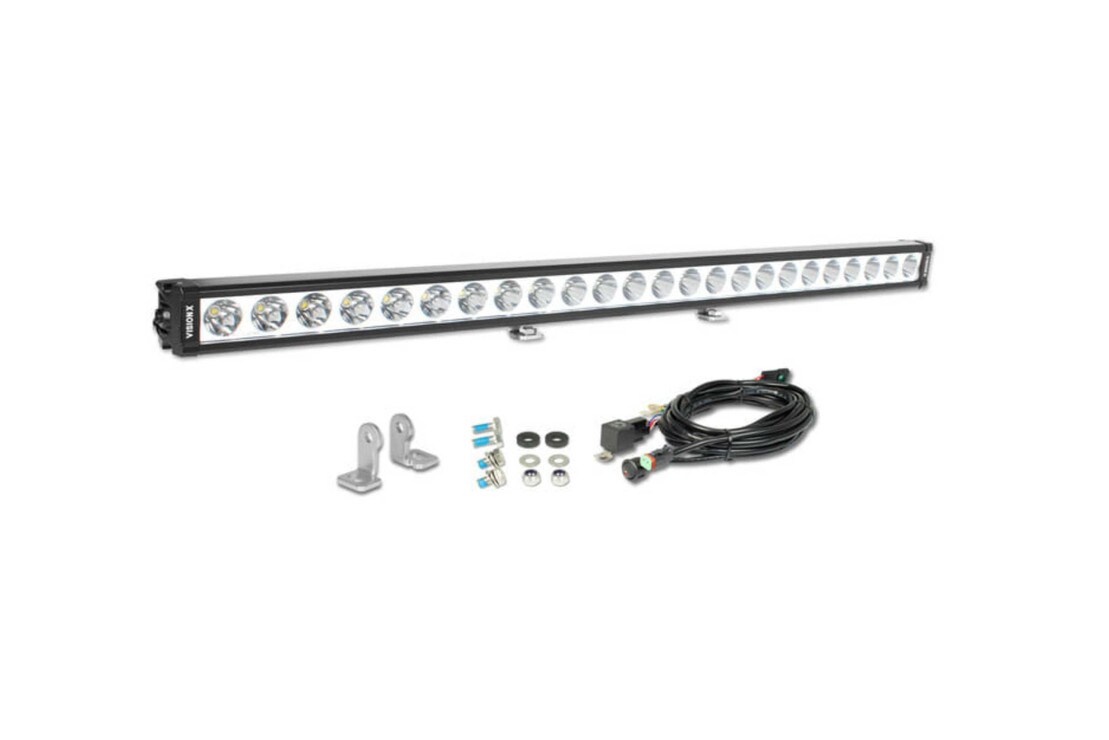

  • XPL-H30EMH: Vision X Light Bar: 39.65" (30-LED / XPL / Straight / Halo / Incl. L Brackets & Harness)

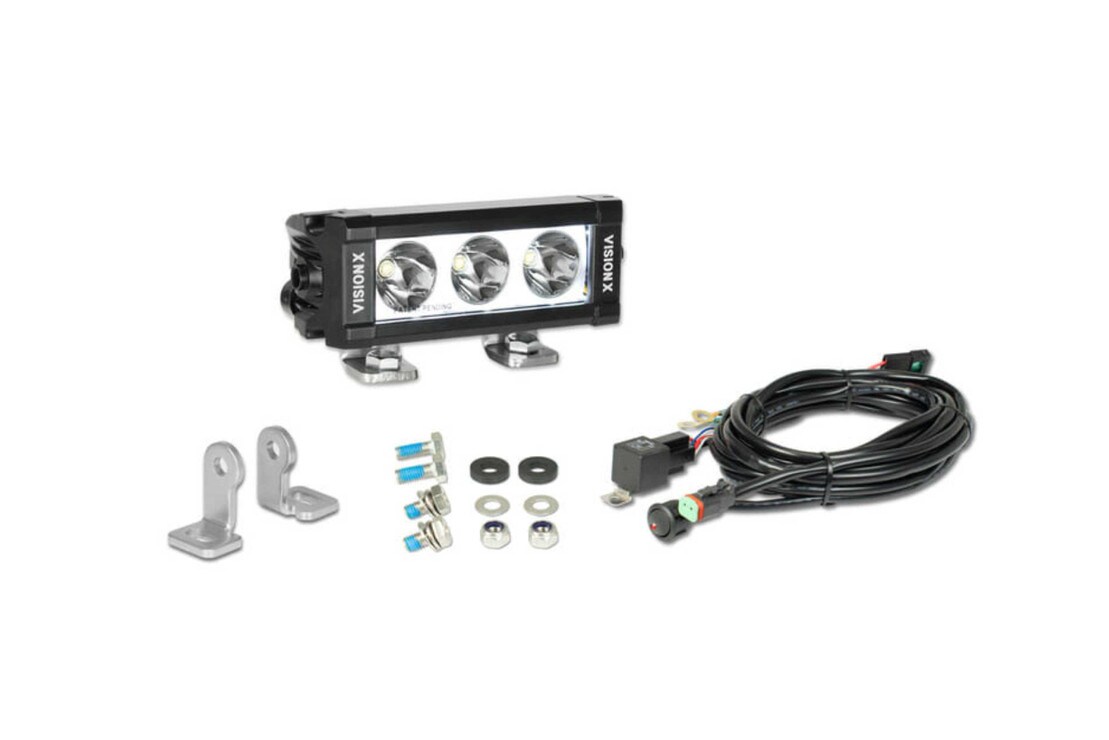

  • XPL-H3EMH: Vision X Light Bar: 5.63" (3-LED / XPL / Straight / Halo / Incl. L Brackets & Harness)

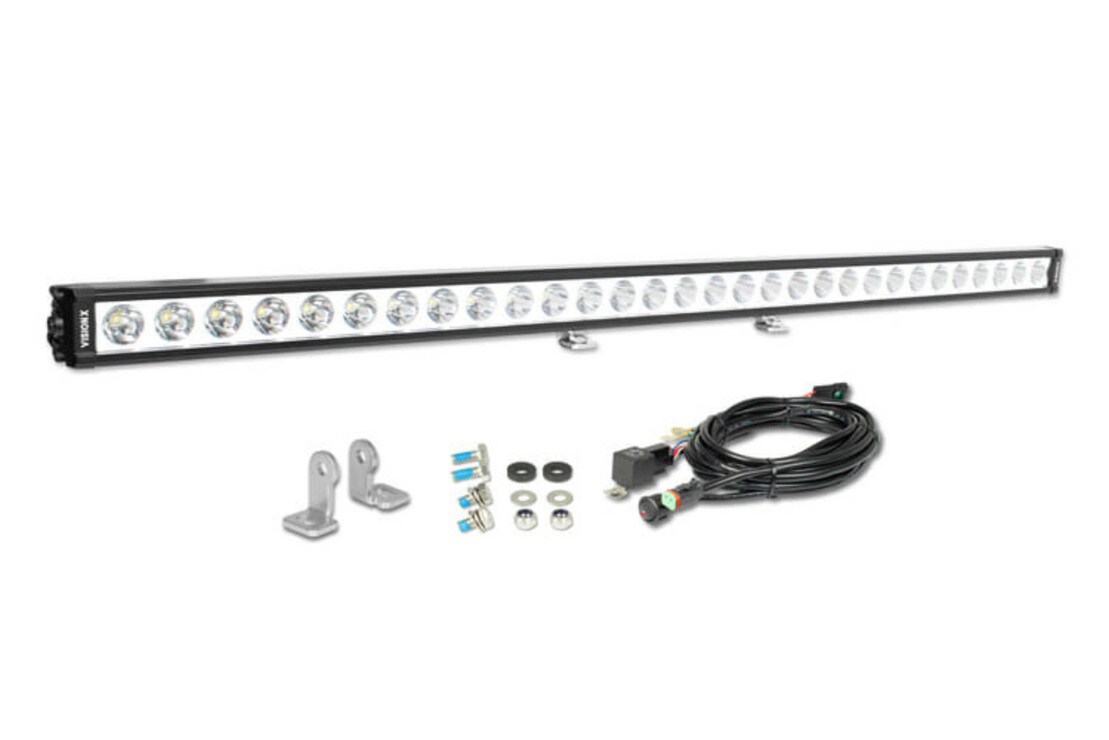

  • XPL-H39EMH: Vision X Light Bar: 50.98" (39-LED / XPL / Straight / Halo / Incl. L Brackets & Harness)

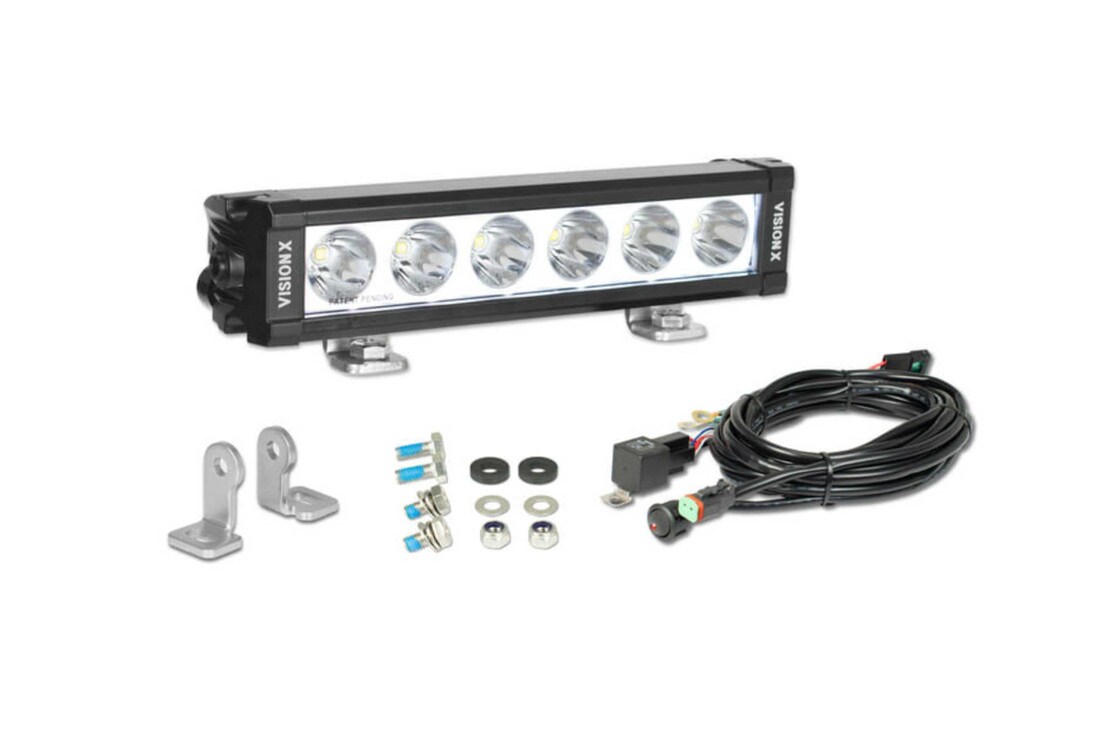

  • XPL-H6EMH: Vision X Light Bar: 9.41" (6-LED / XPL / Straight / Halo / Incl. L Brackets & Harness)

  • Tech Specs

  • 6-LED Model Specs:

  • Raw Lumens: 1,605lm

  • Effective Lumens: 1,124lm

  • Wattage: 15

  • AMP Draw: 1.25A @ 12V DC

  • 9-LED Model Specs:

  • Raw Lumens: 3,210lm

  • Effective Lumens: 2,247lm

  • Wattage: 30

  • AMP Draw: 2.5A @ 12V DC

  • 15-LED Model Specs:

  • Raw Lumens: 4,815lm

  • Effective Lumens: 3,371lm

  • Wattage: 45

  • AMP Draw: 3.75A @ 12V DC

  • 24-LED Model Specs:

  • Raw Lumens: 8,025lm

  • Effective Lumens: 5,618lm

  • Wattage: 75

  • AMP Draw: 6.25A @ 12V DC

  • 30-LED Model Specs:

  • Raw Lumens: 16,050lm

  • Effective Lumens: 11,235lm

  • Wattage: 150

  • AMP Draw: 12.5A @ 12V DC

  • 39-LED Model Specs:

  • Raw Lumens: 19,260lm

  • Effective Lumens: 13,482lm

  • Wattage: 180

  • AMP Draw: 15A @ 12V DC
