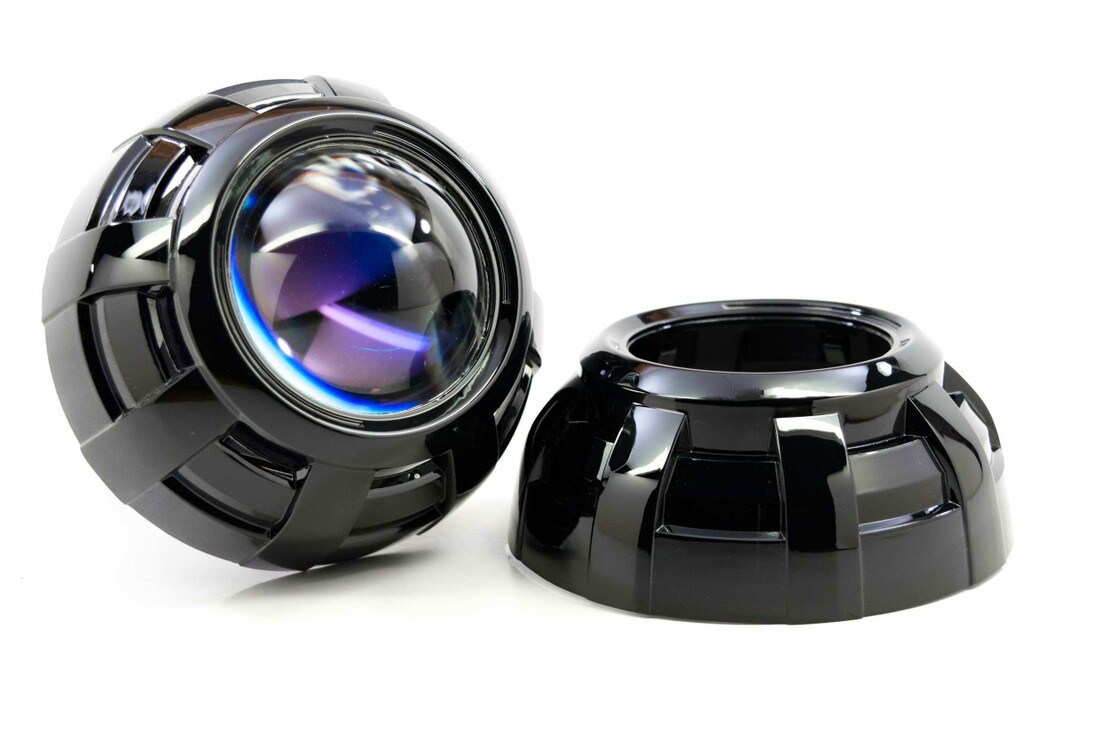

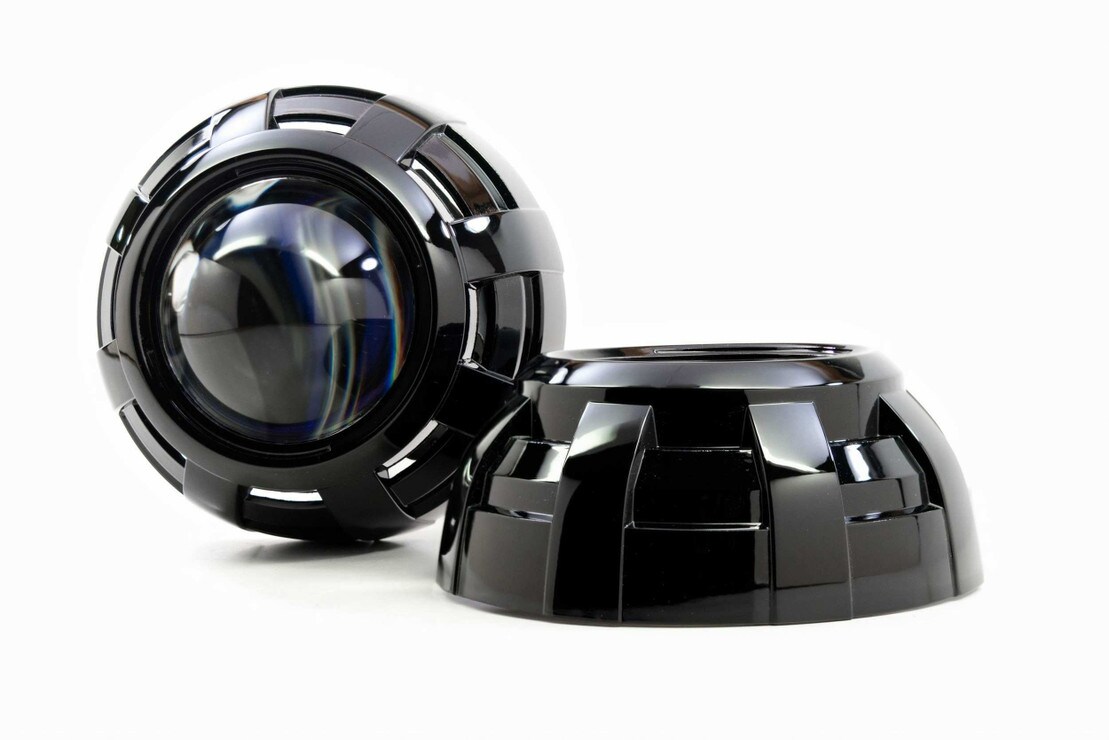

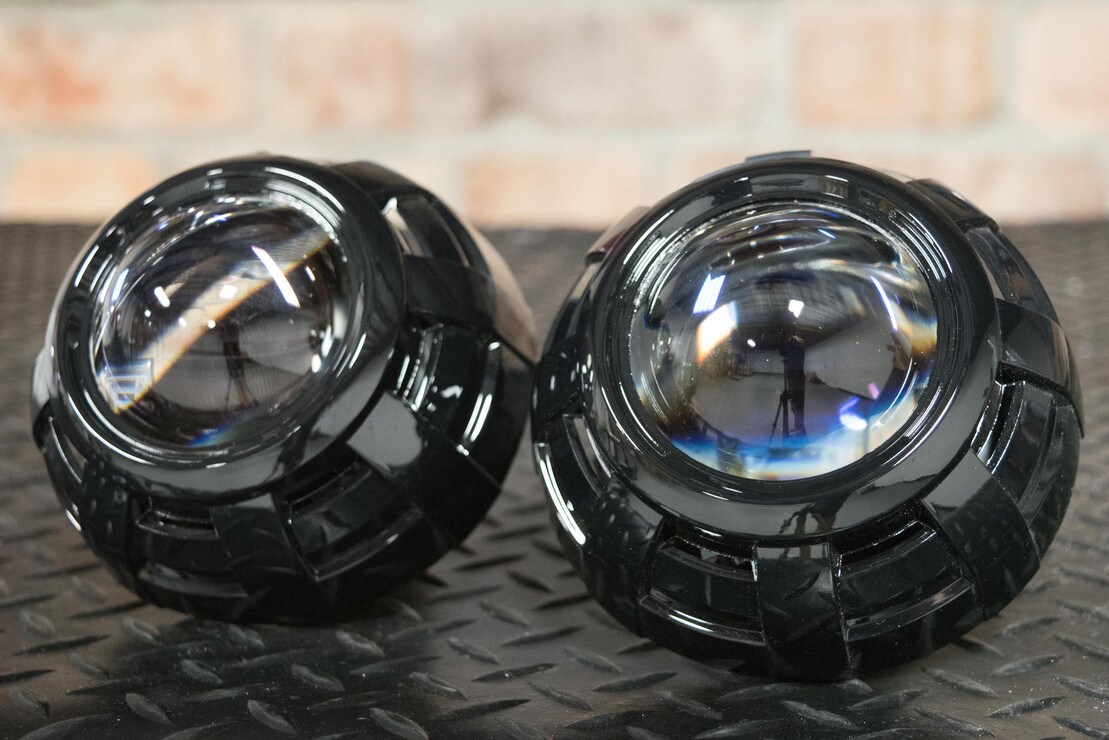

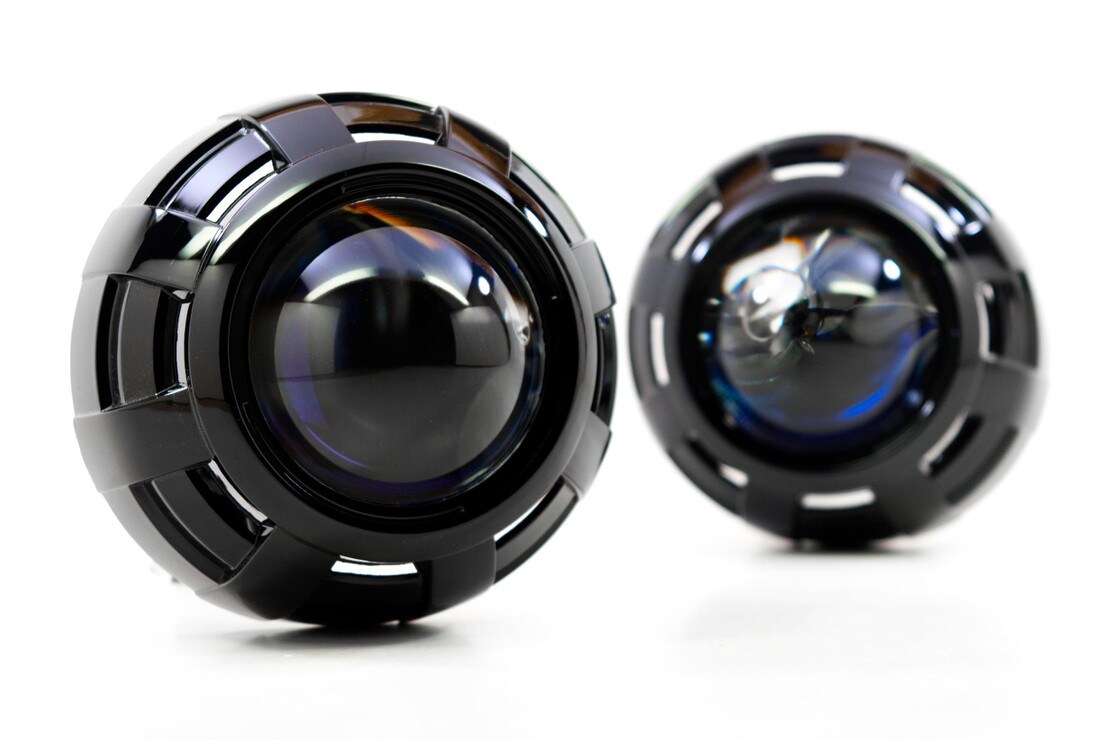

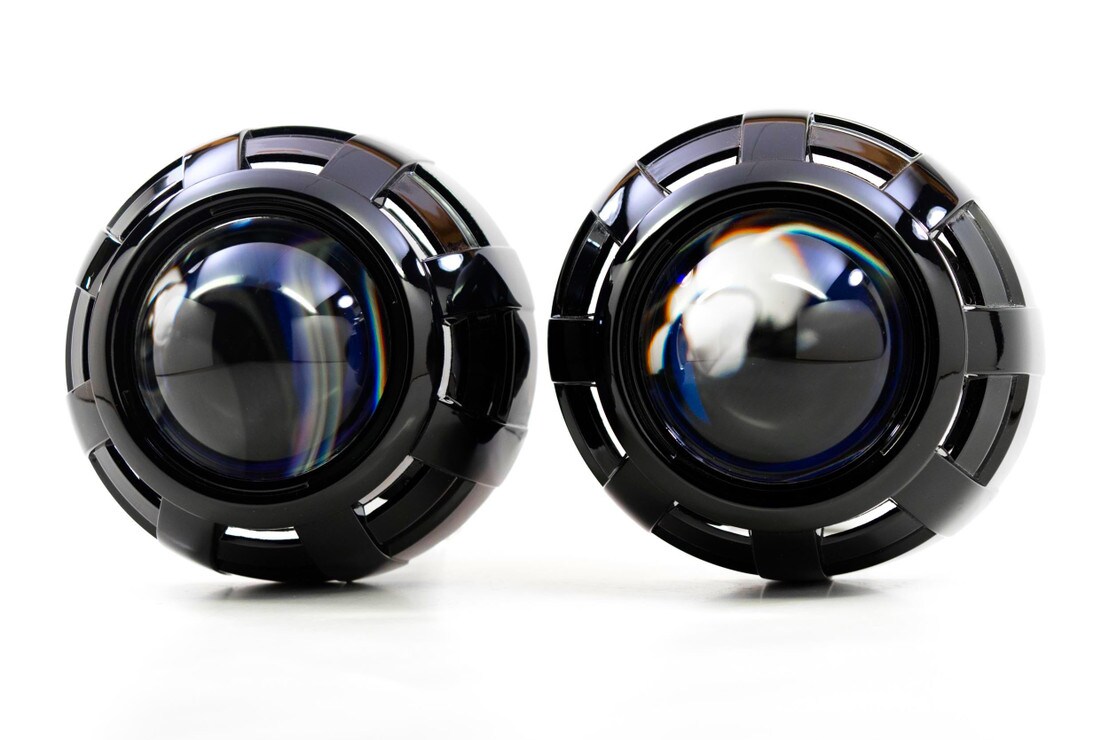

Apollo 3.0 Projector Shroud (Black Series)

(0) No Reviews yet
Questions?

Brand: Morimoto

B-SHR-APOL3BLK-HR

PRODUCT OPTIONS

PART #: 2 x S131



Easy Return

DESCRIPTION

The Apollo 3.0 Projector Shrouds offer a sophisticated solution for enhancing vehicle headlights. Crafted with inspiration from Porsche design, these shrouds boast excellent projector coverage and seamless integration with 110mm LED halos. Their sleek piano black finish not only accentuates their aesthetics but also ensures compatibility with a wide range of retrofits on vehicles featuring round reflectors. Manufactured with high-quality plastic, these shrouds guarantee durability and resilience. Additionally, optional Centric Rings enhance installation ease, while recommended JB Quik Weld prevents potential loosening over time. With provisions for Profile Pivot and Profile Pixel LED halos, customization options abound, ensuring a tailored, reliable, and visually striking retrofit experience.

FEATURES & BENEFITS

  • Exceptional Coverage: Apollo 3.0 Projector Shrouds ensure optimal light distribution.
  • Sleek Design: Featuring a stylish piano black finish inspired by Porsche.
  • Durable Construction: Made from high-quality plastic for long-lasting performance.
  • Easy Installation: Centric Rings and JB Quik Weld recommended for hassle-free setup.
  • Customizable Lighting: Compatible with Profile Pivot and Profile Pixel LED halo systems.

WHAT’S INCLUDED

  • Shrouds: 2x (One Pair) Apollo 3.0 Black Projector Shrouds

  • Optional Accessories: Centric Rings and Halos

WARRANTY INFORMATION

This Morimoto product includes a 5 Year limited warranty, serviced and supported by the Morimoto team in Atlanta, GA. This warranty does not cover modifications, alterations, or misuse. For additional information, Click Here.

TECHNICAL SPECIFICATIONS

  • Dimensions: 126mm DIA, 56mm D

  • Halo Sizing: 80mm (Front), 110mm (Vent)

  • Finish: Gloss Black Paint

LINE DRAWINGS

COMPATIBILITY

  • MORIMOTO PROJECTORS: All except Matchbox

  • OEM PROJECTORS: Most except TL, LS430, LS460, Q45

  • LENS DIAMETERS: 2.5in and 3in Compatible

  • MOUNTS WITH: Centric Rings and/or JB Quik Weld

INSTALLATION DOCUMENTS

Apollo 3.0: Fresh off the injection press! the Apollo 3.0 is the third Porsche inspired shroud to join the Apollo family. With excellent projector coverage, great looks, and perfect integration with our 110mm LED halos, they're already a hit! Now available with a stellar piano black finish that accents its design, the Apollo 3.0 fits well in a wide variety of retrofits on vehicles with round reflectors. Whether you're working on a car or a truck with big headlights, consider the Apollo 3.0 as a solid choice.

In Comparison: Don't make the mistake of thinking all shrouds are created equal. Even though less expensive alternatives may be available elsewhere: Morimoto shrouds are made from the highest quality plastic and have by far the most durable painted finishes. The cheap-o's out there are flimsy enough to deform from the heat just a 35W HID bulb, and their coating easily flakes off.

Mounting: Centric Rings are not included by default, but are highly recommended to improve ease of installation on many projectors. The Centric Rings are simple reducers that clip into the shroud to reduce the inside diameter, making them more of a "press fit" onto the lens holder of the projector. JB Quik Weld is also recommended in order to prevent the shrouds from vibrating loose over time.

LED Halos: Are a unique and effective way to further customize the look of your projector retrofit. The Profile Pivot (switchback) and Profile Pixel (RGB) systems are easy to mount on the front of your shrouds, are reliable, and of course awesome looking. To determine which size is best for you - check out the size-guide in the "In Action" images section below. These shrouds feature DRL-Vents that will glow with light if you wanted to do something a bit different and mount the halos inside.

Trimming: Please note that trimming shrouds is a common task when retrofitting. Whether required to clear part of the projector, or fit within the geometry of your headlight housing; it's normal. Luckily, they're made of plastic - making that easily possible. We recommend a Dremel hand tool with EZ Lock cutting wheels to make the job easy.
