DOT LP6 LED 7" Round Headlight Kit (Single)

(0) No Reviews yet
Questions?

Brand: Baja Designs

3P-BD99-HR

Videos

$307.39 $472.90

PRODUCT OPTIONS

PART #: 1 x BD18-0001, 1 x 640172

Harness: BD Wire Harness: LP9 Pro Series (2 Light Max) — These are in high demand and just sold out! Backorders are lining up. Order now to reserve your place in line!

DESCRIPTION

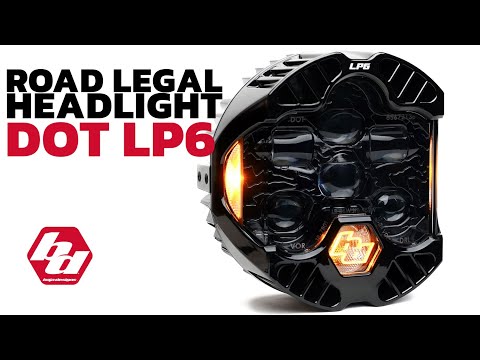

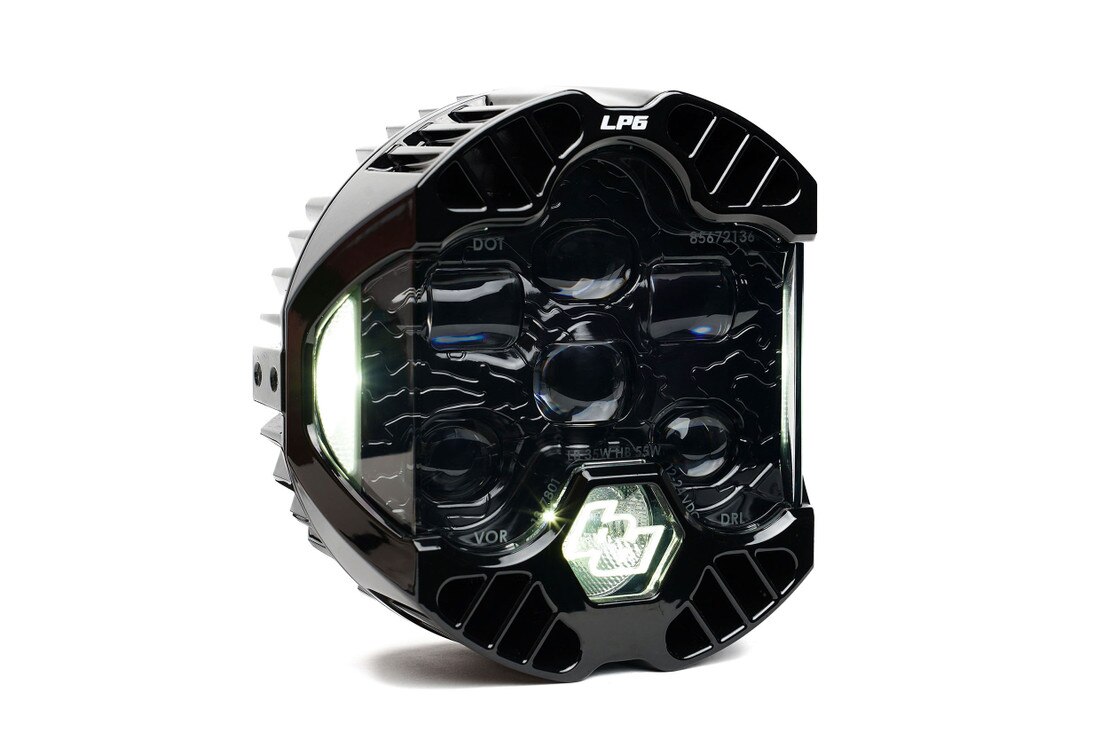

Upgrade your ride with the Baja Designs DOT LP6, their first-ever road-legal LED headlight replacement BD18-0001. Built on the foundation of the race-proven LP6 Pro off-road light, the DOT LP6 is engineered for on-road use and fully compliant with FMVSS 108 standards for both automotive and motorcycle applications. This premium LED headlight offers integrated high and low beam functions, delivering exceptional performance and reliability on any road. Choose between white or amber daytime running lights to customize your vehicle's look. With universal and vehicle-specific mounting options, the DOT LP6 provides a perfect fit for your setup. Backed by Baja Designs' 30-Day Satisfaction Guarantee and Lifetime Limited Warranty, the DOT LP6 is the ultimate combination of rugged durability, style, and DOT road-legal usability.

FEATURES & BENEFITS

  • DOT-Compliant Design: Fully meets FMVSS 108 standards for safe and legal on-road use.
  • Integrated High & Low Beams: Provides exceptional visibility and performance in all driving conditions.
  • Customizable Daytime Running Lights: Choose white or amber to match your vehicle’s style.
  • Flexible Mounting Options: Universal and vehicle-specific mounts ensure a perfect fit for any setup.
  • Industry-Leading Warranty: Backed by a 30-Day Satisfaction Guarantee and Lifetime Limited Warranty for peace of mind.

WHAT’S INCLUDED

  • Headlight: 1x Baja Designs DOT LP6 Headlight (White or Amber DRL)

  • Hardware: Mounting Hardware

WARRANTY INFORMATION

This product is covered by a Lifetime Limited warranty, serviced and supported by the manufacturer directly. This warranty does not cover modifications, alterations, or misuse. For additional information,Click Here.

TECHNICAL SPECIFICATIONS

  • Intensity: 3,480lm (Low Beam) / 5,280 (High Beam)

  • Output Color: 5000K Daylight White

  • Wattage: 26W (L) / 40W (H) / 5W (DRL)

  • Voltage: 10.5 to 32V

  • Amperage: 1.8A (L) / 2.8A (H) / 0.4A (DRL)

  • Beam Pattern: Low Beam:::10Lux out to 50meters (Standard Spec for DOT Headlights)

  • Compliance: IP69K, IK10, MIL-STD810G, FMVSS

  • Material: Hard Coated Polycarbonate (Lens), Anodized Aluminum (Housing), Billet Aluminum (Bezel), Stainless Steel (Hardware, Bracket)

COMPATIBILITY

  • Sealed Beam Standards: Par56 / 7in Round

  • Wiring: Harness not included, Part Number 640172 required for installation on vehicles (harness not compatible with motorcycles)

  • AM General Hummer: 1992-2001

  • Chevrolet Astra: 2001

  • Chevrolet Aveo: 2013

  • Chevrolet Bel Air: 1950-1957

  • Chevrolet Blazer: 1969-1974

  • Chevrolet C10: 1975-1980

  • Chevrolet C10 Suburban: 1968-1980

  • Chevrolet C20: 1975-1980

  • Chevrolet C20 Suburban: 1968-1980

  • Chevrolet C30: 1975-1980

  • Chevrolet C50: 1962-1979

  • Chevrolet C80: 1962-1965

  • Chevrolet Camaro: 1967-1981

  • Chevrolet Chevelle: 1971-1973

  • Chevrolet Chevette: 1976-1978

  • Chevrolet Chevy II: 1962-1967

  • Chevrolet Corvette: 1955-1956

  • Chevrolet El Camino: 1971-1975

  • Chevrolet Fleetmaster Truck: 1946-1948

  • Chevrolet G10: 1975-1987

  • Chevrolet G20: 1975-1987

  • Chevrolet G30: 1975-1987

  • Chevrolet K10: 1975-1980

  • Chevrolet K10 Suburban: 1968-1980

  • Chevrolet K20: 1975-1980

  • Chevrolet K20 Suburban: 1968-1980

  • Chevrolet K30: 1977-1980

  • Chevrolet K5 Blazer: 1975-1980

  • Chevrolet LUV: 1978-1982

  • Chevrolet Monte Carlo: 1970-1983

  • Chevrolet Monza: 1975-1980

  • Chevrolet Nova: 1969-1979

  • Chevrolet R10 Suburban: 1988

  • Chevrolet R20: 1988

  • Chevrolet R30: 1988

  • Chevrolet S10: 1982-2017

  • Chevrolet Sedan Delivery: 1947-1957

  • Chevrolet Truck: 1935-1960

  • Chevrolet V10: 1987

  • Chevrolet V10 Suburban: 1988

  • Chevrolet V30: 1988

  • Chevrolet Vega: 1971-1977

  • Ford B-100: 1973-1980

  • Ford B-150: 1981-1985

  • Ford Bronco: 1966-1978

  • Ford Courier: 1972-1982

  • Ford F-100: 1953-1979

  • Ford F-150: 1975-1977

  • Ford F-250: 1953-1977

  • Ford F-350: 1953-1977

  • Ford F-600: 1970-1979

  • Ford F-700: 1970-1979

  • Ford F-7000: 1970-1979

  • Ford Falcon Sedan Delivery: 1961-1965

  • Ford Fiesta: 1978-1980

  • Ford Granada: 1975-1977

  • Ford Maverick: 1970-1977

  • Ford Mustang: 1964-1973

  • Ford Mustang II: 1974-1978

  • Ford Pinto: 1974-1978

  • Freightliner Century Class: 2009-2011

  • Hummer H1: 2002-2006

  • Hummer H2: 2003-2009

  • Hummer H3: 2006-2010

  • Hummer H3T: 2010

  • Jeep CJ5: 1965-1983

  • Jeep CJ6: 1966-1975

  • Jeep CJ7: 1976-1987

  • Jeep Cherokee: 1974-2016

  • Jeep Commander: 2008-2010

  • Jeep Commando: 1966-1969

  • Jeep Compass: 2008-2016

  • Jeep Gladiator: 1962-1969

  • Jeep Grand Cherokee: 2008-2016

  • Jeep J-100: 1965

  • Jeep J10: 1974-1978

  • Jeep J20: 1974-1978

  • Jeep Liberty: 2002-2012

  • Jeep M151: 1971-1972

  • Jeep Patriot: 2008-2016

  • Jeep Renegade: 2015-2016

  • Jeep TJ: 1997-2006

  • Jeep Truck: 1958-1965

  • Jeep Universal: 1961-1965

  • Jeep Universal Truck: 1962-1969

  • Jeep Utility Wagon: 1956-1959

  • Jeep Wagoneer: 1963-1978

  • Jeep Wrangler: 1987-2018

  • Jeep Wrangler JK: 2018

  • Kenworth T2000: 1997-2011

  • Land Rover Defender: 2011-2015

  • Land Rover Defender 110: 1993

  • Land Rover Defender 90: 1995-1997

  • Land Rover Land Rover: 1970-1971

  • Land Rover Range Rover: 1987-1995

  • Suzuki SJ410: 1980-1985

  • Suzuki SJ413: 1985

  • Suzuki Samurai: 1985-1993

  • Volkswagen Beetle: 1950-1979

  • Volkswagen Cabriolet: 1985-1993

  • Volkswagen Fox: 1989-1991

  • Volkswagen Golf: 1985-1992

  • Volkswagen Rabbit: 1979-1984

  • Volkswagen Rabbit Convertible: 1981-1984

  • Volkswagen Rabbit Pickup: 1980-1982

  • Volkswagen Vanagon: 1981-1985

  • Interchange Part Number: 2pcs 7-inch headlight protective cover (without headlights), 2pcs 7-inch Round LED Headlights, 7 INCH Headlight with Halo, AT0023725, H6024, H6014, 6012, 6014, 6015, MT0001914190

  • Manufacturer Part Number: AUIMSOCOR1892, C003RY102, C10C20C30PICKUP, C6-H4-7INCH Round Headlight

  • OE/OEM Part Number: 6012, 6014, 6015, 6016, H6014, H6017, H6024, 7 INCH Headlight Headlamp, 7INCH LED Headlight, C003, GDSAHGKJ12453415

  • Superseded Part Number: 6012, 6014, 6015, 6016, H6014, H6017, H6024, 7 INCH Round Halo Headlights, MT0002858BK, MT00055318, Pair 7 INCH Round Headlights & H4 to H13 Connector

COMPLIANCE

Meets IP69K, IK10, MIL-STD810G, and FMVSS 108 Standards

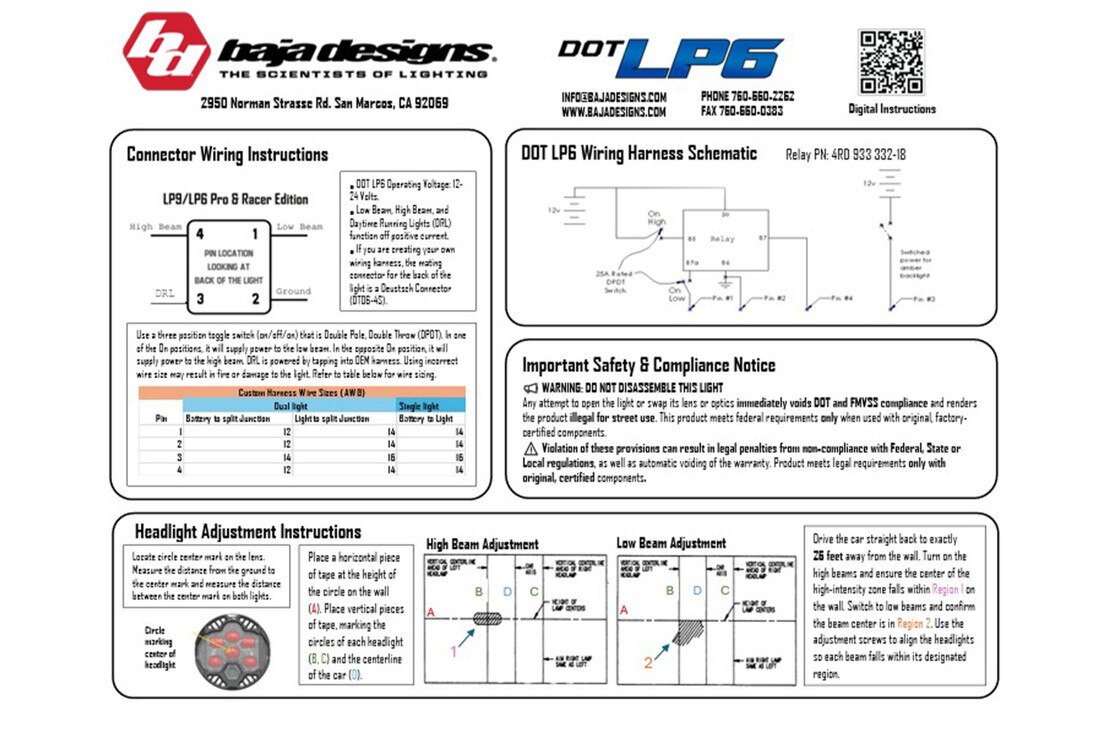

INSTALLATION DOCUMENTS
