Bi-Xenon: Mini D2S Stage IV Projector System

(0) No Reviews yet
Questions?

Brand: Morimoto

B-RFK-S4-HR

PRODUCT OPTIONS

PART #: 2 x PR56, 2 x S100, 2 x BL100, 2 x B70, 1 x H10



Easy Return

DESCRIPTION

The Morimoto Bi-xenon Stage IV Projector retrofit system offers top-notch performance for automotive enthusiasts. Featuring options from reputable brands like Denso and Philips, this system ensures your fog lights reach full intensity in just three seconds. The 5.0 projector boasts an ideal balance of width and hotspot lux, drawing from the best practices of OEM and aftermarket projectors. With attention to detail, including new bulb holders and lock rings, the system guarantees a factory-finished look. Additionally, OEM ballasts from Matsushita or Denso provide virtually instant warm-up times and are waterproofed for durability. The package also includes Philips 85122 D2S bulbs, renowned for their quality and longevity. For seamless installation and reliable performance, Morimoto's wire harness features triple-sealed relay packs and plug-and-play functionality. Optional Canbus harnesses ensure stability and compatibility with modern European vehicles, while LED halos offer a clean, reliable lighting solution with integrated turn signals. Finally, RetroRubber housing sealant prevents moisture ingress, preserving the integrity of your headlights for years to come.

FEATURES & BENEFITS

  • Quick Intensity: Fog lights reach full brightness in just three seconds.
  • Optimal Performance: 5.0 projector balances width and hotspot lux for superior illumination.
  • Durable Components: OEM ballasts are waterproofed for longevity and warranty coverage.
  • Quality Bulbs: Includes Philips 85122 D2S bulbs known for their precision and long lifespan.
  • Easy Installation: Wire harness features plug-and-play functionality for seamless setup.

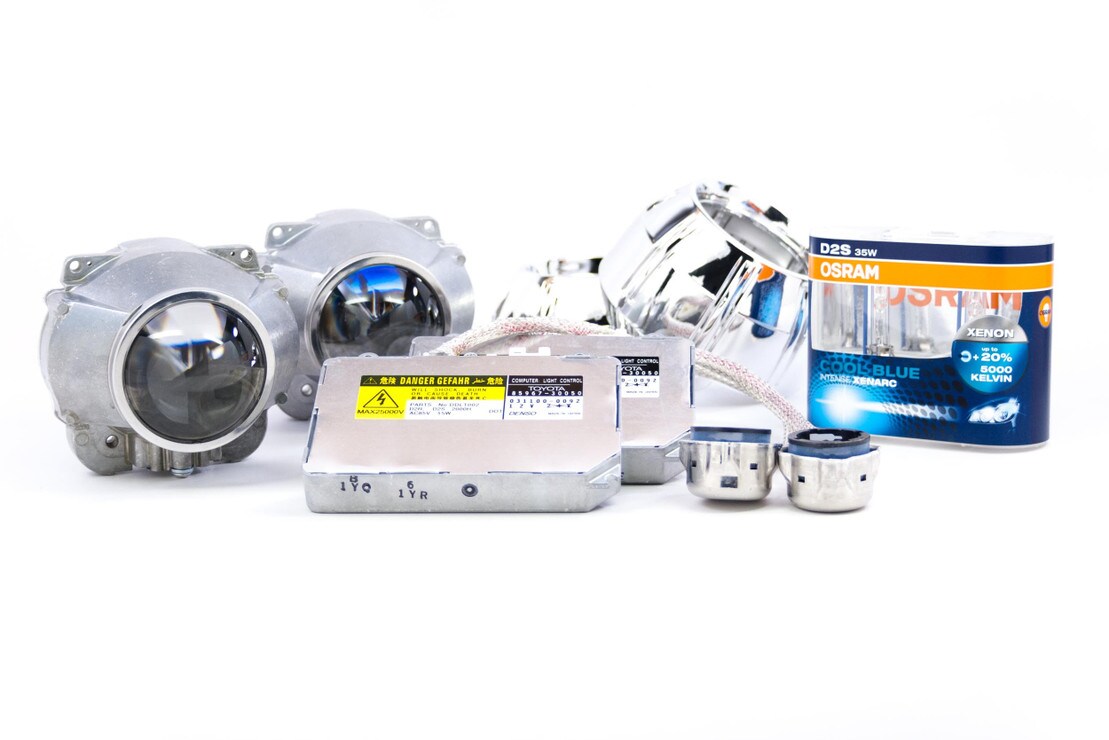

WHAT’S INCLUDED

  • Projectors: 2x (One Pair) Mini D2S 5.0 Bi-Xenon Projectors

  • Shrouds: 2x Your Preference

  • Ballasts: 2x Denso Slim or Matsushita G5 Ballasts

  • Bulbs: 2x Your Preference of D2S Bulbs

  • Wiring: Your Preference

  • Optional Accessories: Housing Sealant and LED Halo

WARRANTY INFORMATION

This Morimoto product includes a 3 Year limited warranty, serviced and supported by the Morimoto team in Atlanta, GA. This warranty does not cover modifications, alterations, or misuse. For additional information, Click Here.

TECHNICAL SPECIFICATIONS

  • Intensity: 3,200-3,500lm (est.)

  • Power: 35w

  • Operating Temp: -40C to 125C

  • Rated Lifespan: 2,000hrs (2-4yrs)

COMPATIBILITY

  • APPLICATIONS: Universal / Size Allowing

  • CAPABILITIES: Bi-Xenon

  • PROJECTOR DIMENSIONS: Varies by Model

  • PROJECTOR LENS: Varies by Model

  • MOUNTING SHAFT: 35mm (for MD2S. N/A for FX-R)

  • MINIMUM HOUSING DEPTH: 117mm (for Mini D2S)

  • WIRE HARNESS: Match your original bulb size

  • SHROUDS: All styles except 'Mini' models

  • LED HALOS: Varies according to shroud style

Discerning: Automotive lighting geeks will certainly be impressed with the Morimoto Bi-xenon Stage IV Projector retrofit system. With standard equipment from Morimoto and options from some awesome OEM's like Denso and Philips...your fog lights are going to be doing zero to full intensity in three seconds flat.

Projector-Perfection: There are other projectors that produce brighter hot spots. There are other projectors that have unholy amounts of width, but no other option creates the perfect balance of width & hotspot lux (aka distance) quite like the 5.0. In order to create the ultimate weapon for driving in the dark; Morimoto baked in all of the best practices from a variety of well-respected OEM and aftermarket projectors. Their latest and greatest equates to the perfect all-around perfomer. While it big boost in the performance department, it's also clear they've paid attention to the details in the parts department too. New bulb holders & lock rings are icing on our projector pie!

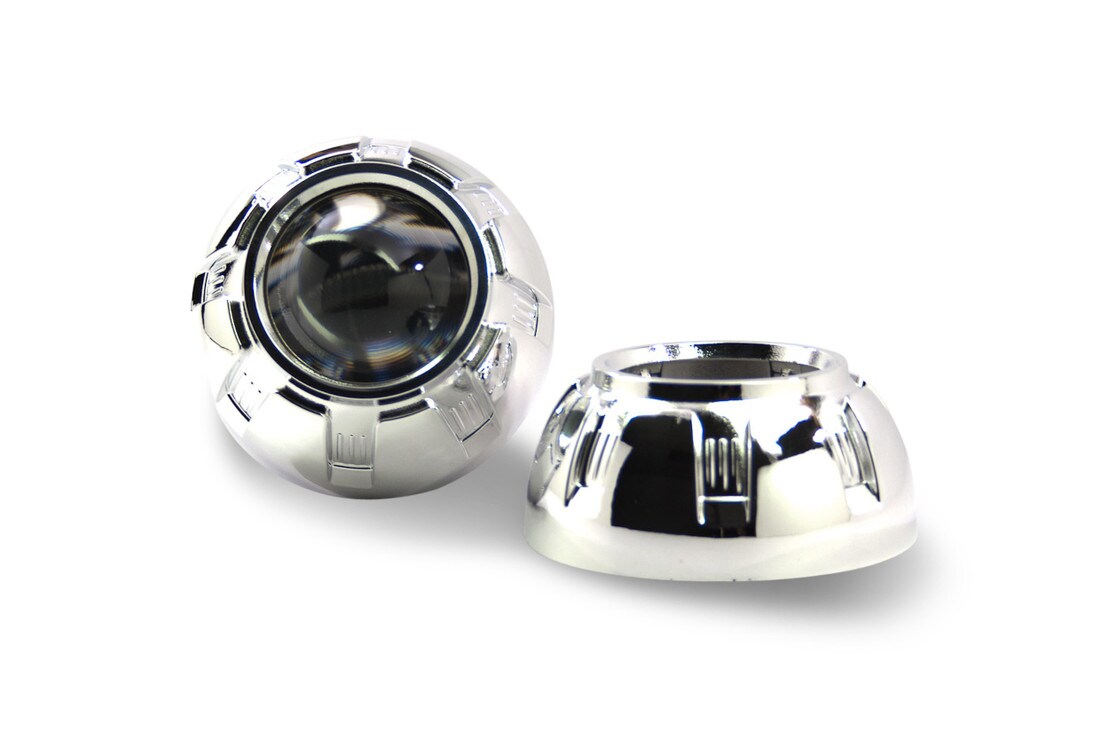

Shrouds: Basically, they're the trim piece that adds the finishing touch to your new fog light retrofit. They cover the projector after it's installed to restore the factory-finished look inside the housings. With so many different shapes, sizes, and designs available; we really recommend picking one that suits the geometry inside of your fog lights, and also your personal preference on how they look.

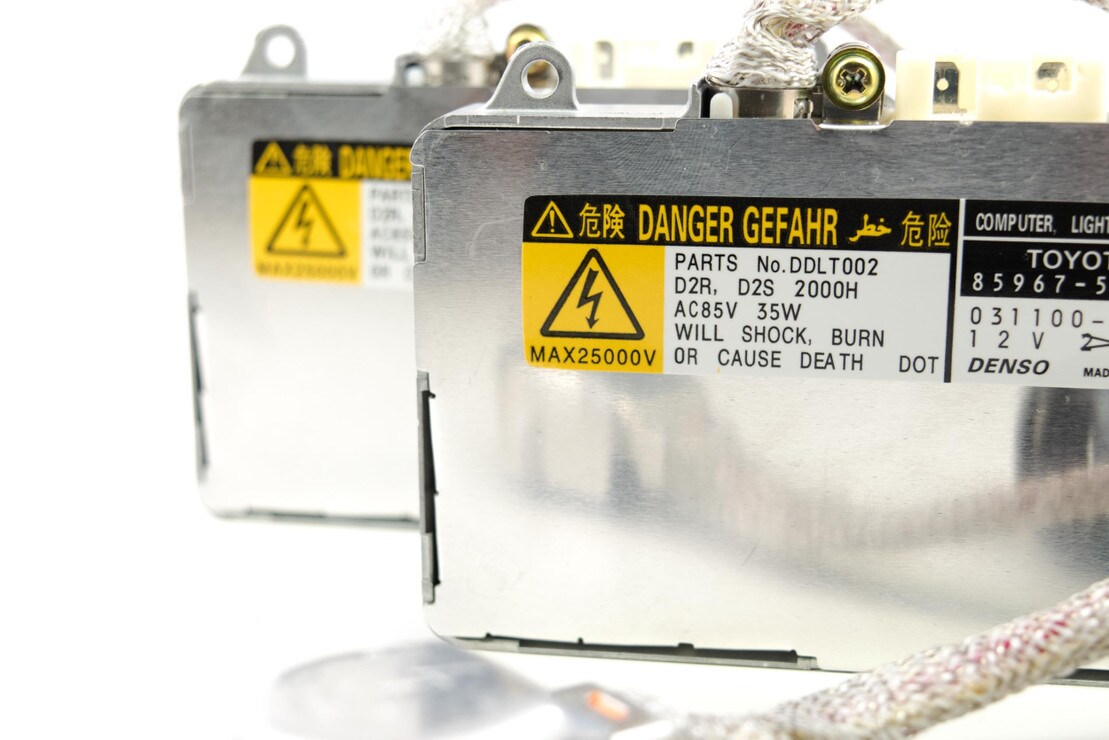

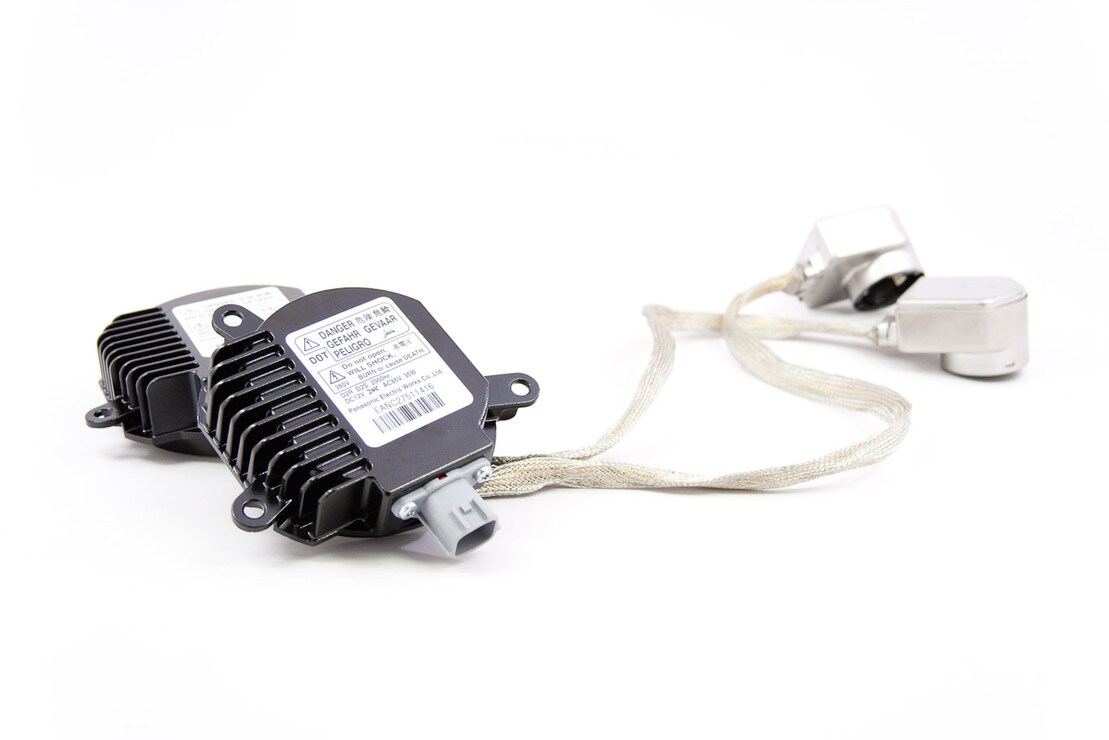

OEM Ballasts: From Matsushita or Denso, these have a virtually-instant warm up time, bringing the HID bulbs to their full intensity within 2-3 seconds. When waterproofed, these ballasts are virtually "bomb proof" by preventing moisture damage and enhancing their warranty coverage. Without waterproofing, they are susceptible to moisture ingress--something not covered by their warranty!

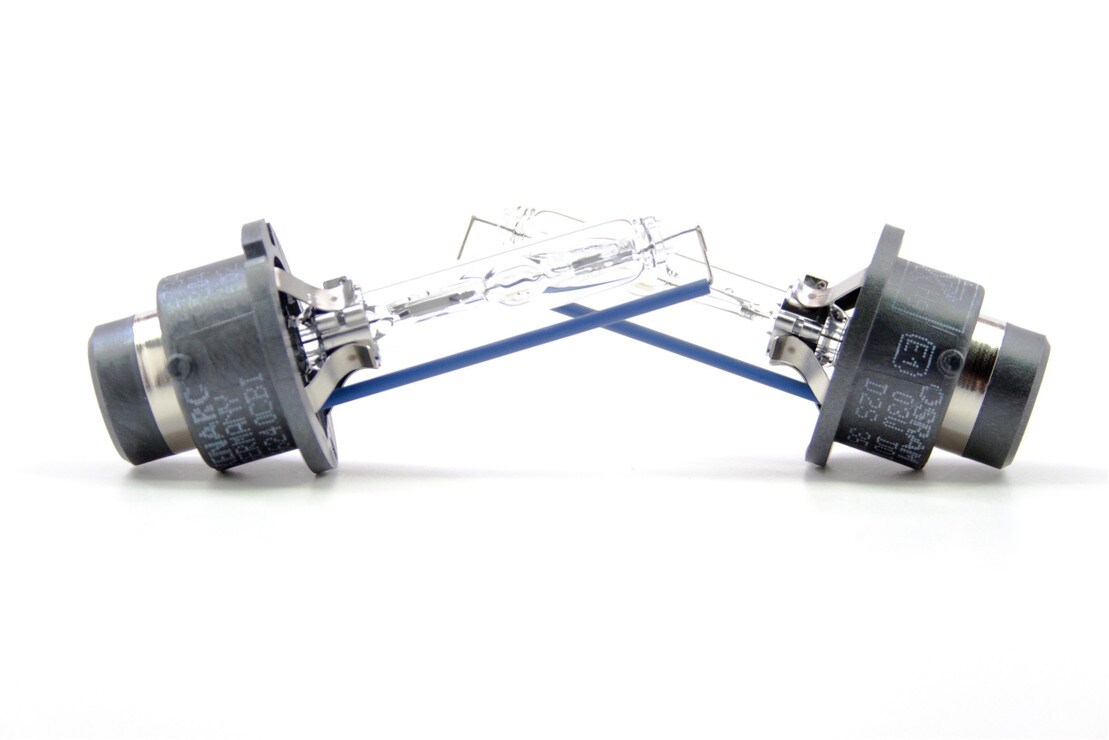

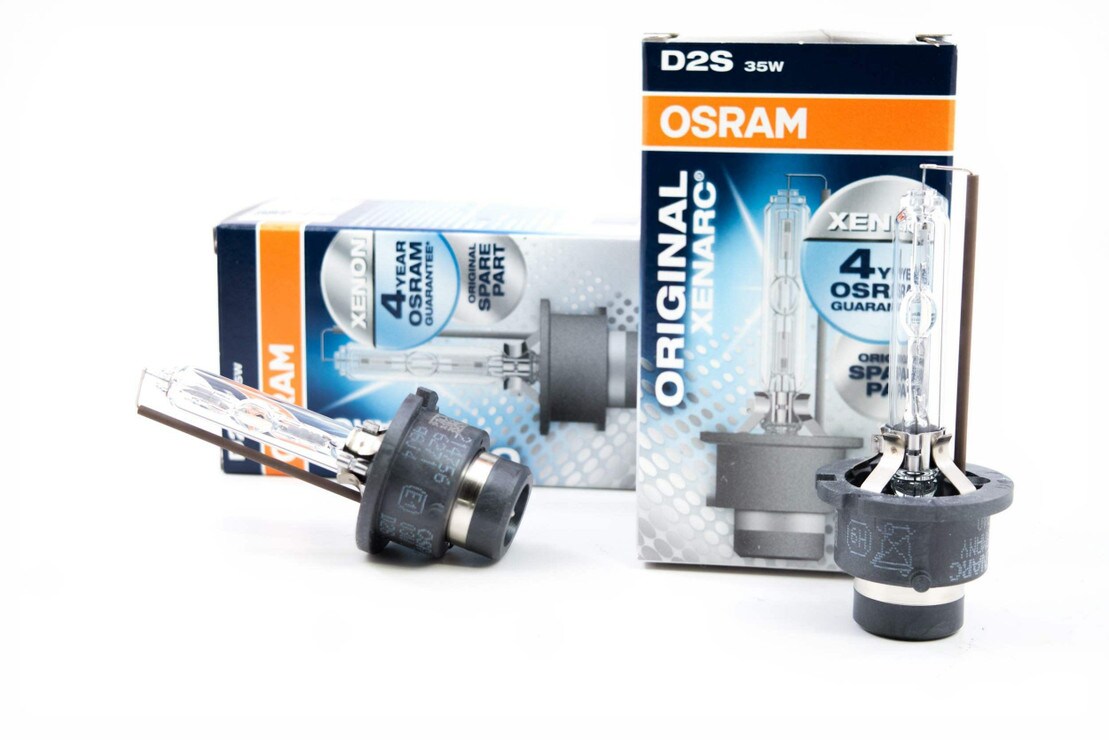

Philips 85122 D2S Bulbs: The benchmark for high quality 4300K HID lamps. With their extra long life span, unmatched precision, and high lumin Osity - they've been an OE benchmark for ten years. These days, you can upgrade to the super Osram CBI or NightBreaker Laser bulbs for even more lumin Osity and white light. If you've got the money, go for it! We take pride in being one of the few retailers that only sells genuine OEM products.

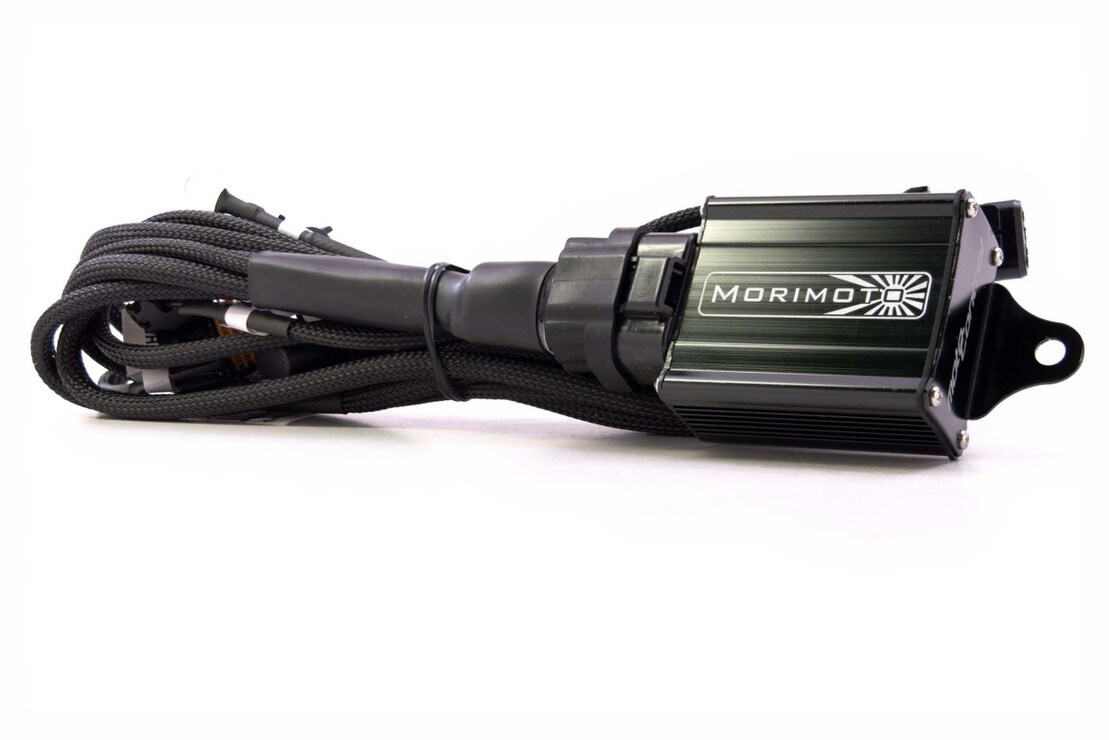

Wire Harness: As one of the most important parts in any HID lighting upgrade; don't skimp out when it comes to your wiring. It doesn't matter how good your ballasts are. How good your bulbs are. If your harness is a piece of crap, when it gives out your fog lights are gonzo. Morimoto's harnesses are the best on the market and easily worth their premium price compared to cheaper alternatives. No matter which one is right for your application, the harness features triple-sealed central relay packs, 14ga stranded copper wiring, over-molded fittings, and plug-n-play functionality. This will ensure everything properly (and permanently) works with your vehicle's original in-cabin controls.

Optional Canbus Harnesses: Instead of a traditional relayed harness that draws power from the battery, Morimoto's Standalone Canbus harnesses use two individual sub-harnesses to keep a load on the factory wiring. Recommended for vehicles that recognize when a bulb is out, these contain a series of capacitors and resistors to trick the car into thinking nothing has changed and help you avoid annoying "bulb out" warnings. We generally recommend them for use on most modern European applications instead of normal harnesses since they do a great job at providing stable power to the ballasts and canceling bulb out warnings.

Optional LED Halos: Though LED halos may not be for everybody, if you're looking for the cleanest, most simple, most reliable setup, we highly recommend the Profile Performance Pivot Halos. Not only are they the brightest, most uniformly lit halos currently on the market, but they double as a switchback turn signal with your blinker circuit. The integrated controllers are extremely easy to setup with only three wires (white, amber, and ground) and allow you to run the white mode continuously until interrupted by the signal--at which point they will blink amber. Once the signal stops, the Pivot ring will automatically switch back to its pure white mode.

Optional Housing Sealant: Protection is priceless! When you're putting together a set of high-end fog lights, the last thing you want is moisture in 'em the first time it rains outside. RetroRubber is the most effective way to make sure the original seal is fully restored. For the small price, why anybody wouldn't prevent their new fog lights from fogging up is beyond us. It'll be the best twelve bucks you've ever spent.
