Anti-Flicker Capacitor Link

(0) No Reviews yet
Questions?

Brand: Morimoto

B-WIR-H300-HR

$20.50

PRODUCT OPTIONS

PART #: 1 x H300



Easy Return

DESCRIPTION

Introducing the Capacitor Link – your ultimate solution for a flawless driving experience! Modern vehicles are equipped with intricate headlight circuits that use pulsed voltage for functions like Daytime Running Lights, leaving you vulnerable to buzzing relays and flickering headlights. But worry not, our HID anti-flicker capacitor is here to save the day. With an easy plug-n-play setup, it seamlessly integrates between your factory output and relay harness, effortlessly translating irregular signals into a steady beam of light. Crafted with precision, it boasts a powerful 10,000uf electrolytic capacitor, robust 14-gauge wiring, and universal compatibility with most single-xenon or low beam relay harnesses. Don't settle for less – experience steady brilliance on every drive with the Capacitor Link. Your headlights deserve nothing but the best!

FEATURES & BENEFITS

  • Stable Illumination: Enjoy flicker-free lighting with our HID anti-flicker capacitor.
  • Easy Installation: Plug and play between factory output and relay harness input.
  • Smooth Transition: 10,000uf capacitor ensures consistent light signals.
  • Universal Compatibility: Works with single-xenon or low beam relay harnesses.
  • Enhanced Experience: Say goodbye to buzzing relays and flickering headlights.

WHAT’S INCLUDED

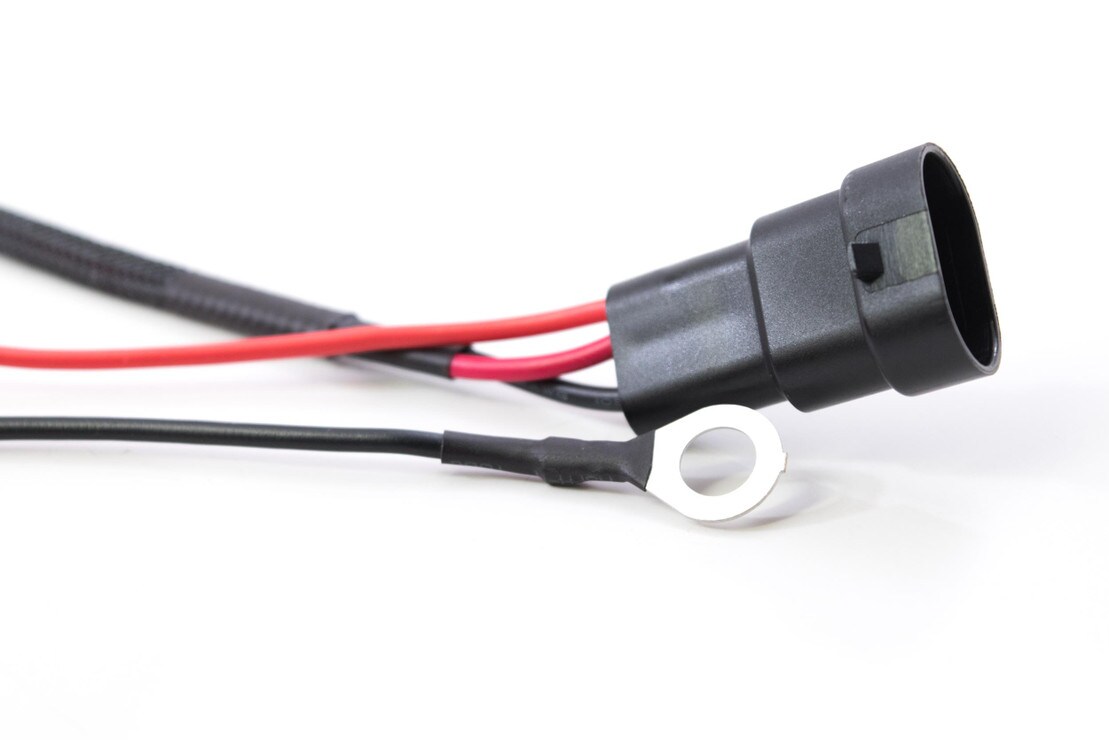

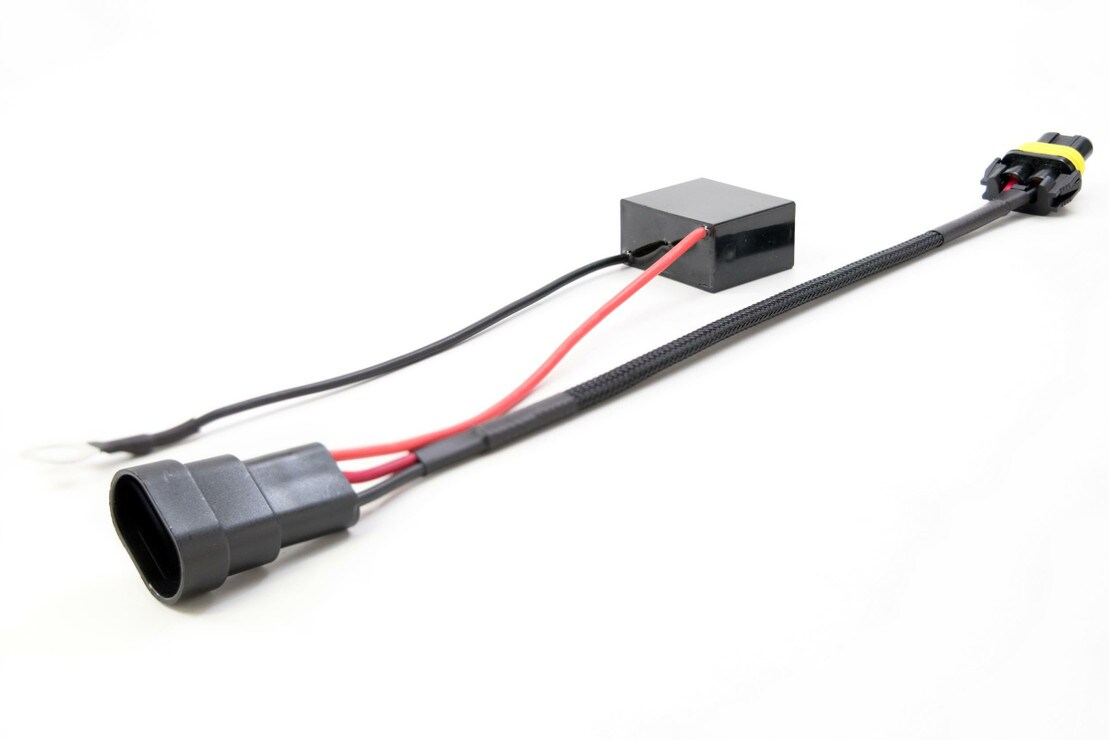

  • Harness: 1x Anti-Flicker Capacitor Link Harness (Waterproof)

WARRANTY INFORMATION

This Morimoto product includes a 2 Year limited warranty, serviced and supported by the Morimoto team in Atlanta, GA. This warranty does not cover modifications, alterations, or misuse. For additional information, Click Here.

TECHNICAL SPECIFICATIONS

  • Input: 9006 Male

  • Output: 9006 Female

  • Wiring: 14 AWG

  • Material: Molded Plastic Case w/ Hard Epoxy Potting

COMPATIBILITY

  • PWM-Based Systems: Smooths out pulsing signals

  • CIRCUITS: Low Beam, High Beam, DRL

  • ONLY COMPATIBLE WITH: Relayed Wire Harnesses!

  • RELAY HARNESSES: Must have 9006 Male Input

More and more: Modern vehicles are coming from the factory with headlight circuits that utilize pulsed voltage to run things like Daytime Running Lights or as a means to deter owners from modifying their lights. Unless you've got the right parts (ahem, this HID anti-flicker capacitor) then prepare for buzzing relays and flickering headlights!


Flicker-Proof: So, you installed a HID system on your car that uses a pulsing with headlight circuit? Without a capacitor link: Even if you installed a relay harness, the ballasts and bulbs with flicker/flash since the pulsed current coming from your factory wiring will translate into the relays - causing them to open and shut rapidly (which often sounds like a buzzing noise)


Easy Fix: The Morimoto Capacitor Link has a simple plug-n-play installation between the factory output and the relay harness input with just one ground. It will intercept the pulsed voltage, store it, and then release it smoothly into the harness. This HID anti-flicker capacitor basically translates irregular "on/off" signals to constant "on" signals.


Ingredients: The Morimoto Capacitor Link utilizes a 10,000uf electrolytic capacitor, 14 gauge wiring, and OEM-quality 9006 Male/Female Input/outputs for universal compatibility with basically all single-xenon or low beam relay harnesses.
