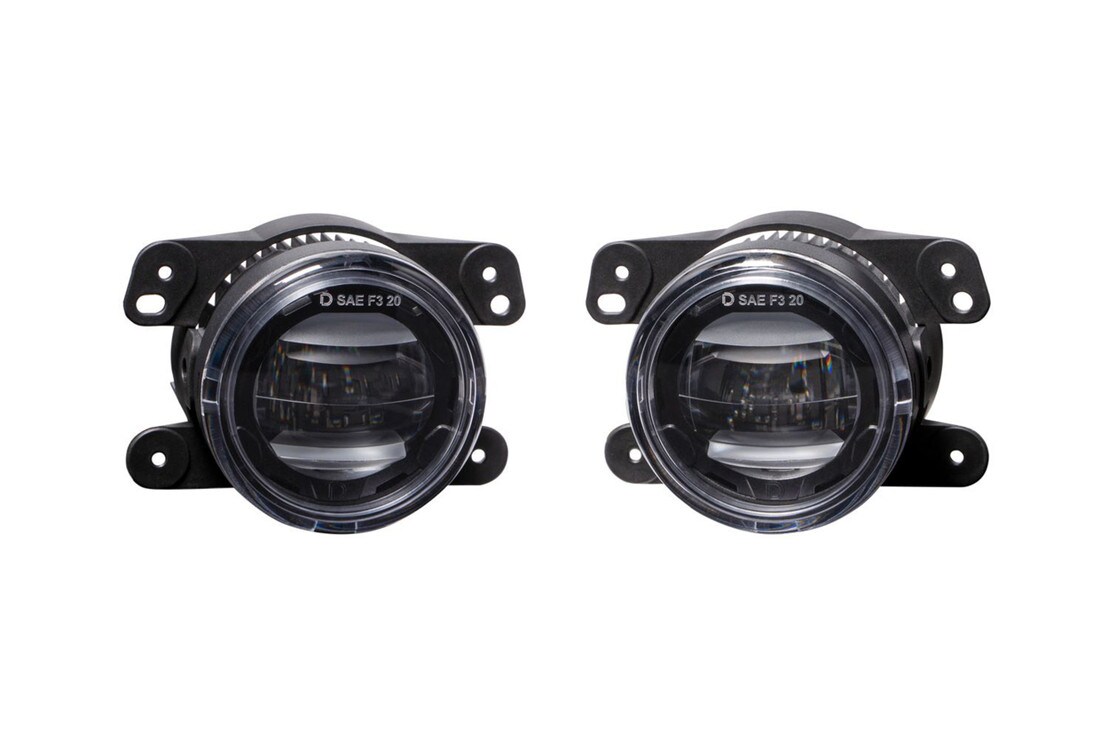

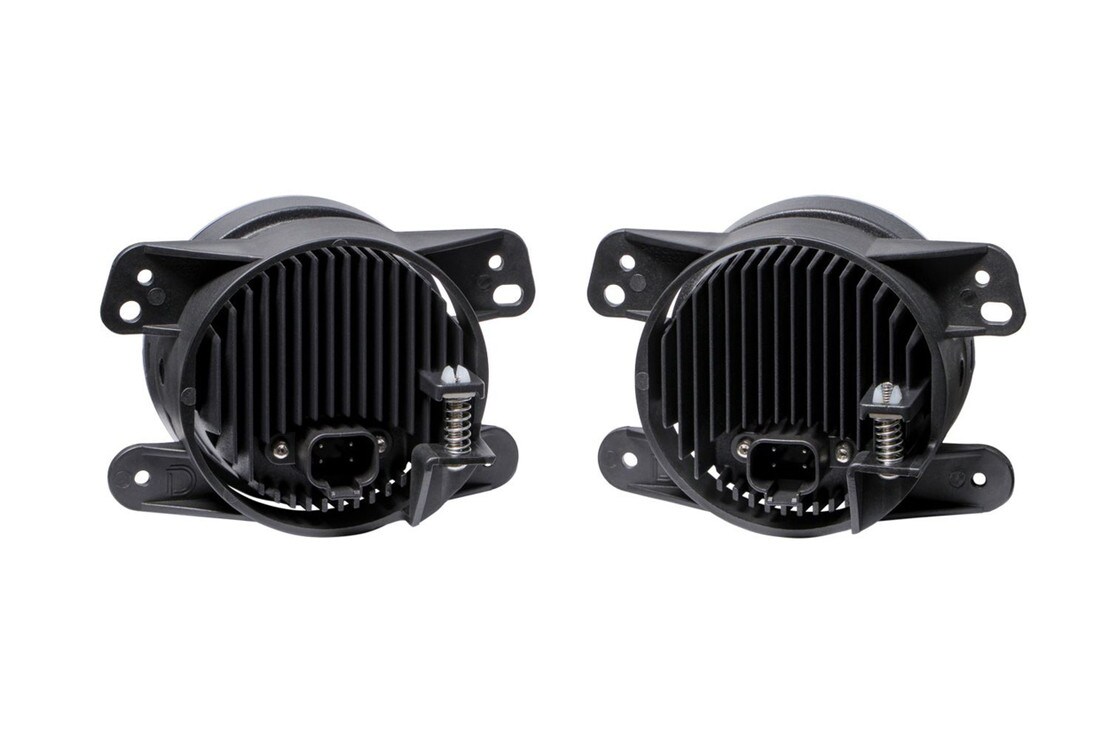

Elite Series Type M LED Fog Lights

(0) No Reviews yet
Questions?

Brand: Diode Dynamics

3P-DD84-HR

$259.95

PRODUCT OPTIONS

PART #: 1 x DD5130P


LED Fog Lights (Choose Color): Diode Dynamics Elite Foglamp Type M White (pair) — These are in high demand and just sold out! Backorders are lining up. Order now to reserve your place in line!

DESCRIPTION

Elevate your driving experience with Diode Dynamics' revolutionary Elite Series Fog Lamps. Redefining fog light DD5130P performance, these cutting-edge LEDs are meticulously designed for unparalleled brightness and visibility. Boasting a custom-engineered optic, advanced multi-die emitters, and robust copper circuit boards, they offer up to 5 times the output of traditional halogens. With hassle-free plug-and-play installation, you'll enjoy improved visibility in minutes. Experience a wider, smoother, glare-free light pattern with their precision-engineered PMMA lens, meeting legal on-road standards. Choose from cool white 6000K or high-contrast selective yellow 3000K options, both ensuring unmatched efficiency. The integrated amber accent light adds sophistication, and with an impressive 8-year limited warranty, these USA-assembled lamps guarantee quality and reliability.

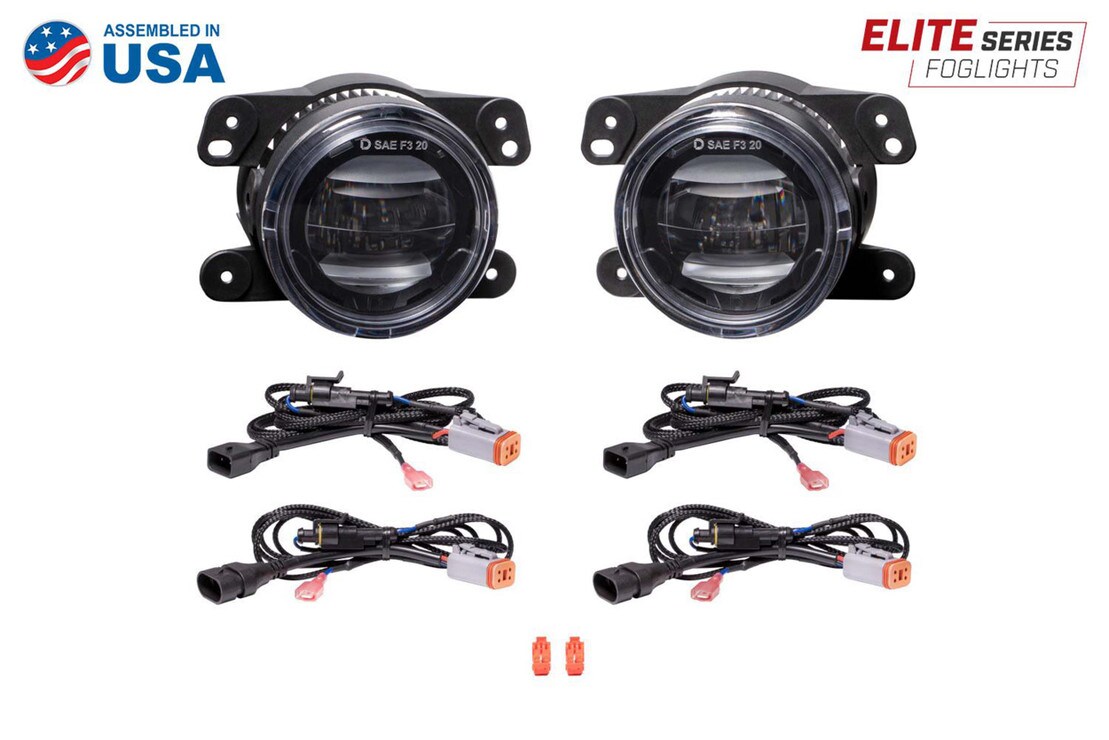

WHAT’S INCLUDED

  • Fog Lights: 2x (One Pair) Elite Series Type M Fog Lights

  • Wiring: 2x (One Pair) Plug-n-Play 9005/9006 4-pin DT Backlight Tap Wires / 5202 4-pin DT Backlight Tap Wires (2x T-taps included)

WARRANTY INFORMATION

This product is covered by a 8 year limited warranty, serviced and supported by the manufacturer directly. This warranty does not cover modifications, alterations, or misuse. For additional information,Click Here.

TECHNICAL SPECIFICATIONS

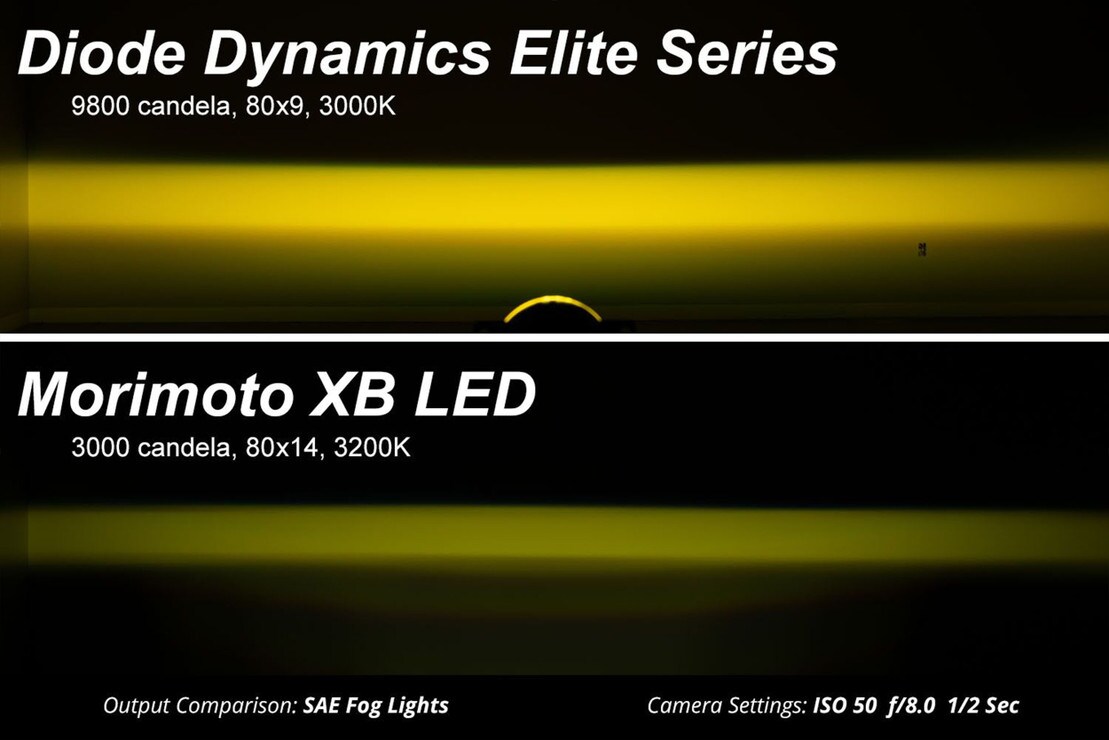

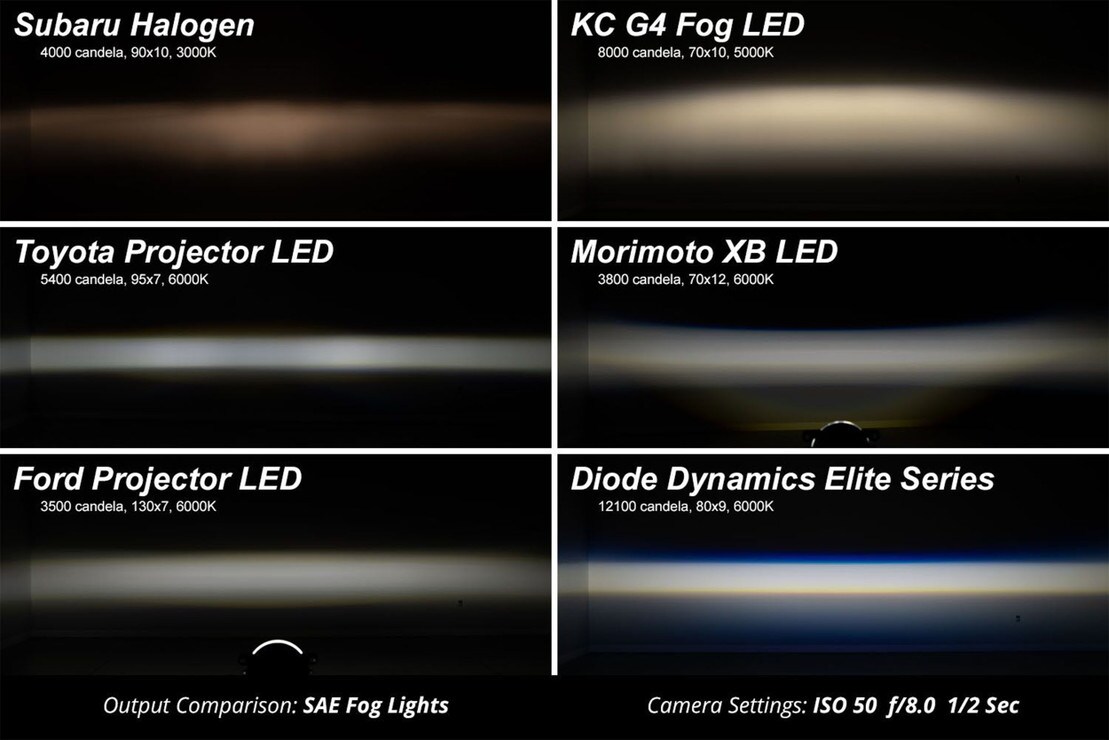

  • Intensity: 1,850 lm / 10,200 cd (White), 1,650 lm / 8,700 cd (Yellow)

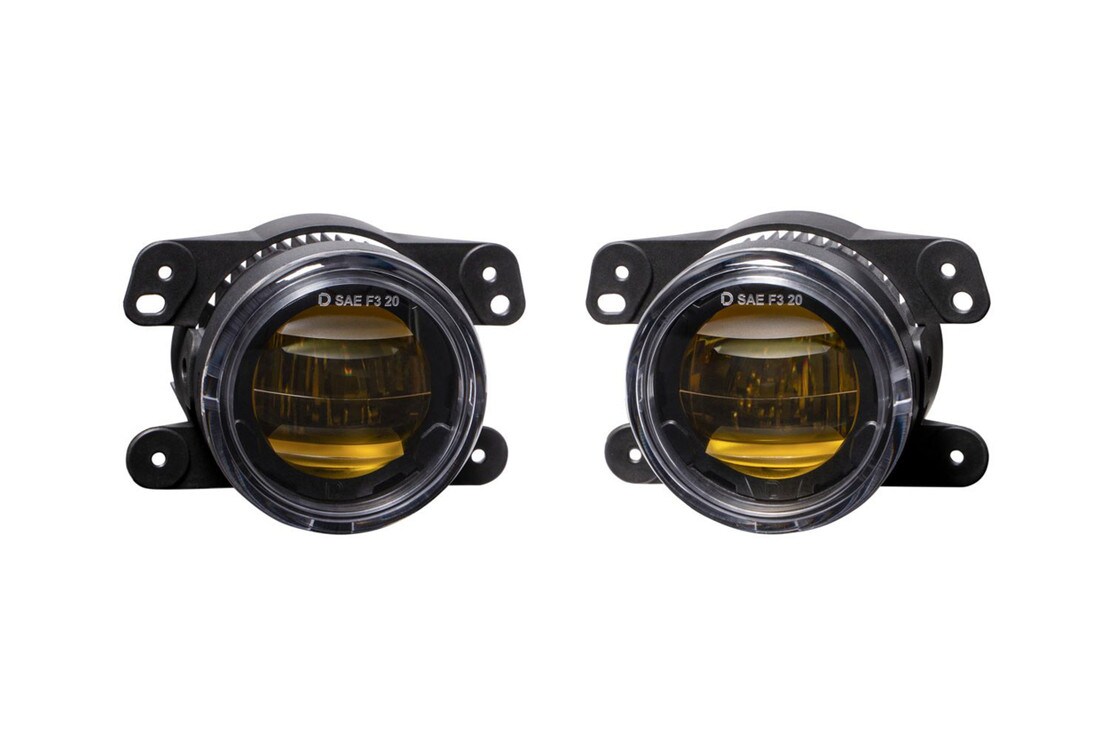

  • Color Temp: 6000K (White), 3000K (Yellow)

  • Power: Main Beam White: 17w, Main Beam Yellow: 15w, Backlight: 0.3w

  • Input Voltage: 9-16v

  • Current: Main Beam White: 1.3A, Main Beam Yellow: 1.2A, Backlight: 0.025A

  • Input: Deutsch DT Input (Polarity Specific)

  • Material: Copper PCB, UV Coated Polycarbonate Lens, Precision Aluminum Casting

  • Compliance: SAE J575 Durability Test, SAE J583 Foglamp Beam Pattern

  • IP Rating: IP68 Waterproof

COMPATIBILITY

  • NOTE: This kit is a replacement for OEM fog lamps. If your vehicle does not have fog lamps, additional hardware and wiring may be needed for installation.

  • Chrysler 300: 2005-2010

  • Chrysler PT Cruiser: 2006-2009

  • Dodge Charger: 2011-2014

  • Dodge Journey: 2009-2019

  • Dodge Magnum: 2005-2007

  • Jeep Cherokee: 2014-2017

  • Jeep Grand Cherokee: 2011-2013

  • Jeep JK Wrangler: 2007-2018

  • Jeep JL Wrangler Sahara/Rubicon: 2018-2024 (w/ Plastic Bumper)

  • Jeep JT Gladiator Overland/Rubicon: 2020-2024 (w/ Plastic Bumper)
