DESCRIPTION
FEATURES & BENEFITS
- Seamless Upgrade: Effortlessly integrate OEM Bi-xenon headlights into your F150 without cutting or splicing.
- Easy Control: Utilize original cabin controls for new HID lights via MotoControl Relay.
- Smooth Transitions: Smart capacitor ensures uninterrupted lighting changes.
- Universal Fit: Install in various vehicles with clear labeling, no cutting needed.
- Durable Design: Long-lasting with Techflex mesh and aluminum relay shell.
WHAT’S INCLUDED
Harness: 1x F-150 OEM HID Conversion Harnesses
Note: One harness controls both headlights
WARRANTY INFORMATION
TECHNICAL SPECIFICATIONS
Input: 1x H13 Male

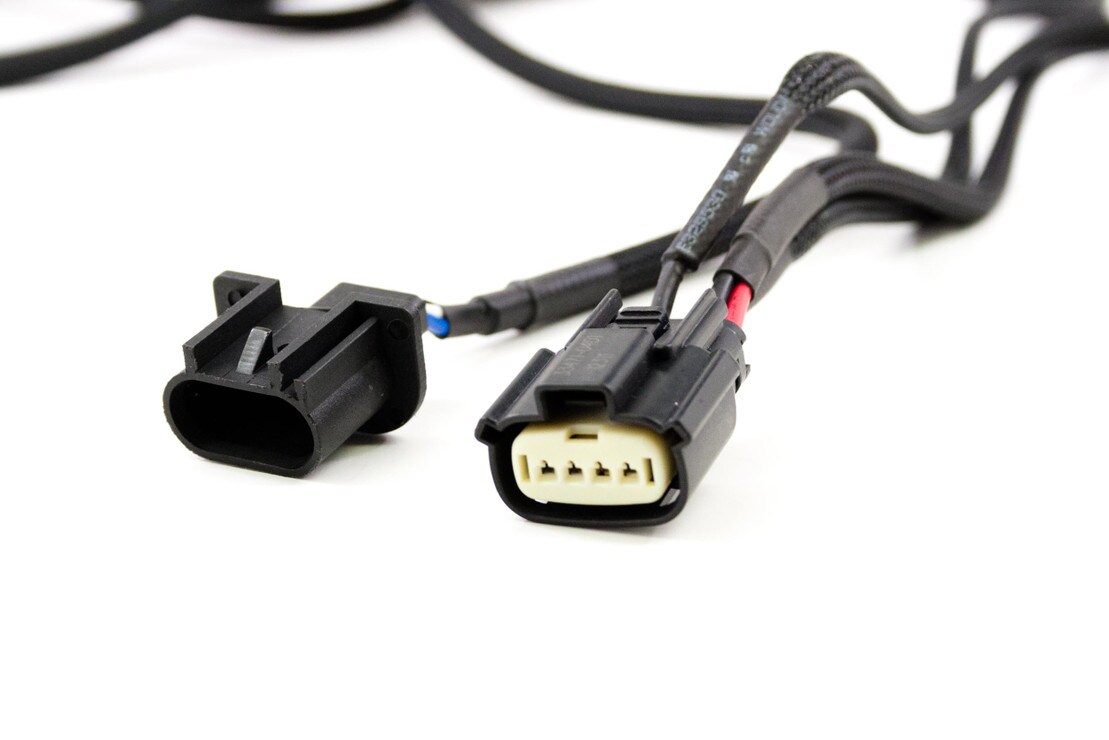

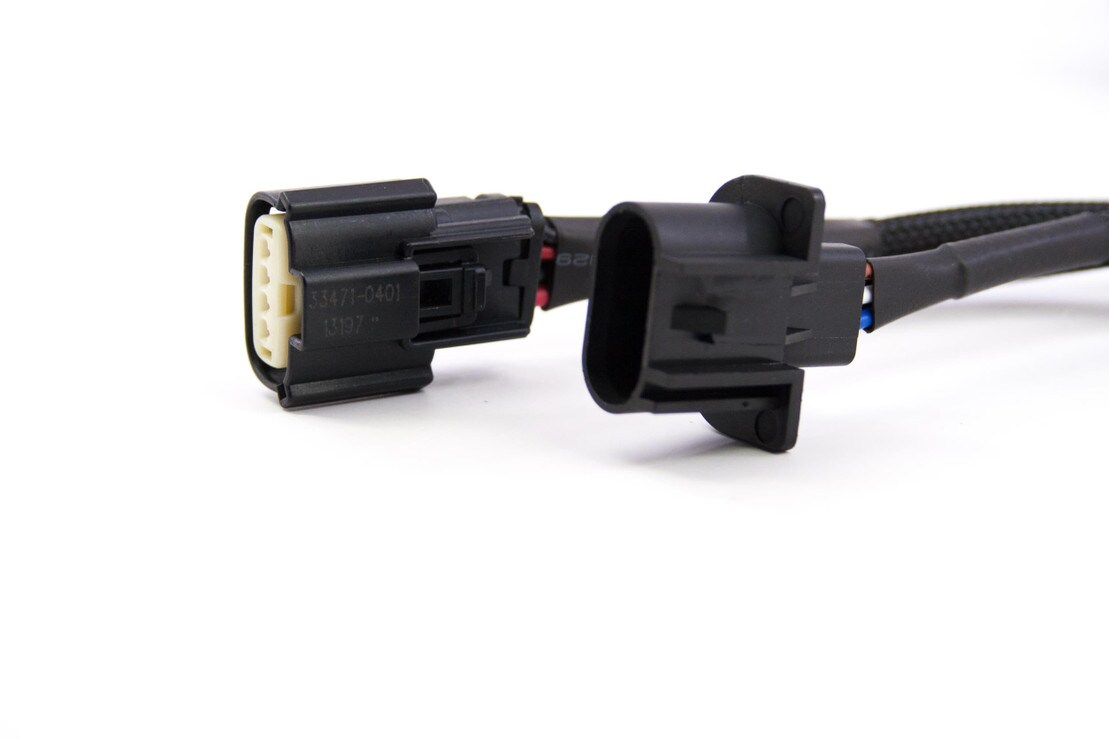

Output: 2x Proprietary Ford Multi-Pin
12V Power: 1x Nickel-Plated Ring Terminal
Fuse: Inline 25A
COMPATIBILITY
Ford F-150: 2009-2014 (w/o OEM HIDs)
Housings: 13-14 F-150 OEM HIDs
BALLASTS: OEM Ford Green Label D1S/D3S Only
NOTICE: Orange Label D1S ballasts require snipping the green wire on the ballast input (inside the headlight)
Modernize: Designed to adapt the 2013-2014 Ford F150 OEM Bi-xenon headlights onto trucks that came standard with base H13 Halogen headlamps, this harness will allow you to upgrade to the most modern F150 look without cutting, splicing, or modifying anything on the truck's factory harness.
Plug n Play: It's a seamless solution to keep your low and high beams under control on the new OEM HID lights using the original controls inside the cabin. The outputs will plug directly into the multi-pin connector on the back of each OEM HID headlight from Ford.
Advanced: The third generation Morimoto MotoControl 8-Pin Relay has a tiny built-in capacitor that stores and releases it's charge between mode changes. So even if there's a short gap between the low and high beam signals from your car, your HID's will run smoothly. It's sealed weather-pack connector was given an update in late 2015 and is a major reliability upgrade compared to other bi-xenon harnesses.

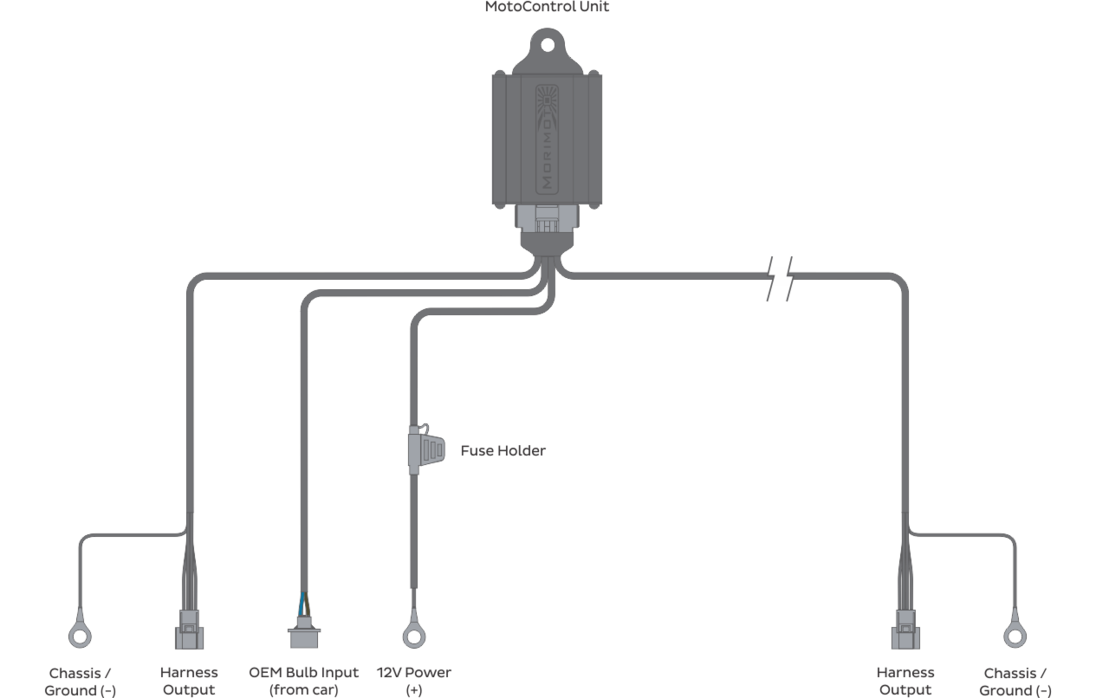

Plug n Play: The layout of the harness makes it easy to install. With just a few simple connections; even your mom could set this thing up! Wire lengths are long enough to be used in everything from compact cars to SUV's, everything is clearly labeled, and it's designed to be 100% plug and play (no cutting or splicing needed).

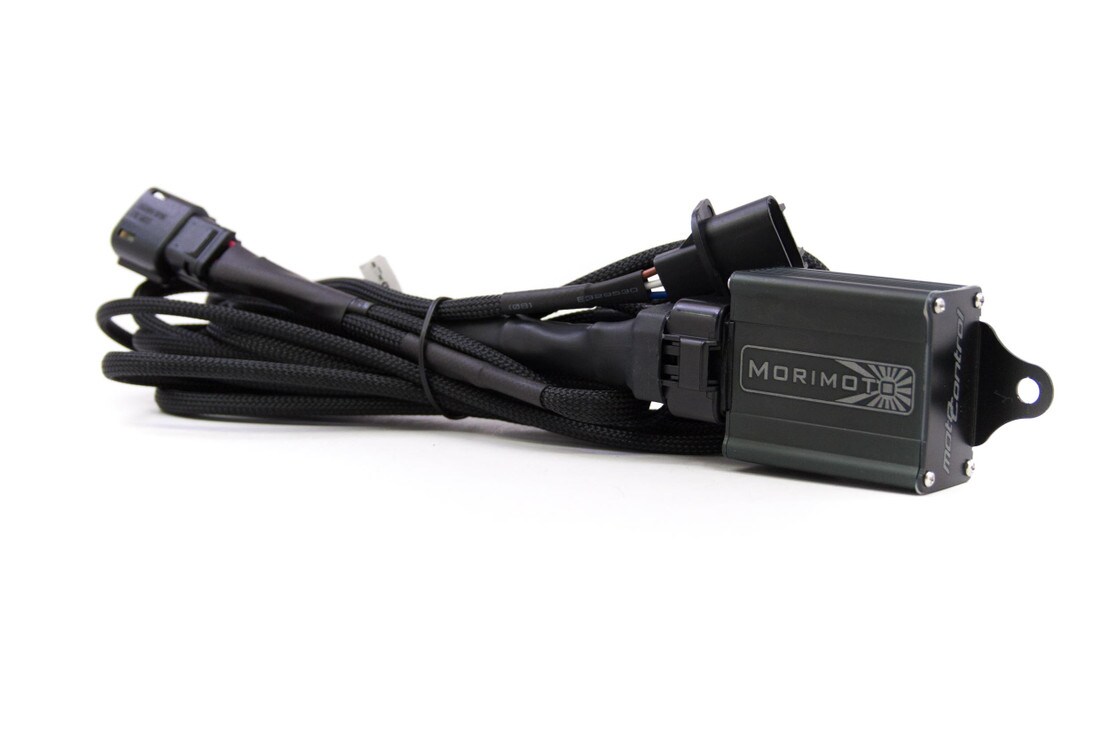

OEM Grade: Aside from being ahead of the game from a technical standpoint, the F150 Conversion harness is also a work of art. With it's wiring protected by abrasion resistant Techflex mesh sleeving and it's extruded aluminum relay shell that's been anodized and laser engraved - the MotoControl Harness will look factory fresh under the hood!
