Ford F150 (15-17) Ultra 3 LED (High Beam)

(0) No Reviews yet
Questions?

Brand: Headlight Revolution

B-HRT-0467-HR

$259.00

PRODUCT OPTIONS

9005/9145/H10: GTR Lighting Ultra 3 (Pair)

PART #: 1 x GTR.LED803



*Guaranteed Fitment
Easy Return

DESCRIPTION

For Ford F150 models 2015 to 2017, the GTR Lighting Ultra 3 LED bulbs bring bright, reliable high beams you can count on. GTR Lighting crafted these bulbs with real attention to detail, making sure every part fits and works just right. They use a custom TST 7045 chipset instead of off-the-shelf parts so you get strong, steady light. The LED elements are placed to match your truck’s original filaments, sending all the light onto the road and not wasted inside the headlight housing. Even though the Ultra 3 bulbs are smaller than many competitors, they shine far brighter - up to 4,700 lumens each - thanks to Thermal Separation Technology. This design pulls heat away from the LEDs so they stay cool and keep glowing at full power. You’ll find them simple to install, with no extra adapters or bulky heatsinks getting in the way. GTR Lighting stands behind these bulbs with a lifetime warranty. Once you switch to the Ultra 3 LEDs, you won’t need another LED bulb again. They’re built tough to last, giving you the best performance and peace of mind every time you drive.

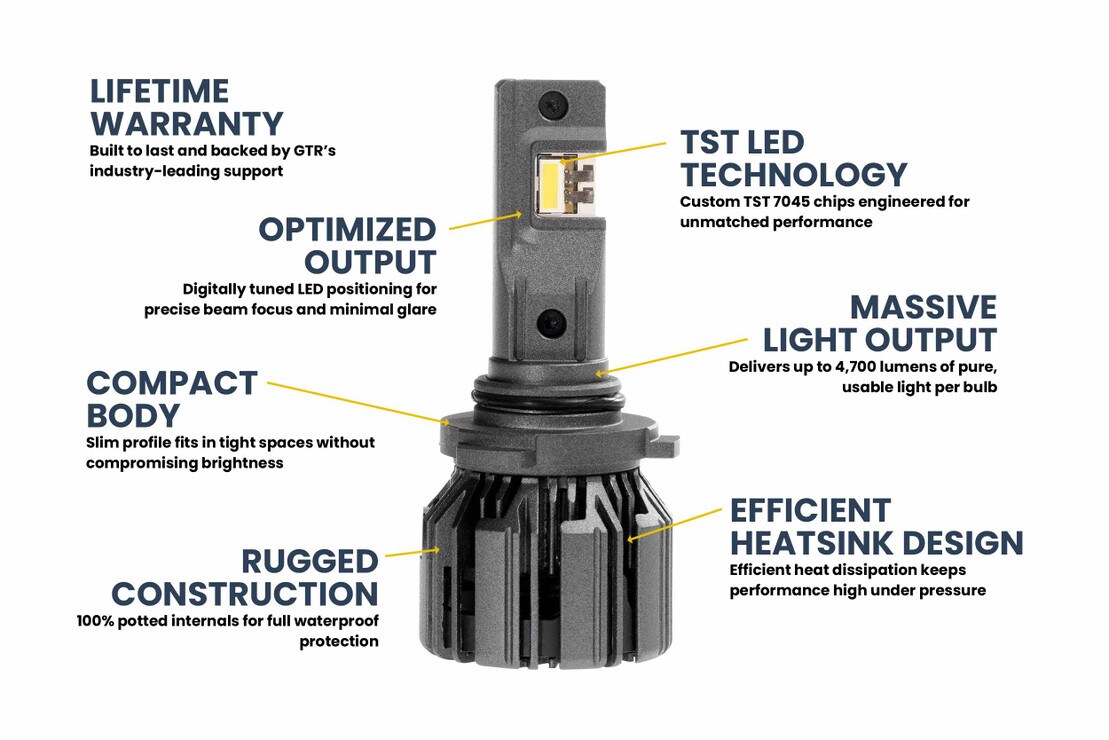

FEATURES & BENEFITS

  • High-Quality Design: Crafted with great attention to detail for reliable and precise performance.
  • Custom TST 7045 Chipset: Uses a specially designed LED chip for strong, steady light output.
  • Optimized LED Placement: Matches original filament positioning to maximize light on the road and reduce glare.
  • Thermal Separation Technology: Keeps LEDs cool for brighter output of up to 4,700 lumens and longer life.
  • Lifetime Warranty: Built tough with a warranty that ensures you won’t need to replace these bulbs again.

WHAT’S INCLUDED

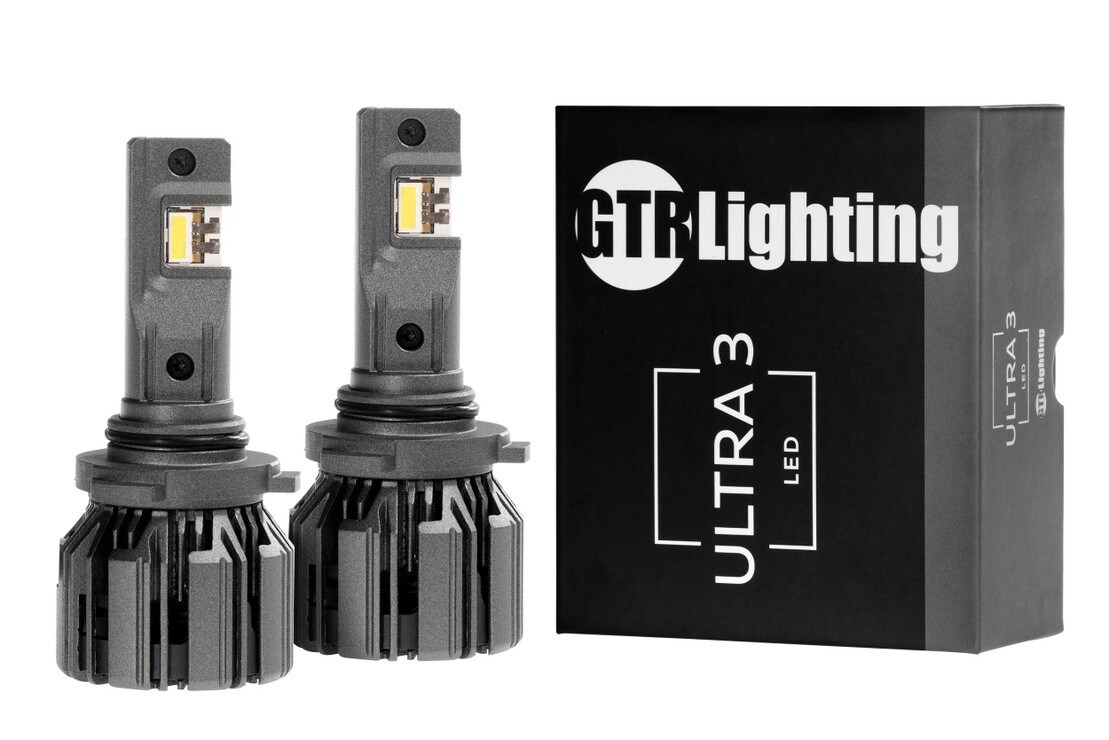

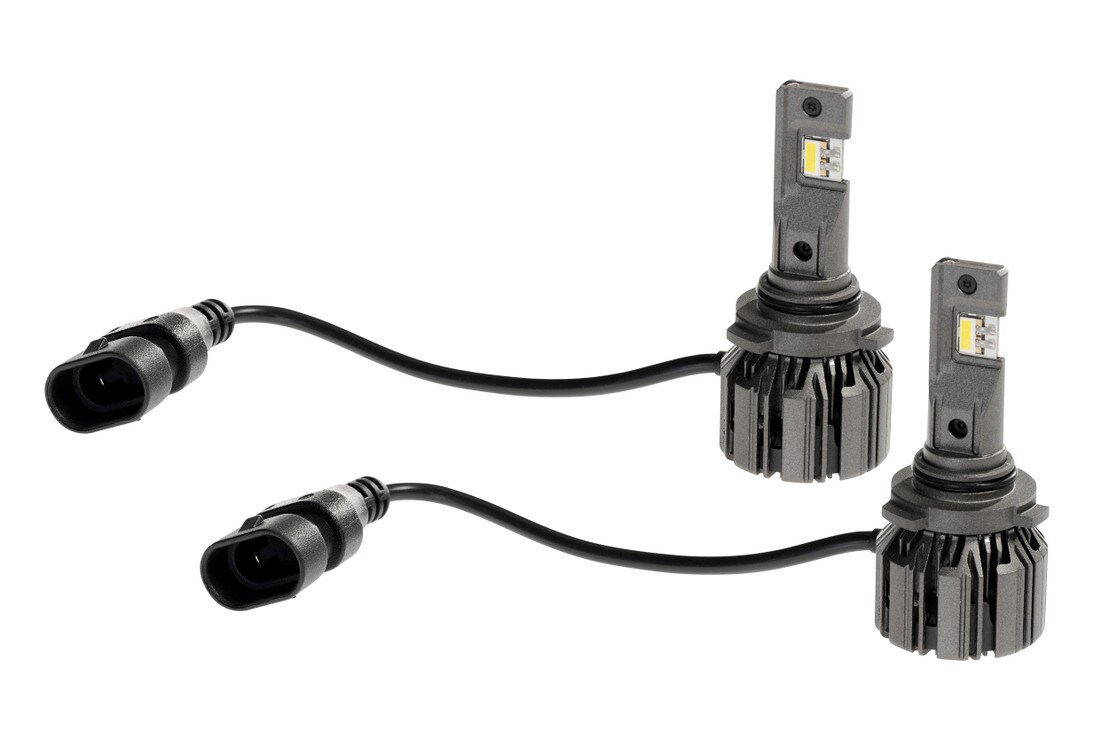

  • LED Bulbs : 2x (One Pair) 9005 Ultra 3.0 LED Bulbs

  • Tool : 1x Allen Key

WARRANTY INFORMATION

This product includes a Lifetime limited warranty, serviced and supported by our team in Atlanta, GA. This warranty does not cover modifications, alterations, or misuse. For additional information, contact us.
This warranty is only valid if the item is purchased from an Authorized Dealer, Click HERE for a list of unauthorized dealers.

TECHNICAL SPECIFICATIONS

  • Note : Specifications are per bulb / each

  • Luminous Flux : 4,700lm (raw)

  • Color : 5750K

  • Power : 43w

  • Current : 3300mA

  • Voltage Range : 9-40V DC

  • Light Source : Custom TST 7045

COMPATIBILITY

  • Ford F-150 : 2015-2017

  • Housings : Designed for, and confirmed to fit, Stock Housings

INSTALLATION DOCUMENTS

Craftsmanship: Designing a high-quality bulb is a task GTR Lighting took seriously. Unlike so many companies that skimped on every single detail they possibly could, the GTR Ultra Series 3 features a design that covers every base with real attention to detail.


The Best: While so many others use Philips or CREE LED chips, GTR went with a custom TST 7045 chipset option to ensure better results. Those results show through to the finished product too thanks to digitally optimized LED positioning that most closely matches the original filament tolerances. Combining these features is the key to getting all the light from the source to the reflector surface and ultimately onto your target without wasted lumens and glare all over.


Better Fitment: We've heard many who assume that because the Ultra Series 3 is smaller than competitors that it's weaker and less capable. They couldn't be more wrong. Thanks to TST (Thermal Separation Technology), it is more able to effectively dissipate heat, allowing the emitters to retain high luminous flux output. That results in 4,700 lumens of output and a considerably easier time installing them. There are zero downsides here.


Best Warranty: We can't overstate this. You won't need another headlight bulb after these ones. They're so solid and strong that GTR backs them for life.
