DESCRIPTION
FEATURES & BENEFITS
- Designed & Engineered: By Morimoto in California, the 2Stroke 4.0 is packed with more patented, innovative features than any other bulb on the market today.
- Perfect Focus: The ceramic PCB and Osram HJL LEDs helps illuminate the road more effectively, with zero glare to oncoming traffic.
- Heat Exchanger: Cools the bulb while warming the ambient temperature inside of the housing, increasing resistance to snow/ice buildup on the lens during the winter months.
- Lifetime Warranty: Designed and built with OE grade materials, these bulbs are designed to last and that's why they are backed with an industry leading lifetime warranty.
WHAT’S INCLUDED

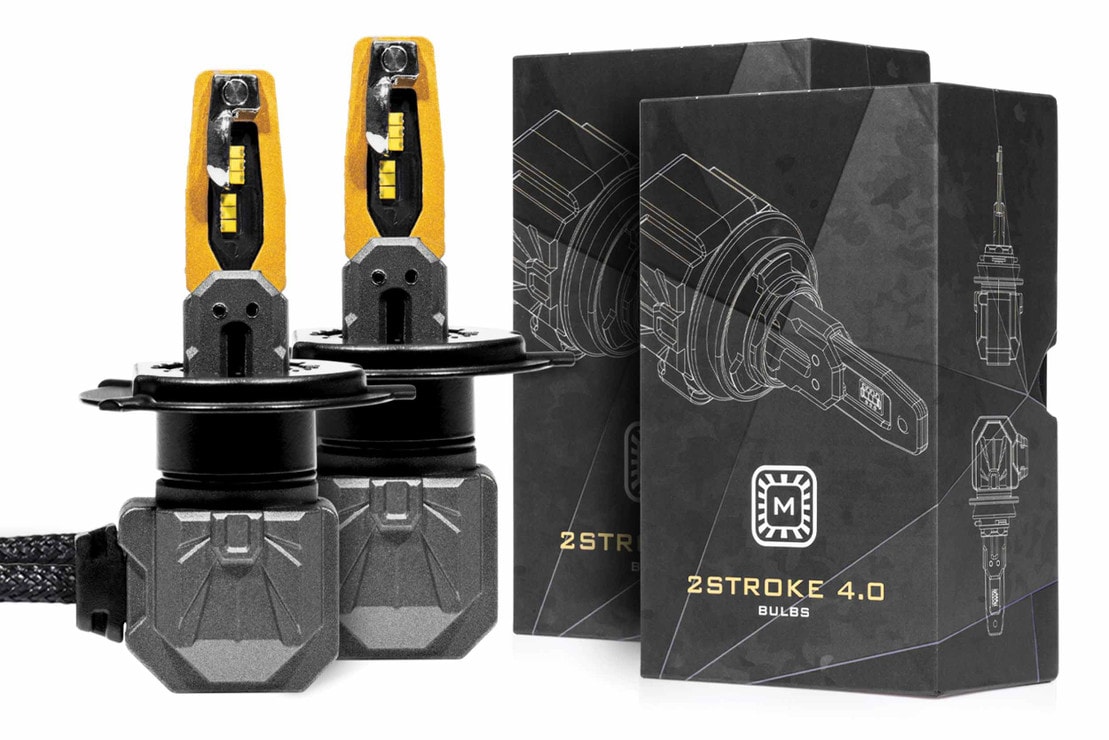

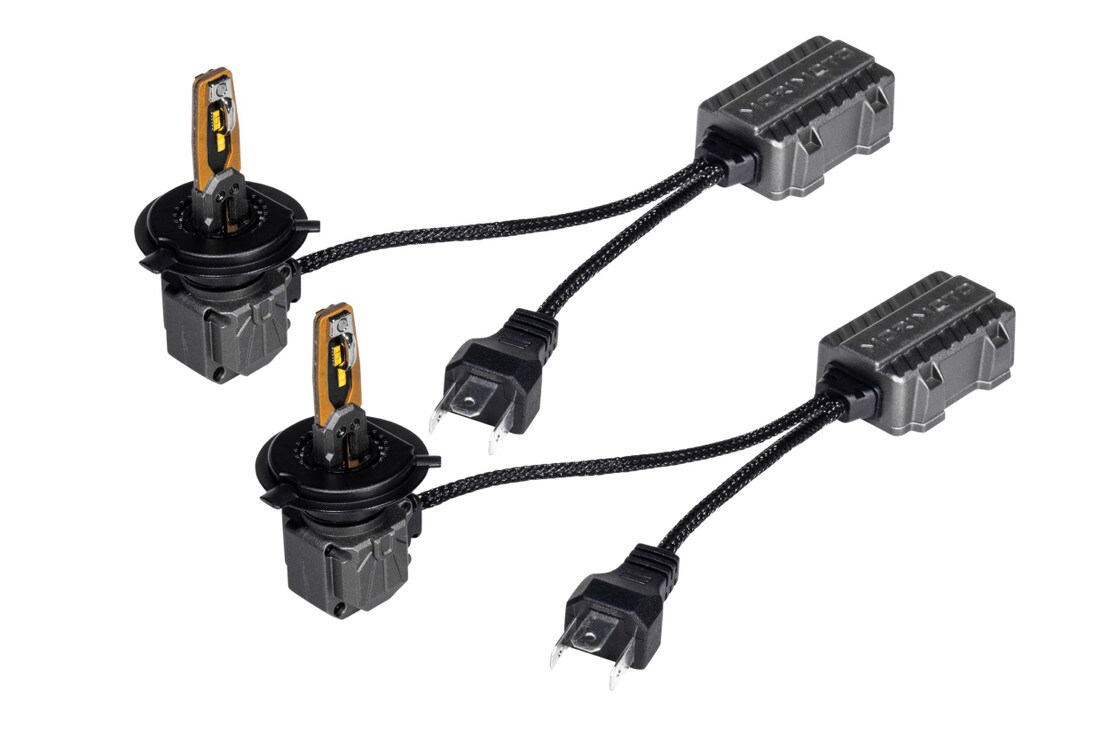

LED Bulbs : 2x (One Pair) H4 2Stroke 4.0 LED Bulbs w/ Drivers
Warranty : Lifetime Limited
WARRANTY INFORMATION
This warranty is only valid if the item is purchased from an Authorized Dealer, Click HERE for a list of unauthorized dealers.
TECHNICAL SPECIFICATIONS
Luminous Flux : 2,600lm
Power : 18-22.5W
Input Voltage : 9V-16V DC
Material : Electroplated Aluminum
Current : 1.5-1.88A @ 12V DC
Light Source : Luxeon Z ES 5500K (Pure White)
COMPATIBILITY
ALIASES : H4, HB2, 9003, 9003LL, 9003XV, 9003CB, 9003SU, 9003ST, 9003EB, 9003XS, 472, 473, 64193, 12342, P43t, P43t-38, P43t / P43t-38-style socket family, T4.625
OEM NUMBERS : Toyota 90981-13055 (9003/HB2); Honda 33115-SV4-G01 (H4/HB2); Honda 33115-SYY-J01 (H4); OSRAM 64193 (H4/9003); Philips 12342 (H4/9003); GE 22432 (9003/H4/HB2); CEC HIB9003; Polaris 4010253 (50W H4-style powersports headlight bulb)
AFTERMARKET SKUS : Auxbeam GD002055 - H4/9003 GX Series LED headlight bulbs; Morimoto LED2060 - H4/9003 2Stroke 4.0 LED bulb; GTR Lighting GTR.LED738 - H4/9003 Ultra 2.0 LED bulbs; Diode Dynamics DD0492P - H4 SL2 Pro LED bulbs pair; Diode Dynamics DD0492S - H4 SL2 Pro LED single; Lasfit LCplusH4 - H4/9003/HB2 LC Plus LED bulbs; Lasfit LAplusH4 - H4/9003/HB2 LA Plus LED bulbs; Lasfit LSplusH4 - H4/9003/HB2 LS Plus LED bulbs; Sylvania 9003XV / 9003XV.BP2 - XtraVision halogen; Sylvania 9003ST / 9003ST.BP2 - SilverStar halogen; Sylvania 9003SU / 9003SU.BP2 - SilverStar Ultra halogen; Sylvania 9003LL - long-life halogen; Sylvania 9003CB - Cool Blue halogen; Philips 9003B1 / 9003B2 / 9003C1 - Standard halogen; Philips 9003CVB2 - CrystalVision ultra halogen; Philips 9003VPB1 / 9003VPB2 - VisionPlus halogen; Philips 9003XVB1 / 9003XVB2 - X-tremeVision halogen; HELLA 9003SB - 9003/HB2 single blister; HELLA 9003TB - 9003/HB2 twin pack; HELLA H4TB - H4 12V 60/55W twin pack; HELLA H4P50TB - H4 +50 performance twin pack; OSRAM 64193 - H4 Original Line 12V 60/55W bulb; OSRAM 64193NL - H4 Night Breaker Laser bulb; SEALIGHT X1 H4/9003/HB2 - LED headlight bulbs; SEALIGHT S1-Pro H4/9003/HB2 - LED headlight bulbs; SEALIGHT S2S H4/9003/HB2 - LED headlight bulbs; SEALIGHT S3 H4/9003/HB2 - LED headlight bulbs; SEALIGHT L2S H4/9003/HB2 - LED headlight bulbs; Super Bright LEDs XPHL-H4 - H4/9003 XP Series LED bulbs; Alla Lighting S-HCR 9003/H4/HB2 - LED forward lighting bulbs; Alla Lighting TS-CR 9003/H4/HB2 - LED forward lighting bulbs
FITMENT : Cars & Trucks
Acura EL : 1997-2003 (High/Low Beam)
Acura RL : 1996-1998 (High/Low Beam)
Acura TL : 1995-1998 (High/Low Beam)
Audi 90 Quattro : 1993-1995 (High/Low Beam)
Audi 90 : 1993-1995 (High/Low Beam)
Audi Cabriolet : 1994-1998 (High/Low Beam)
Chevrolet Aveo (selected Trims) : 2004-2006 (High/Low Beam)
Chevrolet Aveo : 2007-2011 (High/Low Beam)
Chevrolet Aveo5 : 2006-2011 (High/Low Beam)
Chevrolet LCF 4500 : 2019 (High/Low Beam)
Chevrolet LCF 4500HD : 2019-2020 (High/Low Beam)
Chevrolet LCF 4500XD : 2019-2020 (High/Low Beam)
Chevrolet LCF 5500HD : 2019 (High/Low Beam)
Chevrolet LCF 5500XD : 2019 (High/Low Beam)
Chevrolet LCF 6500XD : 2019 (High/Low Beam)
Chevrolet Prizm : 1998-2002 (High/Low Beam)
Chevrolet Tracker : 1999-2004 (High/Low Beam)
Ford Escape : 2001-2004 (High/Low Beam)
Ford Focus (selected Trims) : 2000-2004 (High/Low Beam)
Honda Civic (selected Trims) : 1992-2003 (High/Low Beam)
Honda Civic del Sol : 1993-1997 (High/Low Beam)
Honda CR-V (selected Trims) : 2002-2004 (High/Low Beam)
Honda CR-V : 1997-2001, 2007-2014 (High/Low Beam)
Honda Element (selected Trims) : 2007-2008 (High/Low Beam)
Honda Element : 2003-2006, 2009-2011 (High/Low Beam)
Honda Fit (selected Trims) : 2013-2014 (High/Low Beam)
Honda Fit : 2007-2012, 2015-2020 (High/Low Beam)
Honda HR-V : 2016-2018 (High/Low Beam)
Honda Insight : 2000-2006 (High/Low Beam)
Honda Odyssey : 1995-2004 (High/Low Beam)
Honda Passport : 2000-2002 (High/Low Beam)
Honda Pilot : 2003-2005 (High/Low Beam)
Honda Ridgeline : 2006-2014 (High/Low Beam)
Hyundai Accent (selected Trims) : 2000-2002, 2006-2013, 2019-2020 (High/Low Beam)
Hyundai Accent : 2003-2005, 2021-2022 (High/Low Beam)
Hyundai Accent : 2019 (Low Beam)
Hyundai Elantra : 1999-2000 (High/Low Beam)
Hyundai HLD 150 : 2003 (High/Low Beam)
Hyundai HMD 230 : 2003 (High/Low Beam)
Hyundai HMD 260 : 2003 (High/Low Beam)
Hyundai Santa Fe : 2001-2006 (High/Low Beam)
Hyundai Tucson : 2005-2013 (High/Low Beam)
Infiniti Q45 (selected Trims) : 1993 (Low Beam)
Infiniti Q45 : 1994-1996 (Low Beam)
Infiniti Q45 : 1997-1998 (High/Low Beam)
Infiniti QX4 (selected Trims) : 1999-2000 (High/Low Beam)
Kia Rio (selected Trims) : 2003-2005, 2012-2021 (High/Low Beam)
Kia Rio : 2001-2002, 2006-2011, 2022 (High/Low Beam)
Kia Rio5 : 2006-2011 (High/Low Beam)
Kia Sephia : 1996-2001 (High/Low Beam)
Kia Soul : 2010-2011 (High/Low Beam)
Kia Spectra : 2005-2009 (High/Low Beam)
Kia Spectra5 : 2005-2009 (High/Low Beam)
Kia Sportage : 1998-2002, 2005-2010 (High/Low Beam)
Lexus LS400 : 1993-1994 (High/Low Beam)
Lexus LS400 : 1995-1997 (Low Beam)
Mazda 2 : 2011-2014 (High/Low Beam)
Mazda 626 : 1998-2002 (High/Low Beam)
Mazda Miata : 1999-2000 (High/Low Beam)
Mazda MPV : 1996-1998, 2000-2006 (High/Low Beam)
Mazda Protege : 1995-2003 (High/Low Beam)
Mazda RX-7 : 1993-1995 (High/Low Beam)
Mazda Tribute : 2001-2006 (High/Low Beam)
Mini Cooper (selected Trims) : 2002-2003, 2016-2017 (High/Low Beam)
Mitsubishi Eclipse : 2000-2005 (High/Low Beam)
Mitsubishi Galant : 1999-2003 (High/Low Beam)
Mitsubishi Montero : 2001-2006 (High/Low Beam)
Nissan 240SX : 1995-1996 (Low Beam)
Nissan Altima : 1993-1997 (High/Low Beam)
Nissan Cube : 2009-2014 (High/Low Beam)
Nissan Frontier : 2021-2022 (High/Low Beam)
Nissan Maxima (selected Trims) : 2019 (High Beam)
Nissan Maxima : 2000-2001 (High/Low Beam)
Nissan Maxima : 2019 (Low Beam)
Nissan Micra (selected Trims) : 1984-1991 (High/Low Beam)
Nissan Micra : 2015-2018 (High/Low Beam)
Nissan Pathfinder (selected Trims) : 1999 (High/Low Beam)
Nissan Pathfinder : 2000-2004 (High/Low Beam)
Nissan Sentra : 1993-1994 (High/Low Beam)
Nissan Versa (selected Trims) : 2007-2012 (High/Low Beam)
Nissan Versa (selected Trims) : 2020 (High Beam, Low Beam)
Nissan Versa : 2013-2019, 2021 (High/Low Beam)
Nissan X-Trail : 2005-2006 (High/Low Beam)
Porsche 968 : 1992-1995 (High/Low Beam)
Scion xA : 2004-2006 (High/Low Beam)
Scion xB : 2004-2006 (High/Low Beam)
Smart Fortwo : 2008-2015 (High/Low Beam)
Subaru Forester : 1998-2005 (High/Low Beam)
Subaru Impreza : 1993-2001 (High/Low Beam)
Subaru Legacy : 1992-1997 (High/Low Beam)
Toyota 4Runner : 1996-2002 (High/Low Beam)
Toyota Camry : 1997-1999 (High/Low Beam)
Toyota Corolla : 1998-2000 (High/Low Beam)
Toyota Echo : 2000-2005 (High/Low Beam)
Toyota FJ Cruiser : 2007-2014 (High/Low Beam)
Toyota Prius (selected Trims) : 2004-2009 (High/Low Beam)
Toyota RAV4 (selected Trims) : 2001-2003 (High/Low Beam)
Toyota RAV4 : 1996-1997, 2004-2005 (High/Low Beam)
Toyota Sequoia : 2001-2007 (High/Low Beam)
Toyota Sienna : 1998-2003 (High/Low Beam)
Toyota Solara : 1999-2001 (High/Low Beam)
Toyota T100 : 1993-1998 (High/Low Beam)
Toyota Tacoma (selected Trims) : 1997, 2012-2015 (High/Low Beam)
Toyota Tacoma : 1998-2011 (High/Low Beam)
Toyota Tercel : 1997-1999 (High/Low Beam)
Toyota Tundra (selected Trims) : 2014-2021 (High/Low Beam)
Toyota Tundra : 2000-2006 (High/Low Beam)
Toyota Yaris : 2007-2019 (High/Low Beam)
Volkswagen Beetle (selected Trims) : 2012-2019 (High/Low Beam)
Volkswagen Cabrio (selected Trims) : 1999 (High/Low Beam)
Volkswagen EuroVan : 1992-1997, 1999-2003 (High/Low Beam)
Volkswagen Passat (selected Trims) : 2001 (High Beam, Fog Light)
Volkswagen Passat : 1998-2000 (High Beam, Fog Light)
FITMENT : ATV/UTV
Polaris Sportsman 335 : 1999-2000 (High/Low Beam)
Polaris Sportsman 570 : 2014-2022 (High/Low Beam)
COMPLIANCE
APPLICATION: HID and LED bulbs are street legal in the USA for Fog Light use only. Not compliant with DOT / FMVSS108 and not street legal in the USA for Headlights. Legal for off-road use in Snowmobile and ATV headlights and off-road racing use only auxiliary or forward lighting. International street legality varies by country. For detailed clarification on street use, CLICK HERE
Note: This usage regulation is not unique to this item. All LED and HID bulbs from all other brands, regardless of marketing claims, are prohibited from street use in halogen headlights in the USA.
HOMOLOGATION ECE: NO
DOT/SAE/FVMSS108: NO (NOT STREET LEGAL IN HEADLIGHTS IN USA)
INSTALLATION DOCUMENTS
Benchmark: While the rest of the industry has been asleep at the wheel in this category, Morimoto was hard at work developing the successor to the incredible 2Stroke 3.0 LED bulbs. The 4.0 re-creates the original beam pattern from your optics effectively by doing more with less. They will put more light on the road for you as the driver, while creating less glare for oncoming traffic compared to any other LED bulb on the market today. While LED bulbs still aren't DOT approved for use in headlights in the states; foreign markets and fog light users can enjoy the best plug n play LED bulb to date. The 2Stroke 4.0. (Featuring technology patented by Morimoto)

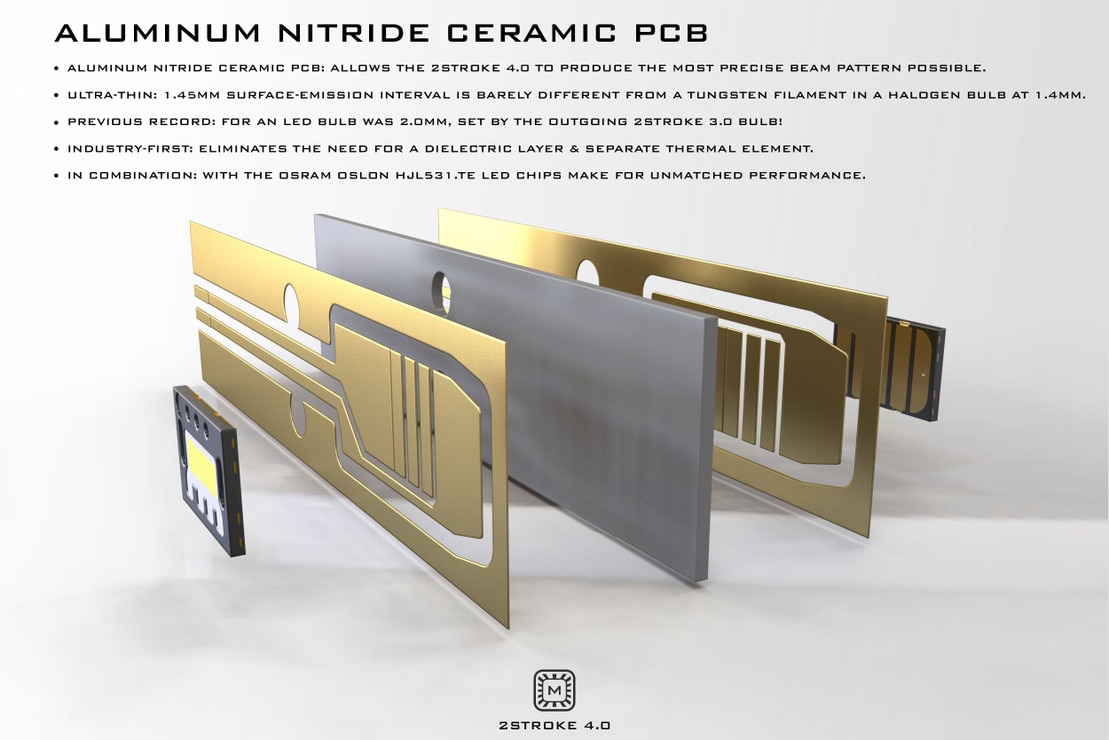

Superior Beam Quality: The advanced Aluminum Nitride Ceramic circuit board in the center of the 2S4 sets allows the bulbs to produce the most precise beam pattern possible, with its 1.45mm surface-emission interval. For reference, the tungsten filament in a halogen bulb is 1.4mm, and the previous record for an LED bulb was 2.0mm, set by the outgoing 2Stroke 3.0 bulb! Using the industry-first ceramic PCB, we have eliminated the need for the dielectric layer and a separate thermal element, which, in combination with the Osram Oslon HJL531.TE LED chips makes for unmatched performance when used in all reflector and projector-based headlights designed for halogen bulbs.
Optimized focal length: Each size in the 2Stroke 4.0 lineup has been painstakingly optimized for proper output in its designated application. The critical reference distance has been calculated based on the geometry of the bulb base and the footprint of the Osram HJL531 emitter. To ensure consistency, special tools were designed to quality-control the accuracy of each bulb as it comes off the production line. Most other LED light bulbs on the market use a 'set it and forget it' reference distance across all sizes in the series, making for sub-optimal focus in most applications... not the case with the 2Stroke series of bulbs.

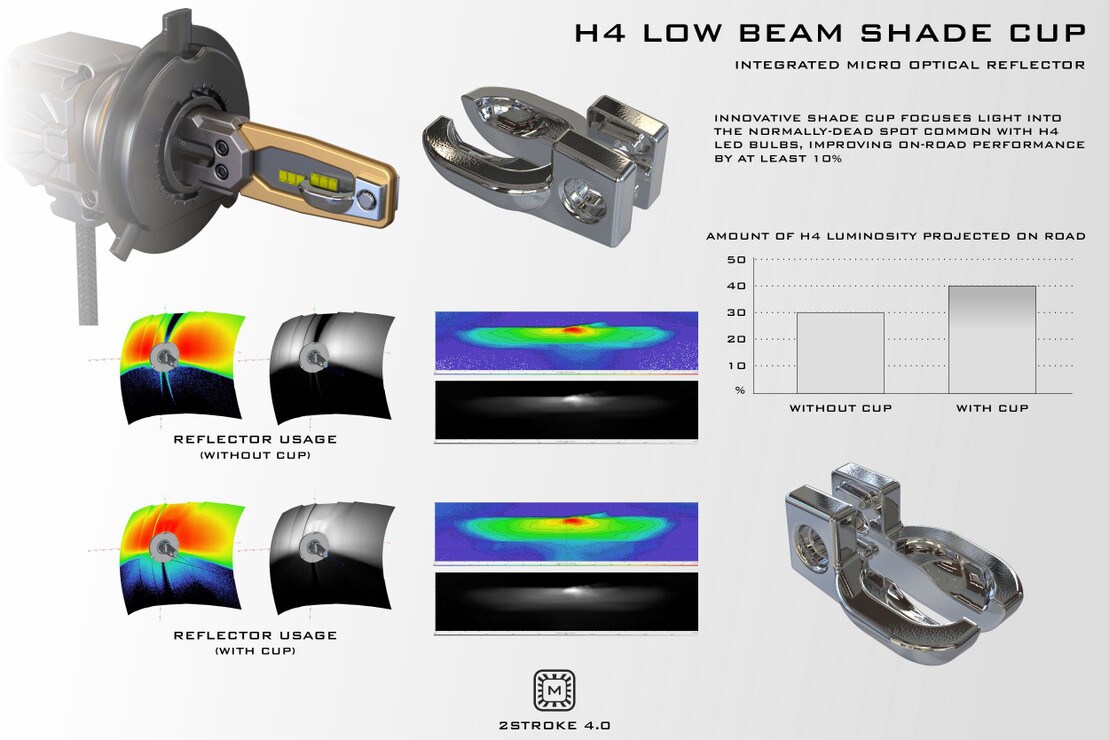

Integrated Micro-optic Reflector: The 2Stroke 4.0 H4 bulb has an innovative low beam shade cup with a built-in micro-optical reflector inside that enables their ability to illuminate reflector surfaces above the bulb. In a typical H4 application, only about 30% of the raw lumens are projected on the road as forward illumination. With this special optic, about 40% of the lumens will be projected onto the road. The region of the reflector directly above the bulb is responsible for a critical amount of light within the beam pattern, making this patented feature a serious performance advantage over other H4 LED headlight bulbs. US Patent #11079090
360 degrees of Rotation: Since no single standard exists across different headlight and fog lights, all bulbs in the 2Stroke 4.0 range are fully adjustable so that you can dial-in the position of the LED chips so that they sit perfectly at the 3 and 9-o-clock positions. On the previous gen bulbs, the gears on the base were prone to slipping when locking it into your headlight, but the new system is immune to that. In summary, setting up the alignment of your bulbs is now easier than ever!

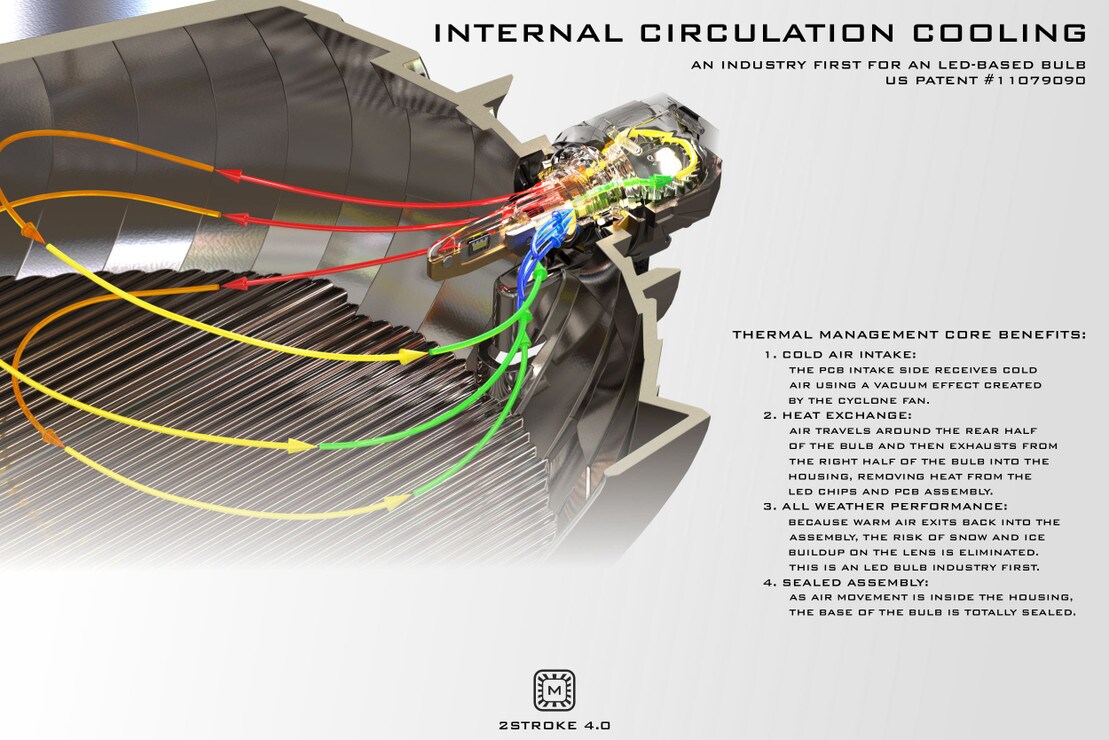

Thermal management: The 2Stroke 4.0 uses an upgraded version of the patented system we first employed on the 3.0 bulbs. This unique cooling system uses a 12,000-rpm dual-layer fan to suck cool air into the body of the bulb and blow warm air out, back into the housing. On the intake side, cold air is sucked in past the sidewall of the PCB to exchange heat and is blown out the opposite side of the bulb. This effectively cools the bulb while warming the ambient temperature inside of the housing, increasing resistance to snow/ice buildup on the lens during the winter months. With even more static pressure than the previous version, the cooling system on the 2Stroke 4.0 maximizes longevity of the bulb, while serving up a bad-weather benefit not found elsewhere.

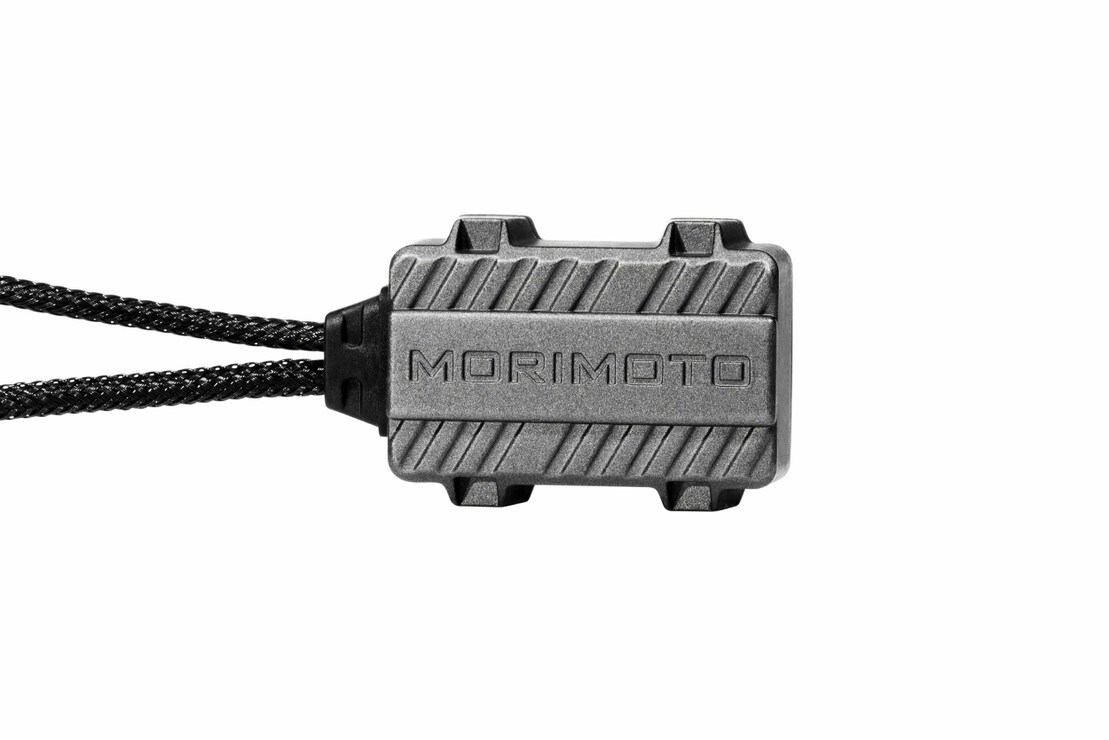

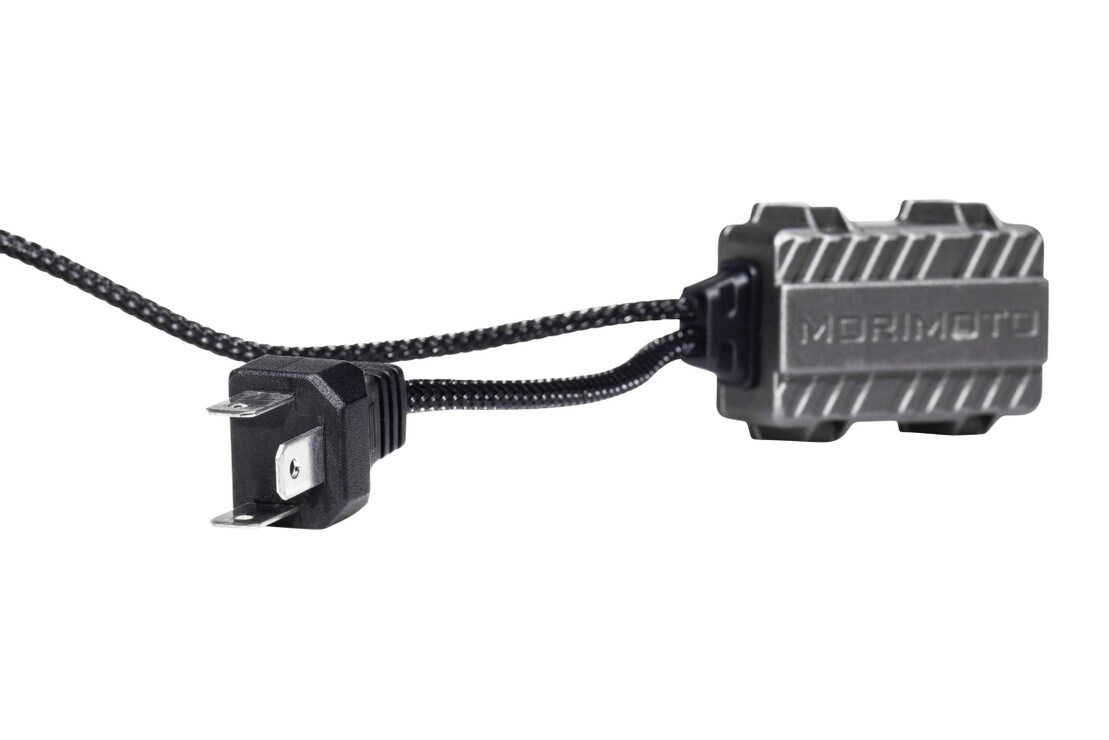

Unique Drive Logic: The LED drivers are programmed to start up at a conservative 18W, and then ramp-up in power over the first 15 minutes before stabilizing at 22.5W. Unlike every other bulb in the aftermarket which lose output intensity over the first 15 minutes of runtime (as the system heat-soaks), the performance from the 2Stroke 4.0 remains impressive from the moment you pull out of the driveway till the moment you park the car.
Lifetime Warranty: The Morimoto 2Stroke 4.0 bulbs are produced using the latest OE-grade materials, electronics, and LEDs for the automotive industry. The conservative LED drive rates and highly effective thermal management systems make for low operating temperatures. All of this adds up to a bulb that is designed to last, and that' why they are backed with an industry-leading lifetime warranty.
