  • Jeep Wrangler JK (07-18) DOT LP6 LED Headlight Kit

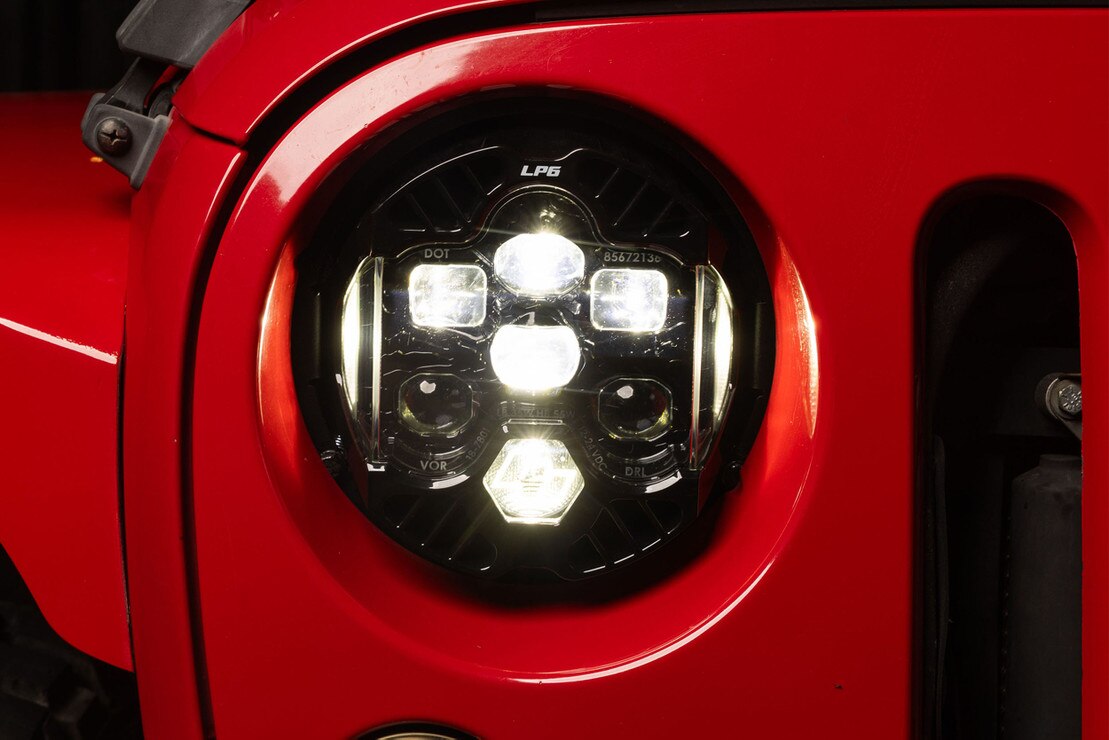

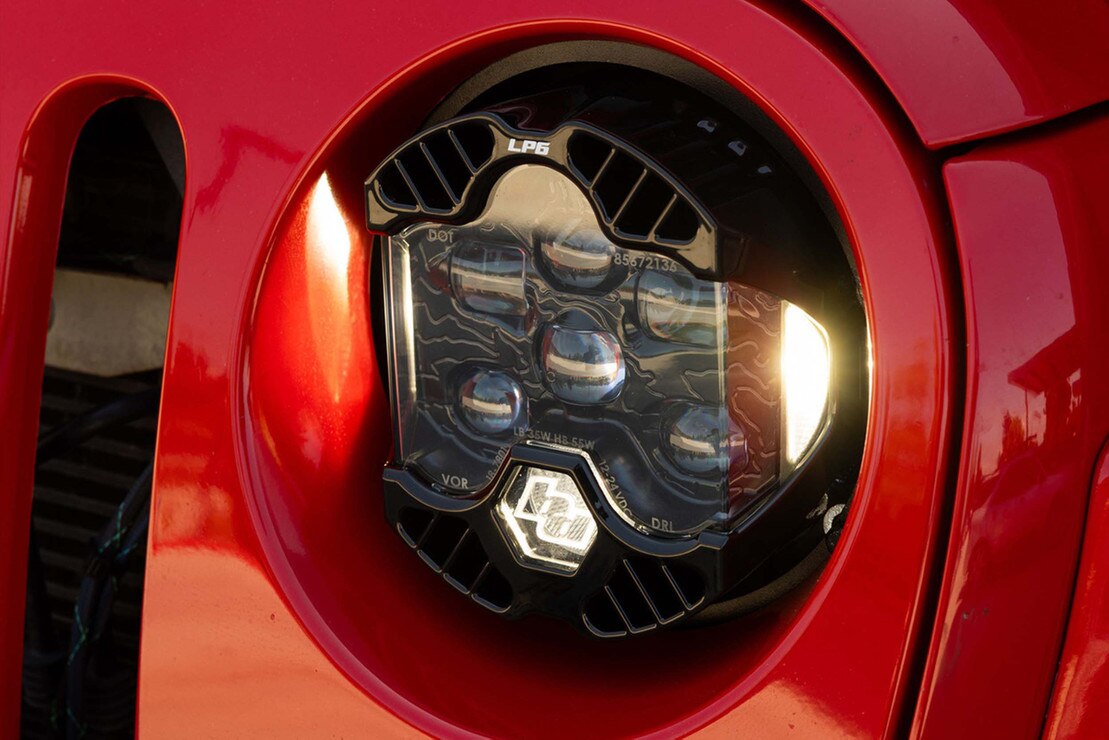

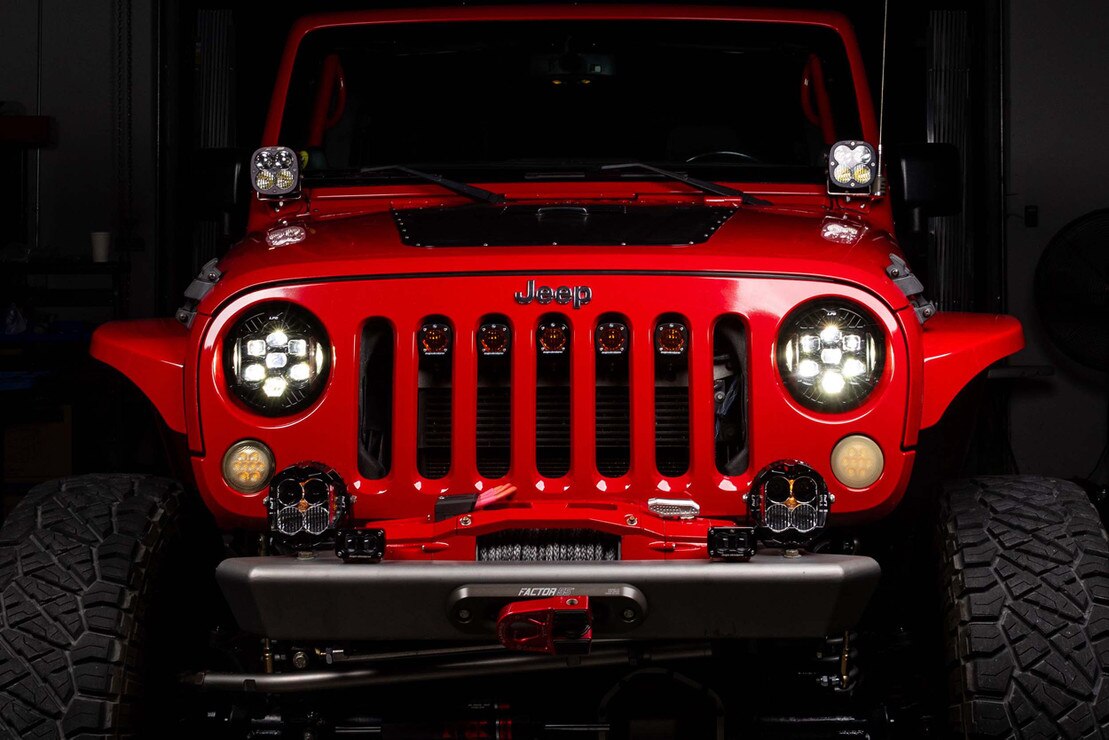

Jeep Wrangler JK (07-18) DOT LP6 LED Headlight Kit

(0) No Reviews yet
Questions?

Brand: Baja Designs

3P-BD103-HR

$899.95

PRODUCT OPTIONS

PART #: 1 x BD44-8311

*Guaranteed Fitment

DESCRIPTION

Your Jeep JK deserves headlights as capable as the vehicle itself. The Baja Designs DOT LP6 is their first-ever road-legal headlight kit designed to fit seamless in the Jeep Wrangler JK. Inspired by the same LP6 trusted in the toughest off-road races, it's been re-engineered utilizing projector optics to meet FMVSS 108 standards delivering maximum road-legal performance with Baja Designs racing DNA maintain that same iconic look. Featuring a standard high and low beam the DOT LP6 has integrated white, amber daytime running lights. And with JK-specific brackets and wiring harness integration is effortless, with a factory fit that feels like it was always meant to be there. Backed by Baja Designs' 30-Day Satisfaction Guarantee and Lifetime Limited Warranty, the DOT LP6 is the ultimate combination of rugged durability, style, and road-legal usability.

FEATURES & BENEFITS

  • Street Legal Performance: Meets FMVSS 108 standards with precision projector optics for safe, compliant driving.
  • Race-Proven Durability: Built on the LP6 platform trusted in extreme off-road racing conditions.
  • Enhanced Visibility: White and amber DRLs improve daytime safety and add a bold visual signature.
  • Seamless Fit: JK-specific brackets and harness ensure quick, factory-style installation.
  • Reliable Support: Backed by a 30-Day Satisfaction Guarantee and Lifetime Limited Warranty.

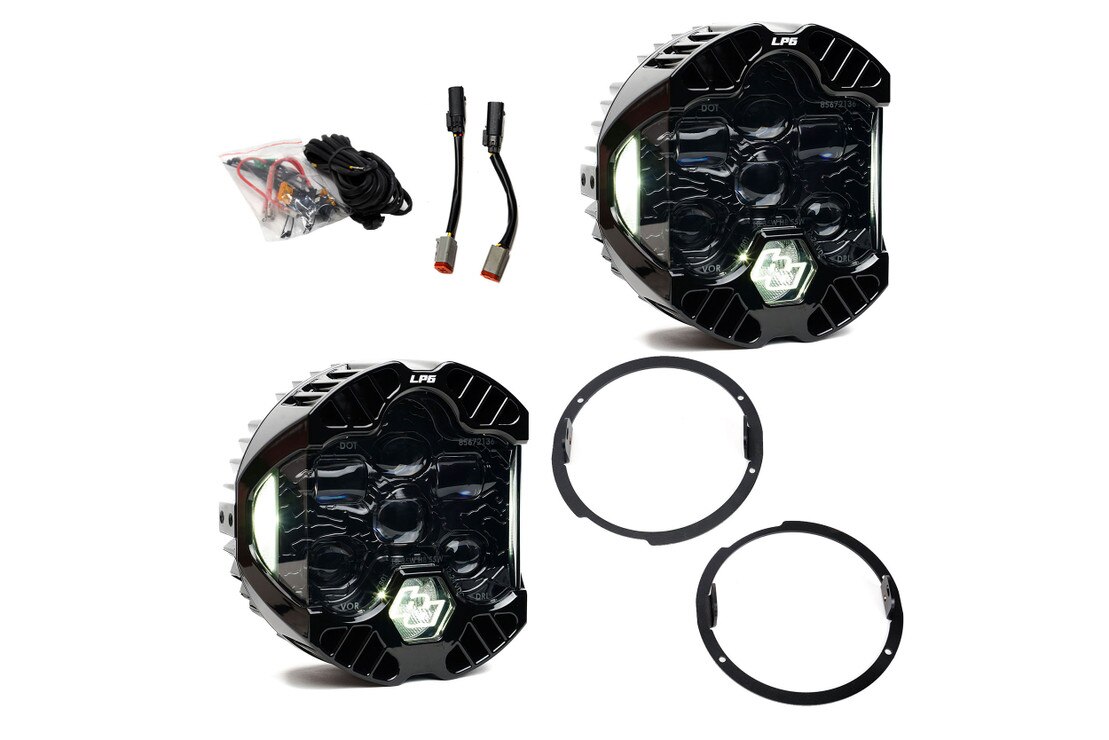

WHAT’S INCLUDED

  • Headlights : 2x (One Pair) Baja Designs DOT LP6 Headlight (White DRL)

  • Hardware : 2x (One Pair) JK Headlight Brackets / All Necessary Mounting Hardware

  • Wiring : 2x (One Pair) Wiring Harness Adapters / 1x Backlight Add-on Wiring Harness

WARRANTY INFORMATION

This product is covered by a Lifetime Limited warranty, serviced and supported by the manufacturer directly. This warranty does not cover modifications, alterations, or misuse. For additional information,Click Here.

TECHNICAL SPECIFICATIONS

  • Intensity : 3,480lm (Low Beam) / 5,280 (High Beam)

  • Output Color : 5000K Daylight White

  • Wattage : 26W (L) / 40W (H) / 5W (DRL)

  • Voltage : 10.5 to 32V

  • Amperage : 1.8A (L) / 2.8A (H) / 0.4A (DRL)

  • Beam Pattern : Low Beam:::10Lux out to 50meters (Standard Spec for DOT Headlights)

  • Compliance : IP69K, IK10, MIL-STD810G, FMVSS 108

  • Material : Hard Coated Polycarbonate (Lens), Anodized Aluminum (Housing), Billet Aluminum (Bezel), Stainless Steel (Hardware, Bracket)

COMPATIBILITY

  • Jeep Wrangler JK : 2007-2018 (with Halogen Headlights)

  • Sahara/Rubicon w/ LED Headlights : Not Compatible

COMPLIANCE

Meets IP69K, IK10, MIL-STD810G, and FMVSS 108 Standards

INSTALLATION DOCUMENTS
