DESCRIPTION

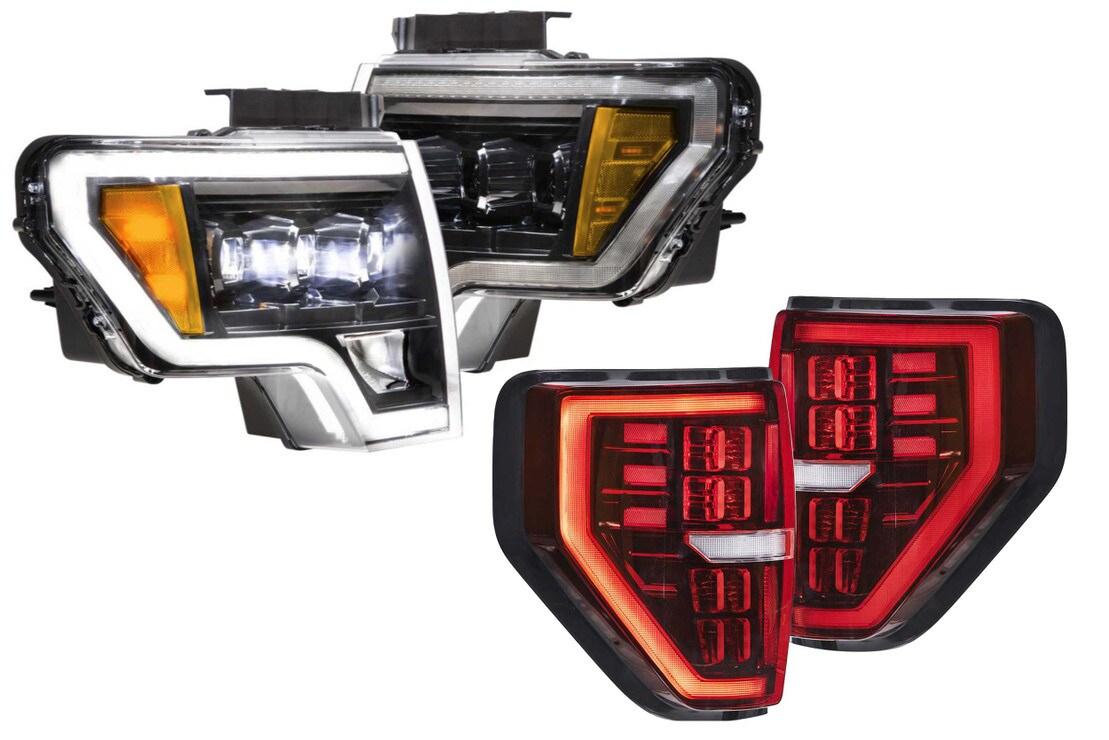

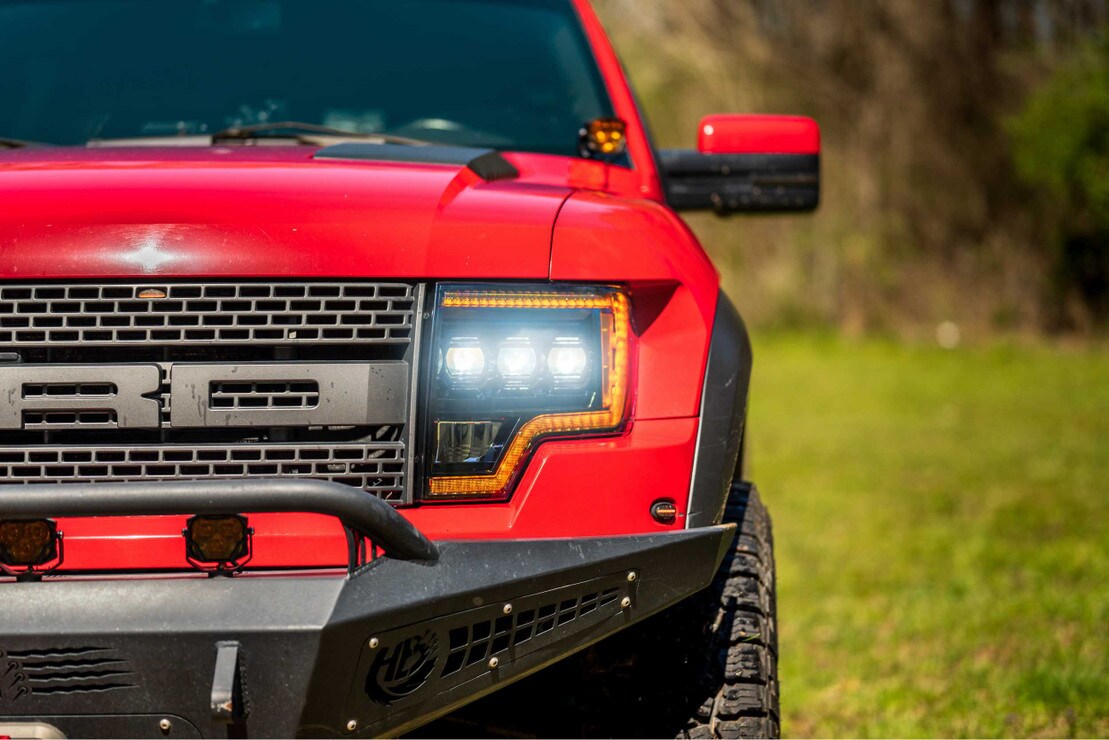

Upgrade your 2009-2014 Ford F-150 with the Morimoto XB LED Headlight & Tail Light Bundle, delivering superior performance, style, and safety. The XB LED Headlights offer a well-defined beam pattern, sequential LED DRLs, and Osram LEDs, ensuring maximum visibility with a plug-and-play installation and error-free operation. Built to last, they feature a UV-coated polycarbonate lens, PPS plastic housing, and die-cast aluminum heat-sinks.

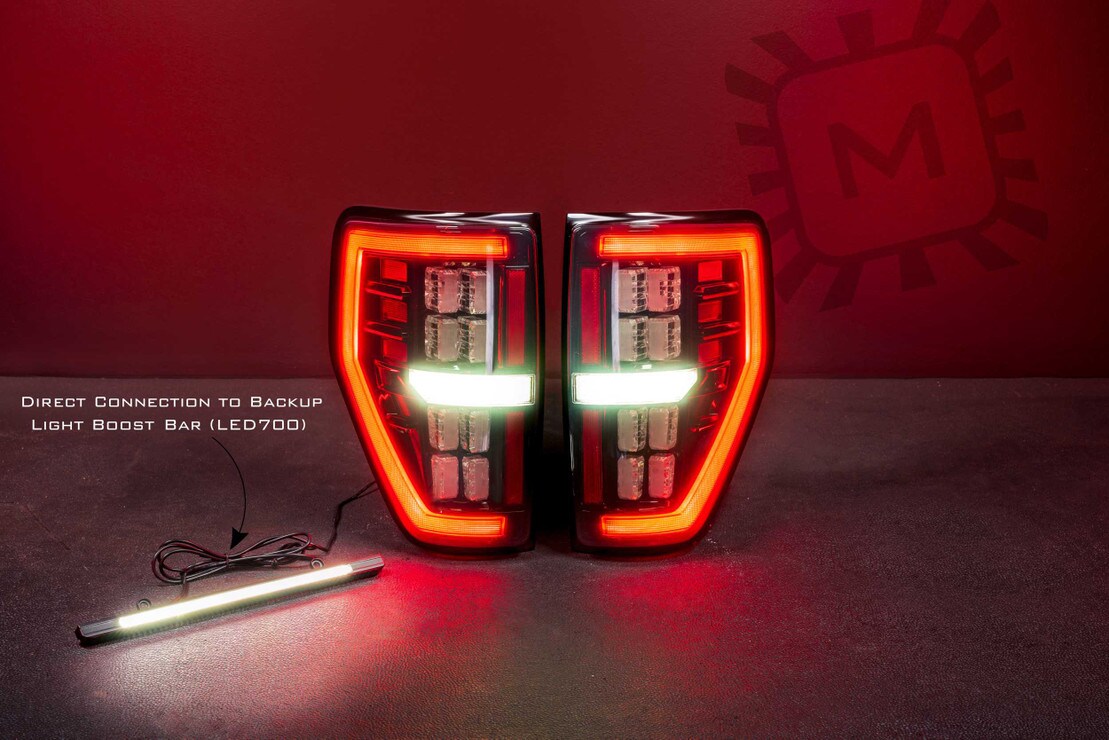

The XB LED Tail Lights enhance your truck's look with dual clusters of 3D Optics for brake and turn signals, plus an outer parking light optic. High-output LED reverse lights and an optional BLBB LED Backup Boost Bar add 2,700 lumens for superior visibility. Fully DOT and SAE compliant, these lights are backed by Morimoto's five-year warranty. Transform your F-150 with this high-performance lighting upgrade, combining cutting-edge technology, durability, and sleek design.
FEATURES & BENEFITS
- Superior Illumination: Brighter, wider, and more uniform light output than halogens.
- Plug-and-Play Installation: No modifications, error codes, or flickering.
- Durable Construction: UV-coated lenses, PPS plastic housing, and die-cast aluminum cooling.
- Modern Aesthetics: Sequential turn signals, DRLs, and 3D Optics for a premium look.
- DOT & SAE Compliant: Meets and exceeds all safety regulations.
- Industry-Leading Warranty: Reliable performance backed by Morimoto’s guarantee.
WHAT’S INCLUDED
Headlight Choices:

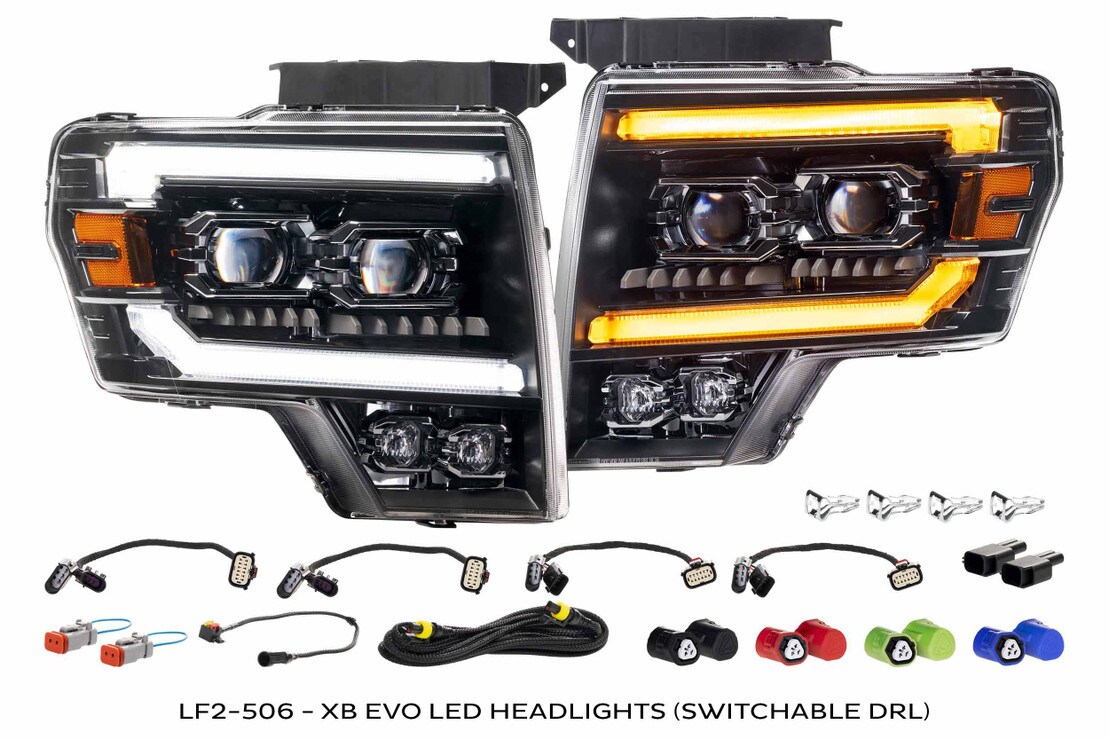

Morimoto XB Evo LED Headlights: 09-14 Ford F-150 (White/Amber DRL) Click for Details

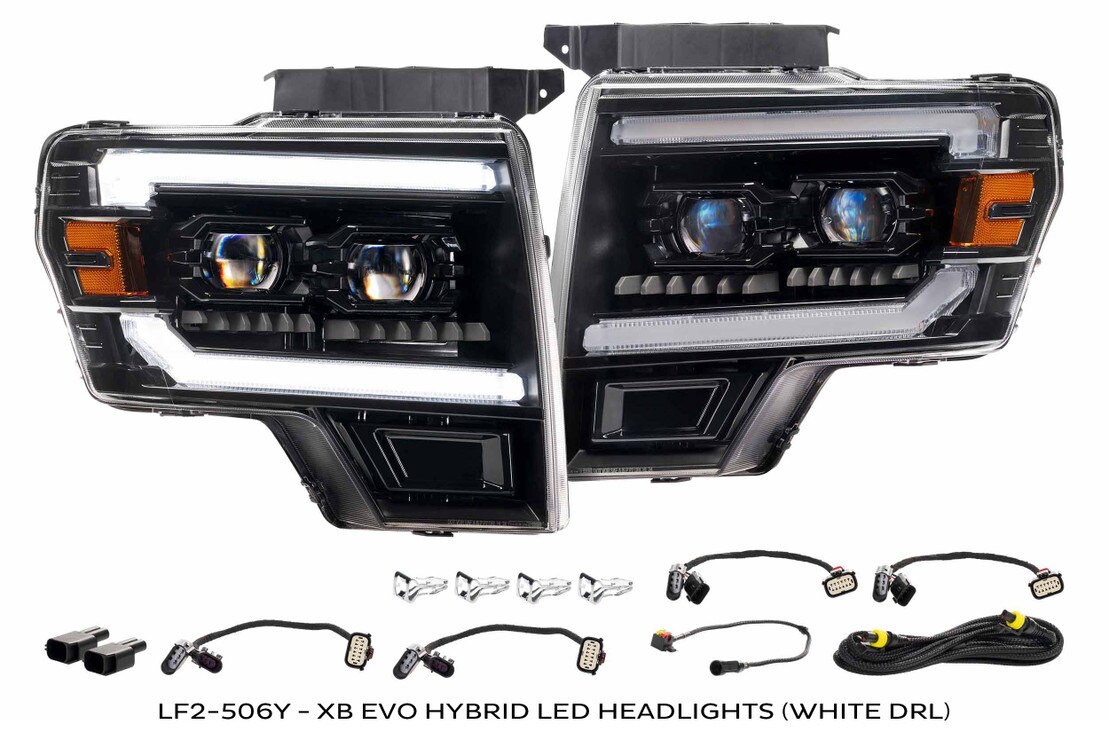

Morimoto XB Evo Hybrid LED Headlights: 09-14 Ford F-150 (White DRL) Click for Details

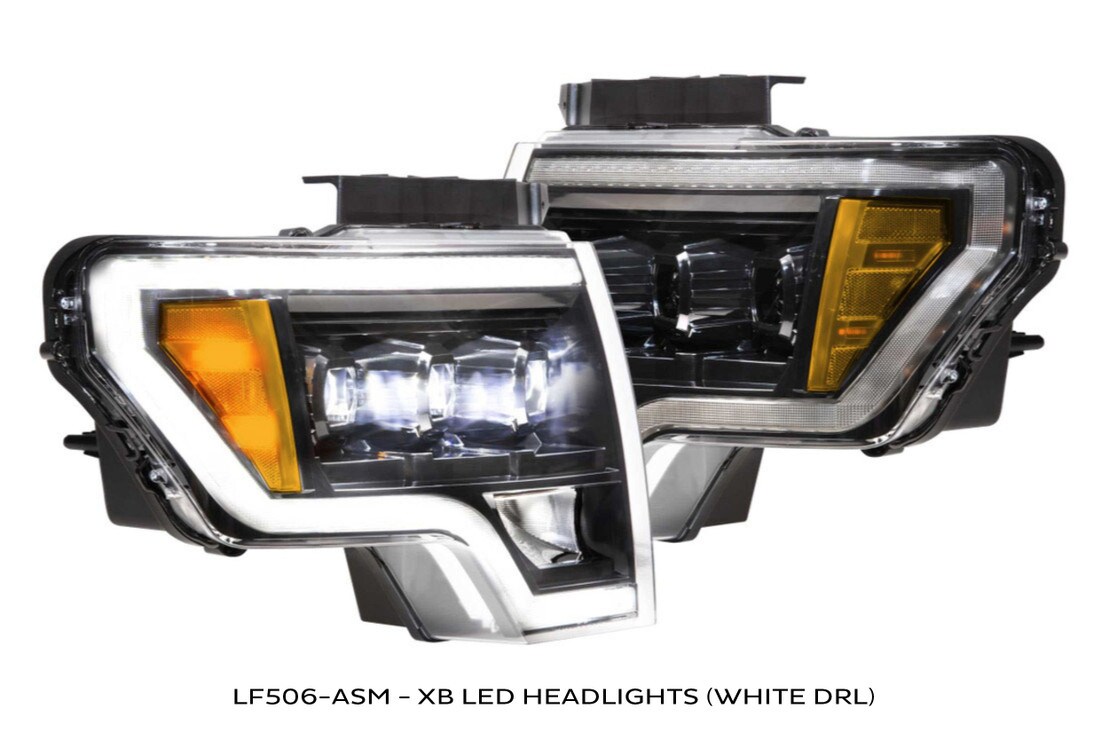

Morimoto XB LED Headlights: 09-14 Ford F-150 (White DRL) Click for Details

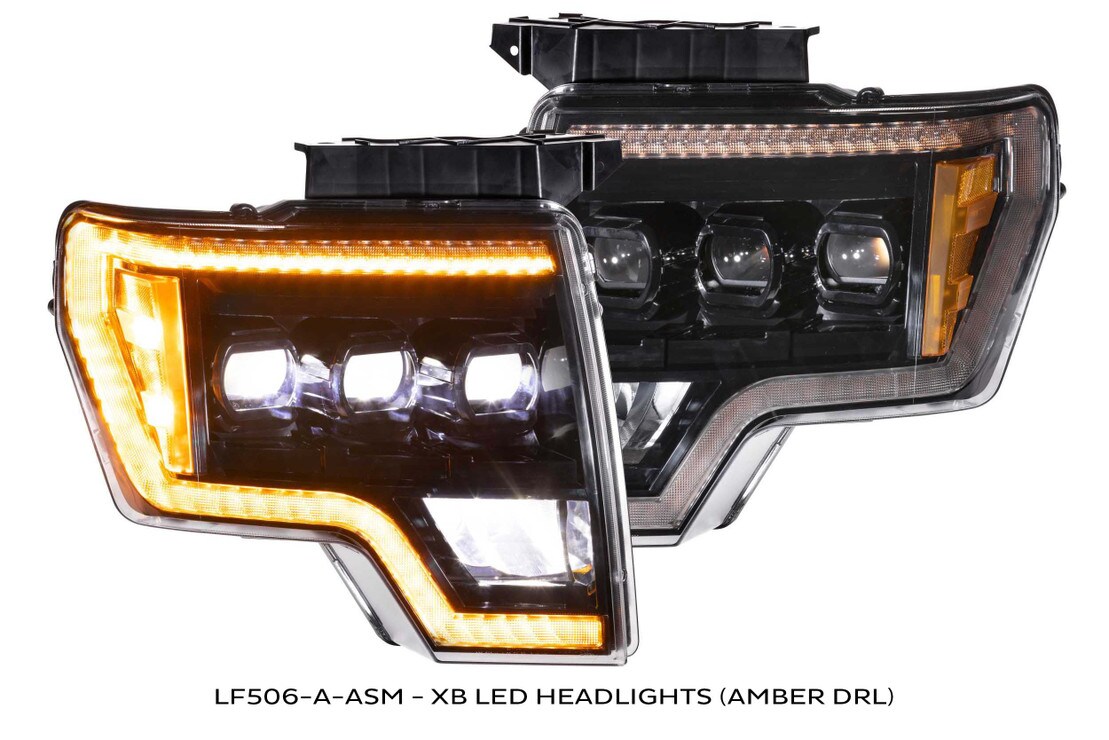

Morimoto XB LED Headlights: 09-14 Ford F-150 (Amber DRL) Click for DetailsTail Light Choices:

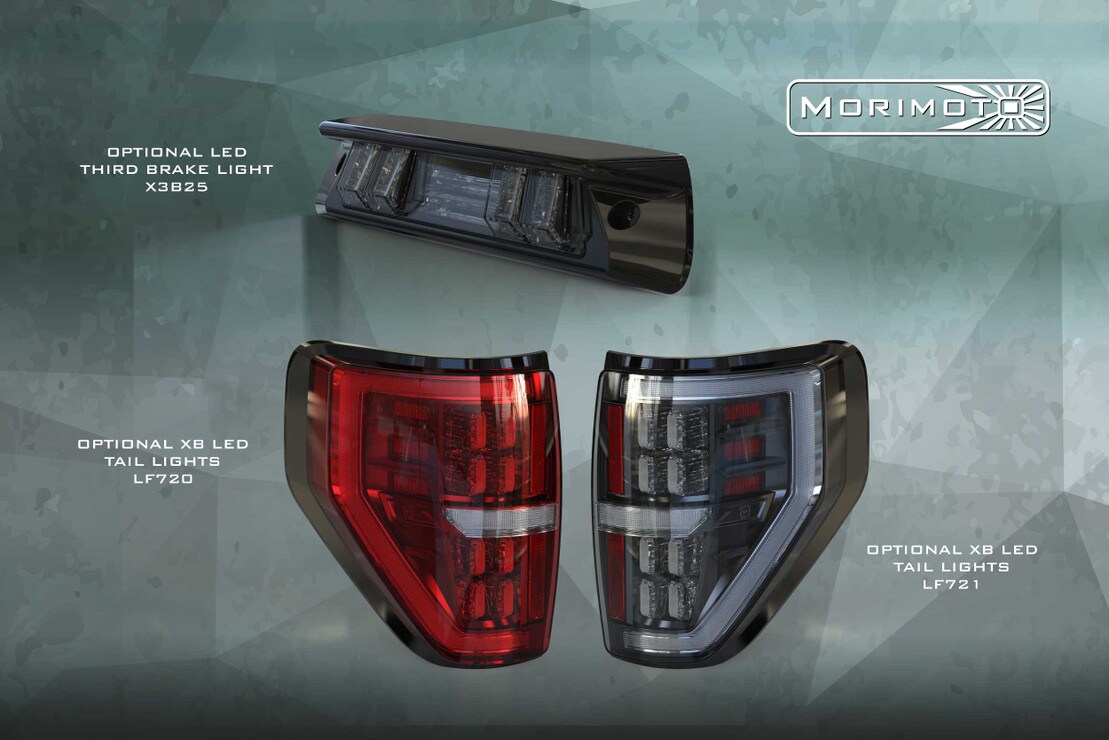

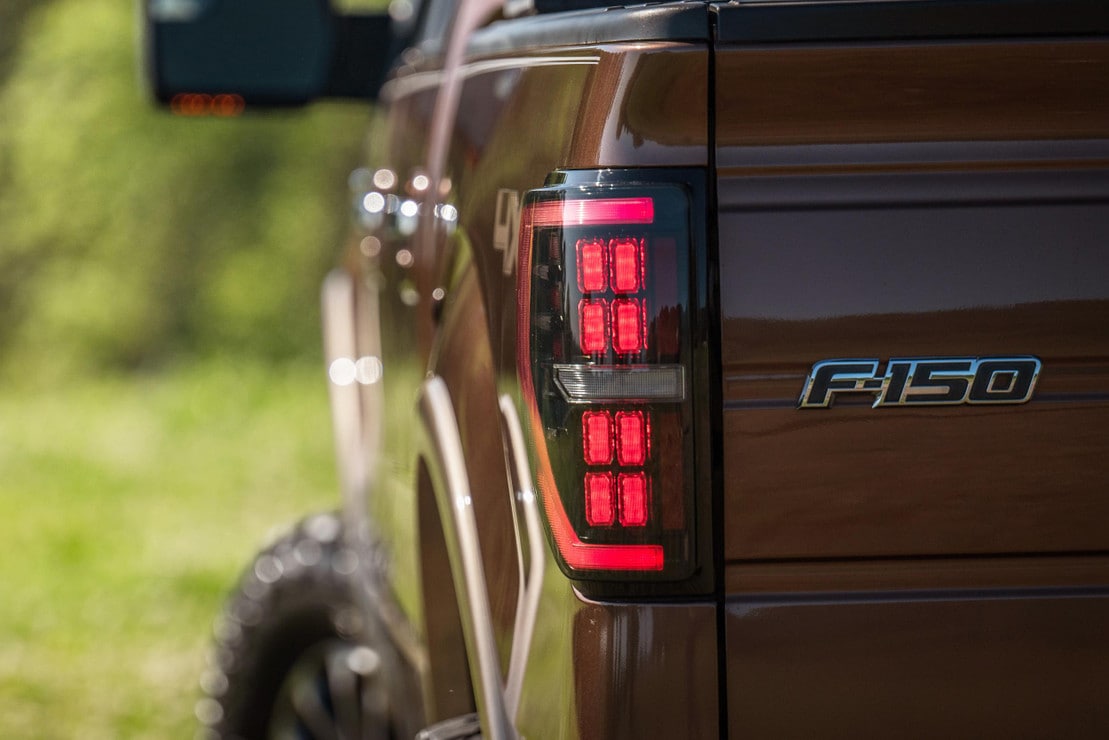

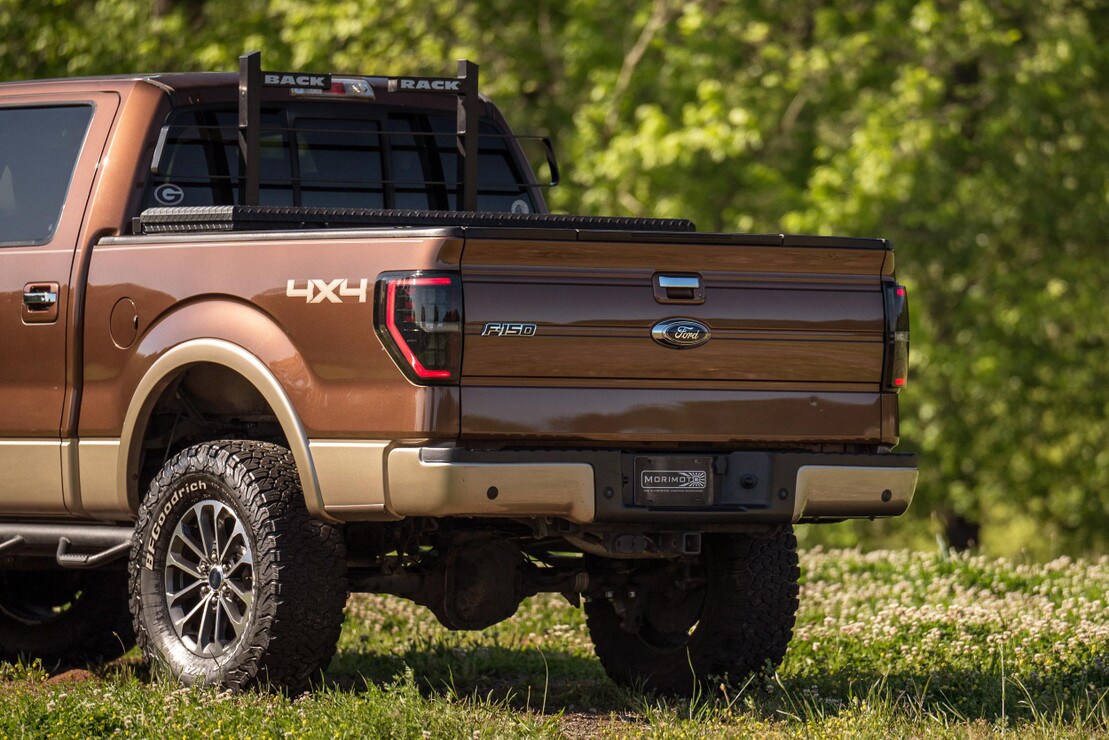

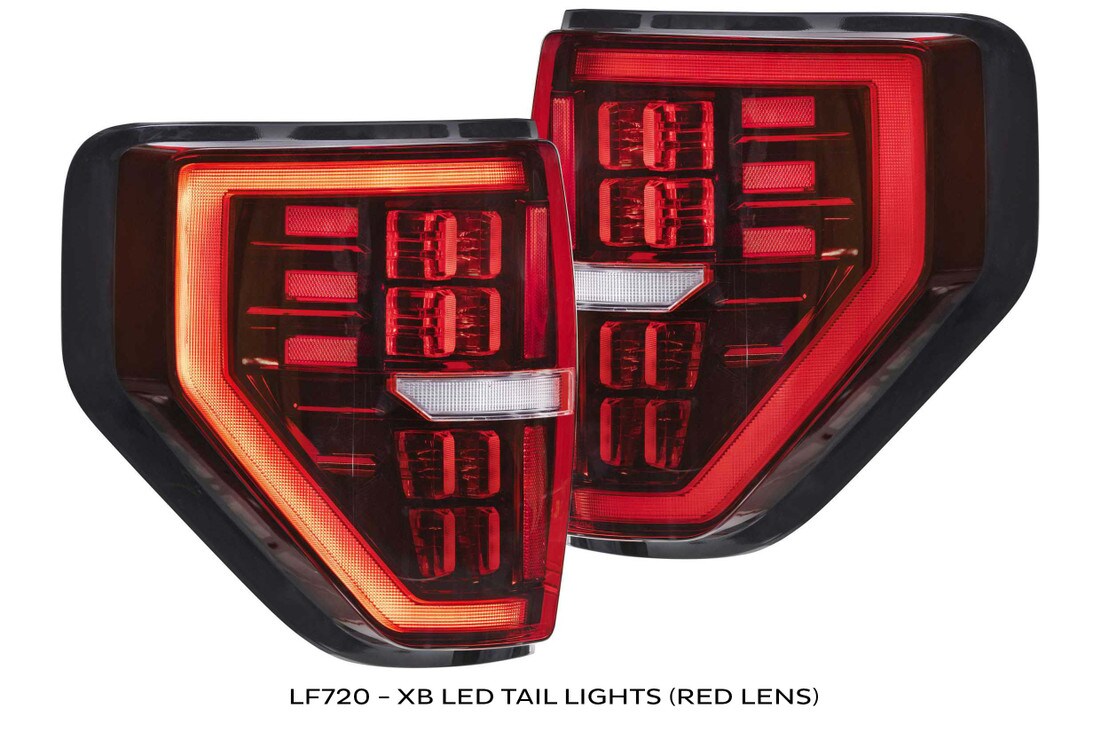

Morimoto XB LED Tail Lights: 09-14 Ford F-150 (Red Lens) Click for Details

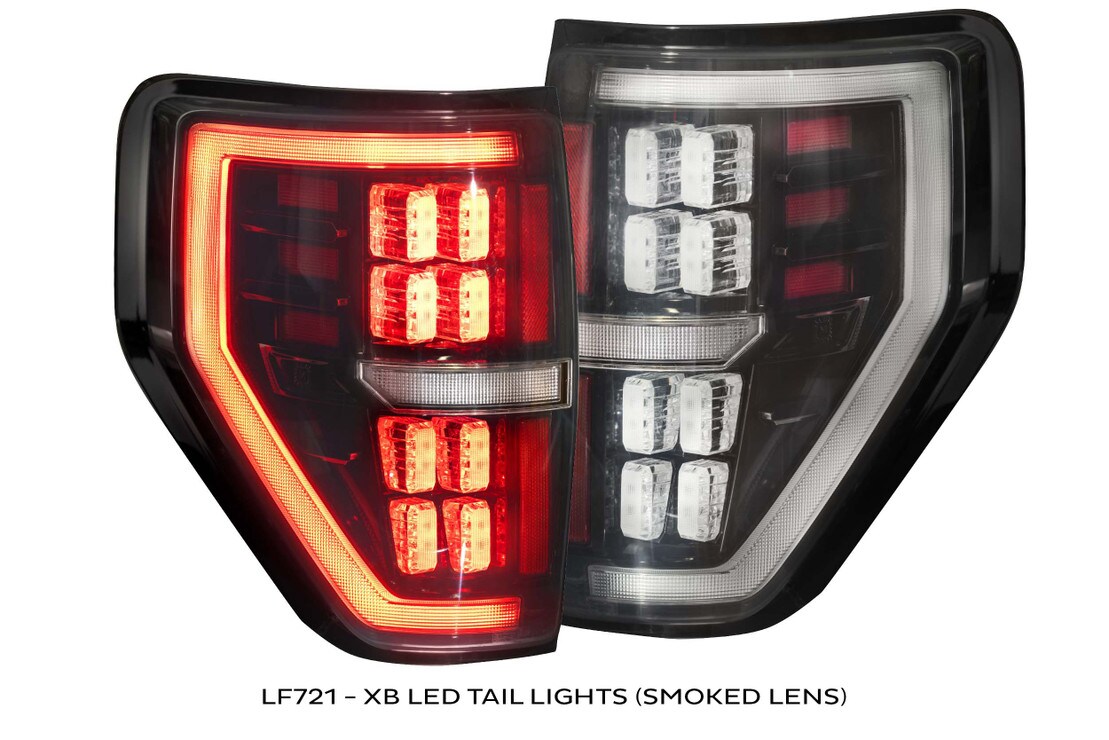

Morimoto XB LED Tail Lights: 09-14 Ford F-150 (Smoked Lens) Click for Details
WARRANTY INFORMATION
This warranty is only valid if the item is purchased from an Authorized Dealer, Click HERE for a list of unauthorized dealers.
TECHNICAL SPECIFICATIONS
XB Evo Headlights:
Traffic Pattern: LHD / Right Hand Traffic Only
Output (Standard Drivers): DOT / FVMSS108 Compliant (LB2V and UB2)
Output (Supercharged Drivers): +30-50% (Non-Compliant)
Main Optics: 2x Type 1 Ishida Optic Bi-LED (1x Nichia NC4W193F @ 750mA)
High Beam Assist: 2x Morimoto 1Banger NCS Combo Beam*
Functions: Low, High, Park, Turn, DRL, Welcome, and Lens Heating
Turn Signal Modes: Sequential or Fade Off (Configurable)
DRL Colors: White or Amber (Configurable)
DRL/Signal Optics: Glass-like 3D Optics
Frost-Free System: Logic Controlled 50W Ceramic w/ circulation fans
Internal Finish: Two-Tone Piano Black and Titanium w/ contrasting textures
Side marker: Amber side reflex reflector (DOT compliant)
Wiring: Adapters Included for OEM Halogen and OEM HID inputs
Lens Details: Polycarbonate with UV shield hard coating (Exceeds OE Toyota benchmark)
XB Evo Hybrid Headlights:
Traffic Pattern: LHD / Right Hand Traffic Only
Output (Standard Drivers): DOT / FVMSS108 Compliant (LB2V and UB2)
Output (Supercharged Drivers): +30-50% (Non-Compliant)
Main Optics: 2x Type 1 Ishida Optic Bi-LED (1x Nichia NC4W193F @ 750mA)
Functions: Low Beam, High Beam, Parking Light, Turn Signal, and DRL
Turn Signal Mode: Instant-On / Fade-Off
DRL Color: White
DRL/Signal Optics: Glass-like 3D Optics
Internal Finish: Piano Black w/ contrasting textures
Side marker: Amber side reflex reflector (DOT compliant)
Wiring: Adapters Included for OEM Halogen and OEM HID inputs
Lens Details: Polycarbonate with UV shield hard coating (Exceeds OE Toyota benchmark)
XB Headlights:
Traffic Pattern: LHD Only
Input: Ford Multi-Pin OEM
Functions: DRL (White or Amber), Turn, Parking, Low, High
Material: ABS Plastic (Housing), UV-Resistant Polycarbonate (Lens)
Optic: Kuria Optic Bi-LED
UV Coating: Momentive UVHC3000
Tail Lights:
Input: Ford Multi-Pin OEM
Material: ABS Plastic (Housing), UV-Resistant Polycarbonate (Lens)
Light Source: SSC LED
Brake Light: Red
Parking Light: Red
Turn Signal: Red
COMPATIBILITY
Ford F-150: 2009-2014 incl. OEM HID Trucks
NOTE: Canadian trucks may require disabling OE DRL
Trucks with EcoBoost Engine: Small interference with vacuum pump underneath light. Needs minor adjustment to clear
NOTE: These housings have been designed for, and tested on, US-Spec vehicles. Other countries' compatibility may vary and is not guaranteed nor always known.
