DESCRIPTION

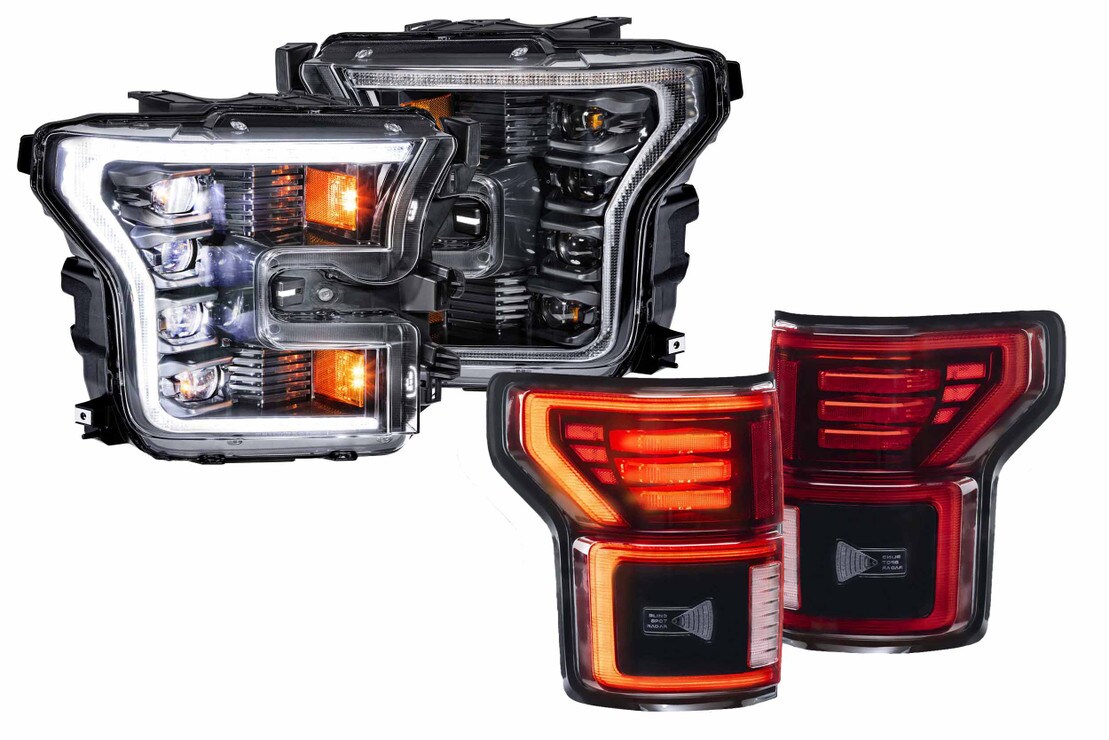

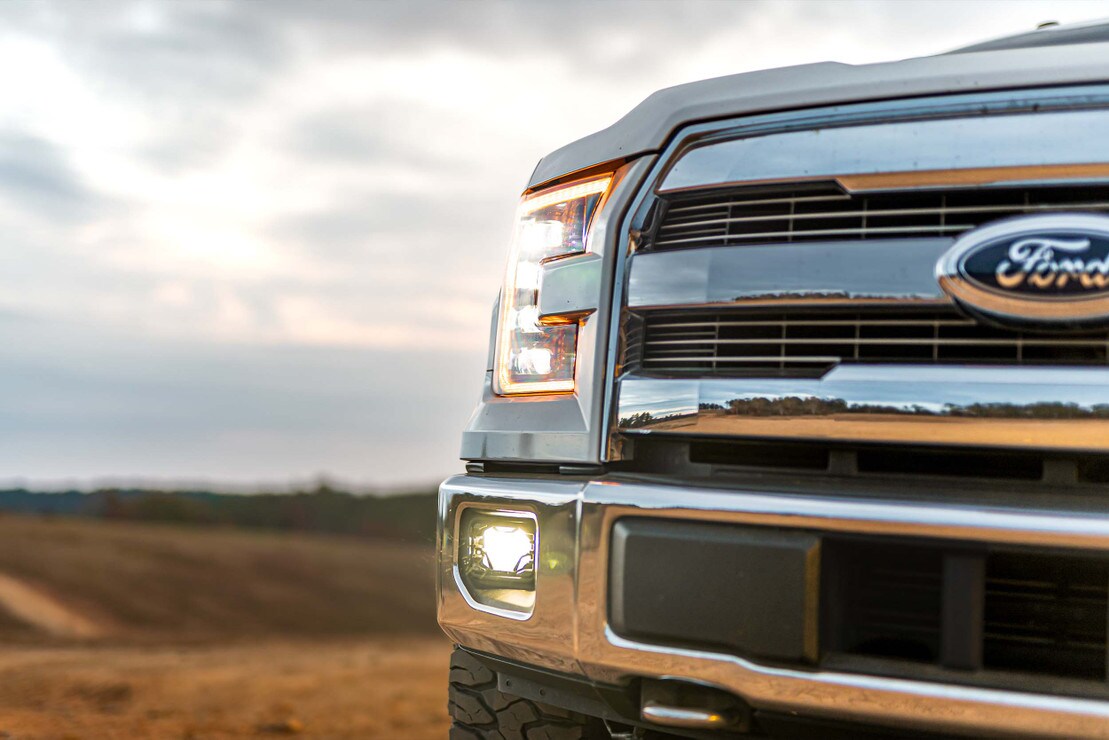

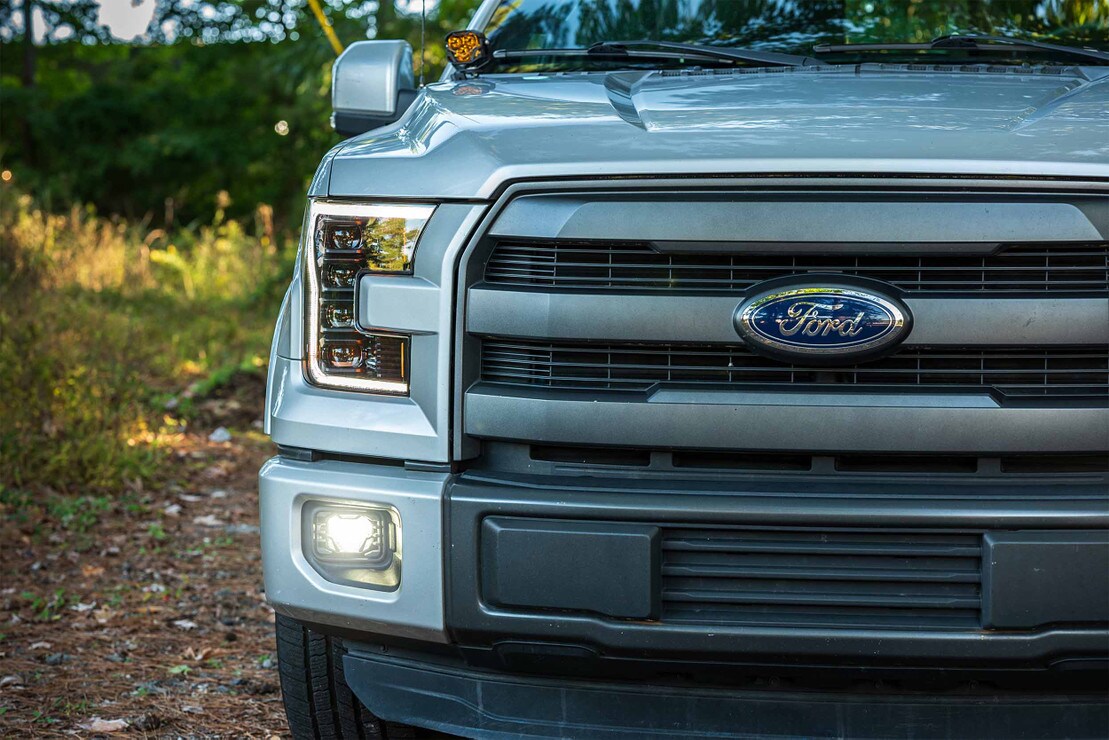

Upgrade your 2015-2017 Ford F-150 with a complete Morimoto lighting bundle built specifically around the standard F-150 fitment. The updated headlight menu places the XB Evo and XB Evo Hybrid above the two original XB headlight choices, retains the original XB Hybrid option, and keeps the existing red- and smoked-lens tail light choices for 2015-2020 F-150 trucks.

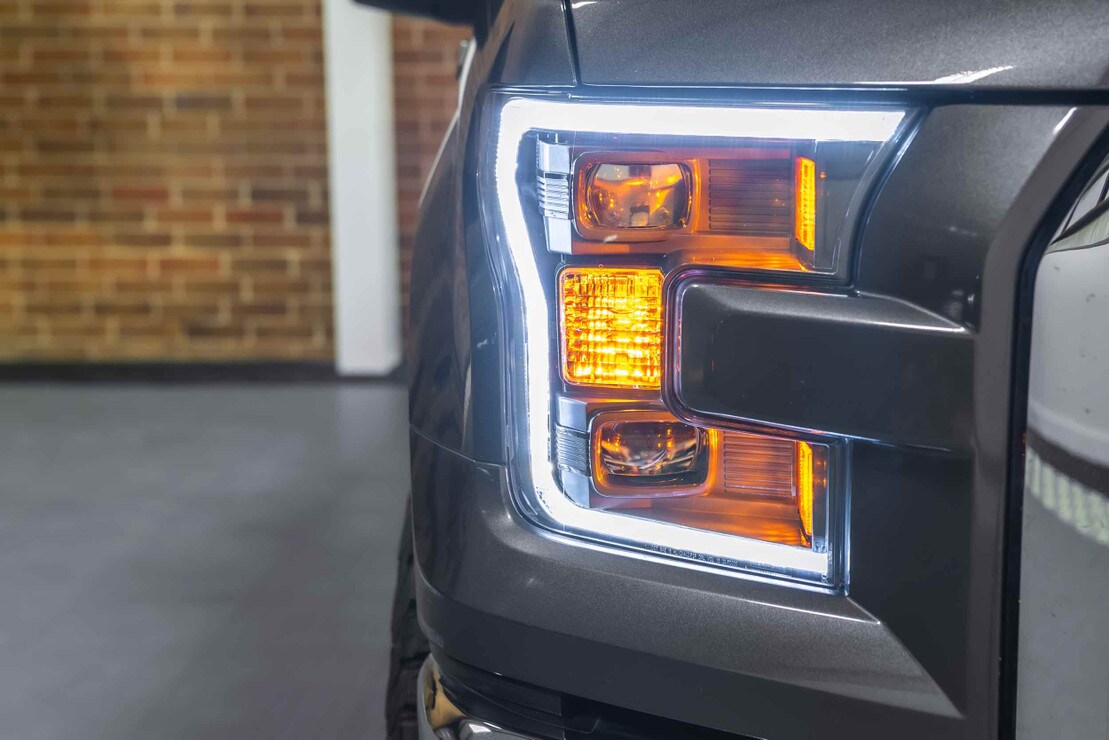

The Morimoto XB Evo headlights (LF2-502) use two Type 1 Ishida Bi-LED projectors plus a dedicated D-Optic high-beam assist in each assembly. The daytime running lights can be configured in white or amber, and the turn signals can operate sequentially or with a fade-off effect. A multi-stage welcome sequence and logic-controlled 50-watt lens-heating system add premium functionality. Standard drivers are DOT and FMVSS108 compliant; optional LF2-DRVSC14 Supercharged Drivers are intended for off-road use only.
The Morimoto XB Evo Hybrid headlights (LF2-502Y) use two of the same Type 1 Ishida Bi-LED projectors in a simplified black-finish package. They retain the core low- and high-beam performance with a fixed white DRL and fixed fade-off turn signal, while omitting the XB Evo's D-Optic high-beam assist, lens heaters, mode selectors, and standard welcome sequence. Optional LF2-DRVSC14 Supercharged Drivers are also available for off-road use.

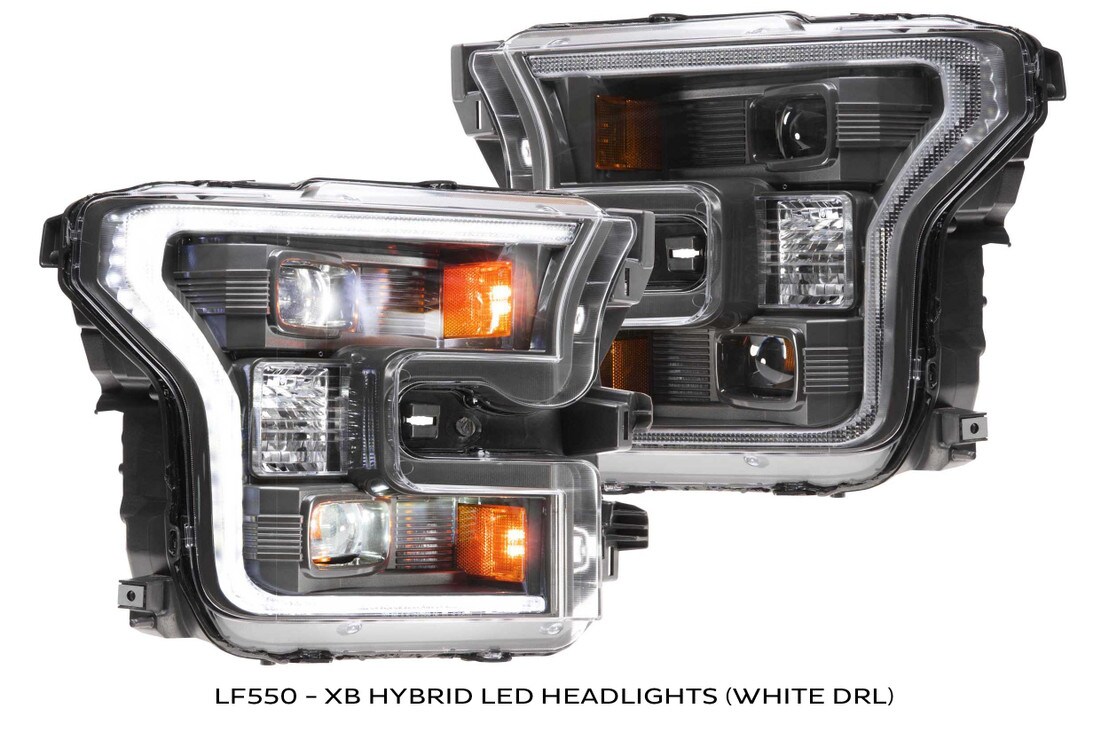

The original Morimoto XB Hybrid headlights (LF550.2) remain available for the 2015-2017 F-150. Their white LED daytime running lights, dedicated LED low- and high-beam optics, OEM-grade construction, DOT-compliant output, and plug-and-play design continue to provide a strong value option. Trucks equipped with OEM LED headlights should be checked for the applicable conversion-harness requirement.

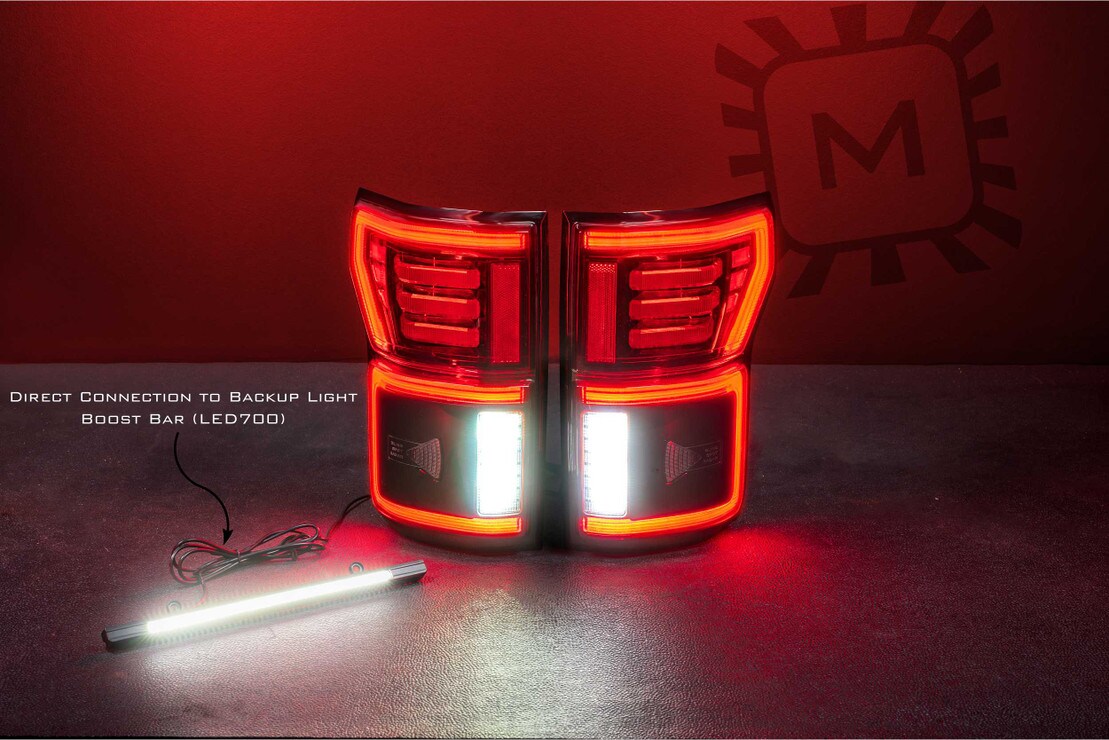

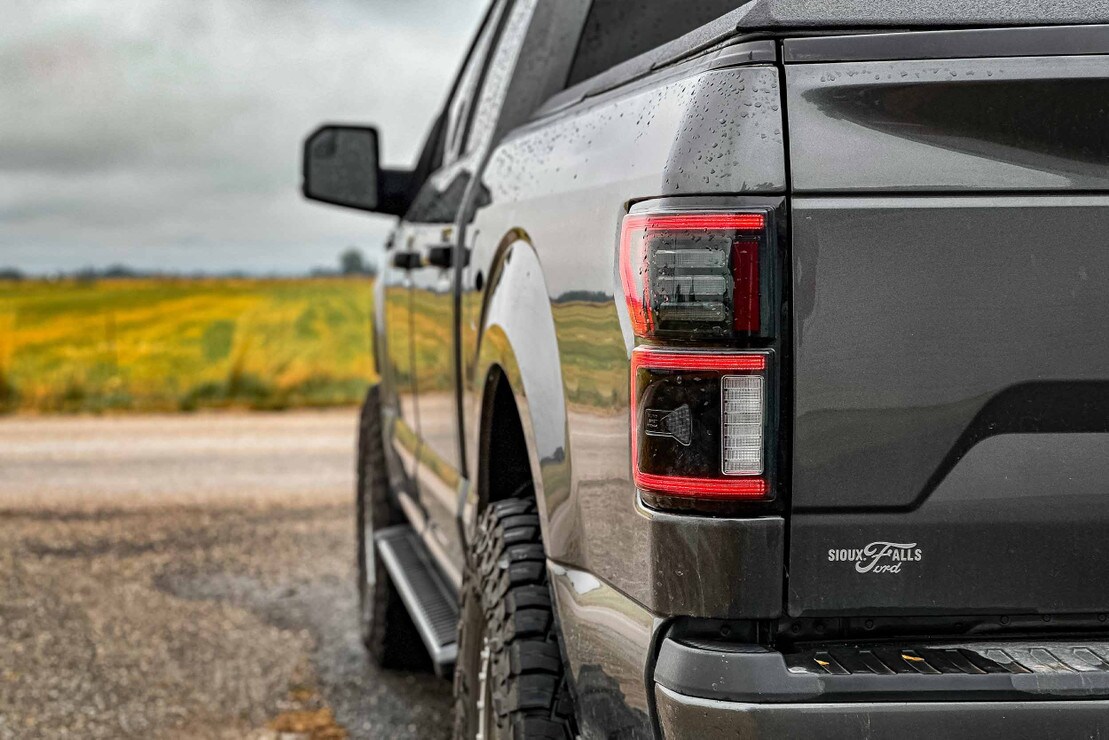

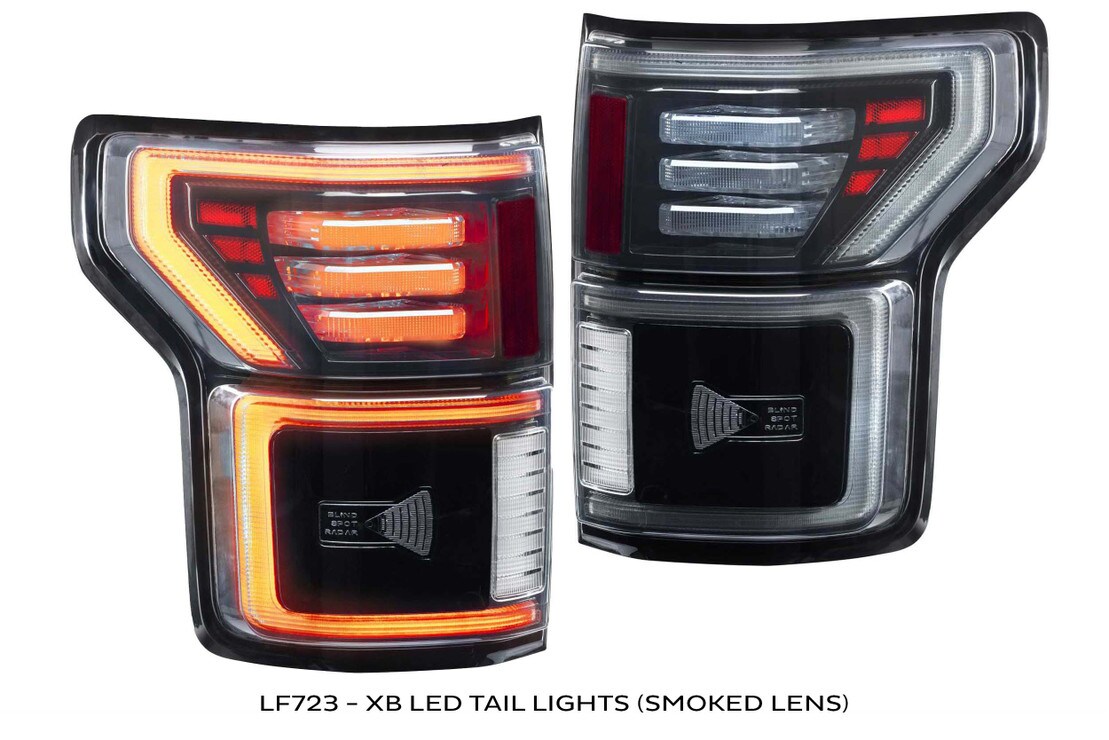

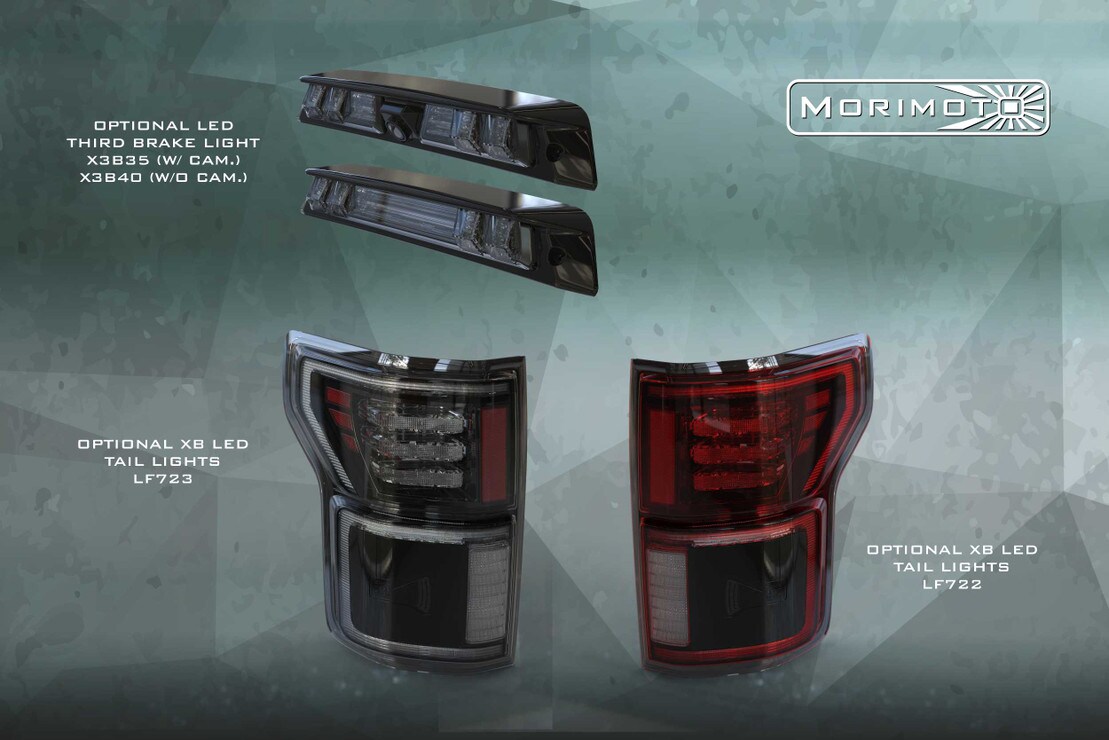

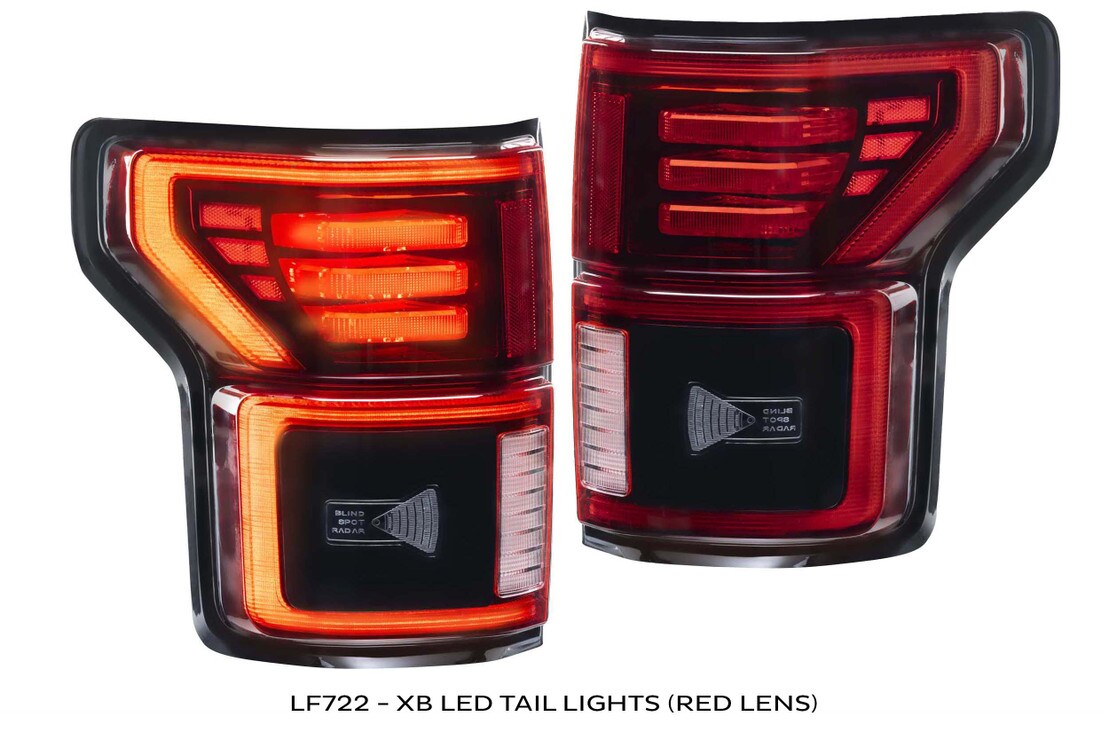

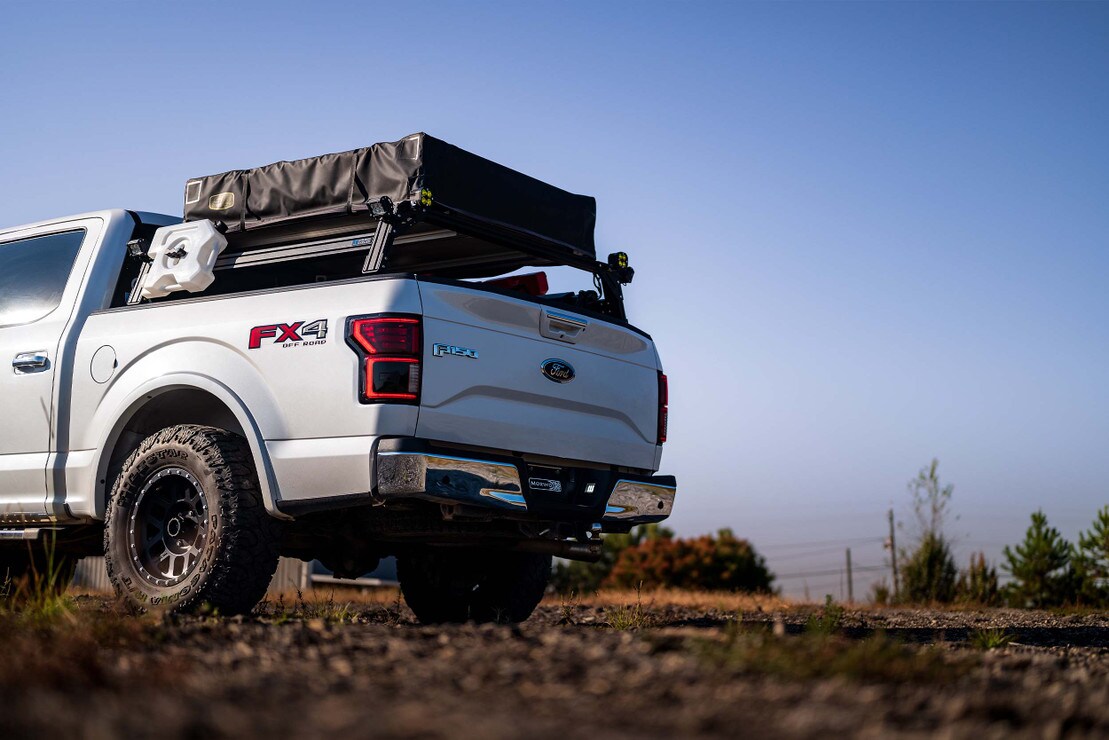

Complete the F-150 package with Morimoto XB LED tail lights in red (LF722) or smoked (LF723). These 2015-2020 F-150 choices use bright LED reverse lights, three-dimensional optics for the brake and turn functions, and factory-style plug-and-play wiring. Incandescent-tail trucks use the included adapter harness; trucks with OE LED and BLIS require transfer of the original modules. OE LED trucks without BLIS are not compatible. The tails also support Morimoto's optional Backup Light Boost Bar.
FEATURES & BENEFITS
- Enhanced Visibility: Morimoto XB LED Headlights offer 200% more light output than standard halogen lights, improving road visibility.
- Easy Installation: Both headlights and tail lights are plug-and-play, ensuring hassle-free installation without voiding your factory warranty.
- Durability: Built with UV-coated polycarbonate lenses and durable PPS plastic housing with die-cast aluminum heat sinks for lasting performance.
- Modern Design: Features sequential LED DRLs and optional LED Backup Boost Bar for a sleek look and enhanced reverse lighting.
- Regulation Compliance: Exceeds SAE, DOT, and FMVSS108 standards for safety and legal compliance.
WHAT’S INCLUDED
Headlight Choices :
Morimoto XB Evo LED Headlights: 15-17 Ford F-150 (Selectable White / Amber DRL) Click for Details
Morimoto XB Evo Hybrid LED Headlights: 15-17 Ford F-150 (White DRL) Click for Details

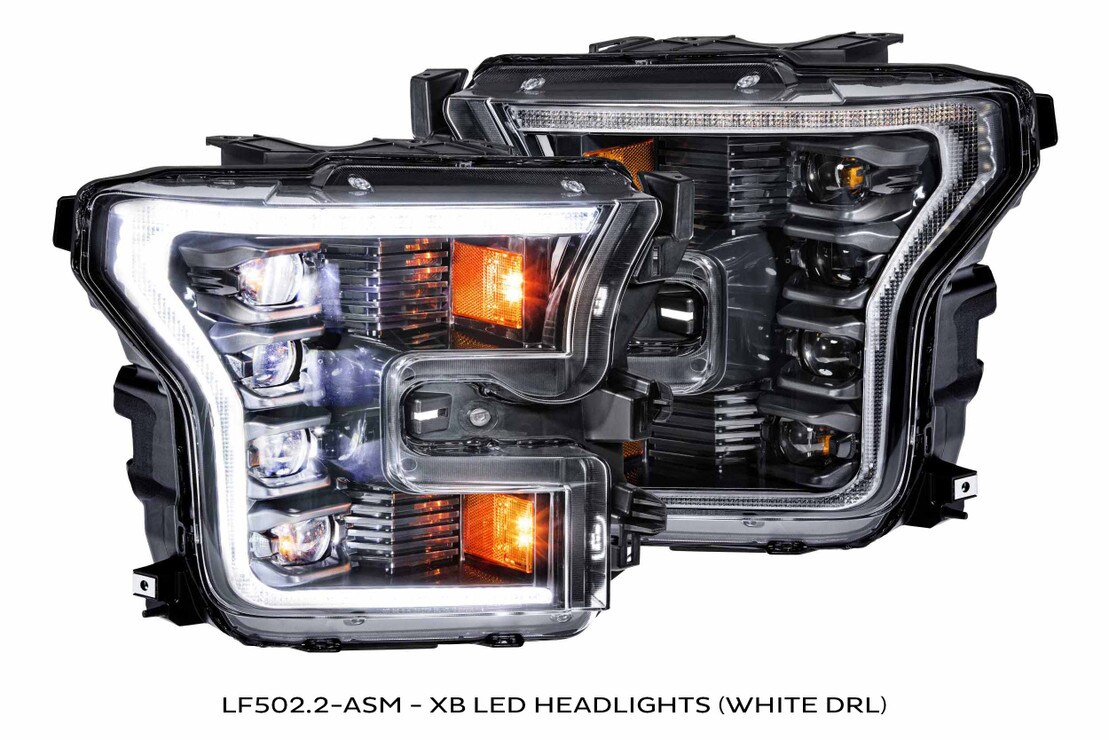

Morimoto XB LED Headlights: 15-17 Ford F-150 (White DRL) Click for Details
Morimoto XB LED Headlights: 15-17 Ford F-150 (Amber DRL) Click for Details
Morimoto XB Hybrid LED Headlights: 15-17 Ford F-150 (White DRL) Click for DetailsTail Light Choices :
Morimoto XB LED Tail Lights: 15-20 Ford F-150 (Red Lens) Click for Details
Morimoto XB LED Tail Lights: 15-20 Ford F-150 (Smoked Lens) Click for Details
WARRANTY INFORMATION
This warranty is only valid if the item is purchased from an Authorized Dealer, Click HERE for a list of unauthorized dealers.
TECHNICAL SPECIFICATIONS
XB Evo Headlights (LF2-502) :
Traffic Pattern : LHD / Right Hand Traffic Only (US/CA Standard)
Output (Standard Drivers) : DOT (FMVSS108) Compliant (LB2V and UB2)
Output (Supercharged Drivers) : Off-Road use only
Main Optics : 2x Type 1 Ishida Optic Bi-LED, 1x D-Optic High Beam Assist
Functions : Low, High, Park, Turn, DRL, Welcome, and Lens Heating
Turn Signal Modes : Sequential or Fade Off (Configurable)
DRL Colors : White or Amber (Configurable)
Frost-Free System : Logic-controlled 50w ceramic w/ circulation fans
Internal Finish : Two-Tone Piano Black and Titanium w/ contrasting textures
Side marker : Amber side reflex reflector (DOT compliant)
Lens Details : Polycarbonate with proprietary anti-UV hard coating
XB Evo Hybrid Headlights (LF2-502Y) :
Traffic Pattern : LHD / Right Hand Traffic Only (US/CA Standard)
Output (Standard Drivers) : DOT (FMVSS108) Compliant (LB2V and UB2)
Output (Supercharged Drivers) : Off-Road use only
Main Optics : 2x Type 1 Ishida Optic Bi-LED
Functions : Low, High, Park, Turn, and DRL
Turn Signal Mode : Fade Off (Fixed)
DRL Color : White (Fixed)
Internal Finish : Black
Side marker : Amber side reflex reflector (DOT compliant)
Lens Details : Polycarbonate with proprietary anti-UV hard coating
XB Hybrid Headlights (LF550.2) :
Traffic Pattern : LHD Only
Input : Ford Multi-Pin OEM
Functions : DRL (White), Turn, Parking, Low, High
Material : ABS Plastic (Housing), UV-Resistant Polycarbonate (Lens)
Optic : Kuria Optic LED
UV Coating : Momentive UVHC3000
Tail Lights :
Input : Ford Multi-Pin OEM
Material : ABS Plastic (Housing), UV-Resistant Polycarbonate (Lens)
Light Source : SSC LED
Brake Light : Red
Parking Light : Red
Turn Signal : Red
COMPATIBILITY
Ford F-150 : 2015-2017
XB Evo / XB Evo Hybrid Headlights : Compatible with 2015-2017 North American Ford F-150
XB Evo Family Replaces OE Part # : FL3Z13008B, HL3Z13008M, GL3Z13008H, HL3Z13008K, FL3Z13008A, HL3Z13008L, GL3Z13008G, HL3Z13008J, KL3Z13008D, KL3Z13008B, KL3Z13008C, KL3Z13008A, JL3Z13008AH, JL3Z13008AG
Optional Supercharged Drivers : LF2-DRVSC14 fits LF2-502 and LF2-502Y (off-road use only)
XB Hybrid Headlights : Compatible with 2015-2017 F-150 equipped with OEM halogen or OEM LED headlights; verify the applicable OEM LED conversion harness requirements

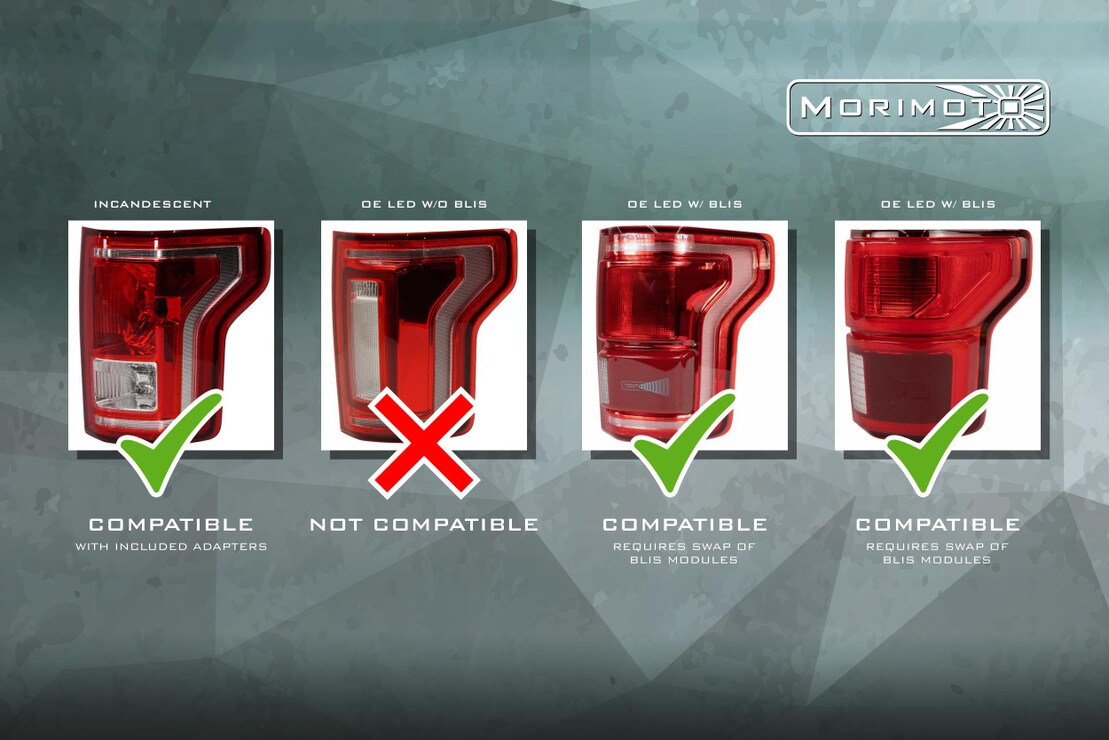

Tail Lights : Compatible with 2015-2020 Ford F-150; OE LED without BLIS is not compatible; OE LED with BLIS requires transfer of the OE modules; incandescent tails use the included adapter harness
NOTE : These products were developed for North American / US-spec vehicles. Compatibility outside North America may vary and is not guaranteed.
