GMC Sierra HD (15-19) Headlight & Tail Light Combo

(0) No Reviews yet
Questions?

Brand: Morimoto

B-BND-SIERRAHD-HR

$2,246.00

PRODUCT OPTIONS

XB LED Headlights: GMC Sierra (14-18 / Set)

PART #: 1 x LF544, 1 x LF730



*Guaranteed Fitment
Easy Return

DESCRIPTION

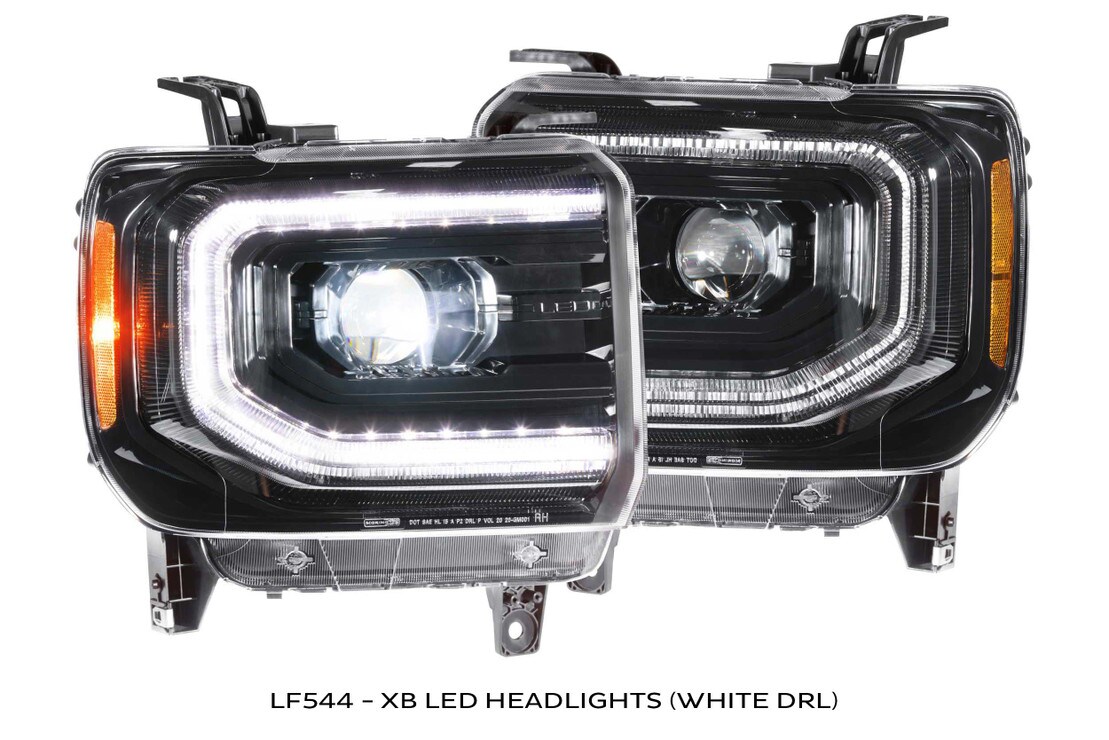

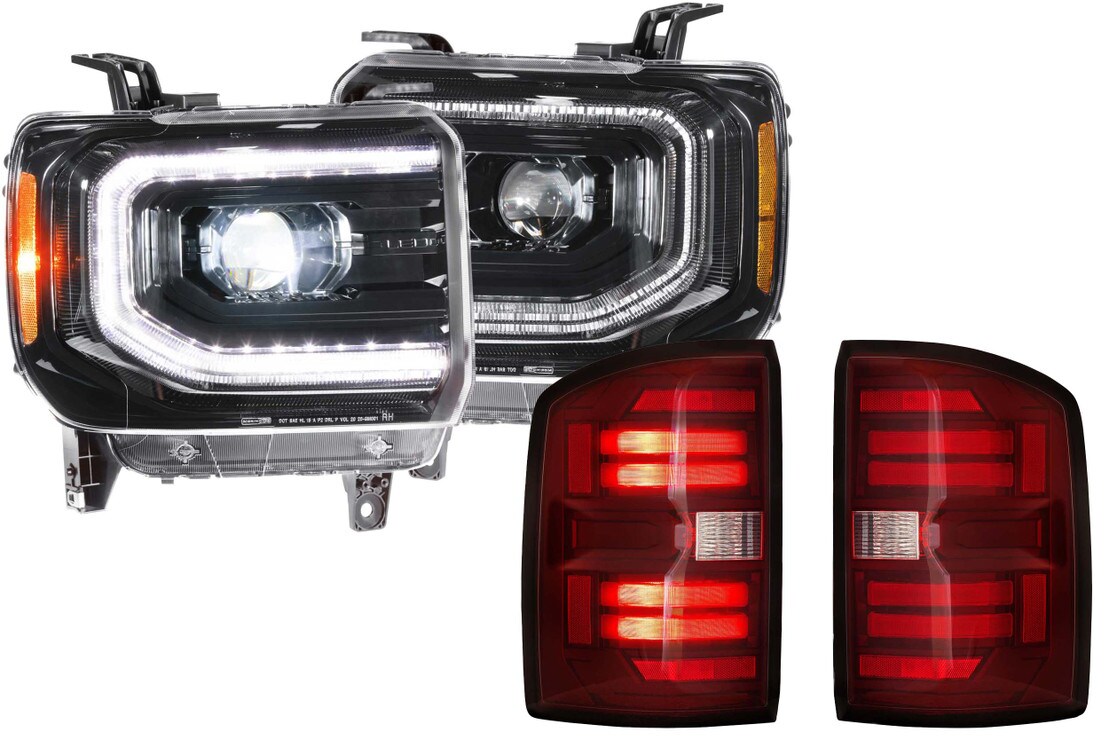

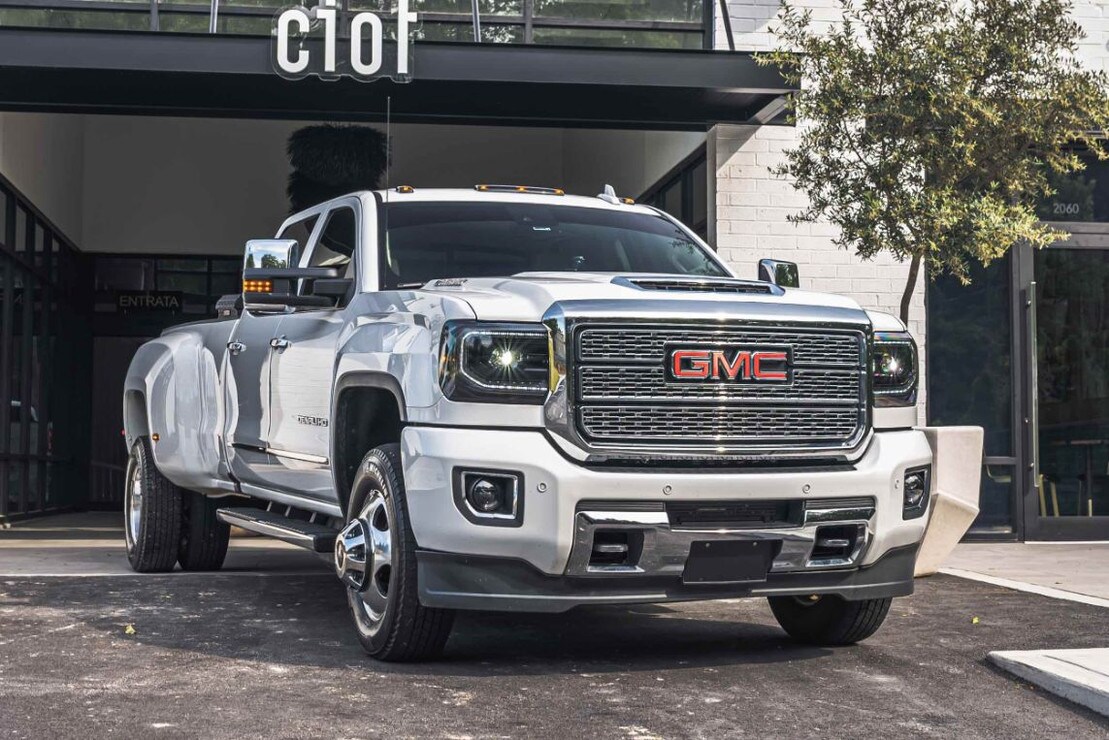

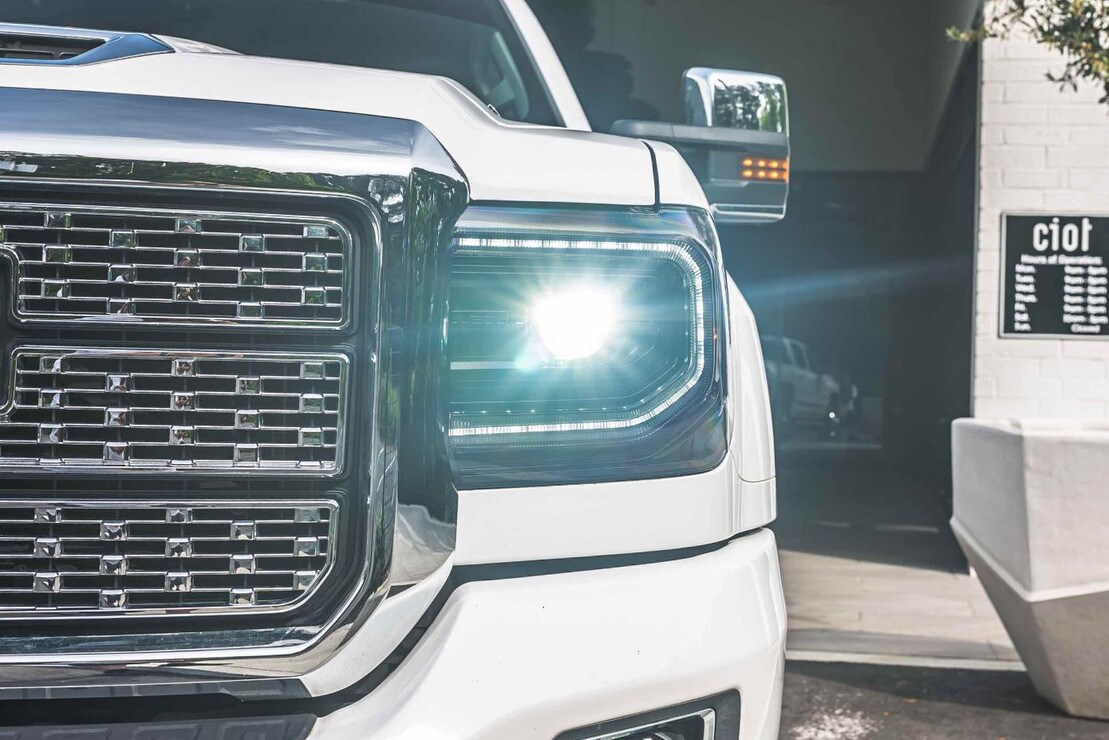

The Morimoto XB LED Headlights and Tail Lights are designed for the GMC Sierra HD (2015-2019) trucks. These headlights feature bright Osram 5000K LED daytime running lights shaped like a C, with a sequential turn signal that can also run in normal mode. They have high-quality Bi-LED projectors with clear lenses that give a wider, brighter light for both low and high beams, helping you see better on the road. The lights are easy to install with plug-and-play wiring and fit trucks with or without factory LED running lights. The durable polycarbonate lenses and strong plastic housings keep the lights looking good and working well for years. The matching tail lights offer bright LED brake and turn signals with a 3D look that’s easy to see day or night. They also include powerful LED reverse lights and an optional backup light bar for extra brightness when backing up. These tail lights meet all safety rules and come with a five-year warranty, making them a reliable and stylish upgrade for your Sierra.

FEATURES & BENEFITS

  • Bright Lighting: Osram LEDs deliver clear daytime running lights and strong low/high beams for safer driving.
  • Sequential Turn Signals: Stylish effect with option to switch to standard mode.
  • Durable Build: UV-coated lenses and aluminum heat sinks ensure long life and cooling.
  • Plug-and-Play: Easy install on 2014-2019 GMC Sierra with no errors or flicker.

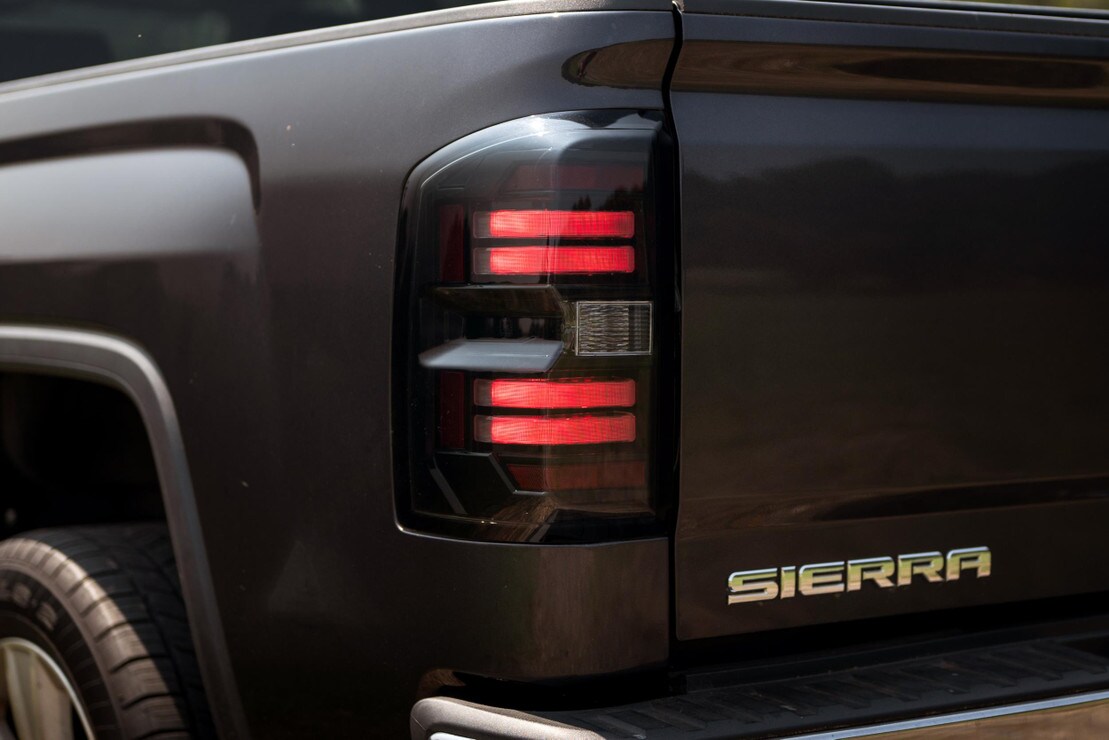

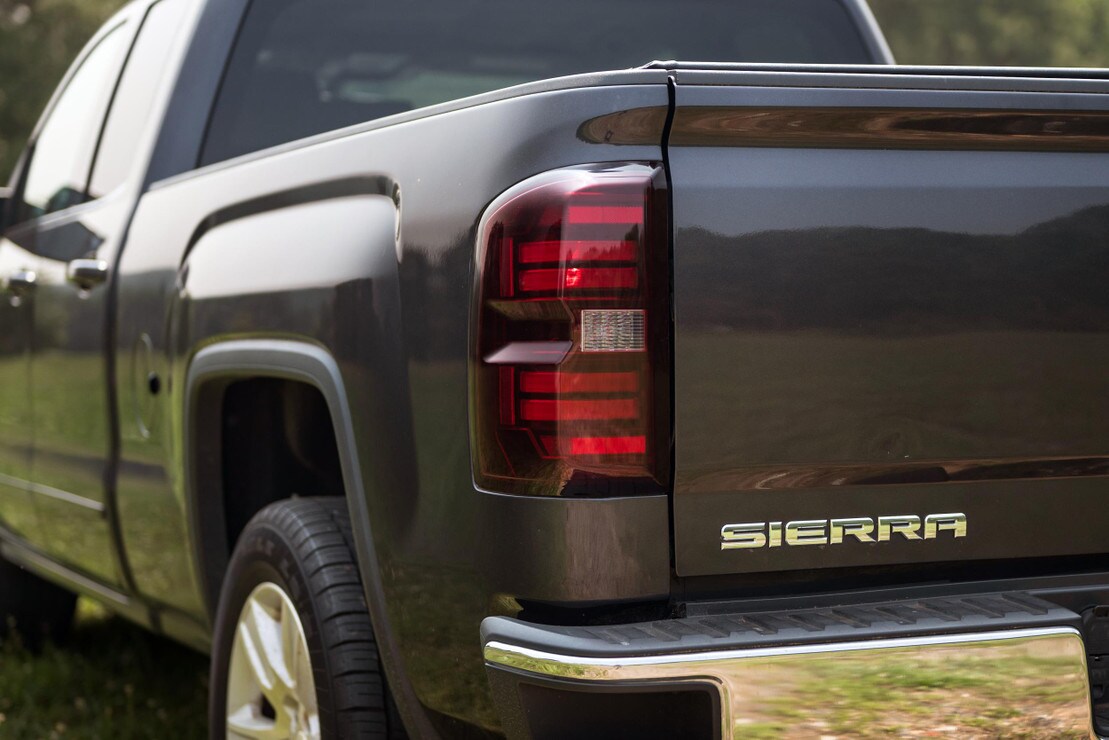

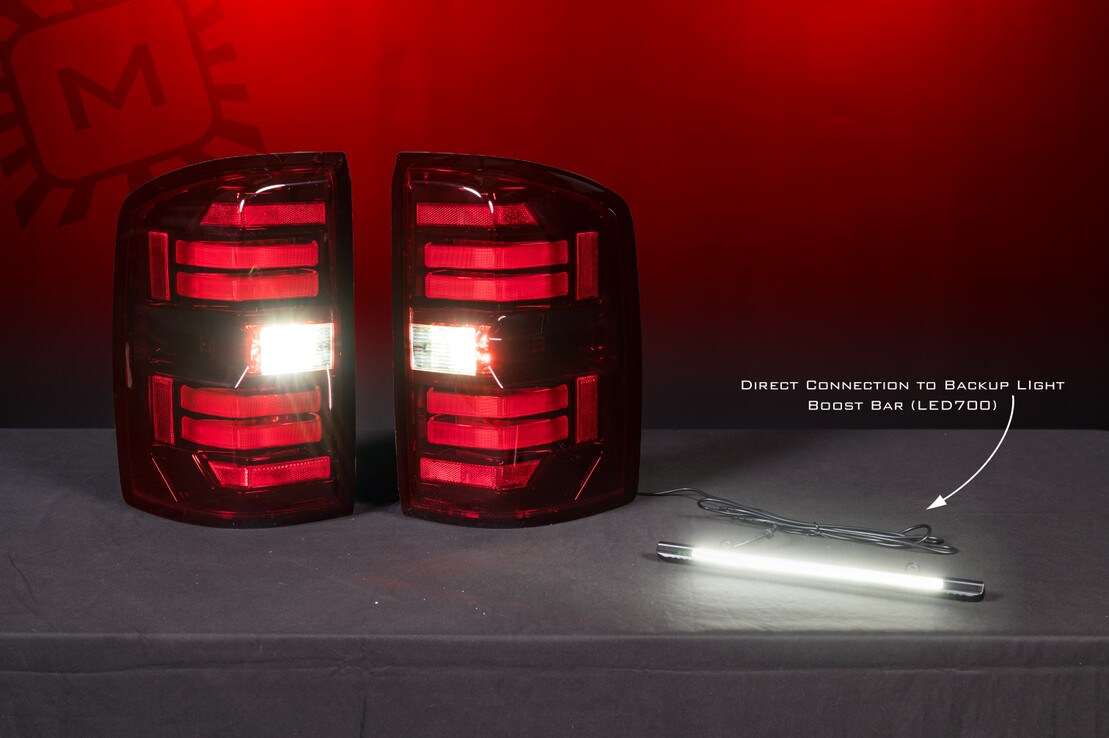

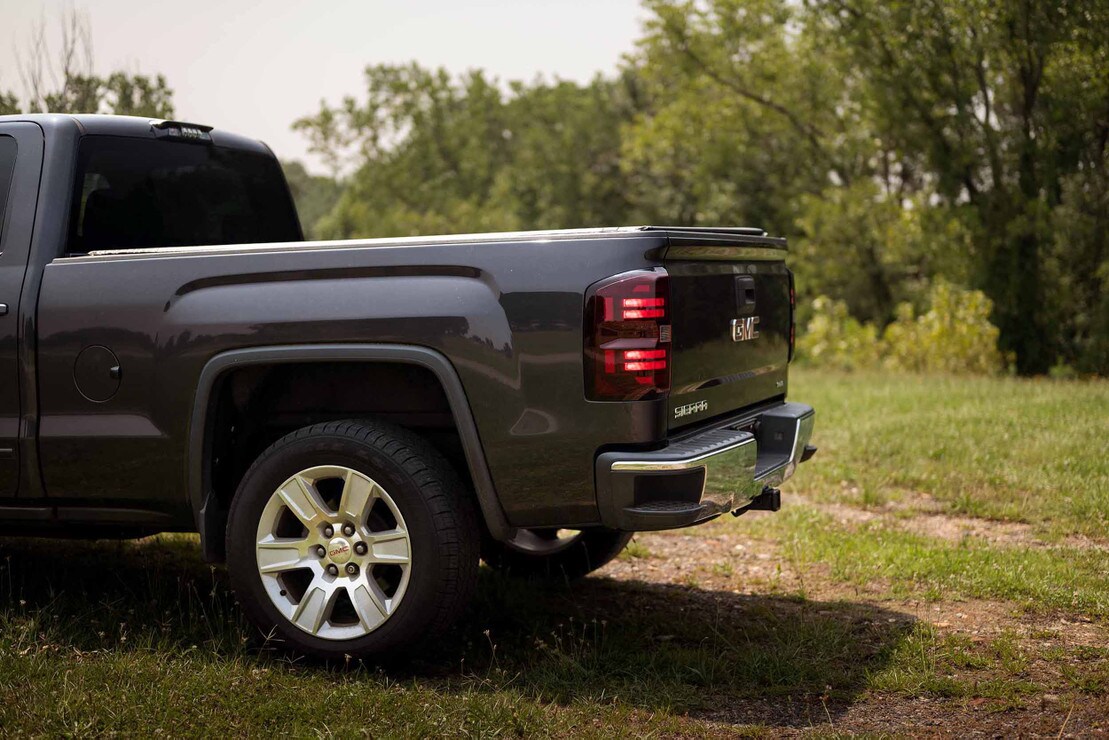

  • Modern Tail Lights: 3D light blades, bright reverse lights, and optional backup bar improve visibility.

WHAT’S INCLUDED

WARRANTY INFORMATION

These Morimoto products include a Five (5) Year limited warranty, serviced and supported by the Morimoto team in Atlanta, GA. This warranty does not cover modifications, alterations, or misuse. For additional information, Click Here. In the event of any issues upon installation, please document it via photo/video and contact us prior to removing the light(s).
This warranty is only valid if the item is purchased from an Authorized Dealer, Click HERE for a list of unauthorized dealers.

TECHNICAL SPECIFICATIONS

  • Headlights :

  • Traffic Pattern : LHD Only

  • Input : GM Multi-Pin OEM

  • Functions : DRL (White), Turn, Parking, Low, High

  • Material : ABS Plastic (Housing), UV-Resistant Polycarbonate (Lens)

  • Optic : Kuria Optic Bi-LED

  • UV Coating : Momentive UVHC3000

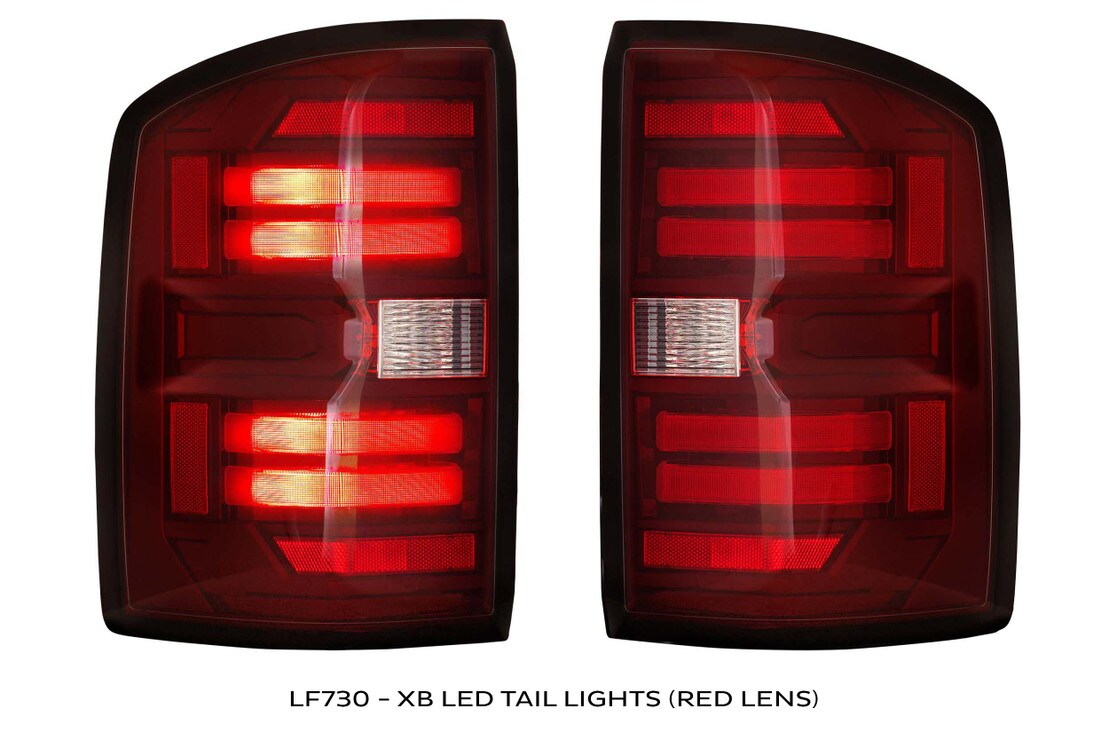

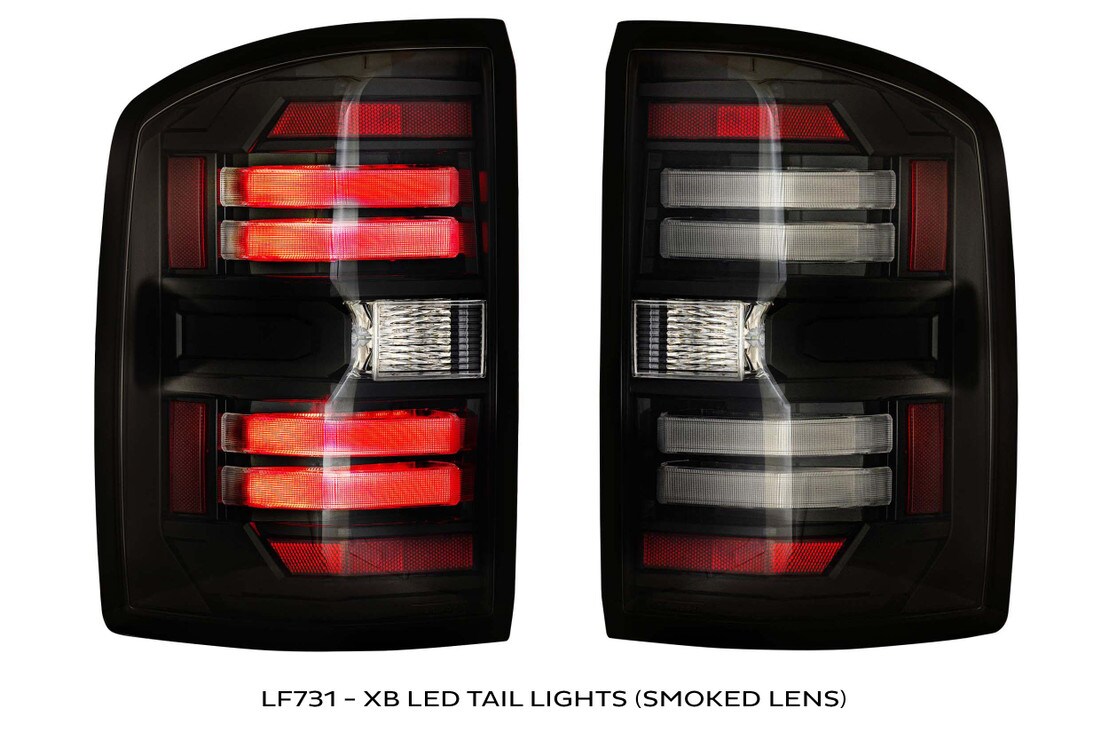

  • Tail Lights :

  • Input : GM Multi-Pin OEM

  • Material : ABS Plastic (Housing), UV-Resistant Polycarbonate (Lens)

  • Light Source : SSC LED

  • Reverse Light : White

  • Brake Light : Red

  • Parking Light : Red

  • Turn Signal : Red

COMPATIBILITY

  • GMC Sierra 2500HD : 2015-2019

  • GMC Sierra 3500HD : 2015-2019

  • Dually Trucks : Not Compatible

  • OEM LED Tail Light Trucks : Requires optional LF728HT adapters

  • Note : Not Compatible with Trucks w/ OEM LED Turn Signals

  • Replaces GM Part # : 23268190, 2502394, 23130717, 23130718, GM2800262, GM2801262

  • NOTE : These housings have been designed for, and tested on, US-Spec vehicles. Other countries' compatibility may vary and is not guaranteed nor always known.

COMPLIANCE

INSTALLATION DOCUMENTS
