Sealed4 Bi-LED Headlight (4x6)

2Reviews
Questions?

Brand: Morimoto

B-ASY-SEALED4-HR

Videos

$289.00

PRODUCT OPTIONS

Sealed Beam: Sealed4 (4x6)

PART #: 1 x LF267

In stock and ships today for free within the contiguous United States if ordered within the next 10 hours and 2 minutes.
Easy Return

DESCRIPTION

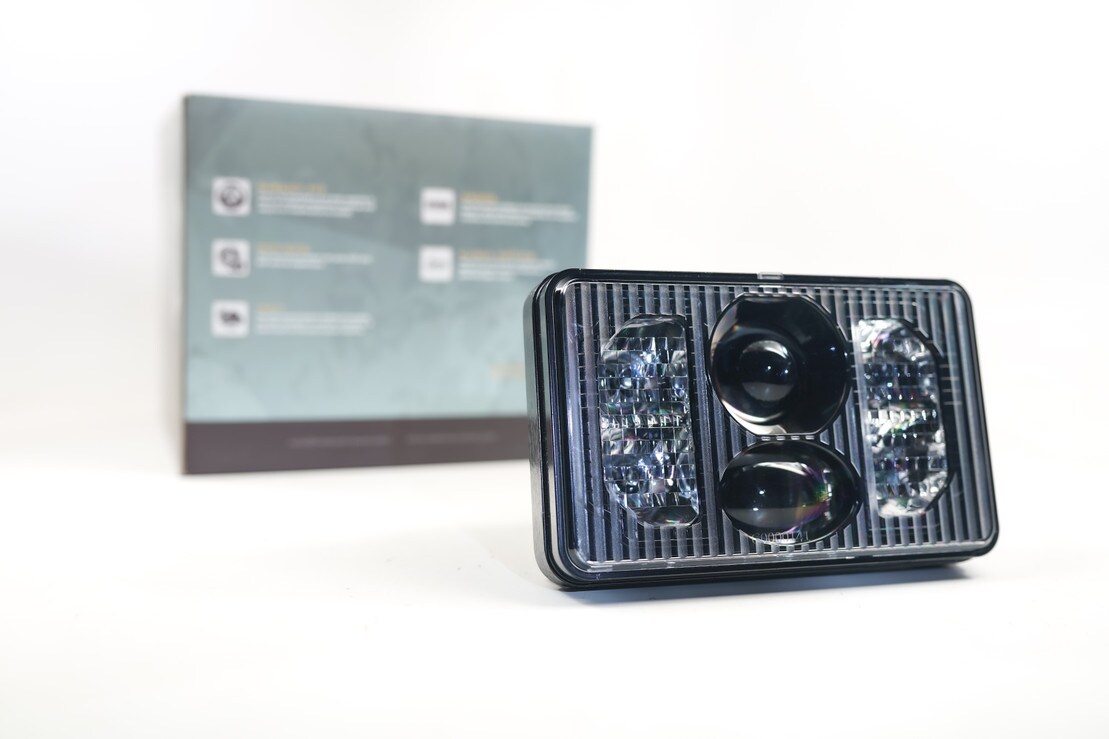

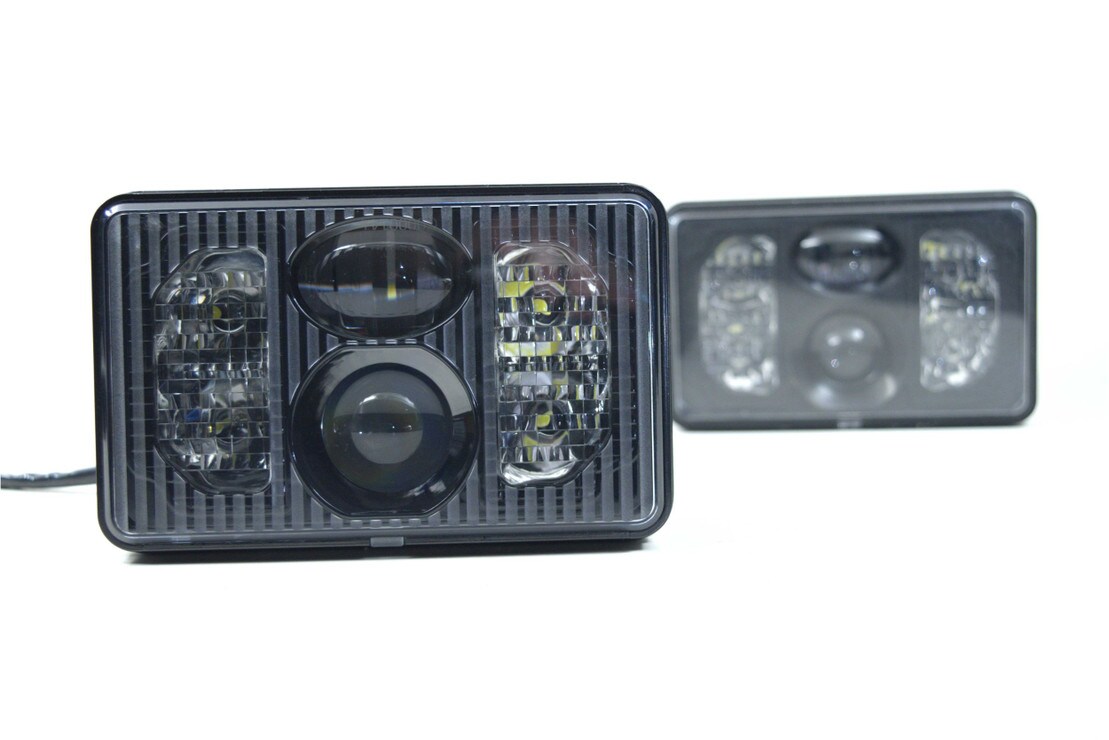

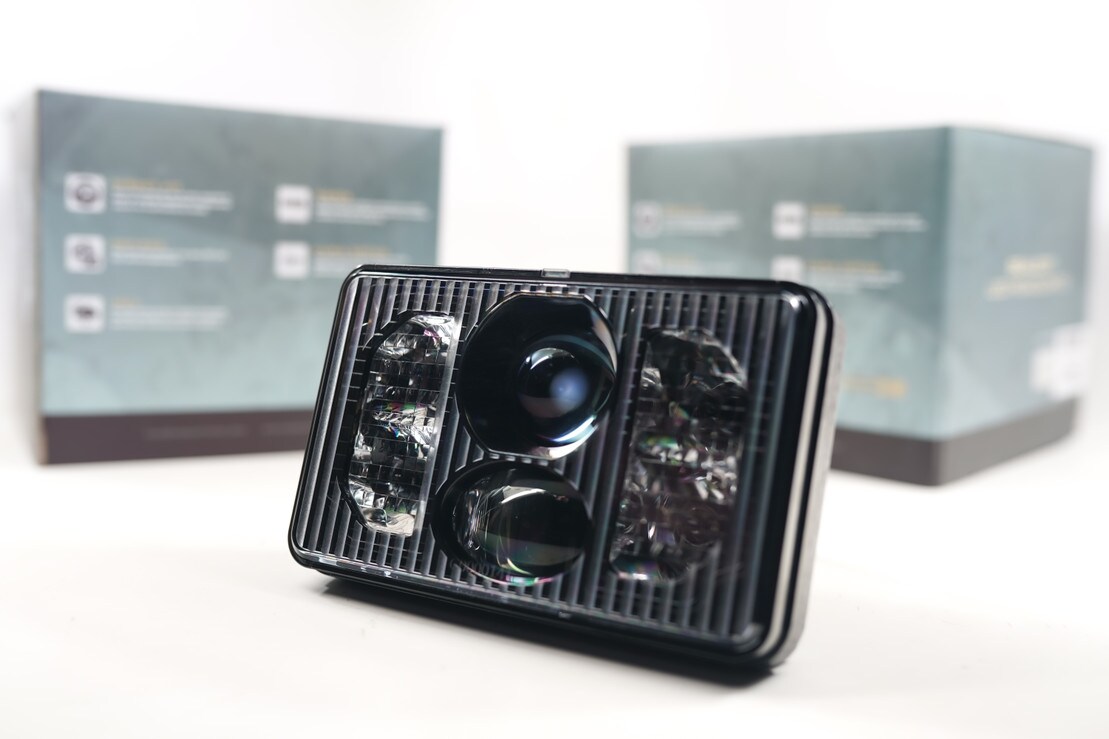

Introducing the Morimoto Sealed4 LED Headlights LF267 -- a groundbreaking solution for the 4x6" Sealed Beam LED market. These headlights are designed with precision, featuring Nichia-Japan high-quality LEDs for optimal performance. In low beam mode, they efficiently distribute 2400 lumens with a properly LHD-stepped beam pattern, while high beam mode provides an impressive 4300 lumens output. Crafted with UV-coated polycarbonate lenses and heavy-duty die-cast housings that double as heat-sinks, these headlights are built to last for decades without fading or overheating. The Sealed4 offers full low and high beam functionality, making them suitable for a wide range of applications. They come standard with H4 3-pin male inputs for easy plug-and-play installation on most classic cars and trucks. Experience the difference with Morimoto Sealed4 LED Headlights -- a top-tier, all-original product that redefines the standards of LED lighting for classic vehicles.

FEATURES & BENEFITS

  • Powerful Illumination: Up to 4300 lumens in high beam mode for exceptional brightness.
  • Original Design: Unique and all-new, standing out in the market.
  • Durable Build: Die-cast housings double as heat sinks for longevity.
  • Wide Compatibility: Fits 4x6" headlights and classic cars/trucks.
  • Precision Optics: Kuria Optic projector lens ensures a precise beam pattern in low beam mode.

WHAT’S INCLUDED

  • Headlight : 1x Sealed4 Bi-LED Headlight

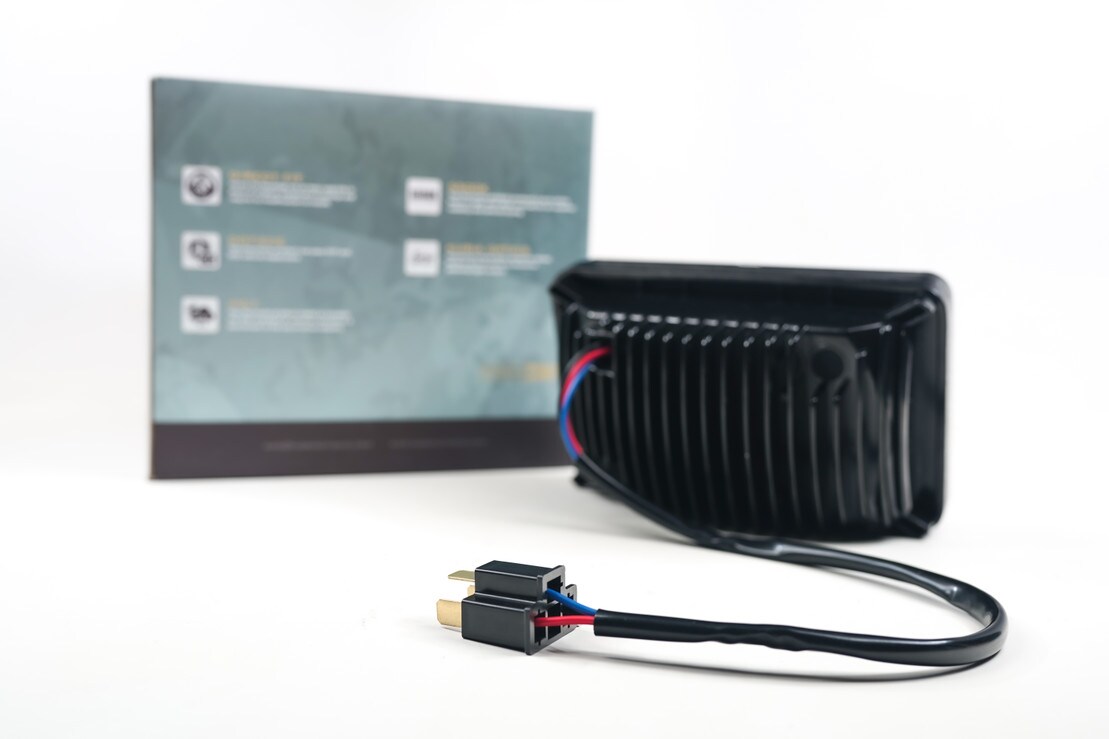

  • Wiring : H4 Male Input

WARRANTY INFORMATION

This Morimoto product includes a 5 Year limited warranty, serviced and supported by the Morimoto team in Atlanta, GA. This warranty does not cover modifications, alterations, or misuse. For additional information, Click Here. In the event of any issues upon installation, please document it via photo/video and contact us prior to removing the light(s).
This warranty is only valid if the item is purchased from an Authorized Dealer, Click HERE for a list of unauthorized dealers.

TECHNICAL SPECIFICATIONS

  • Intensity : 2,400lm (Low), 4,300lm (High)

  • Power : 20w (Low), 35w (High)

  • Input : H4

  • Traffic Pattern : LHD Only

  • Material : Aluminum (Housing), Polycarbonate (Lens)

  • Light Source : Nichia NCSW170C 5000K (Pure White)

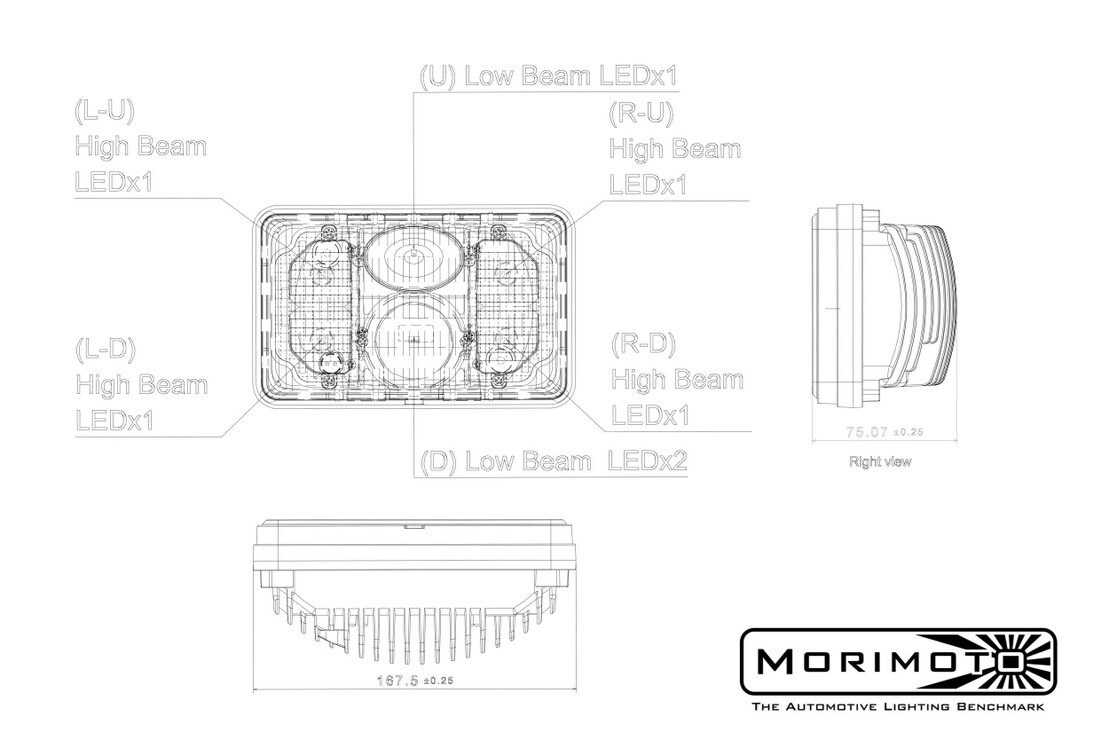

LINE DRAWINGS

COMPATIBILITY

  • Sealed Beam Standards : H4651, H4652, H4656, H4666, HP6545, HP4651, HP4656, HP4666

  • Input Wiring : H4 3-pin (low/high/ground)

  • Buick Century : 1976-1988

  • Buick Electra : 1976-1990

  • Buick Estate Wagon : 1977-1983

  • Buick LeSabre : 1977-1986

  • Buick Regal : 1982-1987

  • Buick Riviera : 1977-1985

  • Buick Skyhawk : 1977-1988

  • Buick Skylark : 1986-1988

  • Chevrolet Astra : 2001

  • Chevrolet Aveo : 2013

  • Chevrolet Blazer : 1987-1997

  • Chevrolet C10 : 1980-1986

  • Chevrolet C10 Suburban : 1980-1986

  • Chevrolet C20 : 1980-1987

  • Chevrolet C20 Suburban : 1980-1986

  • Chevrolet C2500 : 1988-1989

  • Chevrolet C3500 : 1988-1989

  • Chevrolet C4500 Kodiak : 2003-2009

  • Chevrolet C5500 Kodiak : 1990-2009

  • Chevrolet Camaro : 1982-1992

  • Chevrolet Caprice : 1976-1986

  • Chevrolet Cavalier : 1982-1987

  • Chevrolet Celebrity : 1982-1985

  • Chevrolet Chevelle : 1976-1977

  • Chevrolet El Camino : 1976-1987

  • Chevrolet Impala : 1977-1985

  • Chevrolet K10 : 1981-1986

  • Chevrolet K10 Suburban : 1980-1986

  • Chevrolet K20 : 1980-1986

  • Chevrolet K20 Suburban : 1980-1986

  • Chevrolet K2500 : 1988-1989

  • Chevrolet K30 : 1981-1986

  • Chevrolet K3500 : 1988-1989

  • Chevrolet K5 Blazer : 1980-1986

  • Chevrolet Monte Carlo : 1976-1988

  • Chevrolet Monza : 1975-1980

  • Chevrolet Nova : 1985-1988

  • Chevrolet R10 : 1987

  • Chevrolet R10 Suburban : 1987-1988

  • Chevrolet R20 : 1987-1988

  • Chevrolet R20 Suburban : 1987-1988

  • Chevrolet R2500 : 1989

  • Chevrolet R2500 Suburban : 1989-1991

  • Chevrolet R30 : 1987-1988

  • Chevrolet R3500 : 1989-1991

  • Chevrolet S10 : 1992-1997

  • Chevrolet Suburban : 1987-1992

  • Chevrolet T6500 : 1997-2009

  • Chevrolet T7500 : 1997-2009

  • Chevrolet T8500 : 2004-2009

  • Chevrolet V10 : 1987

  • Chevrolet V10 Suburban : 1987-1988

  • Chevrolet V20 : 1987

  • Chevrolet V20 Suburban : 1987-1988

  • Chevrolet V30 : 1987-1988

  • Dodge Caravan : 1989-1991

  • Dodge Charger : 1978-1987

  • Dodge Stealth : 1992-1993

  • Ford Mustang : 1979-1997

  • Freightliner Classic : 2002-2010

  • Freightliner FLD112 : 1991-2006

  • Freightliner FLD120 : 1988-2011

  • GMC Caballero : 1982-1987

  • GMC Jimmy : 1982-1996

  • GMC Sonoma : 1991-1997

  • Kenworth T400 : 1989-2018

  • Kenworth T600A : 1986-2007

  • Kenworth T800 : 1987-2018

  • Kenworth W900 : 1985-2019

  • Lincoln Town Car : 1982-1988

  • Oldsmobile 98 : 1977-1989

  • Oldsmobile Calais : 1985-1987

  • Oldsmobile Cutlass Calais : 1980-1991

  • Oldsmobile Cutlass Ciera : 1982-1996

  • Oldsmobile Cutlass Cruiser : 1980-1994

  • Oldsmobile Cutlass Salon : 1980-1986

  • Oldsmobile Cutlass Supreme : 1976-1988

  • Oldsmobile Delta 88 : 1977-1991

  • Peterbilt 357 : 1988-2008

  • Peterbilt 378 : 1989-2007

  • Peterbilt 379 : 1986-2007

  • Pontiac Firebird : 1977-1981

  • Pontiac Grand Prix : 1976-1987

  • Interchange Part Number : 4pcs 4x6 Glass LED Headlights, 4x6 inch LED headlight, 4x6 headlight housing + H4 LED headlight, H4656, H4666, H4651, H6545, H4652

  • Manufacturer Part Number : 1002-W-XC-4PCS, 2PC Black 4x6 LED Headlights, 4pcs 4x6 Glass LED Headlights, 4x6 inch Rectangular LED Headlight, 5D 4x6 inch headlight, Pair 4x6 LED Headlights Hi-Lo Beams, Teammade744

  • OE/OEM Part Number : 1994-1997 S10 Headlight, 4x6 LED headlights, HHH-2509FGHJSZBS, HHH-4SBHG2SDHGTG, HHH01310189XXCFR

  • Superseded Part Number : HHH-2509FGHJSZBS

Just when you think: You've done your research and come across every last option in the 4x6" Sealed Beam LED market, these should catch your attention. While it's true there's only so many ways you can package a set of low and high beam LED-based optics into a small rectangular headlight; Morimoto's Sealed4 pulls it off in the most functional and attractive setup possible


Proprietary: The Morimoto Sealed4 is all-new, all-original from the ground up. Until now, there were basically three distinct products on the market. You have the high-end J.W. Speaker 8800 at the top of the totem poll. Then there are the cheap J.W. Speaker knock-offs, re-branded by companies A,B, and C--and last but not least you have the options like the Truck-Lite reflector-based 4x6" lights...again, re-branded by company X,Y, and Z. The Morimoto Sealed4 LED headlights are unlike anything else on the market.

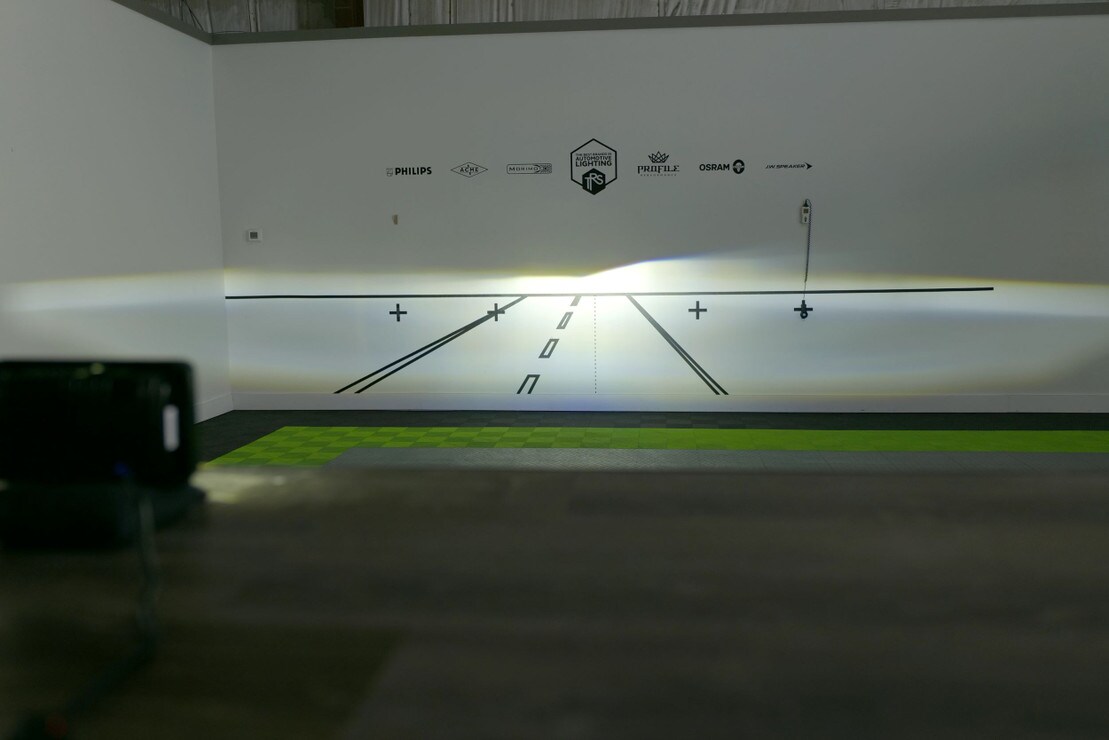

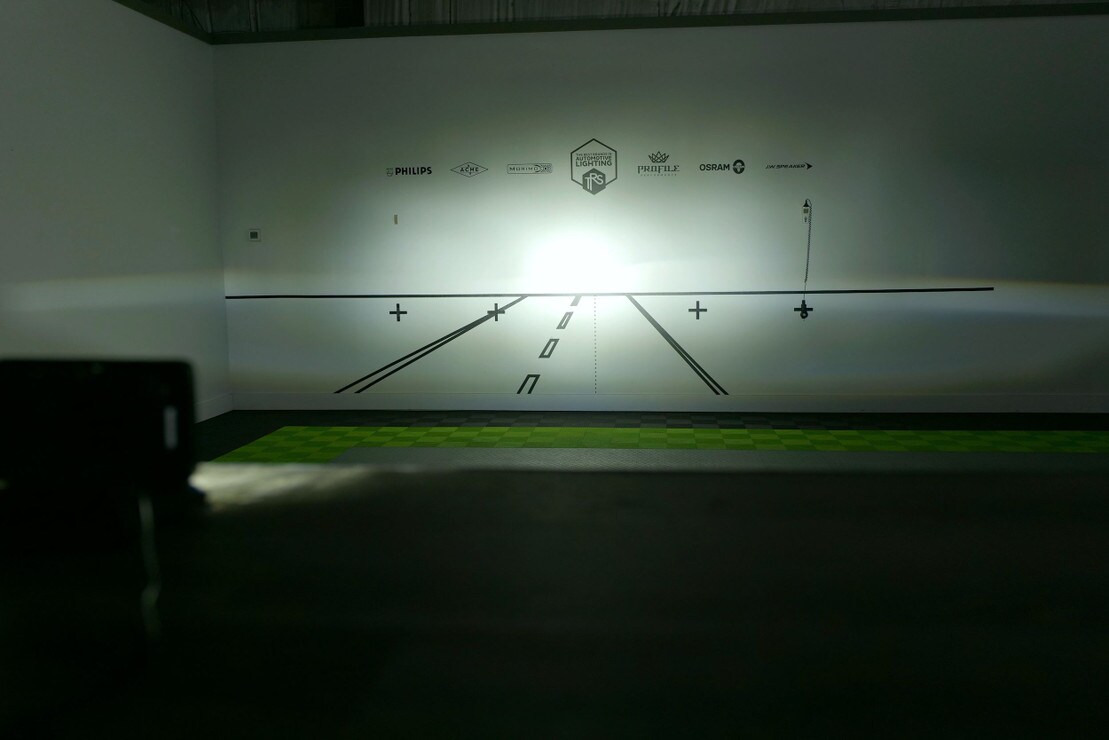

Output: In low beam mode, Nichia NCSW170C Series LED's paired with Morimoto's advanced Kuria Optic projector lens array efficiently distributes 2400 lumens on the road in a properly LHD-stepped beam pattern. In high beam mode, the Sealed4 illuminates an extra set of optics, upping the overall output to 4300 mosquito-melting lumens there.


Quality: No expense was spared when designing the Sealed4. The heart of the headlight is powered with high quality LEDs from Nichia-Japan. These aren't cheap emitters to begin with. Your classic car has already withstood the test of time and the UV-coated polycarbonate lens will take a another couple decades worth of abuse without fading. You can feel the precision in the heavy-duty die-cast housings that double as a heat-sink. A special PWM LED driver resides inside of the headlight to keep the LED's running at their peak intensity, even during prolonged periods of use.


4x6" Standard: Designed to replace all 4x6" rectangular headlights, these are cross compatible with other sizes, found in the compatibility section below. The Sealed4 offers full low and high beam functionality. They come standard with H4 3-pin male inputs and should be plug and play on most classic cars / trucks.
