Sealed3 90mm LED Headlights

1 Review
Questions?

Brand: Morimoto

B-ASY-SEALED3-HR

$0.00

PRODUCT OPTIONS

PART #: 1 x LF802.2



Easy Return

DESCRIPTION

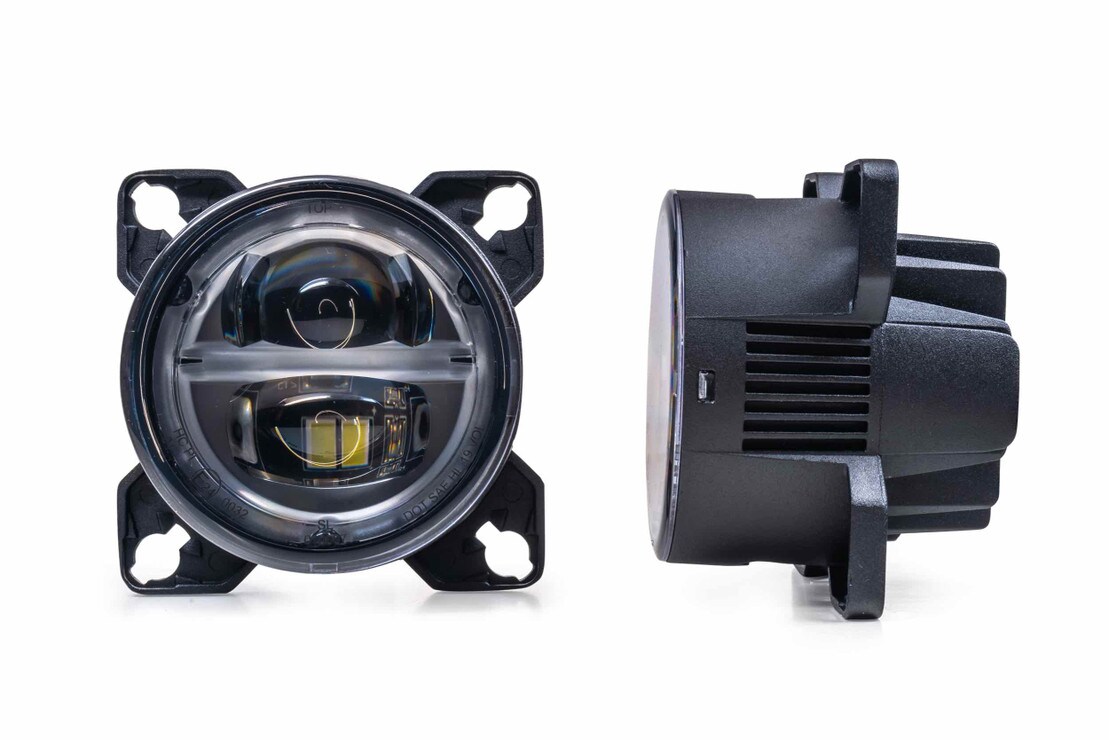

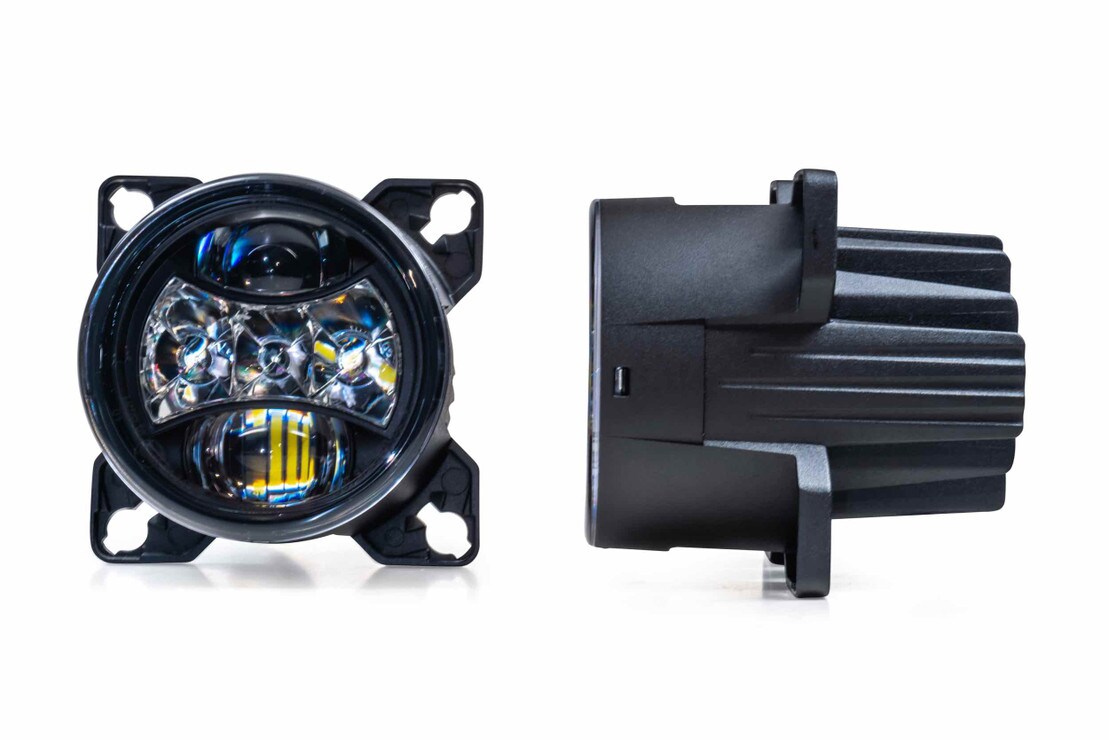

Introducing the Morimoto 90mm LED Projector Housings – the ultimate solution for modern headlights. These standalone units are perfect for vehicles without pre-existing housing shells. Whether you need an LED Bus, RV, Tractor, or custom kit car headlight, these housings have you covered. Choose from various optics to meet your specific vehicle needs, including dedicated LED low and high beams or a combination lamp. Experience exceptional light output with a wide beam pattern, sloped LHD cutoff line (for North America), and compliance with DOT, SAE, and FVMSS108 standards. Each module includes three threaded aiming adjuster rods for full adjustability. These IP67-rated housings feature OEM-quality polycarbonate lenses, fade-resistant properties, and a durable die-cast aluminum housing. The Bi-LED version offers easy wiring with a 3-wire AMP input, while the low and high beam version uses a simple 12v +/- input. Elevate your vehicle's lighting with these top-tier 90mm headlights.

FEATURES & BENEFITS

  • Wide Application: Ideal for buses, RVs, tractors, and custom kit cars.
  • Customizable Beam Patterns: Choose LED low beam, high beam, or a combination.
  • Exceptional Light Output: Sealed3 modules exceed industry standards.
  • Precision Adjustability: Threaded rods for accurate vertical and lateral adjustments.
  • Durable and Weather-Resistant: IP67-rated, with quality polycarbonate lenses and aluminum housing.

WHAT’S INCLUDED

  • Headlight: 1x Sealed3 90mm LED Headlight

  • Adjusters: 2x Vertical/Lateral Adjusters

WARRANTY INFORMATION

This Morimoto product includes a 5 Year limited warranty, serviced and supported by the Morimoto team in Atlanta, GA. This warranty does not cover modifications, alterations, or misuse. For additional information, Click Here.

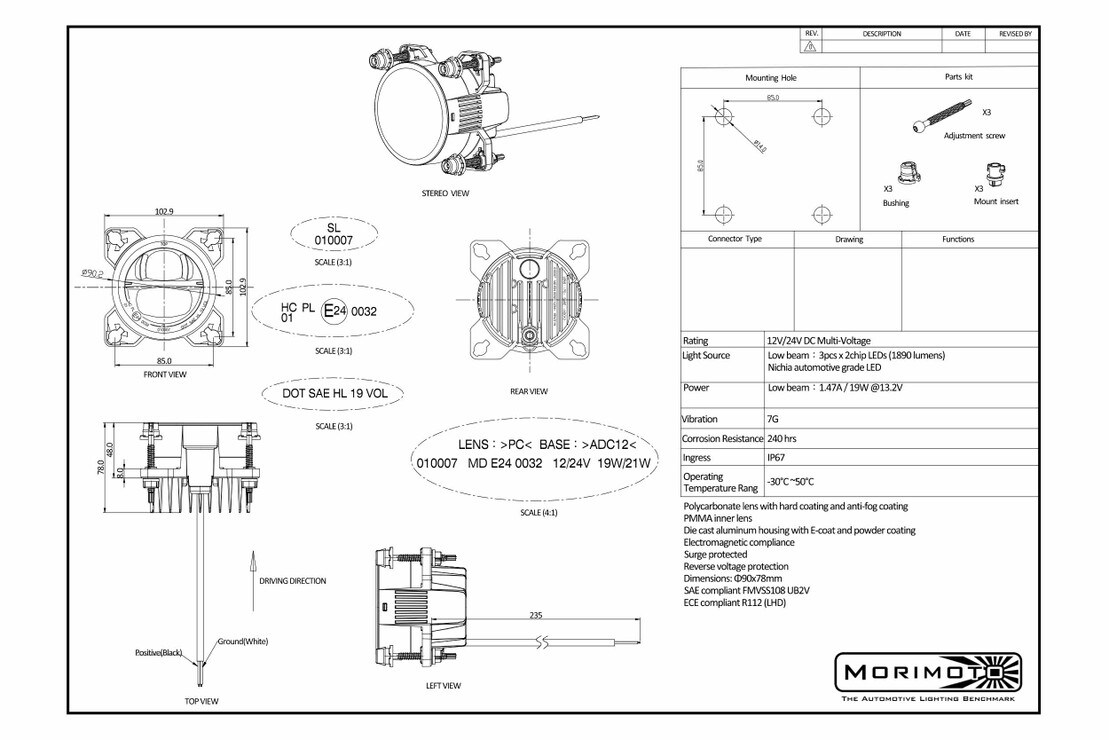

TECHNICAL SPECIFICATIONS

  • Intensity: 1,890lm (Low), 1,500lm (High)

  • Power: 19w

  • Input Voltage: 12-24V DC

  • Material: Aluminum (Housing), Polycarbonate (Lens)

  • Light Source: Nichia (Low, High), Osram (Combo Low/High)

COMPATIBILITY

  • Buses: Yes

  • RV/Motorhome: Yes

  • Tractors: Yes

  • Custom Cars: Yes

  • Motorcycles: Yes

  • Beam Patterns: Low, High, Combo Low/High

COMPLIANCE

ECE, DOT, SAE, FVMSS108 Standards

Designed: As a standalone headlight, these 90mm LED projector housings are perfect for those who need a modern headlight, but have no pre-existing housing shell to mount them into. They are ideal as an LED Bus headlight. An LED RV headlight, and LED Tractor headlight, or an LED headlight for a custom kit car.

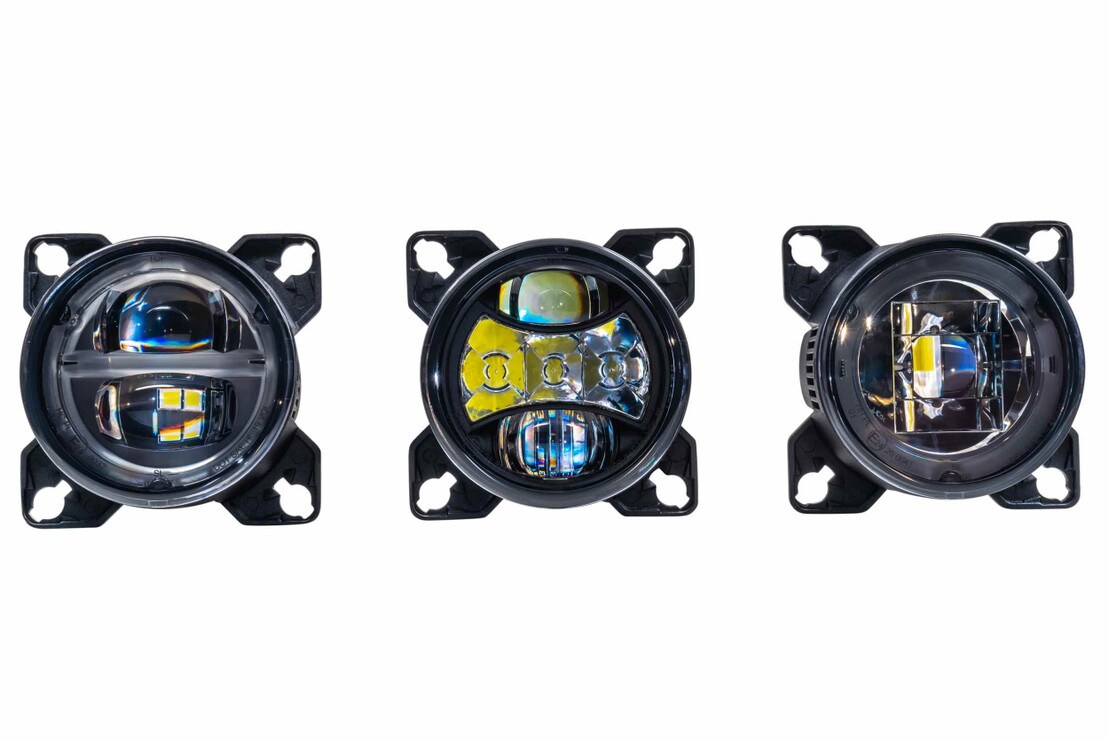

Beam Patterns: These are available with different optics to suit your vehicle's needs perfectly. You can choose from either a dedicated LED low beam, a dedicated LED high beam, or a combination lamp with low and high beam together.

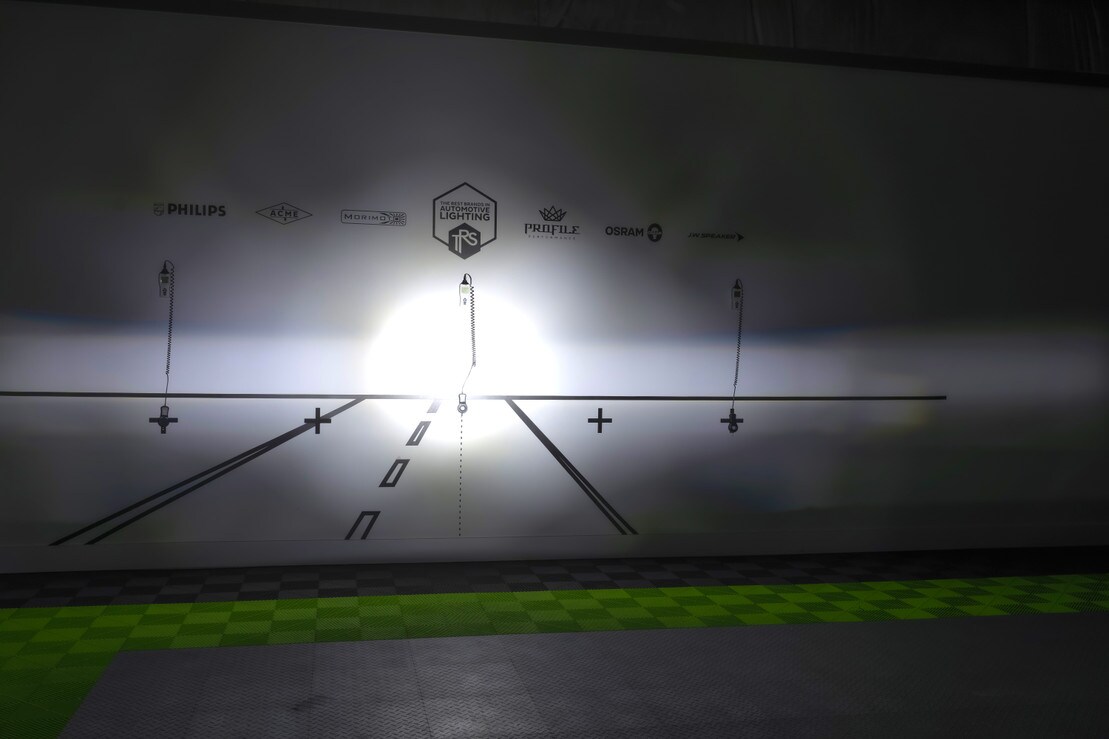

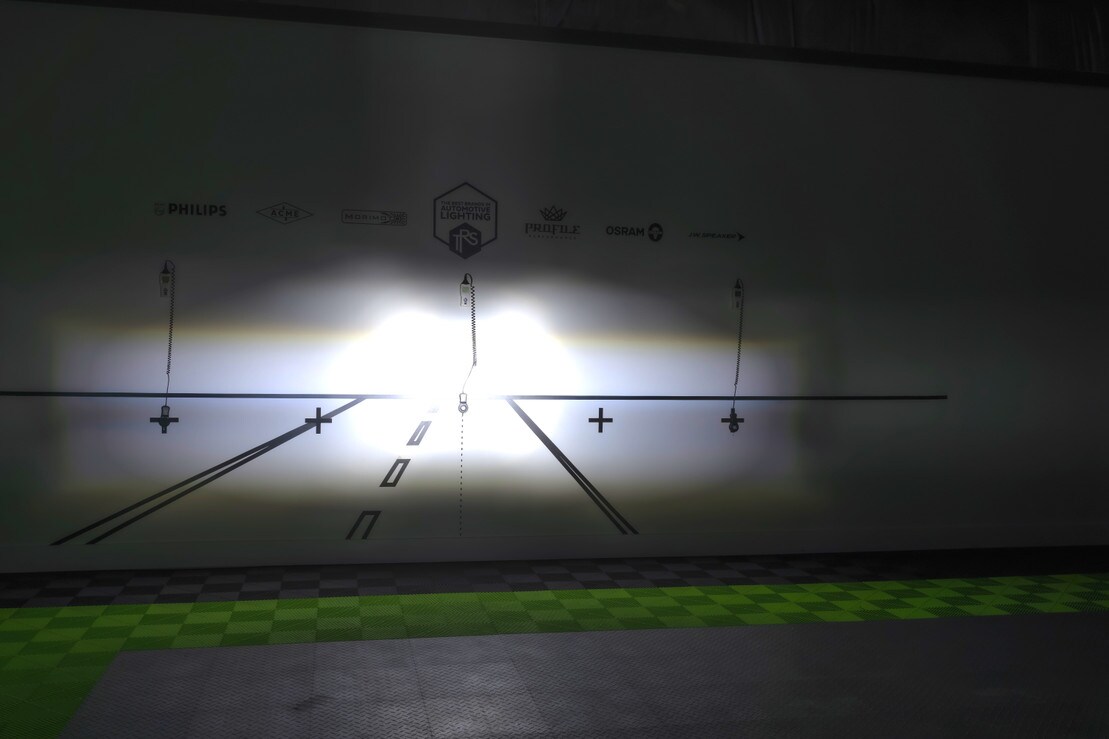

Light Output: Is fantastic from the Sealed3 modules, and far superior to most alternatives in the same size range. The low beam model has a wide beam pattern with a proper distribution of light and a sloped LHD cutoff line (for use in N. America or other LHT countries) The high beam packs a nice punch and will put plenty of light down the road where you need it, and the combo Bi-LED essentially puts both of those beam patterns into one unit. They meet or exceed all DOT, SAE, and FVMSS108 standards for compliance.

Adjusters Included: Each module comes with three threaded aiming adjuster rods that snap into the housings. While you will need a fitting on the other side to mount them up, you would be able to create a fully adjustable system both vertically and laterally with the hardware included.

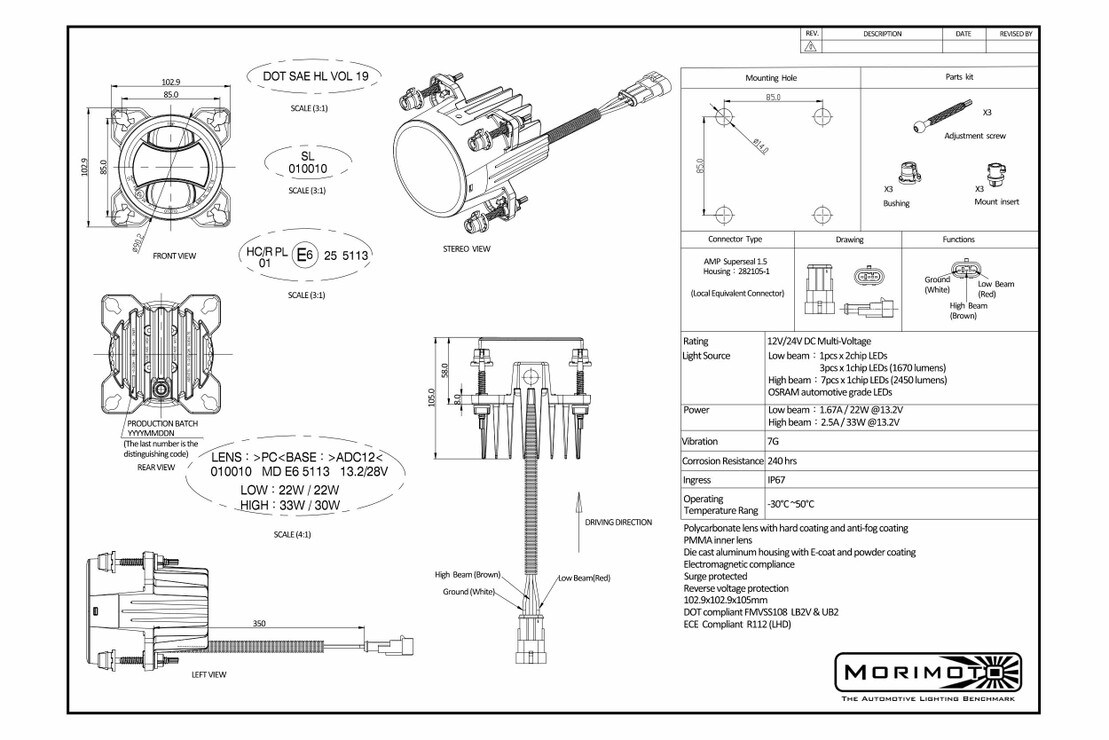

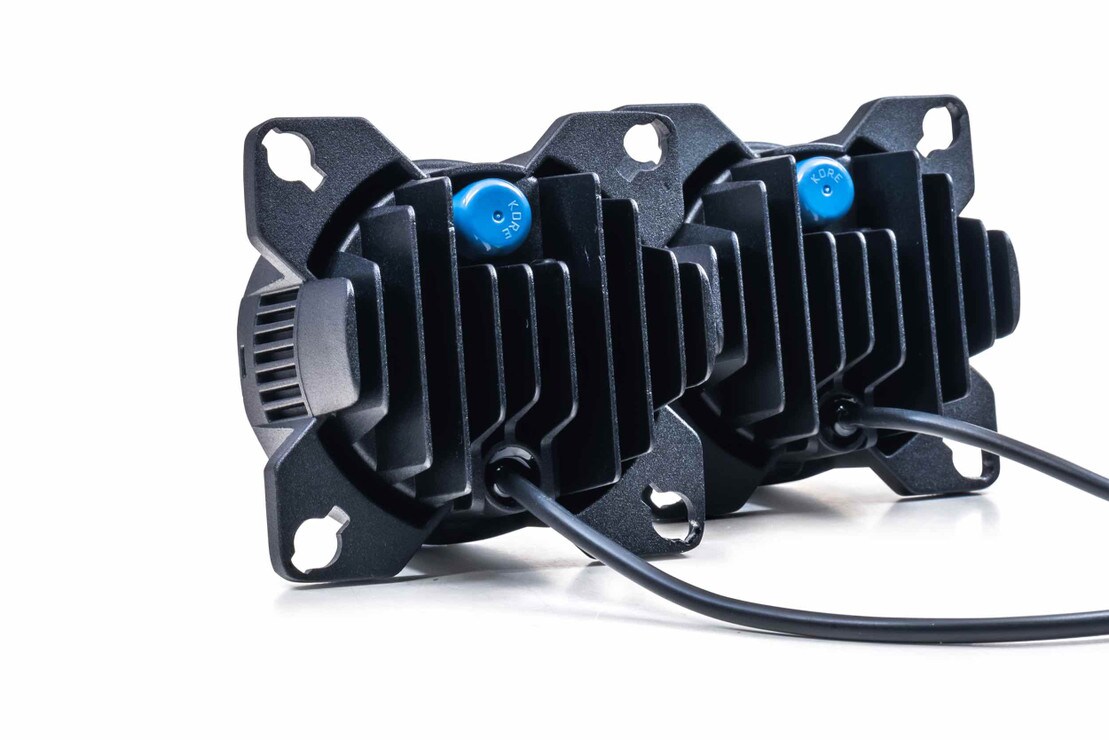

Quality: These 90mm Modules are IP67 rated for moisture resistance, their polycarbonate lenses are of OEM quality and will not fade or yellow for many years to come, and have a die-cast aluminum housing that's been powder-coated. The Bi-LED version has a 3-wire AMP input, and the low and high beam version use a more simple 12v +/- input that is very easy to wire up. They may not be inexpensive, but are among the best 90mm headlights in the world.

Ratings & Reviews

1 review

  • 4 stars
  • 0 reviews
  • 3 stars
  • 0 reviews
  • 2 stars
  • 0 reviews
  • 1 star
  • 0 reviews
5

Better than my pop ups

by

I ordered the Morimoto XB tail lights for my F355 and decided to get these replacement fogs while I was at it. I'm just as happy with these LED fogs as I am with the XB tails I ordered. They are so good I don't even need to use my pop up's 🤣.
