DESCRIPTION
FEATURES & BENEFITS
- XB Evo Headlights: Bi-LED projectors, customizable DRL/turn signals, startup animation, and lens heating.
- XB Evo Hybrid Headlights: Same projector performance as Evo at a lower price, with OE-grade Nichia LEDs.

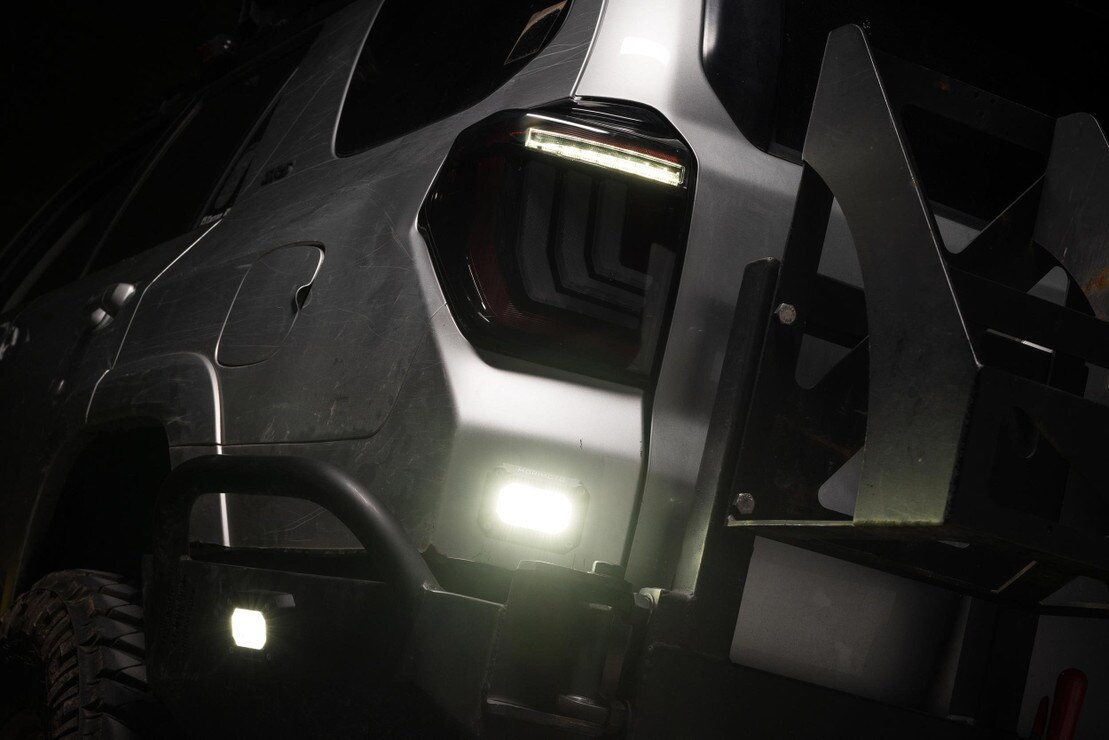

- XB LED Tail Lights: 3D light blades, bright brake lights, amber sequential signals, and optional reverse boost.
- DOT/SAE Compliant: Fully street legal and built to last.
- 5-Year Warranty: Backed by Morimoto’s industry-leading support.
WHAT’S INCLUDED
Headlight Choices :

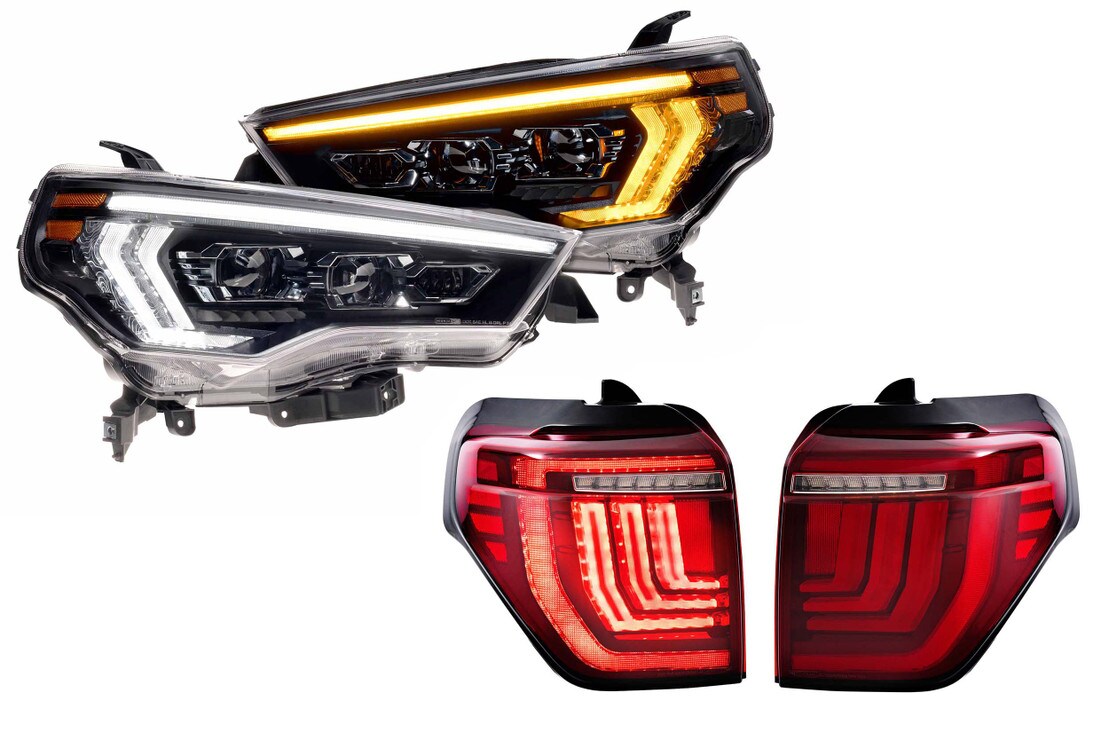

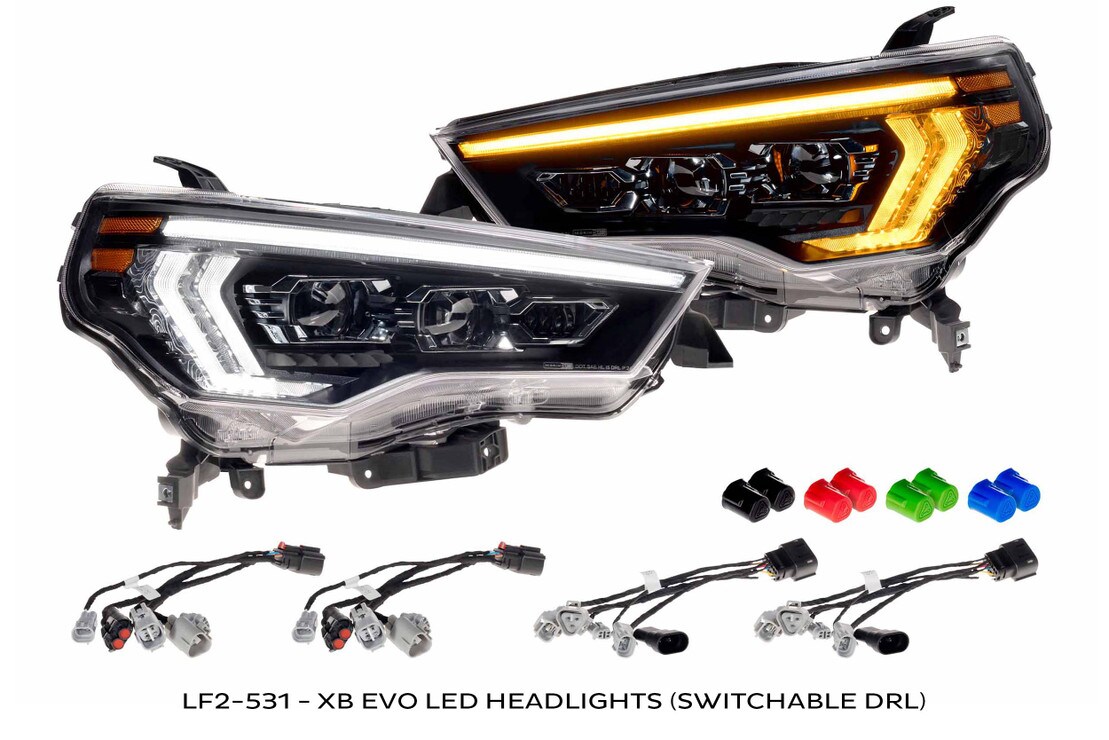

Morimoto XB Evo LED Headlights: 14-24 Toyota 4Runner (White/Amber DRL) Click for Details

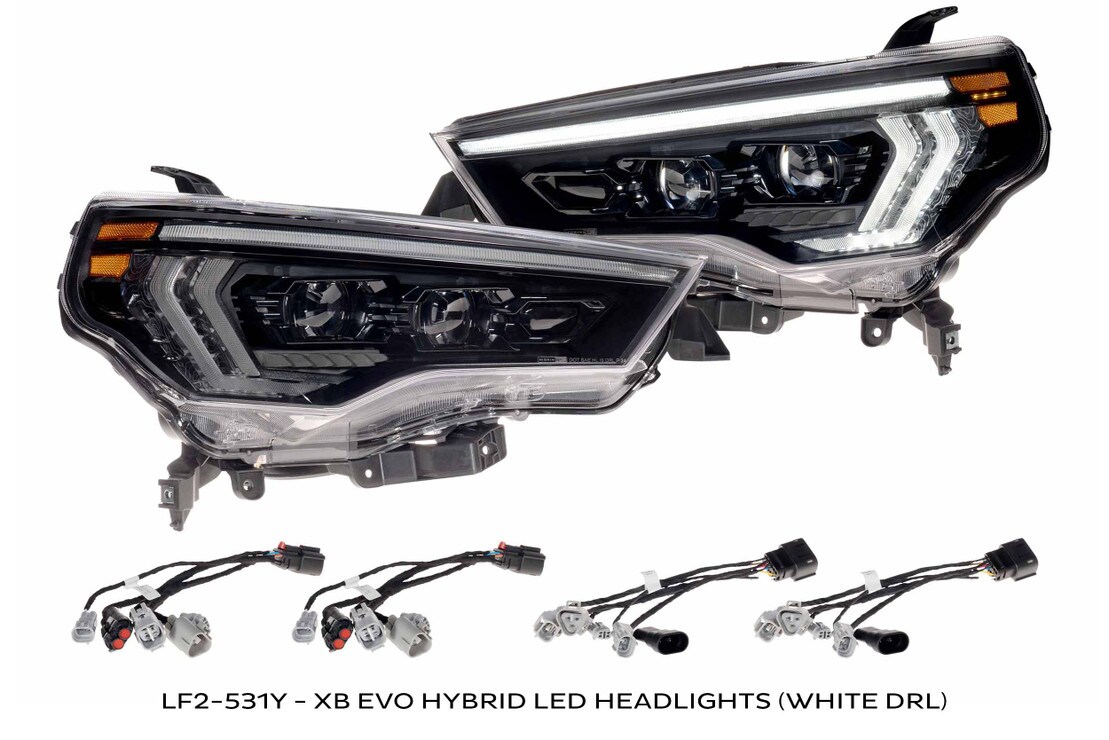

Morimoto XB Evo Hybrid LED Headlights: 14-24 Toyota 4Runner (White DRL) Click for DetailsTail Light Choices :

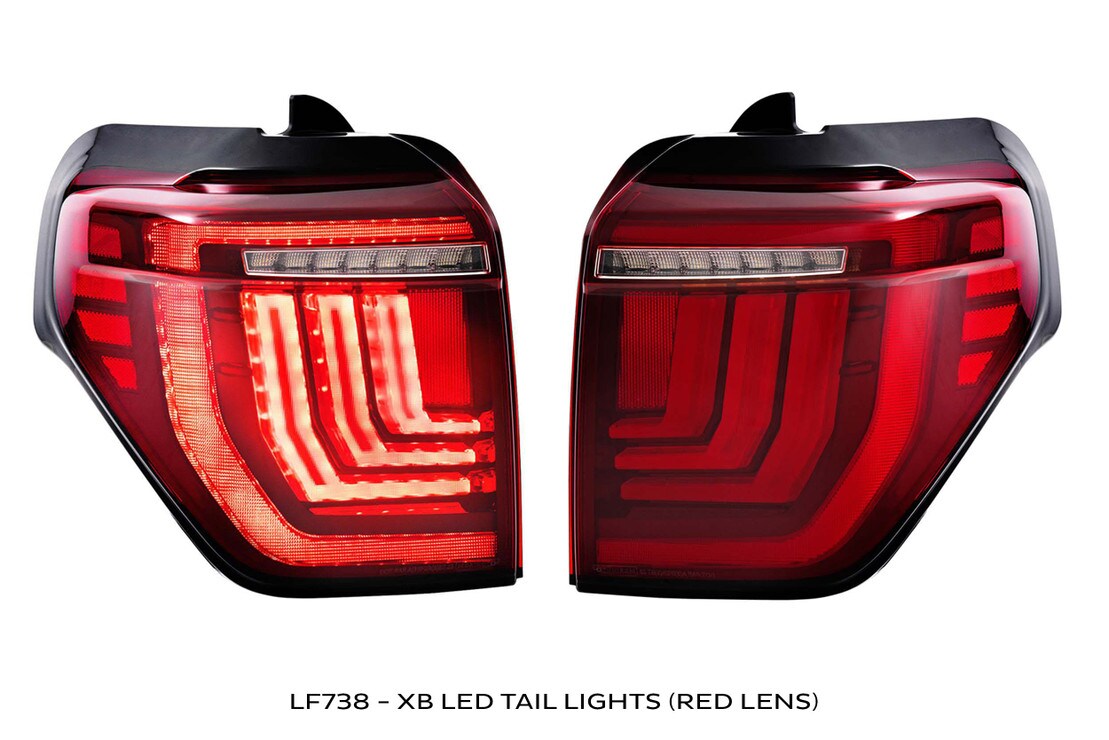

Morimoto XB LED Tail Lights: 14-24 Toyota 4Runner (Red Lens) Click for Details

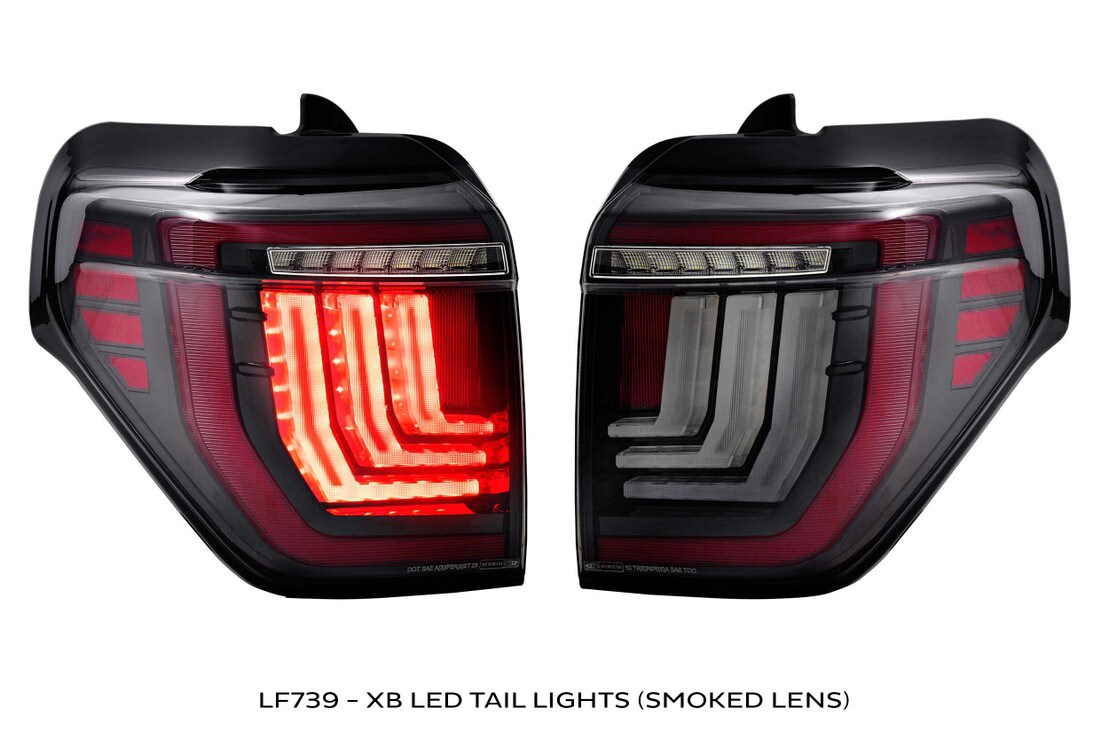

Morimoto XB LED Tail Lights: 14-24 Toyota 4Runner (Smoked Lens) Click for Details
WARRANTY INFORMATION
This warranty is only valid if the item is purchased from an Authorized Dealer, Click HERE for a list of unauthorized dealers.
TECHNICAL SPECIFICATIONS
Headlights :
Traffic Pattern : LHD / Right Hand Traffic Only
Output (Standard Drivers) : DOT (FVMSS108) Compliant (LB2V and UB2)
Output (Supercharged Drivers) : Non-Compliant
Main Optics : 2x Type 1 Ishida Optic Bi-LED (1x Nichia NC4W193F @ 750mA)
High Beam Assist : 1x Type D Ishida Optic HB (4x Nichia NCSW131G @ 750mA)
Functions : Low, High, Park, Turn, DRL, Welcome, and Lens Heating
Turn Signal Modes : Sequential or Fade Off (Integrated)
DRL Colors : White or Amber (Integrated)
DRL/Signal Optics : Glass-like 3D TIR Optics with Topography sidewall pattern
Frost-Free System : Logic Controlled 50W Ceramic w/ circulation fans
Internal Finish : Two-Tone Piano Black and Titanium w/ contrasting textures
Side marker : Amber side reflex reflector (DOT compliant)
Wiring : Plug n Play for all sub-models within model year range
Lens Details : Polycarbonate with UV-Shield Hard coating (Exceeds OE Toyota benchmark)
Tail Lights :
Input : Toyota Multi-Pin OEM
Material : ABS Plastic (Housing), Red-Tinted UV-Resistant Polycarbonate (Lens)
Light Source : SSC LED

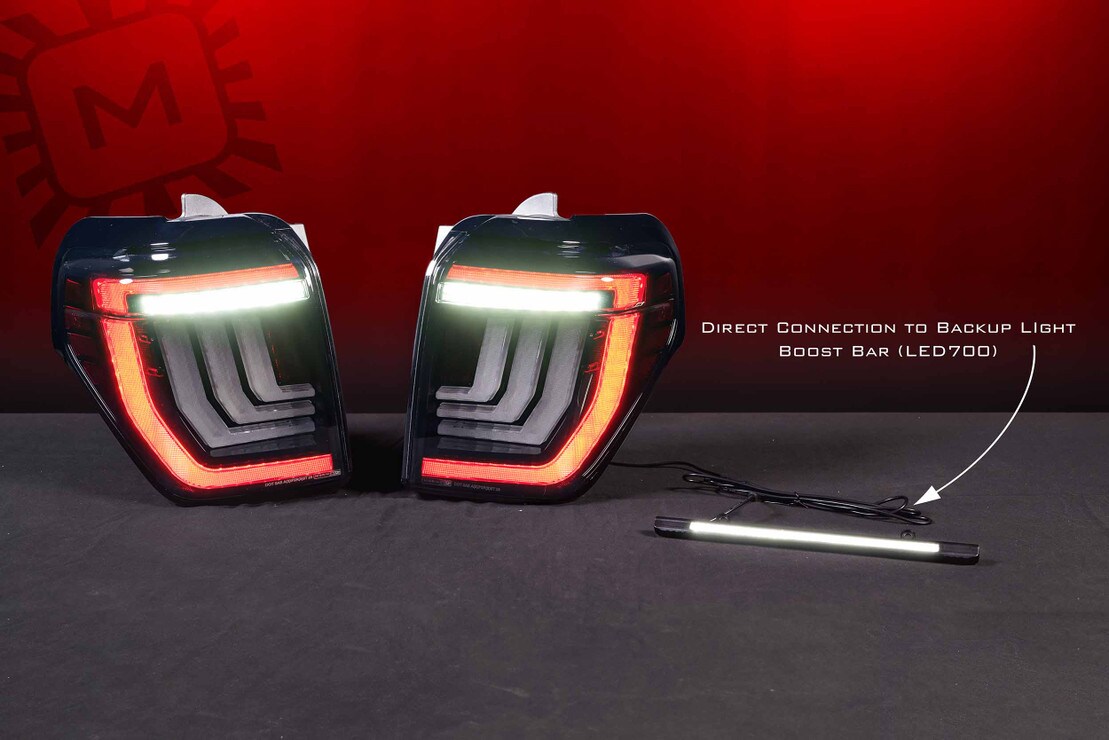

Reverse Light : White
Brake Light : Red
Parking Light : Red
Turn Signal : Amber
COMPATIBILITY
Toyota 4Runner : 2014-2024 (All Trims)
Compliance : Meets all DOT, SAE and FMVSS108 Standards*

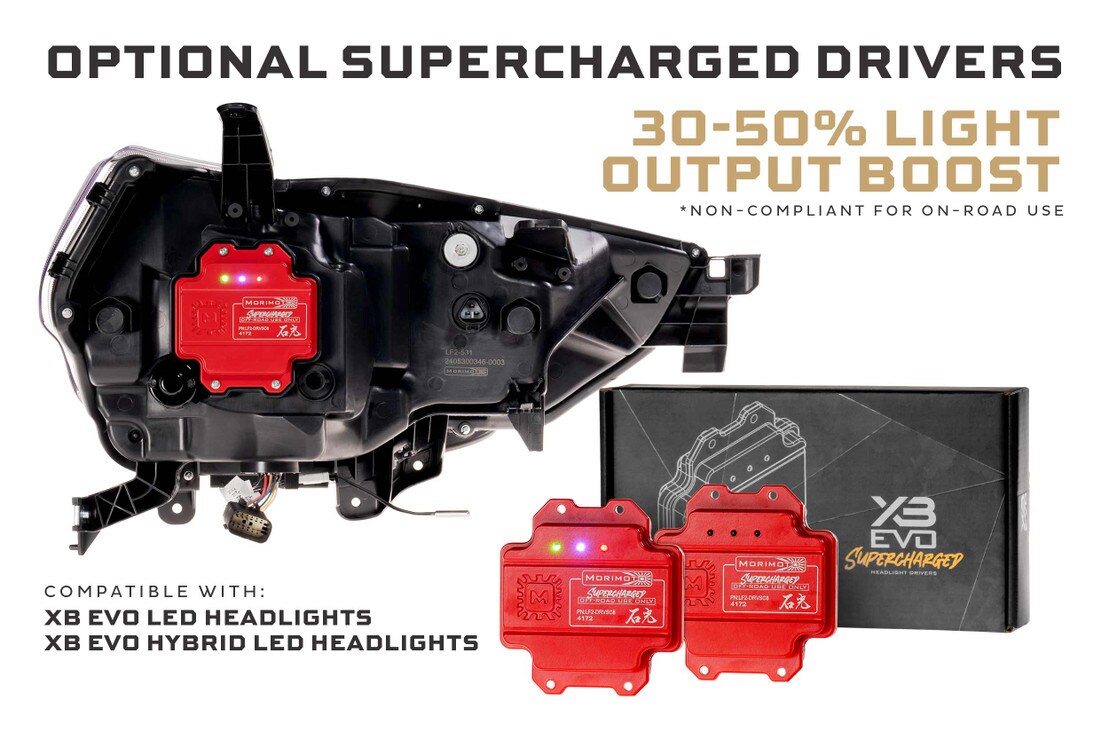

Supercharged Drivers : LF2-DRVSC8*
*NOTE : Installation of Optional Supercharged Drivers results in non-compliant intensity. Not for on-road use in USA or Canada.
Replaces Toyota Part # : 81170-35571, 81130-35541, 8117035571, 8113035541, 81561-35392, 81561-35390, 81561-35391, 81551-35402, 81551-35400, 81561-35360, 81561-35370
NOTE : These headlights were developed for compatibility with North American vehicles. Morimoto does not guarantee compatibility on trucks outside of North America.
