SS3 Max LED Pod (Yellow / Single)

(0) No Reviews yet
Questions?

Brand: Diode Dynamics

3P-DD179-HR

$309.95

PRODUCT OPTIONS

PART #: 1 x DD6971S



Save 15% on Diode Dynamics products with code DIODE15 at checkout!

DESCRIPTION

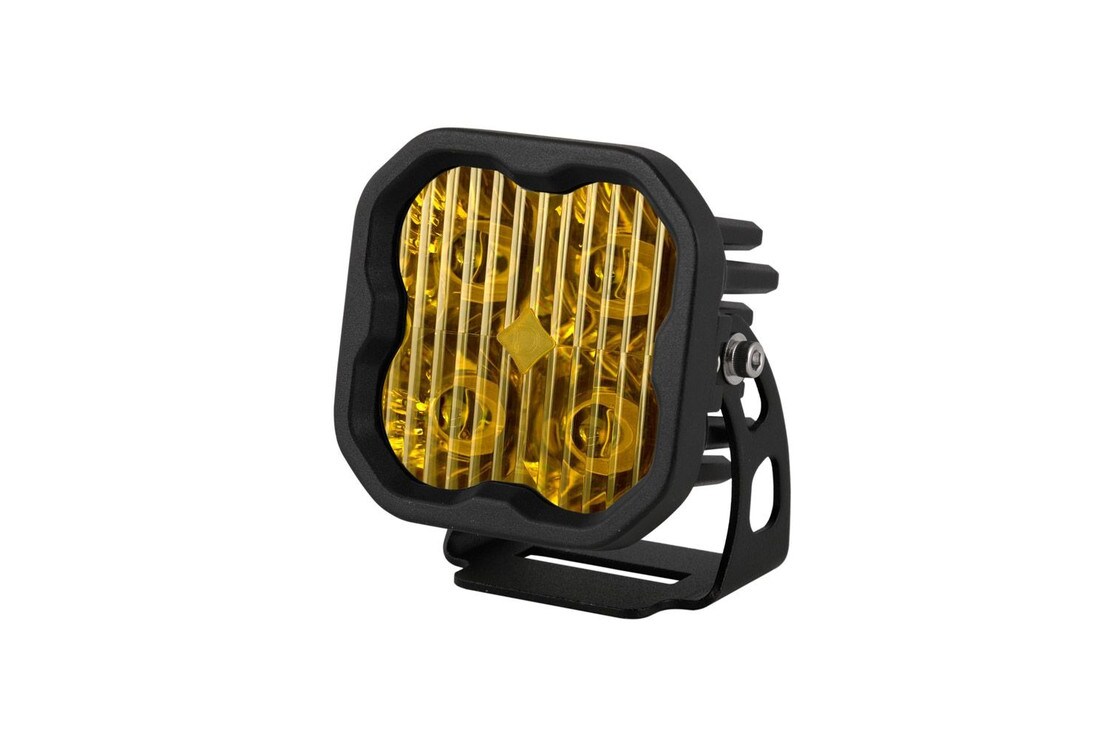

Introducing the SS3 3 inch LED Pod! Featuring higher output intensity than any other 3 inch light on the market these LED pods have been designed for maximum functionality with custom-engineered TIR optics shining in highly useful beam patterns all in a durable package. All Stage Series LED pods are available in a cool white or selective yellow color and sport or pro power levels.

Focused. Traditional optics like reflectors or simple lenses lose light internally and to glare so not all of the light shines on target. Instead the custom-engineered TIR optic in the SS3 collects all of the light from the LED and directs it only where you need it drastically reducing glare and improving total efficiency. The total intensity of the SS3 is much greater than other LED pods using basic optics or reflectors with a standard outer lens.

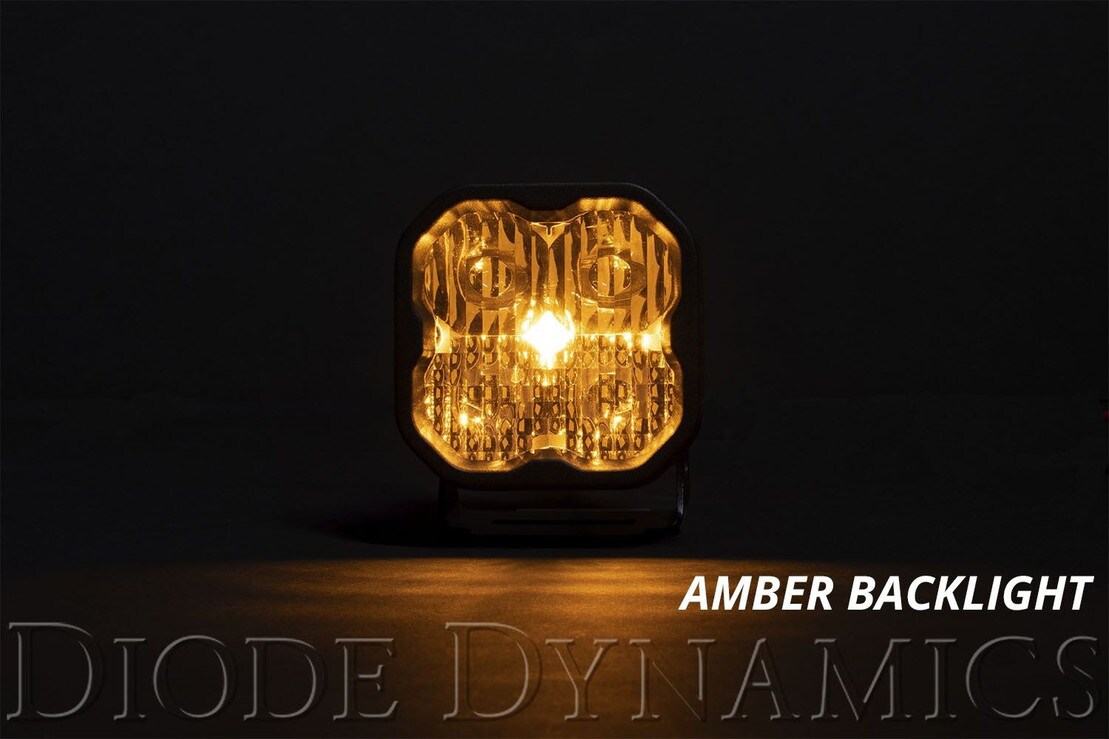

Backlight Functionality. The Stage Series 3 LED Pod is now available with a distinctive backlight in a brilliant amber color. The SS3's backlight fully illuminates the TIR optic providing a more unique and modern look than the small indicator LEDs found in other products.

Simple connections. All SS3 LED pods feature a custom-molded DT type Deutsch-style connector on the back and come with a 6-inch pigtail with bare leads.

FEATURES & BENEFITS

  • High Output Intensity: SS3 LED Pods deliver superior brightness compared to other 3 inch lights.
  • Custom TIR Optics: Directs light precisely, reducing glare and improving efficiency.
  • Amber Backlight: Illuminates the TIR optic for a unique, modern look.
  • Color Options: Available in cool white or selective yellow with sport/pro power levels.
  • Easy Installation: Includes a custom Deutsch-style connector and 6-inch pigtail with bare leads.

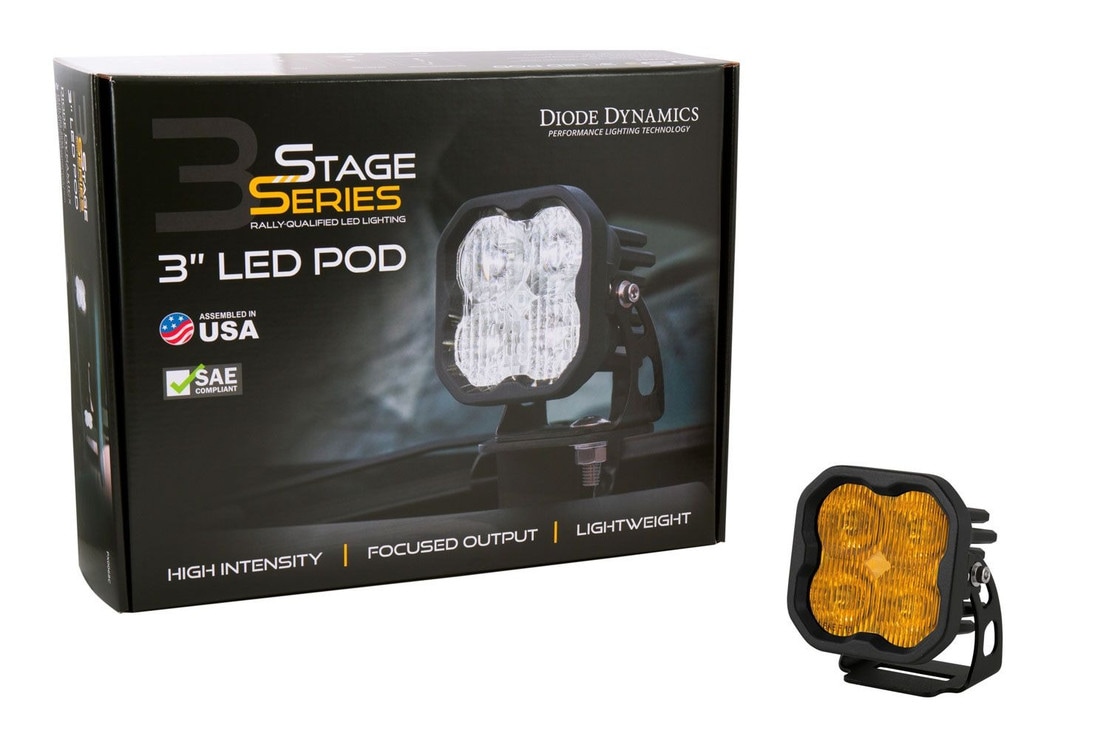

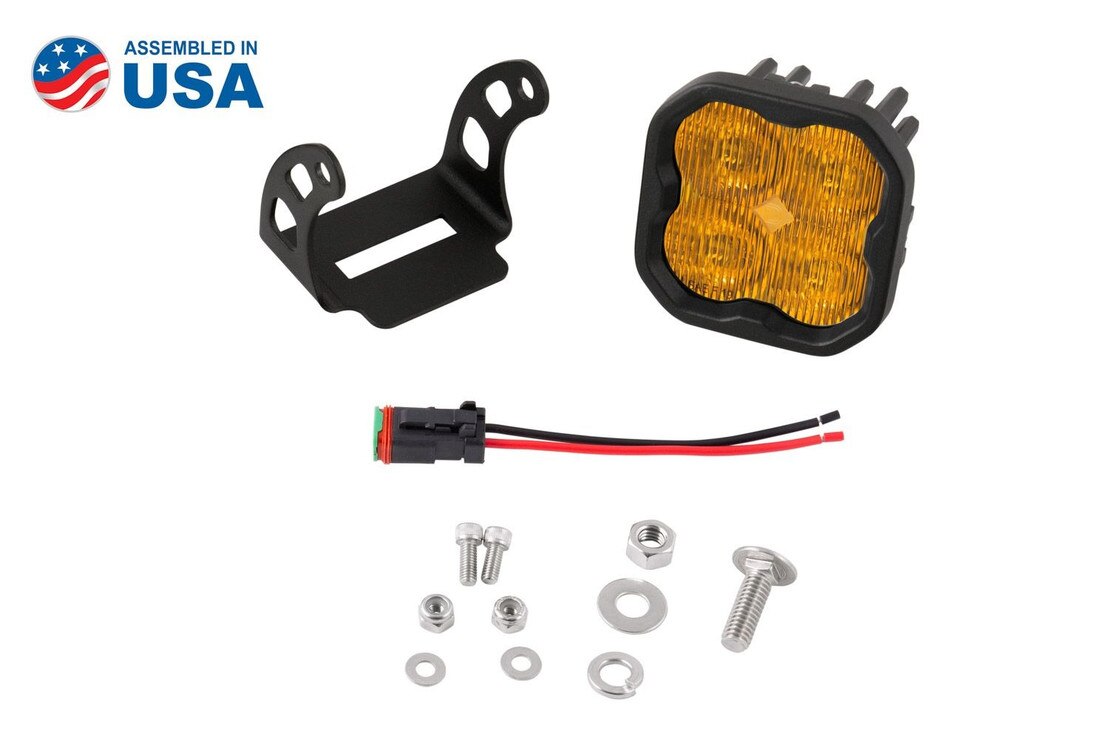

WHAT’S INCLUDED

  • Light Pod: 1x (Single) SS3 Max LED Light Pod

  • Hardware: Bracket, Mounting Hardware

  • Wiring: 1x Input Pigtail

WARRANTY INFORMATION

This product is covered by a 8 year limited warranty, serviced and supported by the manufacturer directly. This warranty does not cover modifications, alterations, or misuse. For additional information,Click Here.

TECHNICAL SPECIFICATIONS

  • Operating Voltage: 9-30V

  • Color Temp (CCT): 3000K

  • Power (watts): Main Beam:::38.5, Backlight:::0.4

  • Current (amps @ 12.8V): Main Beam:::3, Backlight:::0.03

  • Polarity: Polarity Specific

  • Operating Temperature: -40C to 85C (-40F to 185F)

  • LED Emitter: Osram Boost HX

  • Connectors: Deutsch DT Input

  • Materials: Polycarbonate Lens, Aluminum Casting, Rubber Gasket

  • Cooling: Passive, Pin-Fin heatsink

  • Intrusion Ratings: IP69K Waterproof, High Pressure

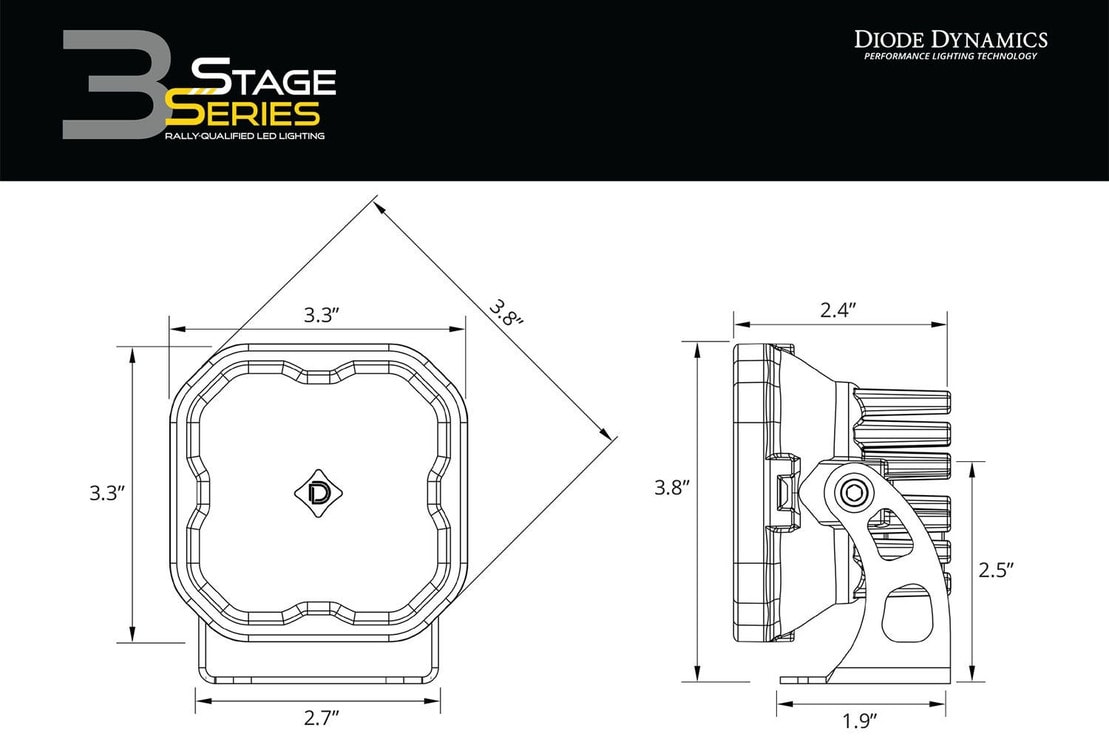

  • Product Dimensions (in): 3.3 x 3.3 x 2.4

  • Unit Weight (lb): 0.75

  • Product Weight (lb): 2.09

COMPATIBILITY

  • DD6971S: SS3 Max ABL Yellow Driving Standard (Single) (Amber Back Light)

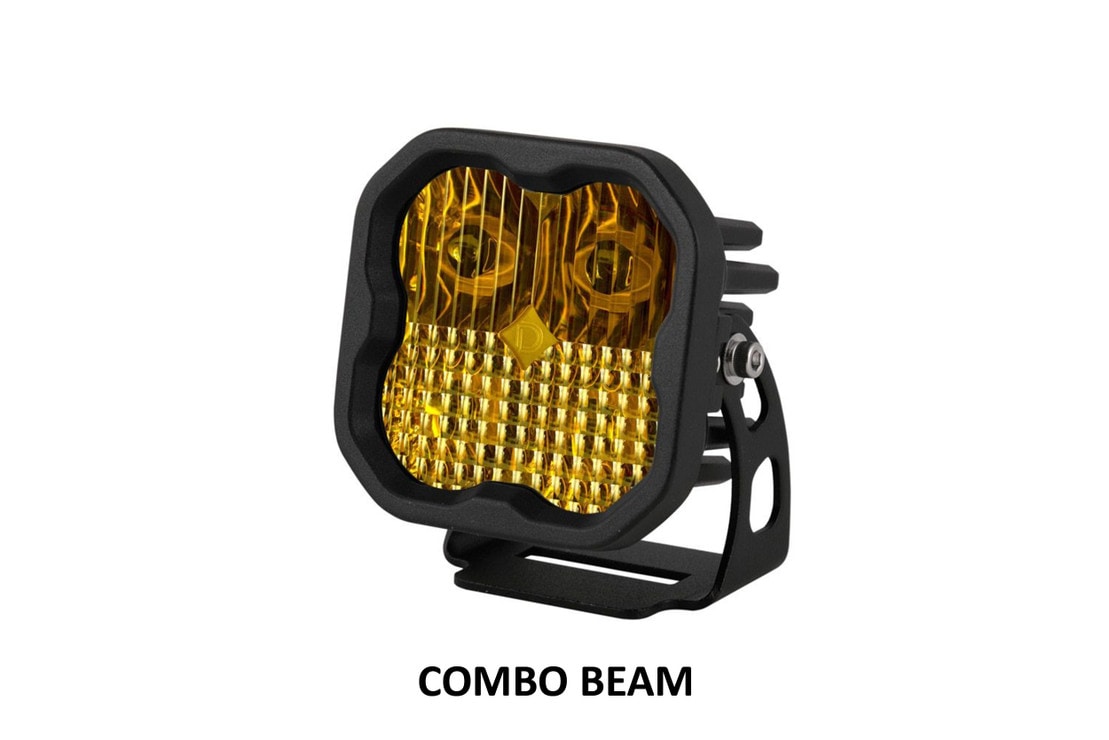

  • DD6970S: SS3 Max ABL Yellow Combo Standard (Single) (Amber Back Light)

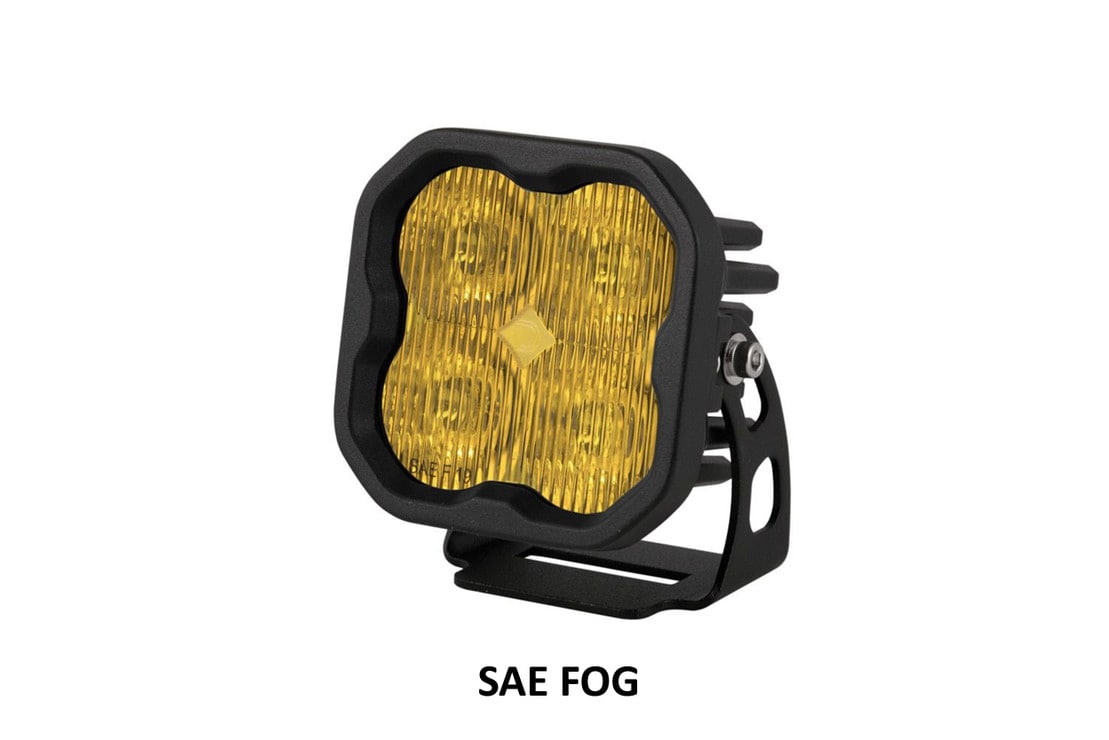

  • DD6910S: SS3 Max ABL Yellow SAE Fog Standard (Single) (Amber Back Light)

COMPLIANCE

IP69K Waterproof
