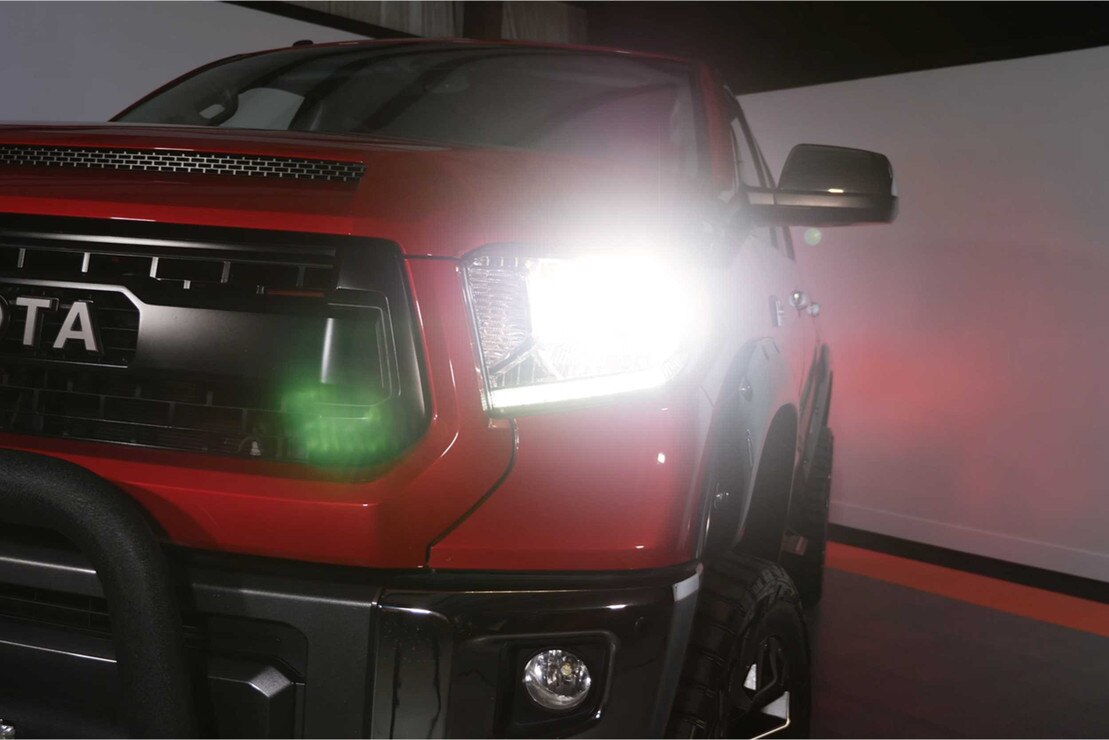

Toyota Tundra (14-21) 2Stroke 4.0 LED (Low/High Beam)

2 Reviews
Questions?

Brand: Headlight Revolution

B-HRT-0402-HR

$0.00

PRODUCT OPTIONS

PART #: 2 x LED2060



*Guaranteed Fitment
Easy Return

DESCRIPTION

Introducing the 2Stroke 4.0 LED Bulbs – the ultimate upgrade for your vehicle's headlights. Experience unparalleled brightness and superior beam quality with these DOT-compliant, plug-and-play LED bulbs. Whether you're cruising through city streets or navigating off-road terrains, the 2Stroke 4.0 delivers a remarkable 467% increase in light output compared to stock halogen bulbs. Crafted with cutting-edge technology, these bulbs recreate the original beam pattern while Mini LED Fog Light Bulbsmizing glare for oncoming traffic, setting a new standard for LED bulb performance. With an innovative micro-optic reflector, adjustable rotation, and an advanced thermal management system, these bulbs guarantee enhanced visibility, longevity, and all-weather reliability. Upgrade today and illuminate your journey like never before.

FEATURES & BENEFITS

  • Brighter Output: Enjoy 467% more light than stock halogen bulbs.
  • Enhanced Beam: Recreates original pattern with reduced glare.
  • Quick Install: DOT-compliant, plug-and-play design.
  • Optimal Direction: Fully adjustable rotation for precise lighting.
  • Reliable Cooling: Innovative system ensures long-lasting performance.

WHAT’S INCLUDED

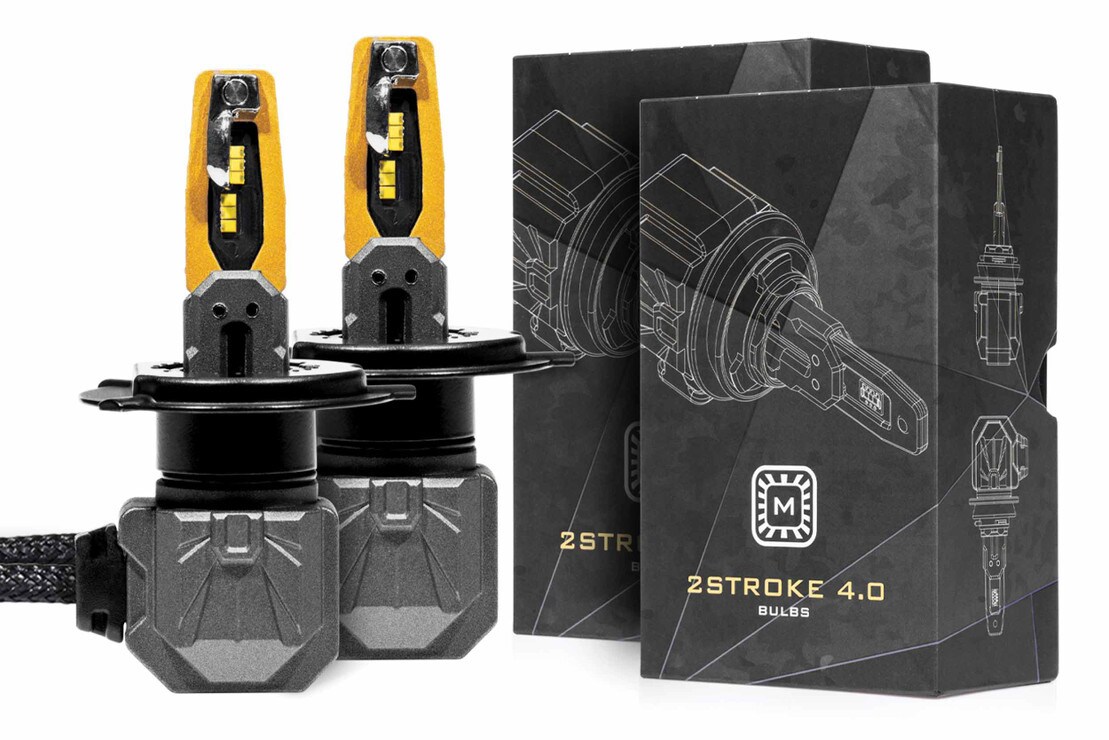

  • LED Bulbs: 2x (One Pair) H4 2Stroke 4.0 LED Bulbs

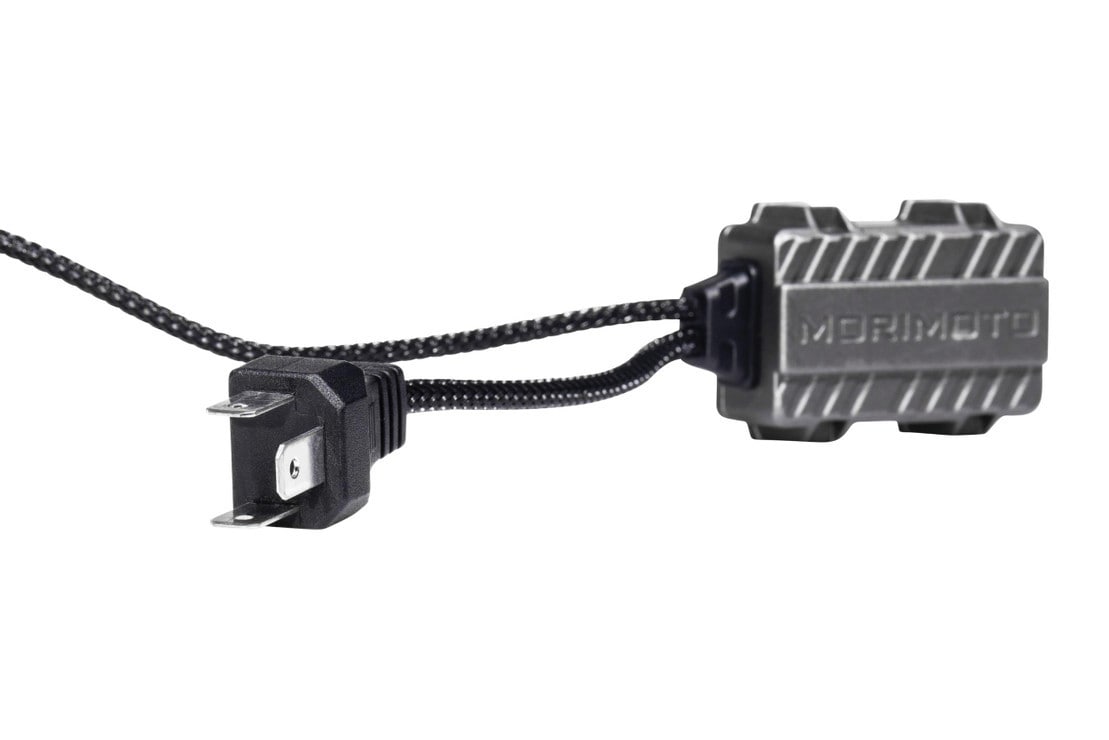

  • LED Drivers: 2x 2S3

  • Wiring: H4 Plug and Play Inputs

WARRANTY INFORMATION

This Morimoto product includes a Lifetime limited warranty, serviced and supported by the Morimoto team in Atlanta, GA. This warranty does not cover modifications, alterations, or misuse. For additional information, Click Here.

TECHNICAL SPECIFICATIONS

  • Luminous Flux: 2,600lm

  • Power: 18-22.5W

  • Input Voltage: 9V-16V DC

  • Material: Electroplated Aluminum

  • Current: 1.5-1.88A @ 12V DC

  • Light Source: Luxeon Z ES 5500K (Pure White)

  • Patent:US Patent #11079090 (Click for Details)

COMPATIBILITY

  • Toyota Tundra: 2014-2021

  • Housings: Designed for, and confirmed to fit, Stock Housings

COMPLIANCE

APPLICATION: HID and LED bulbs are street legal in the USA for Fog Light use only. Not compliant with DOT / FMVSS108 and not street legal in the USA for Headlights. Legal for off-road use in Snowmobile and ATV headlights and off-road racing use only auxiliary or forward lighting. International street legality varies by country. For detailed clarification on street use, CLICK HERE
Note: This usage regulation is not unique to this item. All LED and HID bulbs from all other brands, regardless of marketing claims, are prohibited from street use in halogen headlights in the USA.

HOMOLOGATION ECE: NO

DOT/SAE/FVMSS108: NO (NOT STREET LEGAL IN HEADLIGHTS IN USA)

INSTALLATION DOCUMENTS

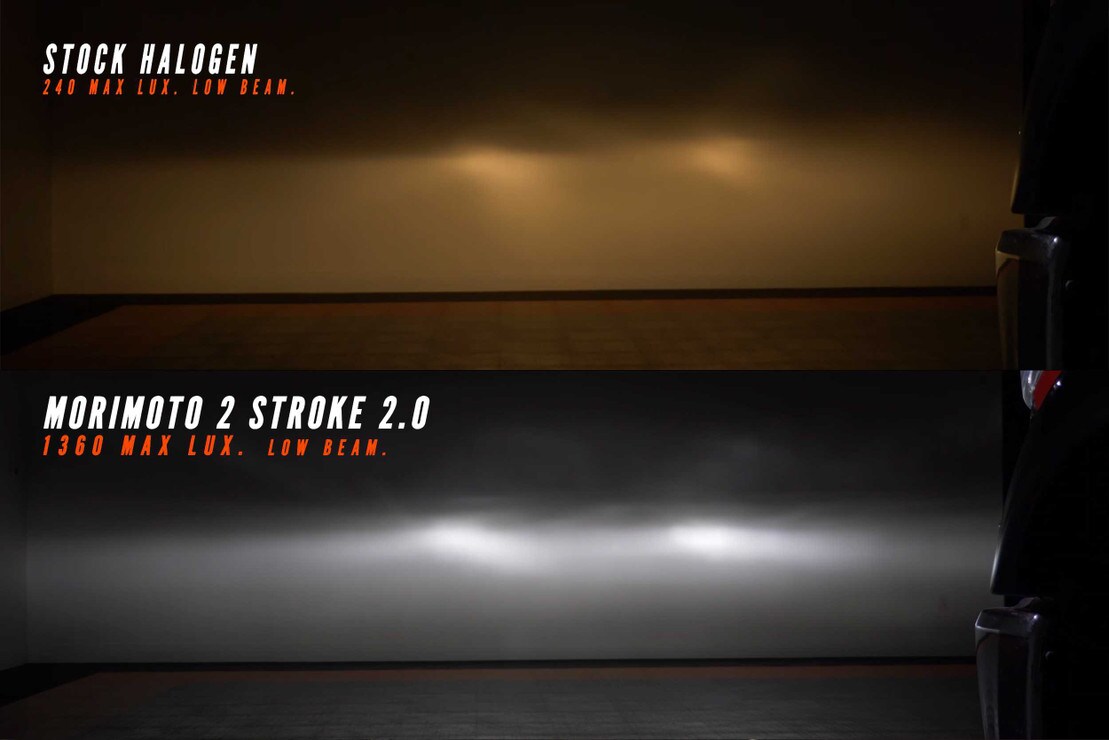

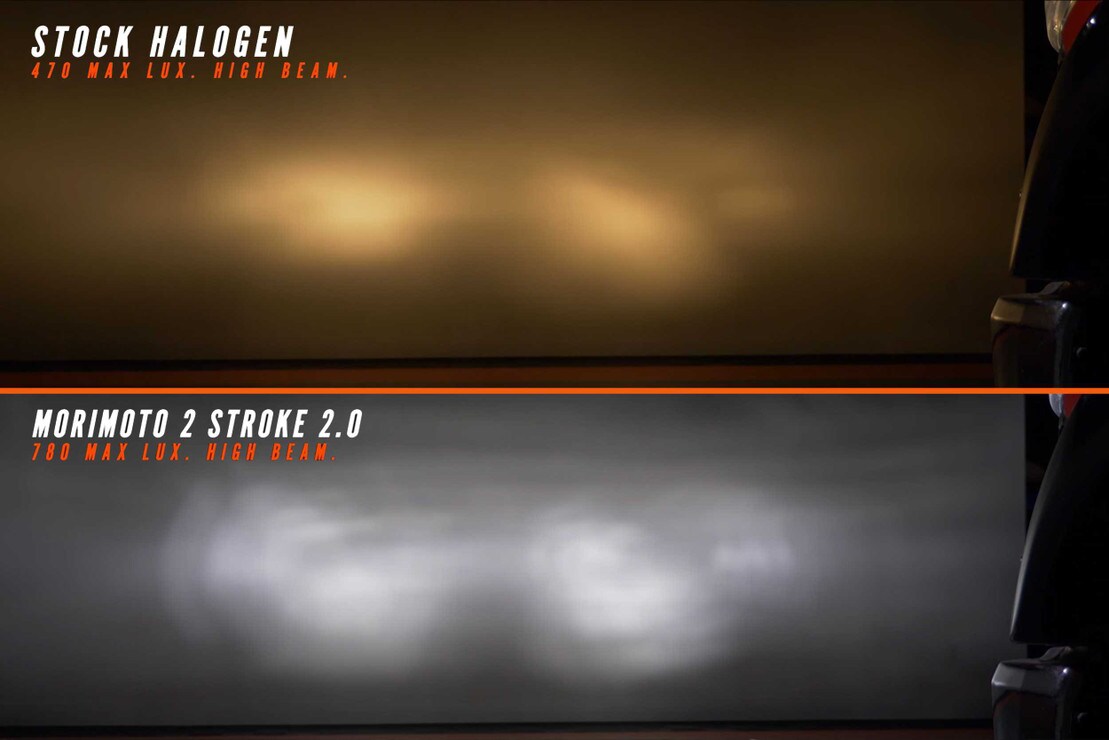

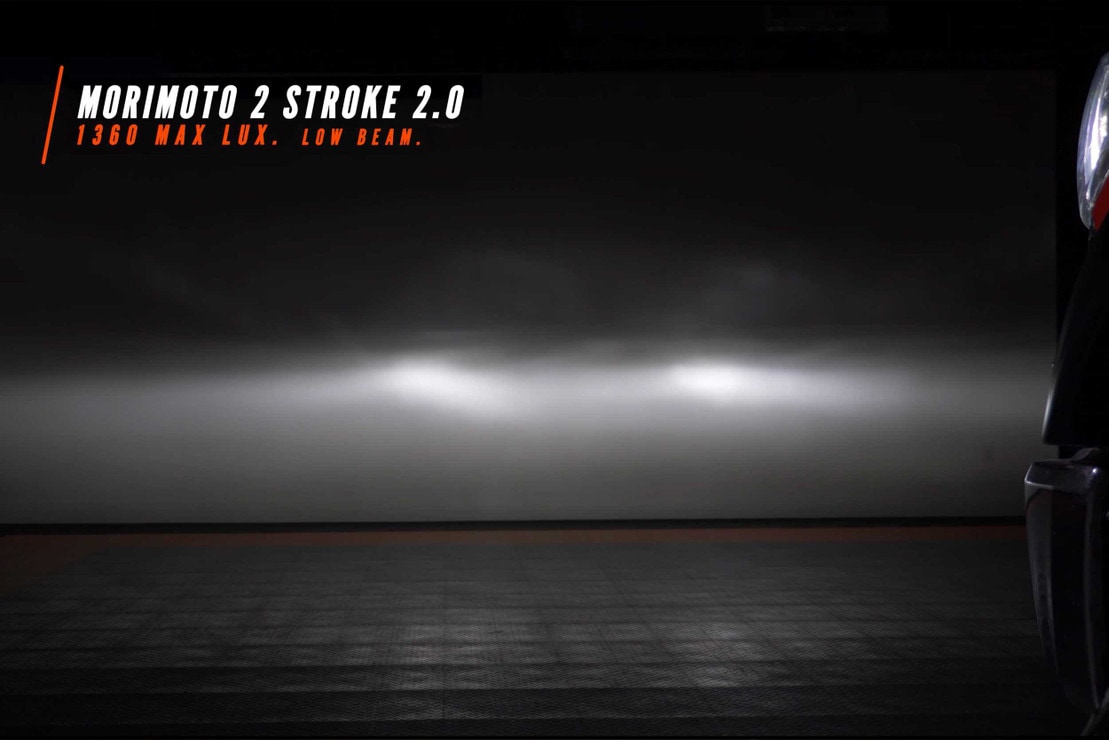

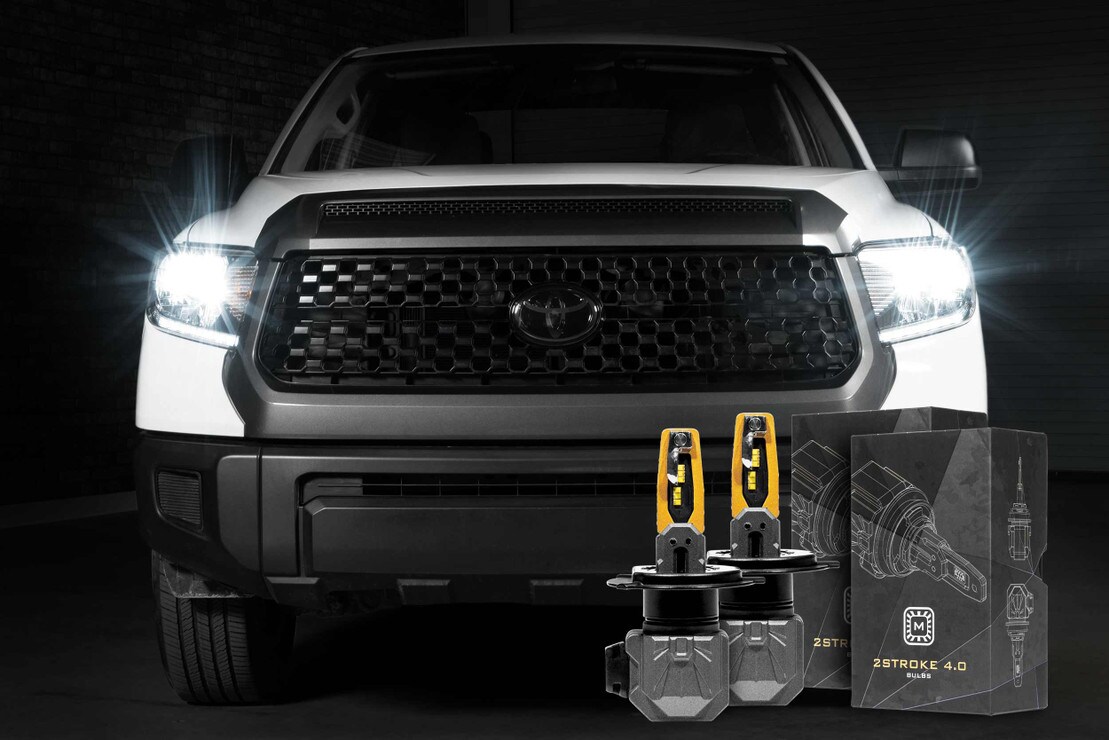

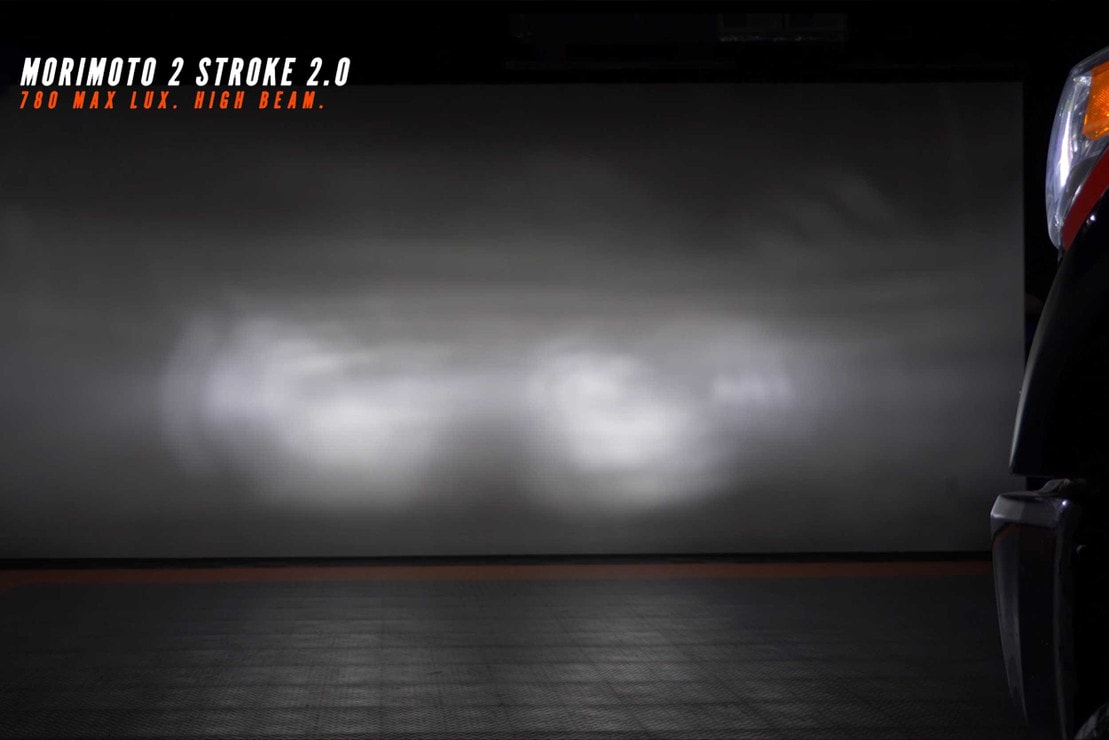

Tundra Headlights: The best option for upgrading your Tundra headlights is to go with the Morimoto XB LED headlights - they are DOT compliant, plug and play, bright and look awesome. But if you have an off-road use vehicle the Morimoto 2Stroke 3.0 LED bulbs are an easy option that produce 467% more light than your stock halogen headlight bulbs. Watch the video to see all the options, and the easy install steps.


Benchmark: While the rest of the industry has been asleep at the wheel in this category, Morimoto was hard at work developing the successor to the incredible 2Stroke 3.0 LED bulbs. The 4.0 re-creates the original beam pattern from your optics effectively by doing more with less. They will put more light on the road for you as the driver, while creating less glare for oncoming traffic compared to any other LED bulb on the market today. While LED bulbs still aren't DOT approved for use in headlights in the states… foreign markets and fog light users can enjoy the best plug n play LED bulb to date. The 2Stroke 4.0. (Featuring technology patented by Morimoto)


Superior Beam Quality: The advanced Aluminum Nitride Ceramic circuit board in the center of the 2S4 sets allows the bulbs to produce the most precise beam pattern possible, with its 1.45mm surface-emission interval. For reference, the tungsten filament in a halogen bulb is 1.4mm, and the previous record for an LED bulb was 2.0mm, set by the outgoing 2Stroke 3.0 bulb! Using the industry-first ceramic PCB, we have eliminated the need for the dielectric layer and a separate thermal element, which, in combination with the Osram Oslon HJL531.TE LED chips makes for unmatched performance when used in all reflector and projector-based headlights designed for halogen bulbs.


Optimized focal length: Each size in the 2Stroke 4.0 lineup has been painstakingly optimized for proper output in its designated application. The critical reference distance has been calculated based on the geometry of the bulb base and the footprint of the Osram HJL531 emitter. To ensure consistency, special tools were designed to quality-control the accuracy of each bulb as it comes off the production line. Most other LED light bulbs on the market use a 'set it and forget it' reference distance across all sizes in the series, making for sub-optimal focus in most applications... not the case with the 2Stroke series of bulbs.


Integrated Micro-optic Reflector: The 2Stroke 4.0 H4 bulb has an innovative low beam shade cup with a built-in micro-optical reflector inside that enables their ability to illuminate reflector surfaces above the bulb. In a typical H4 application, only about 30% of the raw lumens are projected on the road as forward illumination. With this special optic, about 40% of the lumens will be projected onto the road. The region of the reflector directly above the bulb is responsible for a critical amount of light within the beam pattern, making this patented feature a serious performance advantage over other H4 LED headlight bulbs. US Patent #11079090


360 degrees of Rotation: Since no single standard exists across different headlight and fog lights, all bulbs in the 2Stroke 4.0 range are fully adjustable so that you can dial-in the position of the LED chips so that they sit perfectly at the 3 and 9-o-clock positions. On the previous gen bulbs, the gears on the base were prone to slipping when locking it into your headlight, but the new system is immune to that. In summary, setting up the alignment of your bulbs is now easier than ever!


Thermal management: The 2Stroke 4.0 uses an upgraded version of the patented system we first employed on the 3.0 bulbs. This unique cooling system uses a 12,000-rpm dual-layer fan to suck cool air into the body of the bulb and blow warm air out, back into the housing. On the intake side, cold air is sucked in past the sidewall of the PCB to exchange heat and is blown out the opposite side of the bulb. This effectively cools the bulb while warming the ambient temperature inside of the housing, increasing resistance to snow/ice buildup on the lens during the winter months. With even more static pressure than the previous version, the cooling system on the 2Stroke 4.0 maximizes longevity of the bulb, while serving up a bad-weather benefit not found elsewhere.


Unique Drive Logic: The LED drivers are programmed to start up at a conservative 18W, and then ramp-up in power over the first 15 minutes before stabilizing at 22.5W. Unlike every other bulb in the aftermarket which lose output intensity over the first 15 minutes of runtime (as the system heat-soaks), the performance from the 2Stroke 4.0 remains impressive from the moment you pull out of the driveway till the moment you park the car.


Lifetime Warranty: The Morimoto 2Stroke 4.0 bulbs are produced using the latest OE-grade materials, electronics, and LEDs for the automotive industry. The conservative LED drive rates and highly effective thermal management systems make for low operating temperatures. All of this adds up to a bulb that is designed to last, and that’s why they are backed with an industry-leading lifetime warranty.
