HR Tested Fit and Function

2002-2005 Dodge Ram Ultra 2 LED (Low/High Beam)

X.0305RAM.U2.HEAD-HR

PART #: 2 x GTR.LED736, 1 x GTR.H121



    • DOT COMPLIANCE ACKNOWLEDGMENT
    • 9007/9004: GTR Ultra Series 2.0 (Hi/Lo)

Usage:

DOT Reg'd:

Street-Legal:

For more information on street legality in the US, click HERE

[ In Stock: 0 pieces ]

Product Details

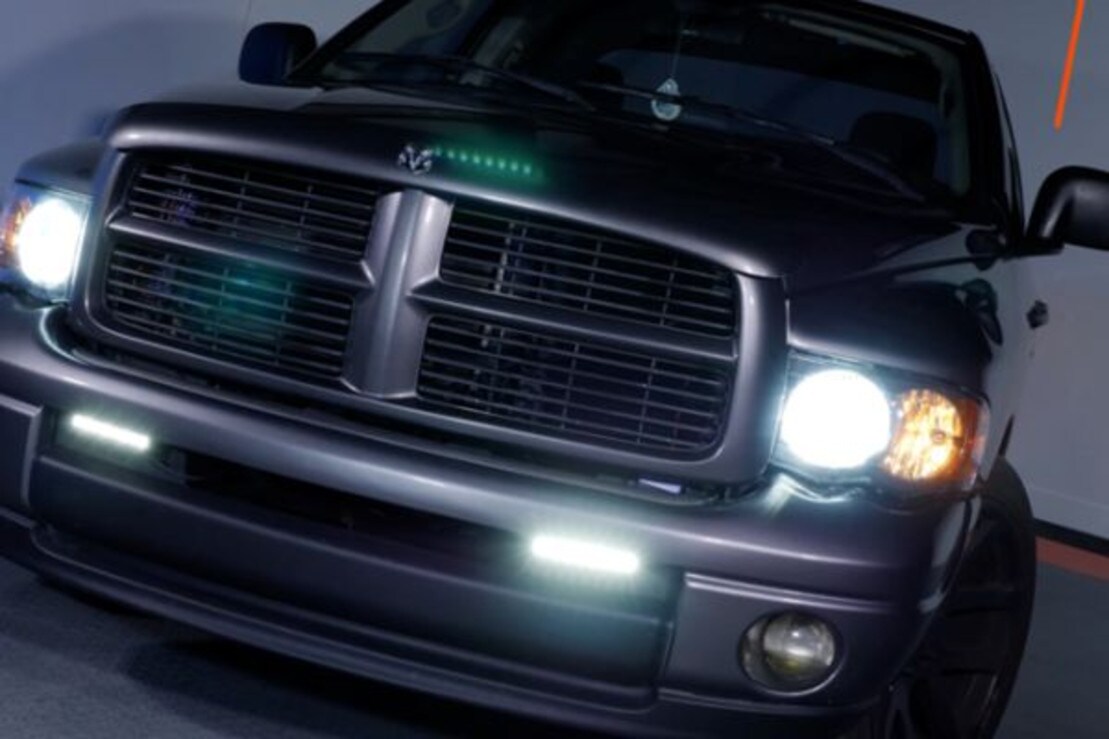

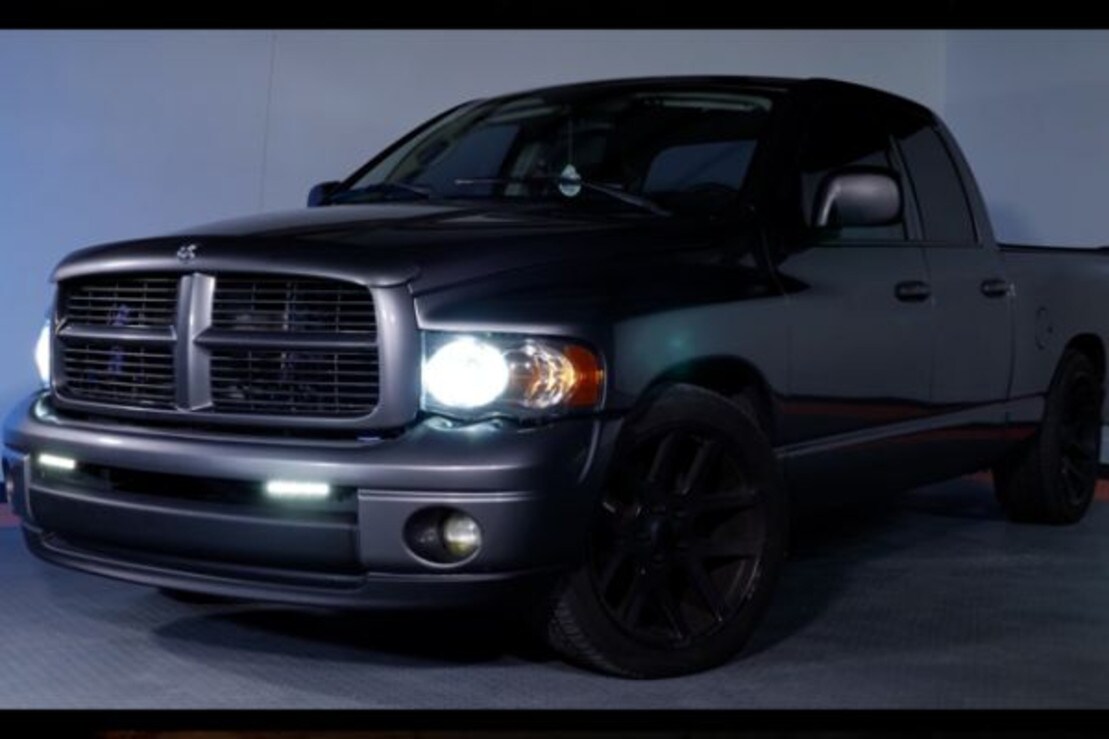

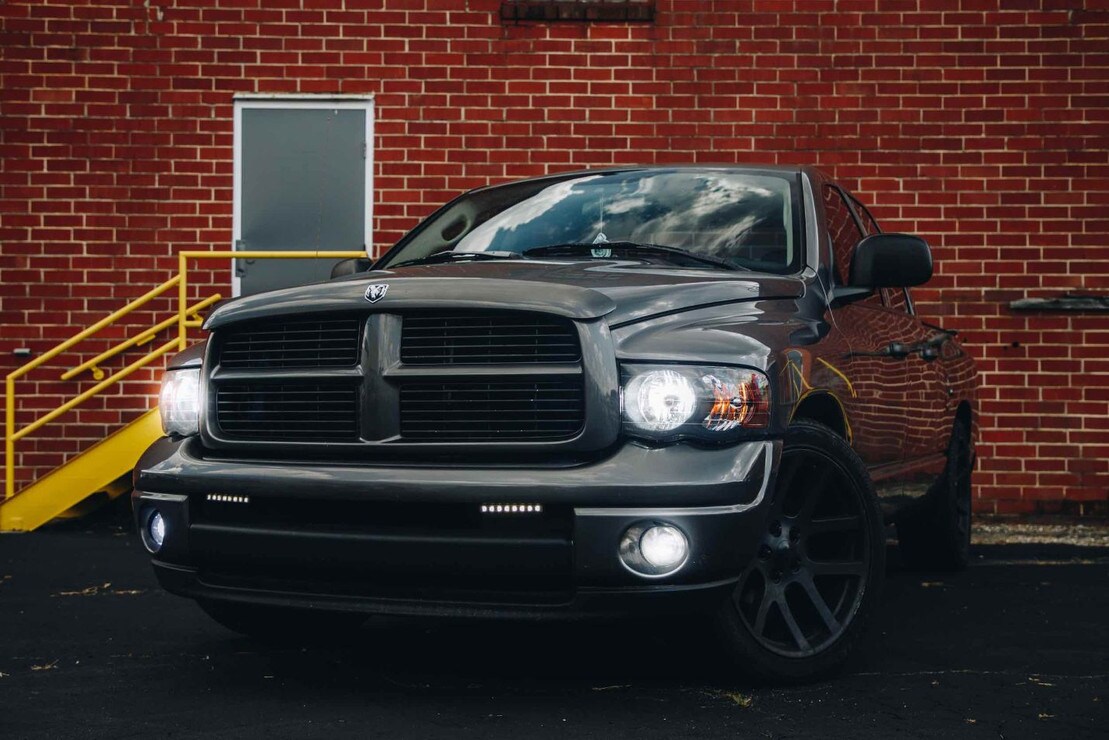

2003-2005 Dodge Ram LED Headlight Bulbs: Looking for upgraded LED Headlight bulbs from a reputable brand and value the fact that we've actually tested them on your truck? Our HR Tested kits include all the right components to ensure perfect fit, function, and performance from the upgrade. At Headlight Revolution, we do 2003-2005 Dodge Ram LED lighting upgrades better!

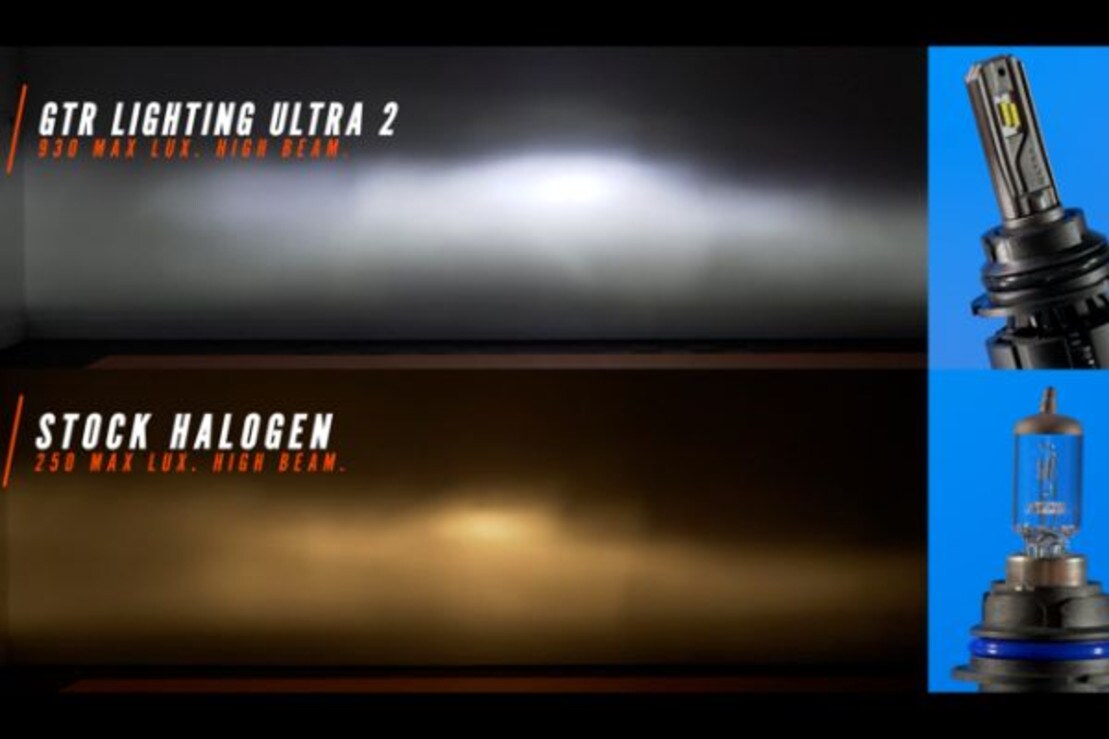

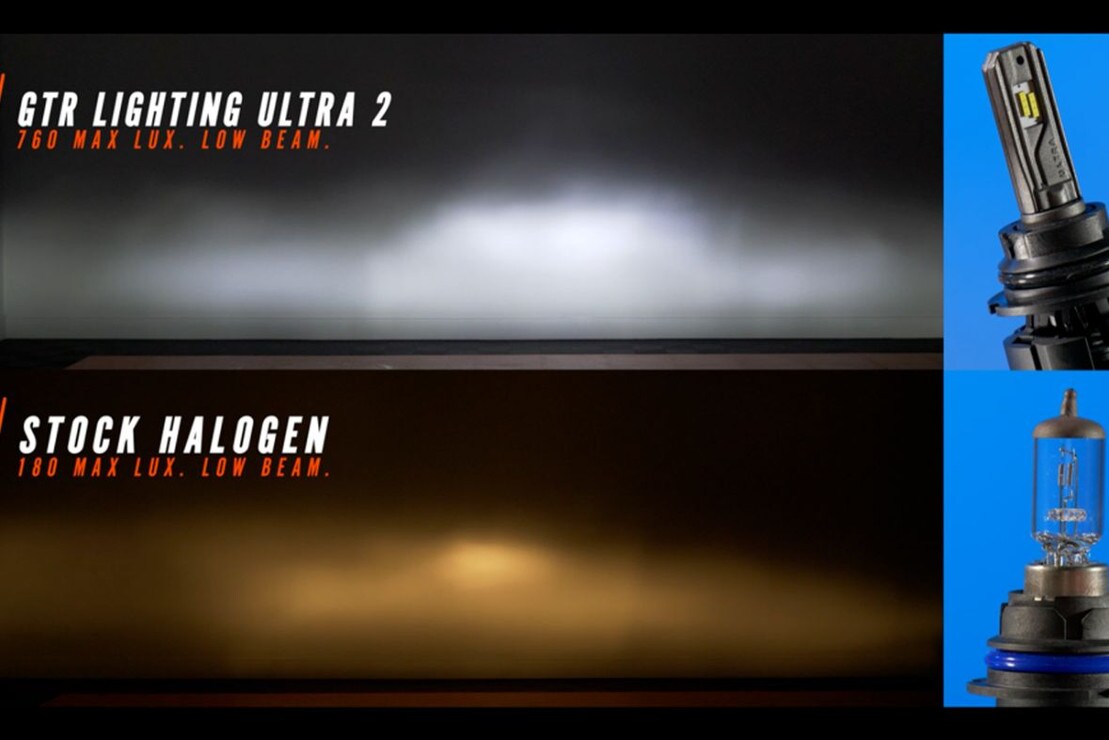

When testing: all the different LED headlight bulb options out there for the 2003-2005 Dodge Ram trucks we found the best of the best in lighting performance - both brightness and beam pattern - from the GTR Lighting Ultra 2. Make sure you watch the video to see the full range of testing and install guide before buying! If you want the best of the best - to keep you safe at night - this is a great option. Kit includes everything you need to do the install - 2 Ultra 2 LED headlight bulbs and 2 vehicle-specific resistor harnesses.

Better than Ever: After nearly a decade of experience developing and refining our designs, sourcing the best quality raw materials, and gathering feedback from end-users on what makes the best LED bulb with the most effective beam pattern; Were proud of the new Ultra 2. This an LED bulb upgrade that is brighter. That has a better beam pattern. Lasts longer. Has more adjustability. And is easier to install. It sets an all-new standard for what products in their class bulbs should be, and were proud to call it our own.

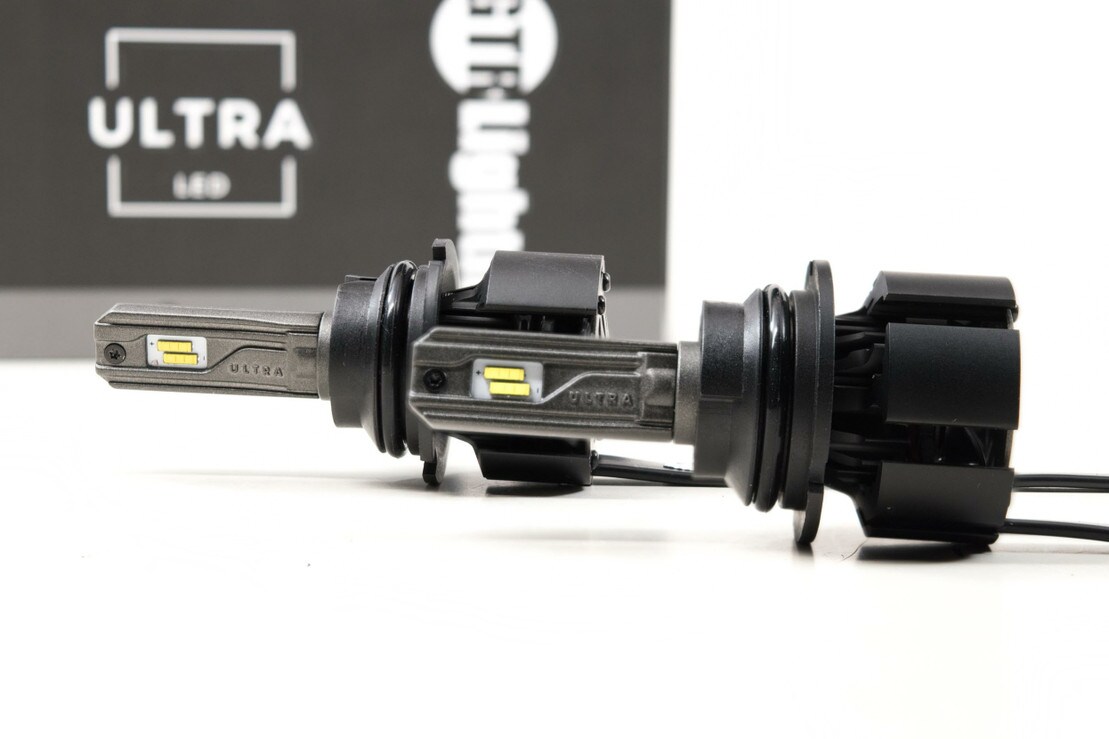

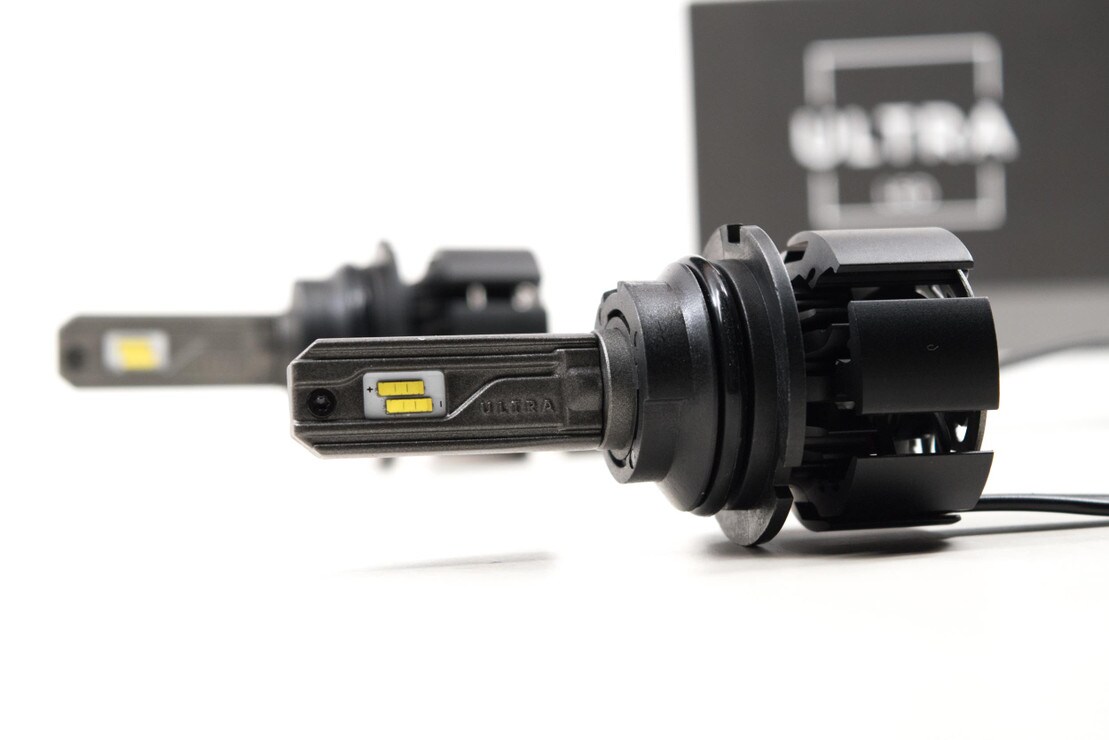

Brighter: The Ultra Series 2 bulbs from GTR Lighting utilize the best automotive grade multi-core LED chip technology to deliver ultra-bright light, in an ultra-focused beam pattern! Not only do the elec-tec automotive-grade NLW753 chips have more lumen density than popular (but now aging) options from CREE and Philips, but theres more to it. We have optimized the position of the LEDs so that once locked into the headlight, they are directly in-line with what the optics of the projector or reflector was designed for which will provide you, the driver the most useful and safe beam pattern. The collars have full rotational adjustability. Put simply: Youll see a lot more, but without producing extra glare to oncoming traffic.

More Reliable: Performance aside, these are the last LED headlight bulbs you'll ever need! After many simulations, we arrived at a heat-sink design that is not only extremely effective at keeping the body of the bulb >80C, but looks cool too. Since maintaining low operating temperatures is key to LED lifespan, weve paired that with a bearing-less fan to actively cool the heat sink as well. The housing on our LED drivers is completely potted inside too, which is only possible with expensive-to-produce die-cast housings like the one that the Ultra 2 uses. Keeping cool and all components dry is crucial, and the Ultra 2 checks all the boxes.

Better Fitment: We challenge you to find an alternative that produces the same amount of output with the same small footprint that the Ultra 2 has. Here we took a balanced approach between maximizing output and minimizing geometry so that theyll fit in every application. Too much power and an inadequate heatsink? Premature failure. Too much power and a massive heat sink? Great, but wont fit anywhere. Due to their superior optical focus they can create up to 10x more usable light than other LED bulb options even though they only produce 4,100 Lumen of light. If you're looking for the brightest option thats a sure fit, you've found it.

Best Warranty: You can hit the road knowing that youll be backed with a Limited Lifetime warranty from here on out. If in the rare case something goes wrong, GTR Lighting will replace the product quickly.

HR Tested: Here at Headlight Revolution, we've spent the time to install and test all HR Tested products, so we know it'll work exactly as shown and right out of the box! Not only that, but we don't favor one particular brand. We just deliver the best product for the application, period. Be sure to reference our install videos for helpful tips on making the installation process quick, painless, and clear. HR Tested: We ensure fitment and function. You do the install. For other compatible upgrades, use the Buyers Guide on our homepage!

Product Specs

  • What's Included

  • ULTRA 2 LED BULBS: 2x (One Pair)

  • WARRANTY: Limited Lifetime

  • Compatibility

  • CONFIRMED FITMENT: 2003-2005 Dodge Ram

  • Tech Specs

  • COLOR RATING: 6000K (white)

  • RAW LUMENS: 3900lm

  • REAL LUMENS: 3350lm

  • INPUT RANGE: 11-30V DC

  • WATTAGE: 41.5W (low beam)

  • WATTAGE: 30W (Hi/Lo)

  • LIGHT SOURCE: Elec-Tech NLW7535CV3

Product Reviews

5 out of 5 stars

1 Review   Write a Review

5 out of 5 stars

So far so good

Michael Faccenda

At first I decided to go the cheap route and get a set of LED bulbs on amazon which was a terrible idea and they didnÄôt work, then I said said screw it and buy the more expensive but correct bulbs and so far these bulbs are great I did have to re-align and re-adjust my headlights tho and there were some extort wiring in the back of the housing so I zip tied it all together to look good. Overall so I fair really like them
